JicTech 2.66-inch Tri-Color E-Paper Display Module (Model: JS0266HNP16-TNG-A0)
Overview
The JS0266HNP16-TNG-A0 is a 2.66-inch active matrix electrophoretic display (AMEPD) module capable of displaying three distinct colors: black, white, and red. Designed for ultra-low power consumption and high readability, it integrates an SPI interface, internal temperature sensor, and on-chip waveform storage, making it an ideal solution for battery-powered and always-on display applications.
Key Features
Tri-Color E-Paper Display: Black, white, and red output for enhanced visual communication
High Resolution: 152 × 296 pixels (125 DPI) with sharp text and graphic rendering
Ultra-Low Power Consumption: Deep sleep current ≤ 3 µA; no power needed to maintain image
SPI Interface: Supports 3-wire or 4-wire SPI for flexible MCU integration
Built-in Temperature Sensor: Enables adaptive waveform control for optimal performance
Wide Viewing Angle & Anti-Glare Surface: Ensures clear visibility in various lighting conditions
RoHS Compliant & Reliable Design: Rated for 5-year operational lifetime
Compact & Lightweight: Outline dimensions: 36.3mm × 71.82mm × 0.9mm; weight ≈ 5g

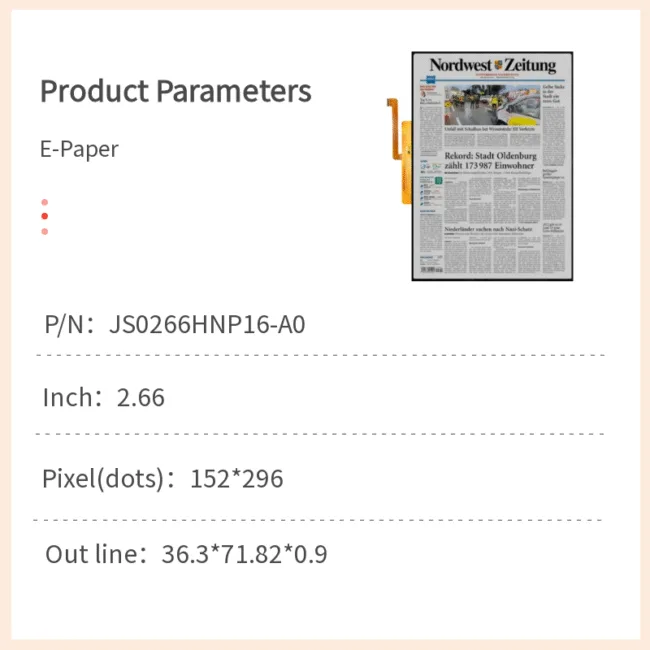

Technical Specifications
| Parameter | Specification |
|---|---|
| Active Area | 30.70mm (H) × 60.09mm (V) |
| Pixel Pitch | 0.202mm × 0.203mm |
| Display Colors | Black, White, Red |
| Supply Voltage (VCI) | 2.5V – 3.7V (3.0V typical) |
| Interface | 24-pin FPC, 0.5mm pitch, SPI configurable (BS1 pin selectable) |
| Operating Temperature | 0°C to +40°C |
| Storage Temperature | 0°C to +40°C (up to 5 years) |
| Refresh Time | Dependent on waveform and temperature |
| Contrast Ratio | 15:1 typical (white/black) |
| White State Reflectance | 35% typical |
Rigorous Reliability Validation
Certified for commercial deployment through comprehensive testing:
| Test | Condition | Duration | Compliance |
|---|---|---|---|
| Temperature Cycling | -25°C ↔ +60°C | 50 cycles | IEC 60068-2-14 |
| High-Humidity Operation | +40°C, 90% RH | 168 hrs | IEC 60068-2-30 |
| Mechanical Vibration | 1.04G, 20-200Hz | 3 axes | ISTA Procedure |
| Drop Resistance | 100cm height | 10 impacts | ISTA 3A |
| UV Resistance | 765W/m² @ 40°C | 168 hrs | MIL-STD-810G |
| ESD Protection | ±250V (Machine Model) | Multiple | IEC 62179 |
Applications
Electronic shelf labels (ESL) and retail pricing systems
Inventory and logistics tracking tags
Portable medical devices and health monitors
IoT sensors and smart agriculture displays
Public information boards and low-power signage
Customization & Support
JicTech offers flexible small-batch customization services, including:
Connector type and FPC length adaptation
Waveform optimization for specific temperature ranges
OTP programming for VCOM and user ID
Custom packaging and labeling
Firmware support for SPI communication and power sequencing
Environmental hardening for extended temperature or humidity ranges
Reliability & Testing
The module undergoes rigorous environmental and reliability tests, including:
High/low temperature operation and storage
Thermal cycling (-25°C to +60°C)
Vibration and drop tests (ISTA standards)
UV exposure and ESD protection
5-year lifetime validation under typical operating conditions
