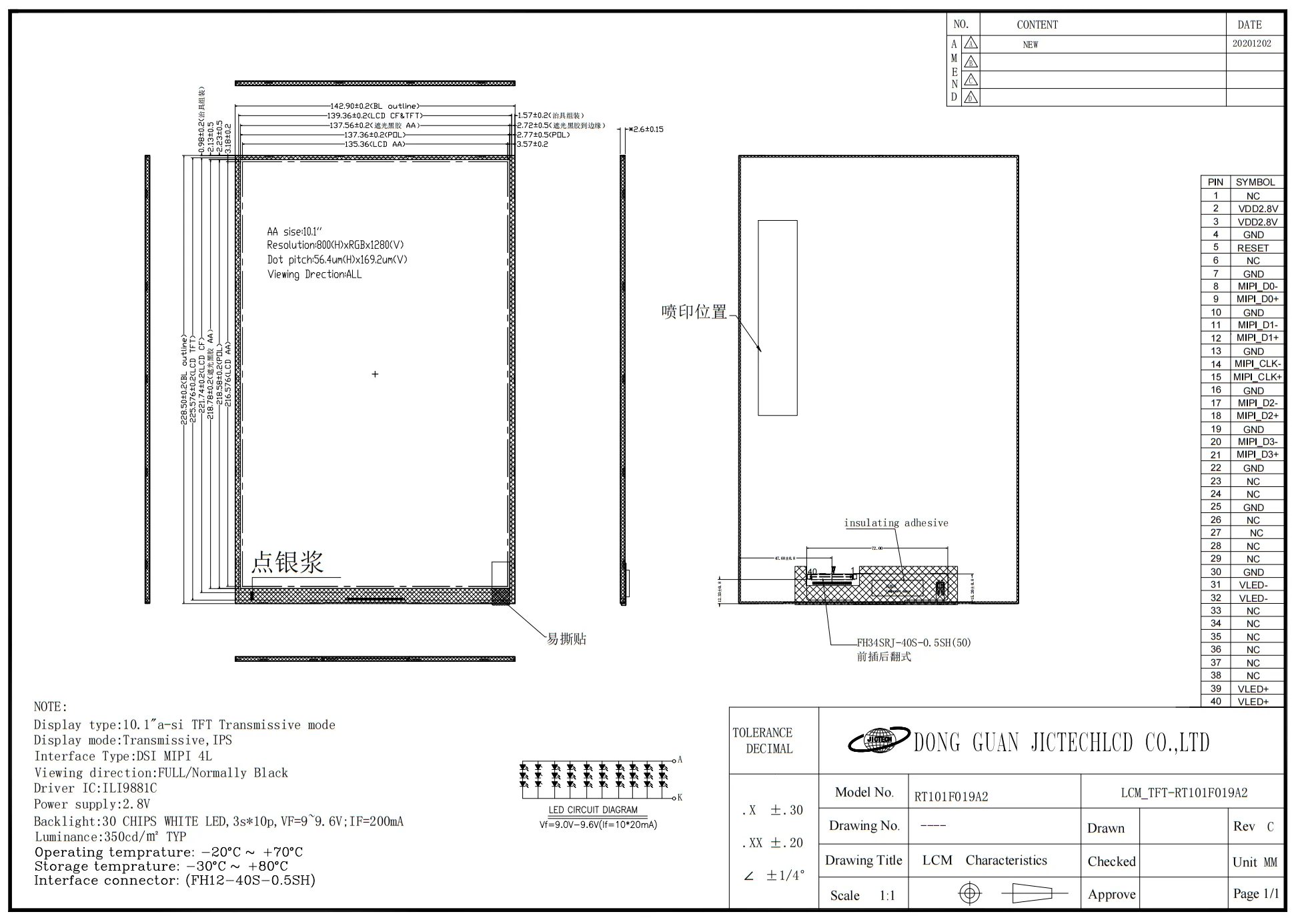

Design Drawings

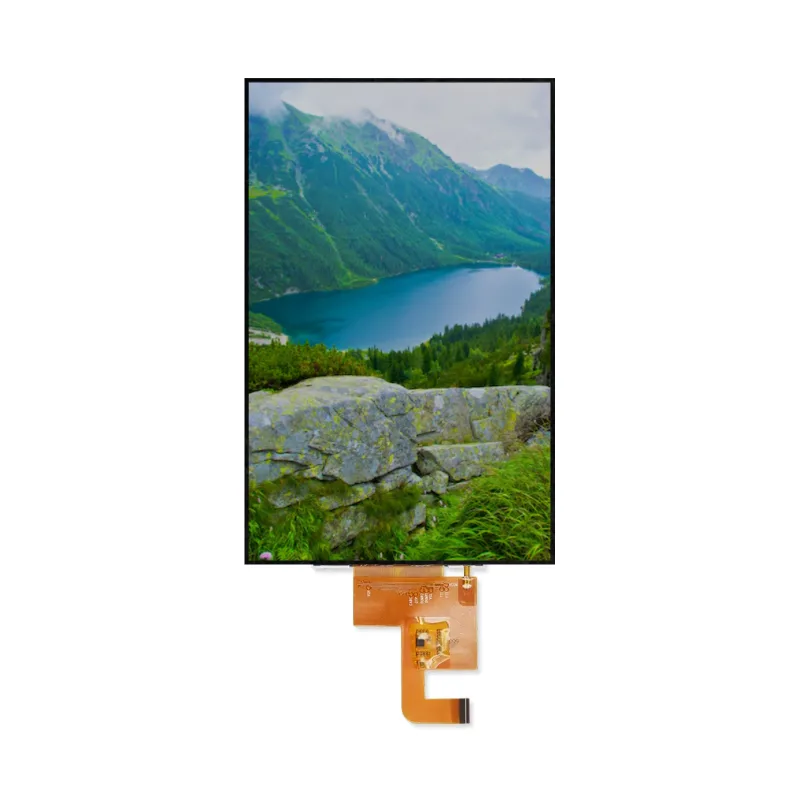

JicTech 10.1-inch HD IPS TFT LCD Display Module (Model: RT101F019A2)
Overview
The RT101F019A2 is a high-quality 10.1-inch TFT LCD module featuring an IPS panel for consistent color and clarity across wide viewing angles. With HD resolution (800×1280), MIPI interface, and a slim design, it is built for applications requiring reliable performance in compact and versatile display systems.
Core Technical Advantages
| Feature | Specification | Engineering Benefit |
|---|---|---|
| IPS Technology | All-direction viewing angle | Consistent visuals from any orientation |
| Resolution | 800(H) × 1280(V) | High-density information display |
| Profile | 2.6mm thickness | Enables ultra-thin portable devices |
| Interface | 4-lane MIPI DSI | High-speed data transfer with EMI reduction |
| Operating Range | -20°C to +70°C | Reliability in industrial environments |
| Backlight System | 30 LEDs (3S10P configuration) | Uniform illumination with 350 cd/m² brightness |
Detailed Technical Specifications
Mechanical Specifications
| Parameter | Value | Unit |
|---|---|---|
| Active Area | 135.36 × 216.576 | mm |
| Outline Dimensions | 142.90 × 228.50 × 2.60 | mm (W×H×T) |
| Pixel Pitch | 0.0564 × 0.1692 | mm |
| Display Mode | Normally Black | – |
| Surface Treatment | Anti-Glare | – |
Electrical Specifications
| Parameter | Min | Typ | Max | Unit |
|---|---|---|---|---|
| Logic Supply Voltage | 2.5 | 2.8 | 3.6 | V |
| I/O Supply Voltage | 1.65 | 1.8 | 3.6 | V |
| Backlight Voltage | – | 9.0 | 10.0 | V |
| Backlight Current | – | 200 | 260 | mA |
| Total Power Consumption | – | – | 8.11 | W |
Optical Performance
| Parameter | Min | Typ | Max | Unit |
|---|---|---|---|---|
| Brightness | 300 | 350 | – | cd/m² |
| Contrast Ratio | – | 800 | – | :1 |
| Luminance Uniformity | 80 | – | – | % |
| Response Time | – | 35 | – | ms |
| Viewing Angle (CR≥10) | 80 | 85 | – | ° |
| Color Gamut (NTSC) | – | 69% | – | – |
MIPI Interface Pinout (40-pin FH34SRJ connector)
| Pin | Symbol | Function |
|---|---|---|
| 2-3 | VDD2.8V | 2.8V power supply |
| 5 | RESET | Display reset control |
| 8-9 | DSI_D0± | MIPI differential data pair 0 |
| 11-12 | DSI_D1± | MIPI differential data pair 1 |
| 14-15 | DSI_CLK± | MIPI clock differential pair |
| 17-18 | DSI_D2± | MIPI differential data pair 2 |
| 20-21 | DSI_D3± | MIPI differential data pair 3 |
| 31-32 | VLED- | Backlight cathode |
| 39-40 | VLED+ | Backlight anode (9-10V) |
Industrial Reliability Testing
| Test | Condition | Duration | Standard |
|---|---|---|---|
| High Temp Storage | 80°C | 24 hours | IEC 60068-2-2 |
| Low Temp Storage | -30°C | 24 hours | IEC 60068-2-1 |
| High Temp Operation | 70°C | 24 hours | – |
| Low Temp Operation | -20°C | 24 hours | – |
| Temperature Cycling | -20°C ↔ 70°C | 5 cycles | IEC 60068-2-14 |
| Humidity Resistance | 60°C/90% RH | 12 hours | IEC 60068-2-78 |
| Vibration Resistance | 1.5mm @ 10-55Hz | 30 min/axis | MIL-STD-202G |
| ESD Protection | ±8kV air/±4kV contact | 10 discharges | IEC 61000-4-2 |
Target Applications
| Industry | Use Cases | JicTech Advantage |
|---|---|---|
| Industrial Automation | HMI Control Panels, PLC Interfaces | Wide temperature operation (-20°C to +70°C) |
| Portable Devices | Handheld Terminals, Medical Devices | Ultra-slim 2.6mm profile |
| Embedded Systems | IoT Gateways, Control Systems | Low-power MIPI interface |
| Consumer Electronics | Portable Monitors, Gaming Devices | IPS technology with 85° viewing angles |
| Test & Measurement | Portable Diagnostic Equipment | High resolution (800×1280) |
Key Features
10.1-inch IPS Display: Full viewing angle with consistent color and brightness
HD Resolution: 800×1280 pixels, 16.7M colors
MIPI Interface: High-speed data transmission, 4-lane configuration
High Brightness: 350 cd/m² typical for clear visibility
Wide Operating Temperature: -20°C to +70°C
Slim Profile: Module thickness of only 2.6mm
30-LED Backlight: White LED array with constant current drive
Robust Construction: Meets industrial reliability and ESD standards
Defect Classification:
| Defect Type | Acceptance Criteria |
|---|---|
| Black/White Spots | ≤0.15mm in active area |
| Bright Spots | 0 defects allowed |
| Line Defects | ≤0.03mm width, ≤1.0mm length |
| Contrast Variation | ≤0.3mm spot size |
Technical Specifications
Active Area: 135.36mm (H) × 216.576mm (V)
Pixel Pitch: 0.0564mm (H) × 0.1692mm (V)
Contrast Ratio: 800:1 typical
Viewing Angle: 85° all directions (CR ≥ 10)
Interface: MIPI DSI (4 data lanes + clock)
Power Supply: 2.8V typical (logic), 9–10V for backlight
Operating Temperature: -20°C to +70°C
Storage Temperature: -30°C to +80°C
Dimensions: 142.90mm (W) × 228.50mm (H) × 2.60mm (D)
Weight: To be determined
Applications
Industrial control panels and HMIs
Portable medical and diagnostic devices
Handheld terminals and POS systems
Automotive auxiliary displays
Kiosks and interactive information boards
Embedded systems and IoT displays
Customization & Support
JicTech offers tailored solutions for small to medium batch projects, including:
Touch panel integration (resistive/capacitive)
Optical bonding for enhanced durability
Brightness and color calibration
Interface adaptation (LVDS, RGB, etc.)
Mechanical modifications (mounting, bezel, connectors)
Environmental hardening (conformal coating, extended temperature)
Reliability & Testing
The module undergoes stringent environmental tests including high/low temperature storage, thermal cycling, damp heat, vibration, and ESD protection, ensuring stable performance in challenging conditions.
Why Choose JicTech?
With years of expertise in LCD module design and manufacturing, JicTech delivers reliable, high-performance display solutions backed by responsive technical support and flexible customization capabilities. We are committed to helping you integrate advanced display technology into your products with efficiency and confidence.
Technical Document Download
Click here to download this document：FULL SPEC-RT101F019A2
