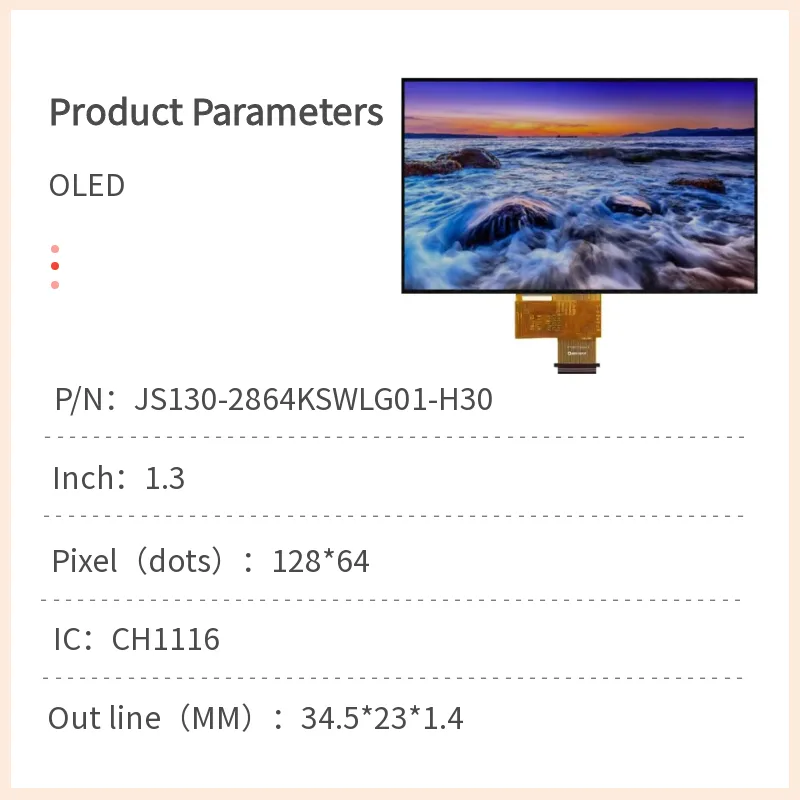

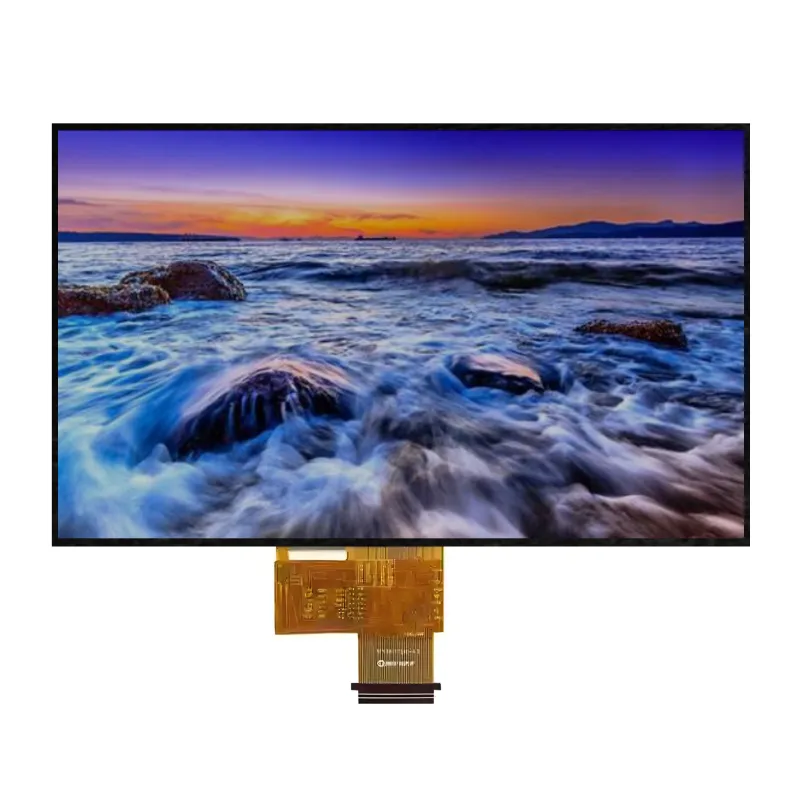

JicTech 1.3-inch OLED Display Module (Model: R$130-2864KSWLG01-H30 VER A)
Overview
The R$130-2864KSWLG01-H30 is a high-performance 1.3-inch OLED module designed for applications requiring sharp contrast, wide viewing angles, and low power consumption. With support for multiple interfaces including SPI, I²C, and parallel MPU modes, it provides design flexibility for embedded and portable systems. Its robust construction and wide operating temperature range make it suitable for industrial, medical, and consumer electronics.
Key Features
1.3-inch OLED Display: High contrast ratio of 2000:1 with free viewing angle
Multiple Interfaces: Supports 4-wire/3-wire SPI, I²C, 68XX/80XX parallel
Wide Operating Temperature: -40°C to +85°C
Low Power Consumption: Sleep mode current as low as 1µA (VDD)
Long Lifetime: Up to 50,000 hours at 60 cd/m²
Integrated Charge Pump: Internal DC/DC converter for flexible power supply options
High Brightness: Up to 120 cd/m² (externally supplied VCC)
Compact & Lightweight: Ideal for space-constrained designs
RoHS Compliant: Environmentally friendly construction
Technical Specifications
Display & Mechanical Properties
| Parameter | Value | Unit |
|---|---|---|
| Display Size | 1.3 inch | – |
| Resolution | 128 × 64 | pixels |
| Display Type | Passive Matrix OLED | – |
| Display Color | Monochrome (White) | – |
| Active Area | 29.42 × 14.70 | mm |
| Panel Size | 34.50 × 23.00 × 1.40 | mm |
| Pixel Pitch | 0.23 × 0.23 | mm |
| Pixel Size | 0.21 × 0.21 | mm |
| Weight | 2.18 | g |
Electrical Characteristics
| Parameter | Min | Typ | Max | Unit |
|---|---|---|---|---|
| Logic Supply Voltage (VDD) | 1.65 | 2.8 | 3.5 | V |
| Display Supply Voltage (VCC) | 0 | 14.0 | – | V |
| Operating Current (VDD) | – | 180 | 300 | µA |
| Operating Current (VCC) | – | 25 | 32 | mA |
| Sleep Mode Current (VDD) | – | 0.1 | 5 | µA |
| Sleep Mode Current (VCC) | – | 0.5 | 5 | µA |
| Brightness (Lbr) | 80 | 100 | – | cd/m² |
| Contrast Ratio | – | >10,000:1 | – | – |
| Viewing Angle | – | 160 | – | ° |
Optical Performance
| Characteristic | Min | Typ | Max | Unit |
|---|---|---|---|---|
| Brightness (External Supply) | 120 | – | – | cd/m² |
| Brightness (Internal DC/DC) | 90 | 110 | – | cd/m² |
| Contrast Ratio | – | 2000:1 | – | – |
| Viewing Angle | – | Wide | – | degrees |
Interface Options
| BS0 | BS1 | BS2 | Interface Mode |
|---|---|---|---|
| 0 | 1 | 0 | I2C |
| 1 | 0 | 0 | 3-wire SPI |
| 0 | 0 | 0 | 4-wire SPI |
| 0 | 0 | 1 | 8-bit 68XX Parallel |
| 0 | 1 | – | 8-bit 80XX Parallel |
Reliability and Quality Assurance
JicTech OLED modules undergo rigorous testing to ensure performance in demanding conditions:
| Test Item | Condition |
|---|---|
| High Temp. Operation | +70 °C, 240 hrs |
| Low Temp. Operation | –40 °C, 240 hrs |
| High Temp. Storage | +85 °C, 240 hrs |
| Low Temp. Storage | –40 °C, 240 hrs |
| High Temp. & Humidity | 60 °C, 90 % RH, 120 hrs |
| Thermal Shock | –40 °C ↔ +85 °C, 24 cycles |
| ESD (Operation) | Air ±8 kV, Contact ±4 kV |
Technical Specifications
Active Area: 1.3-inch diagonal
Resolution: 128 × 64 pixels
Brightness: 120 cd/m² (external VCC), 110 cd/m² typical (internal DC/DC)
Contrast Ratio: 2000:1 (typical)
Supply Voltage (VDD): 1.65V to 3.3V
Supply Voltage (VCC): 12V external or 6.4V–9V internal DC/DC
Interface Options: SPI, I²C, 8-bit parallel (68XX/80XX)
Operating Current (VDD): 180µA typical
Sleep Current (VDD): 1µA typical
Dimensions: Refer to mechanical drawing in datasheet
Pin Count: 30 pins (including reserved and ground pins)
Applications
Wearable devices and fitness trackers
Portable medical and diagnostic equipment
Industrial handheld terminals and sensors
Consumer electronics (smart home controls, accessories)
Automotive dashboard displays and indicators
IoT devices and embedded HMI
Customization & Support
JicTech offers flexible small-batch customization services, including:
Interface adaptation (SPI/I²C/parallel configuration)
Firmware and command set customization
Brightness and contrast adjustment
Mechanical modifications (mounting, connector placement)
Power supply design support (external/internal DC/DC)
Environmental hardening (extended temperature, humidity protection)
Reliability & Testing
The module undergoes comprehensive reliability tests including high/low temperature operation, thermal shock, humidity resistance, and electrical stress testing. It meets industrial-grade standards for long-term performance in demanding environments.
Why Choose JicTech?
With deep expertise in OLED display technology, JicTech provides reliable, high-quality display modules backed by responsive engineering support and flexible customization. We are committed to helping you integrate advanced OLED solutions into your products with efficiency and confidence.
Download this product’s technical documentation and specifications.
Click here to download：SPEC JS130-2864KSWLG01-H30 VER A
