Overview

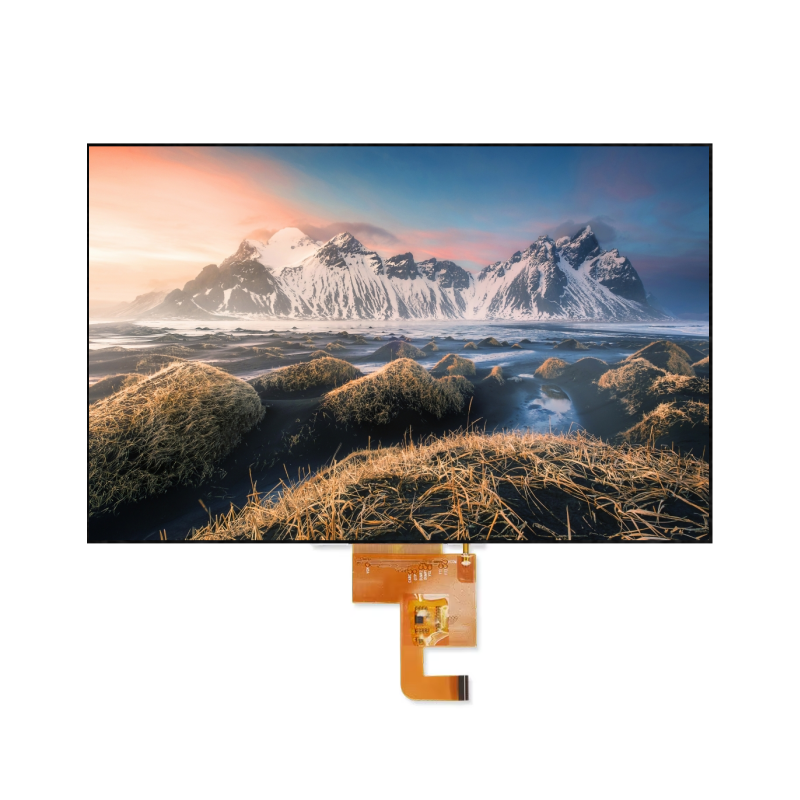

The JicTech RT070T16I-K5B is a high‑performance 7.0‑inch TFT LCD module designed for demanding industrial and consumer applications. Built on an IPS panel (normally black) with 1024×RGB×600 pixel resolution (WXGA), it offers true 16.7M colors and ultra‑wide viewing angles (85° in all directions). The MIPI DSI interface enables high‑speed video transmission with fewer wires, while the 330 cd/m² backlight provides excellent readability indoors and in shaded outdoor environments. With a slim 2.7mm profile and 70% NTSC color gamut, this module is ideal for automotive clusters, industrial HMIs, medical displays, and portable terminals.
Key Features
- 7.0” diagonal IPS panel – true full viewing angles (85° left/right/up/down)
- 1024×600 resolution – sharp WXGA, 16.7M colors
- Module size – 164.2 × 97.26 × 2.7 mm (W×H×T)
- Active area – 154.21 × 85.92 mm, ideal for widescreen HMIs
- MIPI DSI interface – high‑speed serial, reduced pin count
- High brightness – 330 cd/m² typical
- High contrast ratio – 800:1 typical
- Fast response time – 25ms typical (Tr+Tf)
- Wide operating temperature – -20℃ to +70℃
- Backlight – 27 white LEDs (3S9P), 180mA total current
- Driver IC – EK79007 + EK73217 (MIPI to RGB bridge)
- NTSC ratio – 70% for rich color reproduction
- RoHS compliant
Applications
- Automotive infotainment & cluster displays
- Industrial HMIs & control panels
- Medical diagnostic equipment & patient monitors
- Portable test & measurement devices
- Smart home gateways & security panels
- Digital signage & kiosks
- Avionics and marine displays

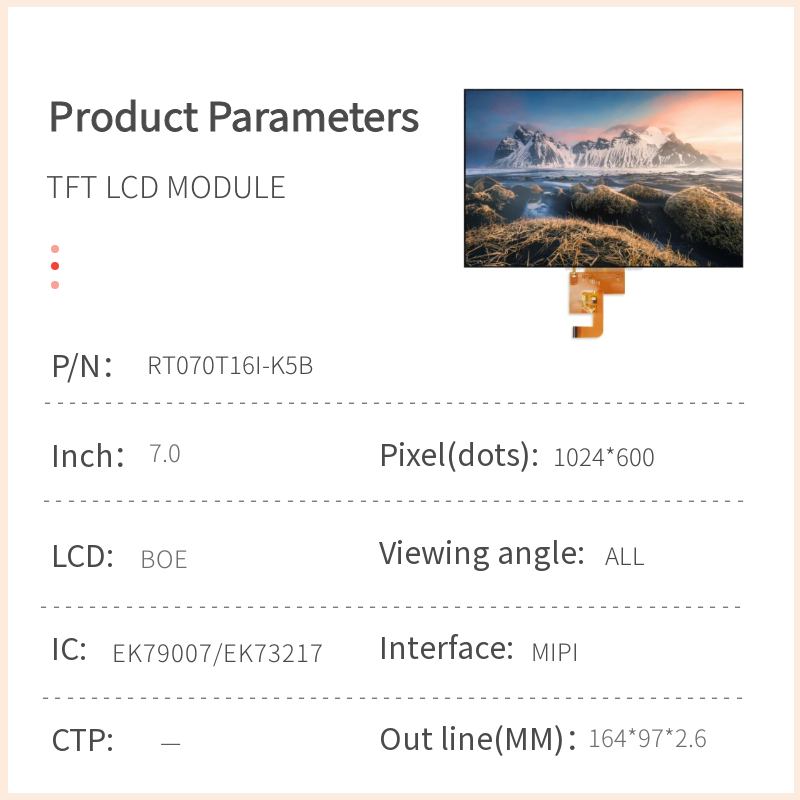

Technical Specifications
General Specifications
| Parameter | Value |
|---|
| LCD Size | 7.0 inch |
| Panel Type | a-Si TFT active matrix, IPS (Normally Black) |
| Resolution | 1024 (RGB) × 600 pixels |
| Display Mode | IPS / Normally Black / Transmissive |
| Number of Colors | 16.7M (8‑bit per color) |
| Viewing Direction | All o’clock (best view, 85° typical) |
| Contrast Ratio | 800 : 1 (typical) |
| Luminance (Brightness) | 330 cd/m² (typical) |
| Module Size (W×H×T) | 164.2 × 97.26 × 2.7 mm |
| Active Area (W×H) | 154.21 × 85.92 mm |
| Pixel Pitch (H × V) | 0.1506 × 0.1432 mm |
| Driver IC | EK79007 (TFT) + EK73217 (MIPI bridge) |
| Interface | MIPI DSI (2‑lane, differential) |
| Backlight | 27 white LEDs (3 series × 9 parallel) |
| Operating Temperature | -20 ~ +70 °C |
| Storage Temperature | -30 ~ +80 °C |
Absolute Maximum Ratings
| Parameter | Symbol | Min | Max | Unit |
|---|
| Operating temperature | Top | -20 | +70 | °C |
| Storage temperature | Tst | -30 | +80 | °C |
| Humidity | RH | – | 90 (at 60°C) | % |
DC Characteristics (Panel Driving)
| Item | Symbol | Min | Typ | Max | Unit |
|---|
| Logic supply voltage | VDD | 3.0 | 3.3 | 3.6 | V |
| Input current | Idd | – | 13 | – | mA |
| Input High Voltage | VIH | 0.7×VDD | – | VDD | V |
| Input Low Voltage | VIL | VSS | – | 0.3×VDD | V |
| Output High Voltage | VOH | VDD-0.4 | – | VDD | V |
| Output Low Voltage | VOL | VSS | – | VSS+0.4 | V |
Backlight Characteristics (27 LEDs: 3S9P, total If=180mA)
| Item | Symbol | Min | Typ | Max | Unit | Condition |
|---|
| Forward voltage | Vf | 8.1 | 9.0 | 9.6 | V | If=180mA |
| White CIE (x) | – | 0.26 | – | 0.315 | – | If=180mA |
| White CIE (y) | – | 0.26 | – | 0.315 | – | If=180mA |
Electro-Optical Characteristics (Ta=25°C, If=160mA)
| Item | Symbol | Condition | Min | Typ | Max | Unit |
|---|
| Contrast Ratio | CR | Normal angle | 500 | 800 | – | – |
| Surface Luminance | Lv | Normal angle | – | 330 | – | cd/m² |
| Luminance Uniformity | δ WHITE | θ=φ=0° | 80 | – | – | % |
| Response Time (Tr+Tf) | – | TC=25°C | – | 25 | 40 | ms |
| Viewing Angle (all directions) | θ | CR≥10 | – | 85 | – | deg |
| White CIE (x,y) | Wx, Wy | Normal angle | 0.245,0.225 | 0.295,0.275 | 0.345,0.325 | – |
| NTSC Ratio | S | – | – | 70% | – | % |
Interface Pin Description (20‑pin FPC – MIPI DSI)
| Pin No. | Symbol | I/O | Description |
|---|
| 1-2 | LEDA | P | Backlight anode |
| 3-4 | LEDK | P | Backlight cathode |
| 5-6 | GND | – | System ground |
| 7 | MIPI_CPO | O | MIPI DSI differential clock (+) |
| 8 | MIPI_CN | O | MIPI DSI differential clock (-) |
| 9 | GND | – | System ground |
| 10 | MIPI_P1 | I | MIPI DSI data lane 1 (+) |
| 11 | MIPI_N1 | I | MIPI DSI data lane 1 (-) |
| 12 | GND | – | System ground |
| 13 | MIPI_P0 | I | MIPI DSI data lane 0 (+) |
| 14 | MIPI_N0 | I | MIPI DSI data lane 0 (-) |
| 15 | GND | – | System ground |
| 16 | STBYB | I | Standby control (connect to VDDIO for normal) |
| 17 | RESET | I | Reset (active low) |
| 18-19 | VDD | P | Logic power supply (3.3V typical) |
| 20 | GND | – | System ground |
Reliability & Quality Assurance
Reliability Test Items (Pass Criteria)
- High temperature storage: 80℃, 24H
- Low temperature storage: -30℃, 24H
- High temperature operation: 70℃, 24H
- Low temperature operation: -20℃, 24H
- Temperature cycle: -20℃ ↔ 70℃, 30min each, 10 cycles
- Damp proof test: 60℃ / 90% RH, 24H
- Vibration test: 10Hz~55Hz~10Hz, 1.5mm, X/Y/Z, 0.5H (packed)
- Drop test: 1.0m height, one time each side (packed)
- ESD test: Air ±4kV / Contact ±2kV (150pF/330Ω, 10 times each)
Failure judgment: No display defects, no glass crack, current Idd < 2x initial value, contrast ratio ≥50% of initial, and full electrical/optical functionality.
Quality Assurance (per GB2828 / MIL-STD-105E equivalent)
- Inspection level: General II, single sampling
- Major defect AQL: 0.065
- Minor defect AQL: 0.065
- Inspection conditions: distance 250mm, temperature 25±5°C, angle 45°
Handling & Storage Precautions
- Avoid mechanical shock or dropping – glass panel is fragile.
- If LCD fluid leaks, wash skin/clothes immediately with soap and water; do not ingest.
- Use grounded workstations and anti‑static bags for handling and storage.
- Storage: 0~35°C, 40~60% RH, in sealed polyethylene bag, no direct sunlight.
- Hand soldering: use grounded iron, avoid flux spatters on display area.
- Do not disassemble or modify the module.
Packing Method (Reference)
Modules are placed in anti‑static trays, stacked with foam protection, fixed with cardboard, and sealed in cartons. Detailed packing drawings available upon request.
Ordering & Support
The JicTech RT070T16I-K5B is available for engineering samples and mass production. For a complete datasheet, 2D drawing, or a quotation, please contact our B2B sales team.
