Product Details: JicTech 4.2‑Inch E‑Paper Display Module

Overview

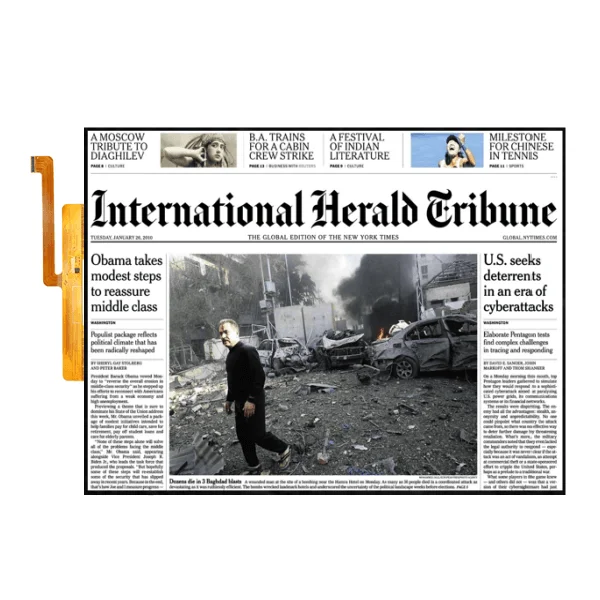

The JS0420NQ04‑MNG‑A0 is an Active Matrix Electrophoretic Display (AM EPD) module designed for high‑efficiency, low‑power portable applications. With an active area of 4.2 inches and a resolution of 400×300 pixels, it offers excellent readability, wide viewing angles, and bi‑stable operation—meaning it consumes power only during content updates. The module integrates all necessary drivers, DC‑DC converters, SRAM, and timing control, making it easy to interface with common MCUs via SPI.

Key Features

High‑Speed Refresh: Partial update as fast as 400ms, full refresh within 900ms.
Ultra‑Low Power: Deep sleep mode down to 1 µA; sleep mode with RAM retention at 35 µA.
Integrated Design: On‑chip OTP for waveform storage, built‑in temperature sensor support, and internal voltage regulators.
Dual SPI Interface: Supports both 4‑wire and 3‑wire SPI for design flexibility.
High Optical Performance: White reflectivity >30%, contrast ratio up to 10:1.
Robust Construction: Commercial temperature range, hard‑coated surface, and reliable panel longevity.
Easy Integration: Includes busy indicator, reset, and chip‑select pins for seamless MCU communication.

Applications

Electronic Shelf Labels (ESL)
Portable information displays
Smart badges & access cards
IoT status indicators
Industrial instrumentation

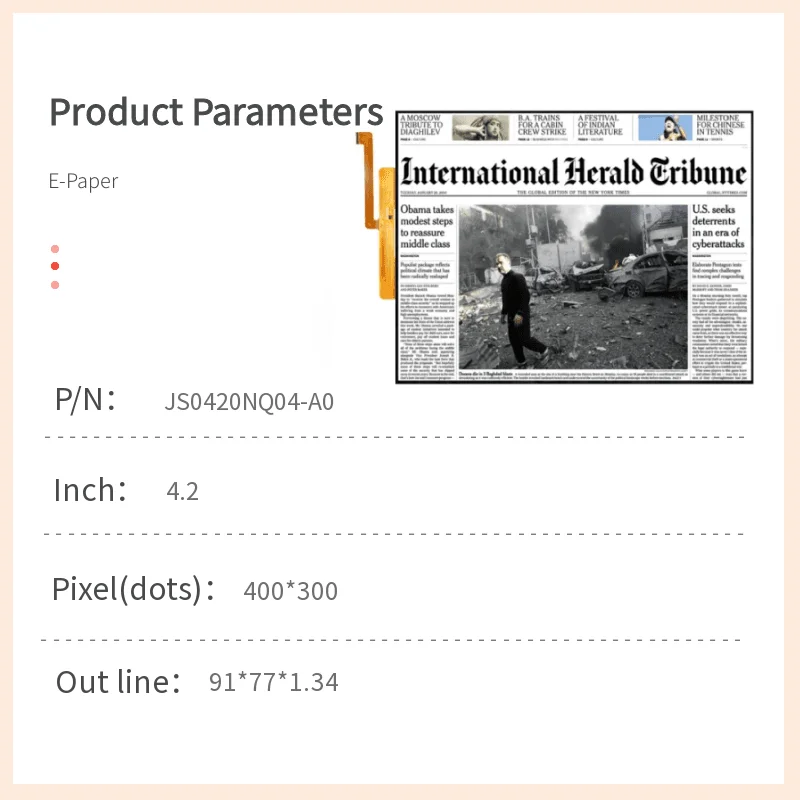

Technical Specifications

Category	Parameter	Specification	Unit	Remarks / Conditions
General	Model Name	JS0420NQ04‑MNG‑A0	–	–
	Display Type	Active Matrix Electrophoretic Display	–	Monochrome (Black & White)
	Screen Size	4.2	Inch	–
	Resolution	400 (H) × 300 (V)	Pixel	120 DPI
	Active Area	84.80 × 63.60	mm	–
	Pixel Pitch	0.212 × 0.212	mm	Square pixel
	Outline Dimensions	91.0 (H) × 77.0 (V) × 1.34 (D)	mm	–
Electrical	Supply Voltage (VDD)	2.4 – 3.6 (Typ. 3.0)	V	–
	Deep Sleep Current	Typ. 1	µA	RAM data not retained
	Sleep Mode Current	Typ. 35	µA	RAM data retained
	Typical Operating Current	Typ. 15	mA	During update
	Typical Power Consumption	Typ. 20	mW	During pattern transition
	Deep Sleep Power	Typ. 3	µW	Controller in deep sleep
Optical	White Reflectivity	Min. 30, Typ. 35	%	Measured with Eye‑One Pro spectrophotometer
	Contrast Ratio	Min. 8:1, Typ. 10:1	–	Indoor conditions
	Update Time (Full Refresh)	Typ. 900	ms	@ 25°C
	Update Time (Partial Refresh)	Typ. 400	ms	@ 25°C
Interface	Bus Interface	4‑wire SPI (BS=L) or 3‑wire SPI (BS=H)	–	Configurable via BS pin
	Data/Command Control	D/C pin (4‑wire SPI)	–	–
	Temperature Sensor Interface	I²C (TSCL, TSDA)	–	Supports external sensor
Environmental	Operating Temperature	0 to +50	°C	–
	Storage Temperature	–25 to +60	°C	–
	Operating Humidity	Up to 70% RH	%	Non‑condensing
Reliability & Lifespan	Refresh Endurance	1,000,000+ update cycles	–	Typical operational life
	ESD Protection (Non‑operating)	±250V (Machine Model)	–	IEC 62179, IEC 62180
	Thermal Shock Test	–25°C ↔ +70°C, 100 cycles	–	IEC 60068‑2‑14

Pin Interface Summary

The 24‑pin FPC connector includes:

Power Pins: VDD, VSS, VDDD, VCOM, VGH, VGL, VSH, VSL
Control Pins: CSB, D/C, RSTN, BUSYN, BS
SPI Pins: SCL (clock), SDA (data)
I²C Pins: TSCL, TSDA for external temperature sensing
Driver Pins: GDR, RESE for DC‑DC control

Reliability & Quality Assurance

Environmental Testing: High/low temperature operation & storage, thermal shock, high humidity, vibration, and drop tests.
ESD Protected: Designed to withstand electrostatic discharge per IEC standards.
Inspection Standards: AQL Level II with major defect AQL 0.65, minor defect AQL 1.5. Defects are classified per zone (active area vs. border area).

Handling & Safety Notes

Avoid mechanical stress, bending, or stacking of modules.
Do not expose to corrosive gases or high humidity without protection.
Clean only with a soft, dry cloth; avoid chemicals and pressure.
Store in controlled environment (15‑35°C, 30‑60% RH) in original packaging.

Package Includes

4.2‑inch E‑Paper display module (JS0420NQ04‑MNG‑A0)
FPC connector attached
Available with demo circuit reference design (SPI interface)

Ordering Information

Model: JS0420NQ04‑MNG‑A0
Version: V0.2 (Preliminary Specification)
Custom labeling and connector options available upon request.

Note: Specifications are based on preliminary datasheet V0.2 and may be subject to change. For design‑in support and sample requests, please contact JicTech technical sales.

Download Technical Documents

Click here to download this document：PULL-SPEC-JS0420NQ04-A0_V0.2_2

All specifications are based on the official product specification sheet (Ver: 01). For mechanical drawings, signal timing diagrams, and full inspection criteria, please refer to the original document.
