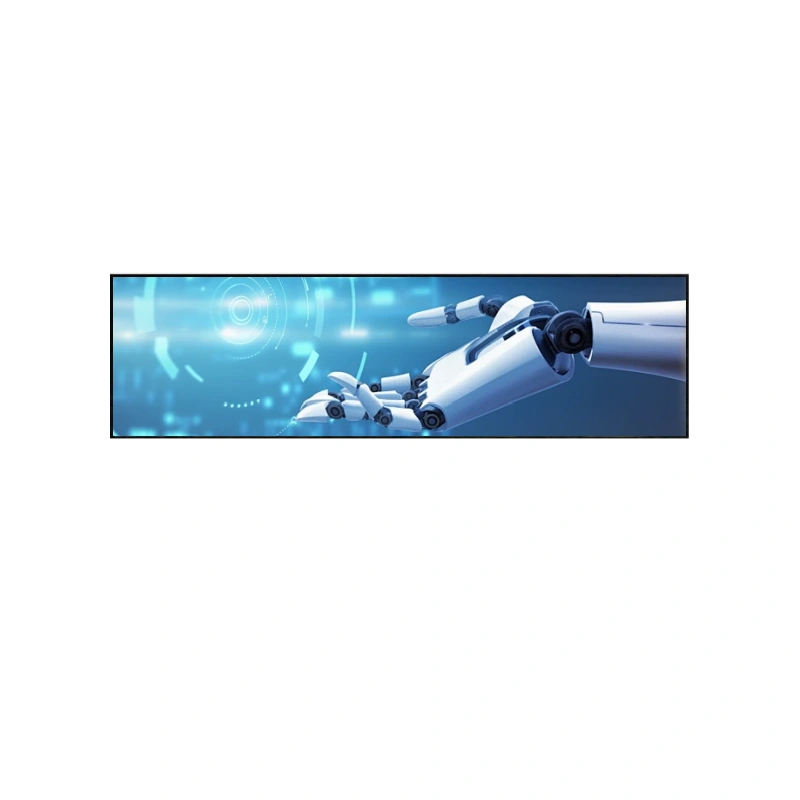

10.25″ Bar-Type TFT LCD Module – 1920×720 LVDS with PCAP Touch
10.25-inch bar-type TFT LCD display module featuring 1920×720 resolution, 85° full viewing angles, 1-port LVDS interface, and integrated projected capacitive touch (PCAP) with GT9271 controller. Ultra-wide operating temperature range (-30°C to +85°C) with 30,000-hour LED backlight. Ideal for automotive instrument clusters, dashboard displays, center stack infotainment, and premium bar-type HMI applications.
10.25-Inch Bar-Type TFT LCD Module – 1920×720 with LVDS and PCAP Touch
This 10.25-inch bar-type TFT LCD module features a 1920×720 resolution with full 85° viewing angles, a 1-port LVDS interface, and an integrated projected capacitive touch panel. It is designed for automotive instrument clusters, dashboard displays, center stack infotainment, and premium bar-type HMI applications requiring wide temperature operation. The ultra-wide operating temperature range (-30°C to +85°C) and 30,000-hour LED backlight make it an excellent choice for automotive and industrial applications.
Key Features
- Premium Bar-Type Form Factor – 10.25-inch with 1920×720 resolution for automotive instrument clusters and dashboard displays
- Full Viewing Angles – 85°/85°/85°/85° viewing angles for consistent image quality from all directions
- 1-Port LVDS Interface – VESA-compliant LVDS interface for seamless integration with automotive and industrial processors
- Integrated PCAP Touch – Projected capacitive touch panel with GT9271 controller and I2C interface for intuitive user interaction
- Ultra-Wide Operating Temperature – -30°C to +85°C for demanding automotive and industrial environments
- Wide Storage Temperature – -40°C to +90°C for reliable long-term storage
- Glare Surface – High clarity and contrast for professional display applications
- Normally Black TFT – Excellent contrast and deep blacks for vivid imagery
- 30,000-Hour LED Backlight – Reliable long-life illumination for extended product lifespan
- FL5896 + FL5101 Driver ICs – High-performance driver solution optimized for bar-type TFT displays
- Built-in BIST Function – Built-in self-test for manufacturing and field diagnostics

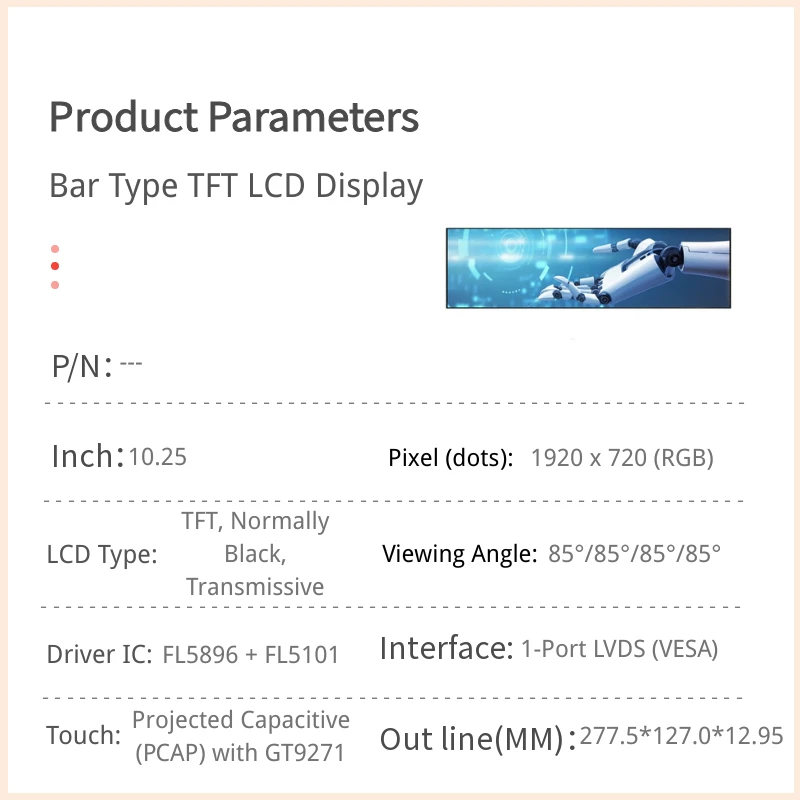

Technical Specifications
| Parameter | Specification |
|---|---|
| Size | 10.25-inch diagonal (Bar Type) |
| Dot Matrix | 1920 x RGB x 720 |
| Module Dimension | 277.5 x 127.0 x 12.95 mm |
| Active Area | 243.65 x 91.37 mm |
| Pixel Pitch | 0.1269 x 0.1269 mm |
| LCD Type | TFT, Normally Black, Transmissive |
| Viewing Angle | 85°/85°/85°/85° (Full) |
| Interface | 1-Port LVDS (VESA) |
| Driver IC | FL5896 + FL5101 |
| Backlight Type | LED, Normally White |
| Touch Technology | Projected Capacitive Touch (PCAP) |
| Touch Controller IC | GT9271 or Equivalent |
| Touch Interface | I2C |
| Touch Resolution | 1920 x 720 |
| Touch FW Version | 65CTP |
| Surface Treatment | Glare |
| Operating Temperature | -30°C to +85°C |
| Storage Temperature | -40°C to +90°C |
| Power Supply Voltage (VDD) | 3.3V (Typ.) |
| VDD Current | 333mA ~ 500mA (Typ. 333mA) |
| CTP Supply Voltage (TP_VDD) | 2.8V ~ 3.3V (Typ. 3.1V) |
| CTP Current (TP_IDD) | 13.0mA ~ 20.0mA (Typ. 13.0mA) |
| LED Voltage (VLED+) | 23.4V ~ 30.6V (Typ. 27.0V) |
| LED Current | 360mA (Typ.) |
| LED Life Time | 30,000 Hours |
Pin Interface
| Pin | Symbol | I/O | Function |
|---|---|---|---|
| 1,8 | GND | P | Ground |
| 2 | TP_RST | – | Touch Reset |
| 3 | TP_INT | – | Touch Interrupt |
| 4 | TP_I2C_SCL | I | I2C Clock (Touch) |
| 5 | TP_I2C_SDA | I/O | I2C Data (Touch) |
| 6 | TP_VDD | P | Touch Power Supply |
| 7,24,31,37,40,43,48 | NC | – | No Connection |
| 9 | LVDS_D0P | I | LVDS Data Lane 0+ |
| 10 | LVDS_D0N | I | LVDS Data Lane 0- |
| 12 | LVDS_D1P | I | LVDS Data Lane 1+ |
| 13 | LVDS_D1N | I | LVDS Data Lane 1- |
| 15 | LVDS_D2P | I | LVDS Data Lane 2+ |
| 16 | LVDS_D2N | I | LVDS Data Lane 2- |
| 18 | LVDS_CLK0P | I | LVDS Clock+ |
| 19 | LVDS_CLK0N | I | LVDS Clock- |
| 21 | LVDS_D3P | I | LVDS Data Lane 3+ |
| 22 | LVDS_D3N | I | LVDS Data Lane 3- |
| 25-27 | VDD | P | Power Supply |
| 28 | DP_I2C_SCL | I | DisplayPort I2C Clock |
| 29 | DP_I2C_SDA | I/O | DisplayPort I2C Data |
| 30 | BIST | I | Built-In Self Test Enable |
| 32 | TB | I | Vertical Scan Direction (Top/Bottom) |
| 33 | STBYB | I | Standby Mode Control |
| 34 | FAIL_DET | O | Fail Detection Output |
| 35 | LCD_RST | I | LCD Reset (Active Low) |
| 36 | RL | I | Horizontal Scan Direction |
| 38-39 | LEDA | P | LED Anode Input |
| 41 | NTC1 | P | NTC Thermistor Pin 1 |
| 42 | NTC2 | P | NTC Thermistor Pin 2 |
| 44 | VLEDK1 | P | LED Cathode 1 |
| 45 | VLEDK2 | P | LED Cathode 2 |
| 46 | VLEDK3 | P | LED Cathode 3 |
| 47 | VLEDK4 | P | LED Cathode 4 |
| 49-50 | GND | P | Ground |
Applications
This bar-type TFT LCD module with PCAP touch is designed for a variety of automotive, industrial, and premium display applications requiring wide temperature operation and high-resolution elongated displays:
- Automotive Instrument Clusters – Ideal for premium dashboard displays and vehicle information panels with wide temperature requirements
- Automotive Center Stack Infotainment – Perfect for center console displays with touch interaction
- Automotive Climate Control Panels – Suitable for HVAC control interfaces requiring touch capability
- Industrial Control Panels – Premium HMI interfaces for machine controls and process monitoring in harsh environments
- Commercial Vehicle Displays – Suitable for truck, bus, and heavy equipment dashboard applications
- Marine Electronics – Wide temperature range suitable for marine navigation and control displays
- Specialty Displays – Perfect for retail signage, digital shelf labels, and information panels
Customization Options
We offer flexible customization to meet specific project requirements:
- Touch Panel Options – PCAP touch parameters, sensitivity, and firmware can be customized
- Brightness – Backlight brightness can be customized for different environments
- Interface – Alternative interface options available depending on requirements
- FPC – Custom FPC length, connector type, and pinout available
- Operating Temperature – Extended temperature range versions available for extreme automotive applications
- Surface Treatment – Optional surface treatments including anti-glare or hard coating
- Optical Bonding – For improved durability and readability in automotive applications
- LCM Assembly – Custom mechanical integration and housing solutions available
Selection Guide
When selecting this bar-type TFT LCD module for your project, consider the following factors:
- Display Resolution – 1920×720 provides premium image quality ideal for automotive instrument clusters and infotainment displays
- Interface Compatibility – 1-Port LVDS (VESA-compliant) ensures compatibility with most automotive and industrial processors
- Touch Integration – PCAP with GT9271 controller and I2C interface supports multi-touch for interactive applications
- Temperature Range – -30°C to +85°C operating temperature suitable for automotive and industrial applications
- Power Requirements – VDD 3.3V for LCD, TP_VDD 2.8V~3.3V for touch; LED backlight requires 23.4V~30.6V at 360mA
- Mounting Space – Module dimension 277.5 x 127.0 mm with 12.95mm thickness; verify mechanical clearance in your design
- Diagnostic Features – Built-in BIST and FAIL_DET output for manufacturing and field testing
Frequently Asked Questions
What is the viewing angle of this TFT display?
This display offers full 85°/85°/85°/85° viewing angles, providing consistent image quality from all directions.
Does this module include a touch panel?
Yes, this module includes an integrated projected capacitive touch panel with a GT9271 controller and I2C interface.
What interface does this display use?
The module uses a 1-Port LVDS interface (VESA-compliant) for the display and an I2C interface for the touch panel.
What is the operating temperature range?
The operating temperature range is -30°C to +85°C, making it suitable for automotive and industrial applications. Storage temperature is -40°C to +90°C.
What is the LED backlight voltage requirement?
The LED backlight requires a voltage of 23.4V to 30.6V with a typical current of 360mA across 4 LED strings (VLEDK1~VLEDK4).
What is the LED backlight lifetime?
The LED backlight has a typical operating life of 30,000 hours at 25°C.
What diagnostic features are available?
The module features a built-in self-test (BIST) function and a FAIL_DET output pin for manufacturing and field diagnostics.
Can you provide samples?
Yes, sample units are available for evaluation. Please submit your requirements through the sample request form.
Is driver support available?
Yes, we provide initialization code, datasheets, and technical support for integration. The FL5896, FL5101, and GT9271 driver ICs are well-supported with readily available driver libraries.
What is the MOQ for mass production?
MOQ depends on specific configurations. Please contact our sales team for current MOQ information.
