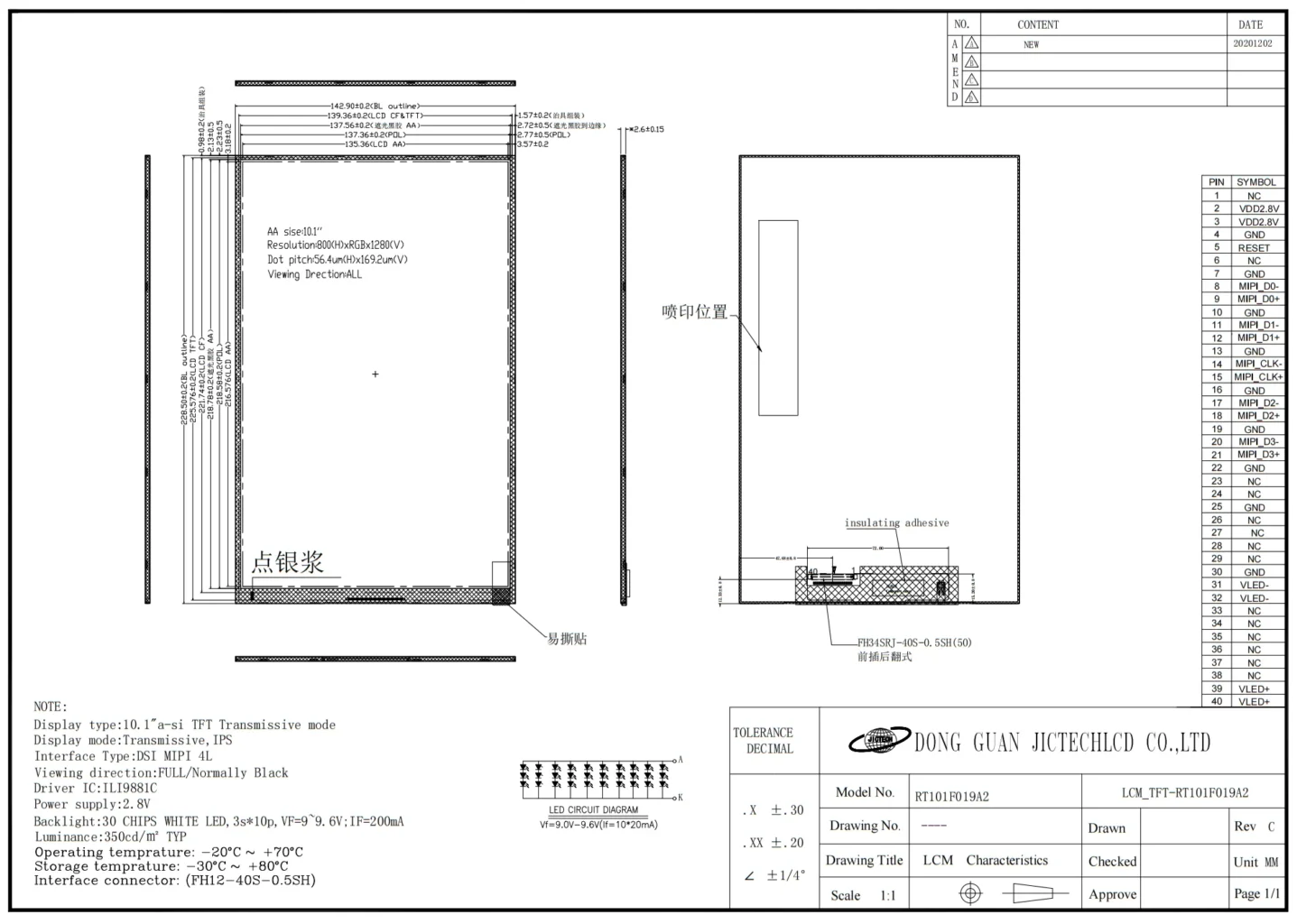

디자인 도면
JicTech 10.1-inch HD IPS TFT LCD Display Module (Model: RT101F019A2)
개요
The RT101F019A2 is a high-quality 10.1-inch TFT LCD module featuring an IPS panel for consistent color and clarity across wide viewing angles. With HD resolution (800×1280), MIPI interface, and a slim design, it is built for applications requiring reliable performance in compact and versatile display systems.
핵심 기술적 이점
| 기능 | 사양 | Engineering Benefit |
|---|---|---|
| IPS Technology | All-direction viewing angle | Consistent visuals from any orientation |
| 해상도 | 800(H) × 1280(V) | High-density information display |
| Profile | 2.6mm thickness | Enables ultra-thin portable devices |
| 인터페이스 | 4-lane MIPI DSI | High-speed data transfer with EMI reduction |
| Operating Range | -20°C ~ +70°C | Reliability in industrial environments |
| Backlight System | 30 LEDs (3S10P configuration) | Uniform illumination with 350 cd/m² brightness |
Detailed Technical Specifications
Mechanical Specifications
| 매개변수 | Value | 단위 |
|---|---|---|
| 활성 영역 | 135.36 × 216.576 | mm |
| Outline Dimensions | 142.90 × 228.50 × 2.60 | mm (W×H×T) |
| 픽셀 피치 | 0.0564 × 0.1692 | mm |
| 디스플레이 모드 | Normally Black | – |
| 표면 처리 | 눈부심 방지 | – |
Electrical Specifications
| 매개변수 | Min | Typ | 최대 | 단위 |
|---|---|---|---|---|
| 로직 공급 전압 | 2.5 | 2.8 | 3.6 | V |
| I/O 공급 전압 | 1.65 | 1.8 | 3.6 | V |
| Backlight Voltage | – | 9.0 | 10.0 | V |
| Backlight Current | – | 200 | 260 | mA |
| Total Power Consumption | – | – | 8.11 | W |
Optical Performance
| 매개변수 | Min | Typ | 최대 | 단위 |
|---|---|---|---|---|
| 밝기 | 300 | 350 | – | cd/m² |
| 명암비 | – | 800 | – | :1 |
| 휘도 균일성 | 80 | – | – | % |
| 응답 시간 | – | 35 | – | ms |
| 시야각(CR≥10) | 80 | 85 | – | ° |
| Color Gamut (NTSC) | – | 69% | – | – |
MIPI Interface Pinout (40-pin FH34SRJ connector)
| 핀 | 기호 | Function |
|---|---|---|
| 2-3 | VDD2.8V | 2.8V power supply |
| 5 | RESET | Display reset control |
| 8-9 | DSI_D0± | MIPI differential data pair 0 |
| 11-12 | DSI_D1± | MIPI differential data pair 1 |
| 14-15 | DSI_CLK± | MIPI clock differential pair |
| 17-18 | DSI_D2± | MIPI differential data pair 2 |
| 20-21 | DSI_D3± | MIPI differential data pair 3 |
| 31-32 | VLED- | Backlight cathode |
| 39-40 | VLED+ | Backlight anode (9-10V) |
Industrial Reliability Testing
| Test | Condition | Duration | Standard |
|---|---|---|---|
| 고온 스토리지 | 80°C | 24 hours | IEC 60068-2-2 |
| 저온 스토리지 | -30°C | 24 hours | IEC 60068-2-1 |
| 고온 작동 | 70°C | 24 hours | – |
| 저온 작동 | -20°C | 24 hours | – |
| Temperature Cycling | -20°C ↔ 70°C | 5 cycles | IEC 60068-2-14 |
| Humidity Resistance | 60°C/90% RH | 12 hours | IEC 60068-2-78 |
| Vibration Resistance | 1.5mm @ 10-55Hz | 30 min/axis | MIL-STD-202G |
| ESD 보호 | ±8kV air/±4kV contact | 10 discharges | IEC 61000-4-2 |
Target Applications
| 산업 | Use Cases | JicTech Advantage |
|---|---|---|
| 산업 자동화 | HMI Control Panels, PLC Interfaces | Wide temperature operation (-20°C to +70°C) |
| Portable Devices | Handheld Terminals, Medical Devices | Ultra-slim 2.6mm profile |
| Embedded Systems | IoT Gateways, Control Systems | Low-power MIPI interface |
| 소비자 가전 | Portable Monitors, Gaming Devices | IPS technology with 85° viewing angles |
| Test & Measurement | Portable Diagnostic Equipment | High resolution (800×1280) |
주요 기능
-
10.1-inch IPS Display: Full viewing angle with consistent color and brightness
-
HD Resolution: 800×1280 pixels, 16.7M colors
-
MIPI Interface: High-speed data transmission, 4-lane configuration
-
High Brightness: 350 cd/m² typical for clear visibility
-
Wide Operating Temperature: -20°C to +70°C
-
Slim Profile: Module thickness of only 2.6mm
-
30-LED Backlight: White LED array with constant current drive
-
Robust Construction: Meets industrial reliability and ESD standards
Defect Classification:
| Defect Type | Acceptance Criteria |
|---|---|
| Black/White Spots | ≤0.15mm in active area |
| Bright Spots | 0 defects allowed |
| Line Defects | ≤0.03mm width, ≤1.0mm length |
| Contrast Variation | ≤0.3mm spot size |
기술 사양
-
Active Area: 135.36mm (H) × 216.576mm (V)
-
Pixel Pitch: 0.0564mm (H) × 0.1692mm (V)
-
Contrast Ratio: 800:1 typical
-
Viewing Angle: 85° all directions (CR ≥ 10)
-
Interface: MIPI DSI (4 data lanes + clock)
-
Power Supply: 2.8V typical (logic), 9–10V for backlight
-
Operating Temperature: -20°C to +70°C
-
Storage Temperature: -30°C to +80°C
-
Dimensions: 142.90mm (W) × 228.50mm (H) × 2.60mm (D)
-
Weight: To be determined
애플리케이션
-
Industrial control panels and HMIs
-
Portable medical and diagnostic devices
-
Handheld terminals and POS systems
-
Automotive auxiliary displays
-
Kiosks and interactive information boards
-
Embedded systems and IoT displays
Customization & Support
JicTech offers tailored solutions for small to medium batch projects, including:
-
Touch panel integration (resistive/capacitive)
-
Optical bonding for enhanced durability
-
Brightness and color calibration
-
Interface adaptation (LVDS, RGB, etc.)
-
Mechanical modifications (mounting, bezel, connectors)
-
Environmental hardening (conformal coating, extended temperature)
Reliability & Testing
The module undergoes stringent environmental tests including high/low temperature storage, thermal cycling, damp heat, vibration, and ESD protection, ensuring stable performance in challenging conditions.
왜 JicTech를 선택해야 할까요?
With years of expertise in LCD module design and manufacturing, JicTech delivers reliable, high-performance display solutions backed by responsive technical support and flexible customization capabilities. We are committed to helping you integrate advanced display technology into your products with efficiency and confidence.
