Product Overview
The RT088T271-A1 is a high-performance 8.8-inch TFT LCD module designed for professional and industrial applications. It combines a sharp 1280×480 resolution with high brightness, wide viewing angles, and rugged reliability, making it an ideal display solution for systems requiring consistent visual performance in challenging conditions. JicTech ensures quality and supports full customization.
Key Features & Benefits
-
Crisp Visuals: 1280×480 resolution with 16.7M colors for detailed graphics and text.
-
High Brightness & Readability: 500 cd/m² typical brightness ensures clear visibility in various lighting.
-
Wide Viewing Angle: 170°(H)/170°(V) allows viewing from almost any direction without color shift.
-
Industrial Robustness: Operating temperature range of -20°C to 70°C, suitable for harsh environments.
-
Reliable Interface: Standard LVDS interface ensures stable signal transmission and easy integration.
-
Customizable: Flexible options for bonding, connectors, and firmware; small-batch orders available.
Typical Applications
-
Automotive: Center consoles, dashboard displays, rear-seat entertainment.
-
Industrial: Human-Machine Interface (HMI), control panels, test and measurement equipment.
-
Medical: Patient monitoring devices, diagnostic equipment displays.
-
Commercial: POS systems, interactive kiosks, gaming machines.
-
Instrumentation: Weighing scales, network analyzers, power meters.

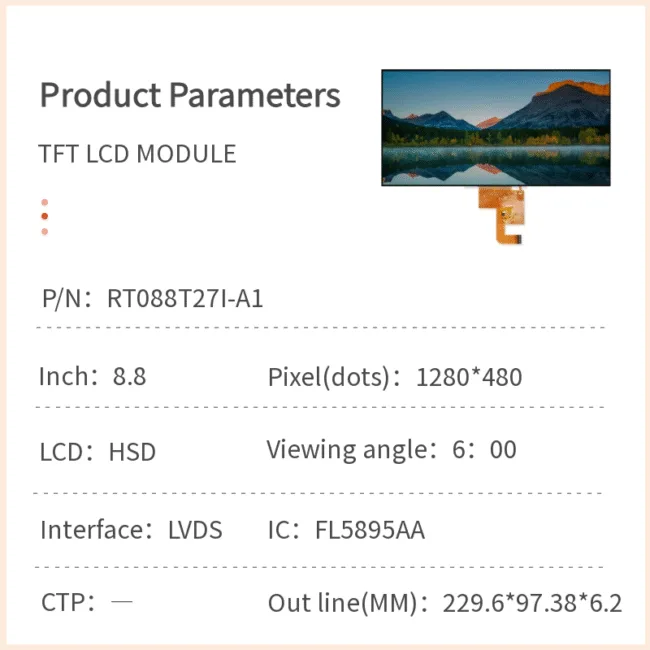

Detailed Specifications
| Category | Parameter | Specification |
|---|---|---|
| Display | Screen Size | 8.8 inches (diagonal) |
| Active Area | 209.28(W) × 78.48(H) mm | |
| Resolution | 1280 × 480 pixels | |
| Pixel Pitch | 0.1635 × 0.1635 mm | |
| Display Mode | Normally Black | |
| Number of Colors | 16.7 Million | |
| Surface Treatment | AG 25% (Anti-Glare) | |
| Optical | Brightness (Typ.) | 500 cd/m² |
| Contrast Ratio (Typ.) | 1000:1 | |
| Viewing Angle (CR≥10) | 170° (H), 170° (V) | |
| Response Time (Typ.) | 25 ms | |
| Color Gamut (NTSC) | 70% (Typical) | |
| Electrical | Interface | LVDS (6-bit/8-bit selectable) |
| Power Supply (Typ.) | DVDD: 3.3V, AVDD: 13V | |
| Typical Power Consumption | ~3.22W (Module), ~2.73W (Backlight) | |
| Backlight Type | LED, Lifetime: 30,000 hours (Typ.) | |
| Mechanical | Module Dimensions (Typ.) | 229.6(W) × 97.3(H) × 6.0(D) mm |
| Weight | 215 grams | |
| Connector | CN1: 60-pin (LVDS/Control), CN2: 2-pin (LED) | |
| Environmental | Operating Temperature | -20°C to +70°C |
| Storage Temperature | -30°C to +80°C |
Customization & Service
JicTech is more than a supplier; we are a display solution partner. We offer:
-
Engineering Support: Collaborate on optical bonding, custom interfaces, or driver board design.
-
Small Batch Orders: Ideal for prototyping, pilot runs, and specialized projects.
-
Quality Assurance: Full compliance with reliability testing standards, including shock, vibration, and ESD.
-
Warranty: Backed by a 12-month product warranty under normal operating conditions.
Contact Us
Ready to integrate this 8.8-inch display into your product? Contact the JicTech sales team today for pricing, sample requests, or to discuss your custom project requirements.
Download this product’s technical documentation and specifications.
Click here to download：FULL SPEC-RT088T27I-A1
