Overview

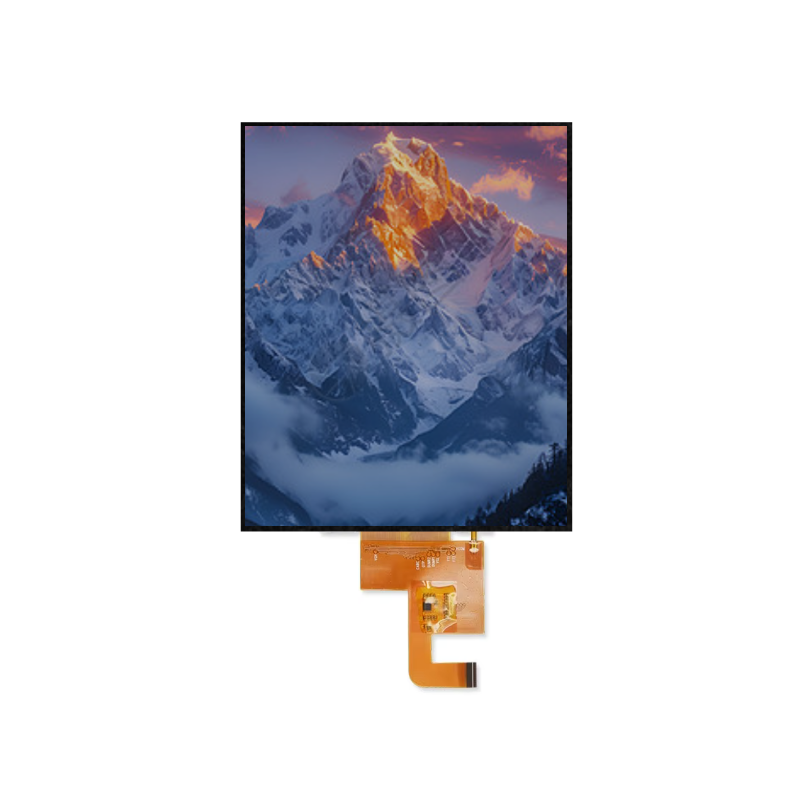

The JicTech JYM0807692181BB is a high‑performance 8.0‑inch TFT LCD module designed for applications demanding sharp HD resolution, wide viewing angles, and slim mechanical integration. Built on an IPS panel (normally black) with 800×RGB×1280 pixel resolution (WXGA), it offers true 16.7M colors and 80° full viewing angles in all directions. The 4‑lane MIPI DSI interface enables high‑speed video transmission with minimal EMI, while the 270 cd/m² backlight and 1200:1 contrast ratio ensure excellent readability in various lighting conditions. With a 2.6mm ultra‑thin profile and 65% NTSC color gamut, this module is ideal for tablets, industrial HMIs, medical displays, and portable instruments.
Key Features
- 8.0” diagonal IPS panel – 80° viewing angles (left/right/up/down)
- 800×1280 resolution – sharp HD, 16.7M colors
- Module size – 114.66 × 184.06 × 2.6 mm (W×H×T)
- Active area – 107.64 × 172.22 mm, ideal for portrait/widescreen HMIs
- 4‑lane MIPI DSI interface – high‑speed serial, low EMI
- Brightness – 270 cd/m² typical (min 220 cd/m²)
- High contrast ratio – 1200:1 typical (min 900:1)
- Wide operating temperature – -10℃ to +50℃
- Backlight – 21 white LEDs (3 series × 7 parallel), 140mA total
- Driver IC – JD9365DA-H3 (well‑supported, reliable)
- Color gamut – 65% NTSC typical
- RoHS compliant
Applications
- Tablets and e‑readers
- Industrial HMIs & control panels
- Medical diagnostic equipment & patient monitors
- Portable test & measurement devices
- Automotive rear‑seat entertainment
- Smart home gateways & security panels
- Digital signage & kiosks

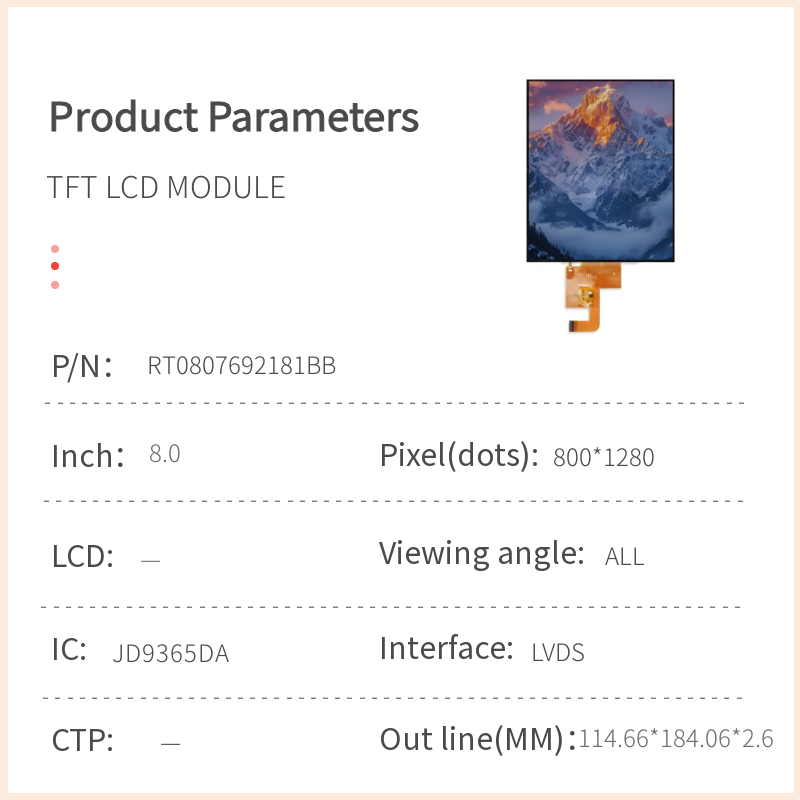

Technical Specifications
General Specifications
| Parameter | Value |
|---|
| LCD Size | 8.0 inch |
| Panel Type | a-Si TFT active matrix, IPS (Normally Black) |
| Resolution | 800 (RGB) × 1280 pixels |
| Display Mode | Normally Black / Transmissive |
| Number of Colors | 16.7M (8‑bit per color) |
| Viewing Direction | All o’clock (80° typical, CR≥10) |
| Contrast Ratio | 1200 : 1 (typical), 900:1 (min) |
| Luminance (Brightness) | 270 cd/m² (typical), 220 cd/m² (min) |
| Module Size (W×H×T) | 114.66 × 184.06 × 2.6 mm (±0.2) |
| Active Area (W×H) | 107.64 × 172.22 mm |
| Pixel Pitch (H × V) | 44.85 × 134.55 μm (RGB stripe) |
| Driver IC | JD9365DA-H3 |
| Interface | 4‑lane MIPI DSI (default, 3‑lane configurable) |
| Backlight | 21 white LEDs (3 series × 7 parallel) |
| Color Gamut | 65% NTSC (typical) |
| Operating Temperature | -10 ~ +50 °C |
| Storage Temperature | -20 ~ +60 °C |
Absolute Maximum Ratings
| Item | Symbol | Min | Max | Unit |
|---|
| Power Voltage (I/O) | IOVCC | -0.3 | 3.6 | V |
| Power Voltage (Logic) | VCC | -0.3 | 6.0 | V |
| Input Signal Voltage | Vi | -0.3 | IOVCC | V |
| Operating Temperature | Top | -10 | +50 | °C |
| Storage Temperature | TST | -20 | +60 | °C |
DC Electrical Characteristics
| Item | Symbol | Min | Typ | Max | Unit |
|---|
| I/O Supply Voltage | VDDIO | 1.65 | 1.8 | 3.3 | V |
| Logic Supply Voltage | VDD | 2.5 | 2.8 | 3.6 | V |
| Current Consumption (Normal) | IDD | – | TBD | – | mA |
| Sleep Mode Current | IDD-SLEEP | – | TBD | – | μA |
Backlight Characteristics (Ta=25°C)
| Item | Symbol | Min | Typ | Max | Unit | Condition |
|---|
| LED Forward Current (total) | IF | – | 140 | – | mA | Ta=25°C |
| LED Forward Voltage (per string) | VF-string | 9.0 | – | 10.5 | V | IF=140mA, 3S7P |
| LED Lifetime | – | – | 20,000 | – | Hrs | @270 cd/m², 50% degradation |
Interface Pin Description (31‑pin FPC – MIPI DSI)
| Pin No. | Symbol | Description |
|---|
| 1-3 | LEDA | Backlight anode |
| 4 | NC | No connection |
| 5-8 | LEDK | Backlight cathode |
| 9,10 | GND | Ground |
| 11,12 | D2+, D2- | MIPI data lane 2 (differential) |
| 13 | GND | Ground |
| 14,15 | D1+, D1- | MIPI data lane 1 (differential) |
| 16 | GND | Ground |
| 17,18 | CLK+, CLK- | MIPI differential clock |
| 19 | GND | Ground |
| 20,21 | D0+, D0- | MIPI data lane 0 (differential) |
| 22 | GND | Ground |
| 23,24 | D3+, D3- | MIPI data lane 3 (differential) |
| 25 | GND | Ground |
| 26 | NC | No connection |
| 27 | RST | Reset (active low, normal pull high to IOVCC) |
| 28 | NC | No connection |
| 29 | IOVCC_1.8V | I/O power supply (1.8V or 3.3V) |
| 30-31 | VCC_3.3V | Logic power supply (3.3V) |
MIPI Timing Parameters (Default 4‑lane, 60Hz)
| Parameter | Symbol | Typ | Unit |
|---|
| Frame Rate | – | 60 | Hz |
| Bit Rate per Lane | TX SPD | 450 | Mbps |
| Horizontal Total Time | tHP | 900 | tCLK |
| Horizontal Active | tHAD | 800 | tCLK |
| Vertical Total Time | tvp | 1310 | tH |
| Vertical Active | tVAD | 1280 | tH |
Reliability & Quality Assurance
Reliability Test Items (Pass Criteria)
- High temperature storage: 60℃, 48H
- Low temperature storage: -20℃, 48H
- High temperature operation: 50℃, 48H
- Low temperature operation: 0℃, 48H
- Temperature cycle: -10℃ ↔ 50℃, 30min each, 10 cycles (typical)
- Damp proof test: 40℃ / 90% RH, 48H (typical)
- Vibration & drop tests per packing condition
Note: After reliability tests, product guarantees operation but not full cosmetic specifications. Recovery time: 2 hours at room temperature before inspection.
Quality Assurance (per GB2828 / MIL-STD-105E equivalent)
- Inspection level: General II, single sampling
- Major defect AQL: 0.065
- Minor defect AQL: 0.065
- Inspection conditions: distance 250mm, temperature 25±5°C, illumination 40W fluorescent
Handling & Storage Precautions
- Avoid mechanical shock or dropping – glass panel is fragile.
- If LCD fluid leaks, wash skin/clothes immediately with soap and water; do not ingest.
- Use grounded workstations and anti‑static bags for handling and storage.
- Storage: 0~35°C, 40~60% RH, in sealed polyethylene bag, no direct sunlight.
- Do not disassemble or modify the module – warranty void.
- Remove protective film slowly to avoid static electricity.
Packing Method (Reference)
Modules are placed in anti‑static trays, stacked with foam protection, fixed with cardboard, and sealed in cartons. Maximum stack height: 6 boxes. Detailed packing drawings available upon request.
Ordering & Support
The JicTech JYM0807692181BB is available for engineering samples and mass production. For a complete datasheet, 2D drawing, or a quotation, please contact our B2B sales team.
Download product documentation manual:FULL SPEC-JYM0807692181BB
