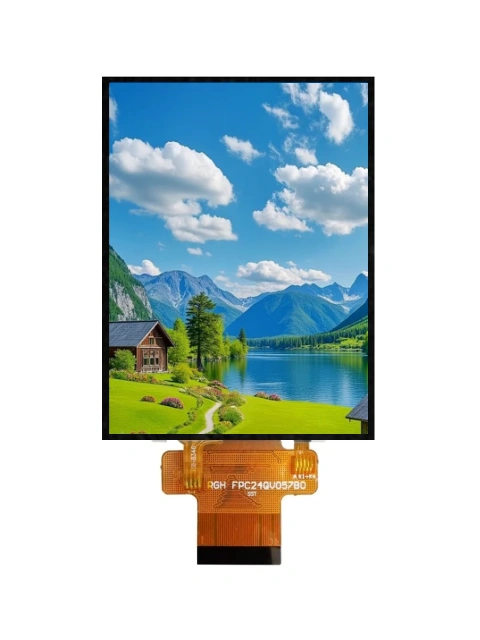

8.0‑inch IPS TFT LCD Display Module – 800×1280, IPS Wide View (85°), 10:16 Portrait, 4‑Lane MIPI Interface

Product Overview

This 8.0‑inch TFT LCD module delivers stunning high‑definition visuals at a resolution of 800 × RGB × 1280 pixels with a 10:16 portrait aspect ratio. Powered by the ILI9881C driver IC (or equivalent), it features a 4‑lane MIPI DSI interface, enabling high‑speed data transmission with low pin count – ideal for modern application processors and high‑performance embedded systems requiring crisp, detailed portrait displays.

The panel utilizes a Normally Black, Transmissive LCD with an ultra‑wide viewing angle of 85° in all directions, delivering exceptional colour fidelity and contrast from virtually any perspective. With a large active area of 107.64 × 172.22 mm, a slim profile of 4.75 mm, and a wide operating temperature range (‑20°C to +70°C), this module is a premium choice for tablet, smart home, industrial, and automotive applications requiring high‑resolution portrait displays.

Key Features

HD‑grade portrait display – 800×1280 resolution with 10:16 aspect ratio for crisp, detailed visuals
Ultra‑wide IPS viewing angle – 85° in all directions for consistent colour from any perspective
4‑lane MIPI DSI interface – High‑speed serial connection with low pin count
Normally Black technology – Deeper blacks and superior contrast ratio
Large active area – 107.64 × 172.22 mm for immersive viewing
Ultra‑slim design – 4.75 mm thickness for sleek product designs
Dual backlight LEDs – Separate anode/cathode for VLED1 and VLED2 for balanced illumination
Long‑life LED backlight – 50,000 hours typical, normally white
Wide temperature range – Operating: ‑20℃ to +70℃; Storage: ‑30℃ to +80℃
Efficient power consumption – Typical 45 mA (VCI) + 20 mA (IOVCC) driver current
No touch panel – Focused on pure display performance
Glare surface – Enhanced colour saturation for vivid visuals

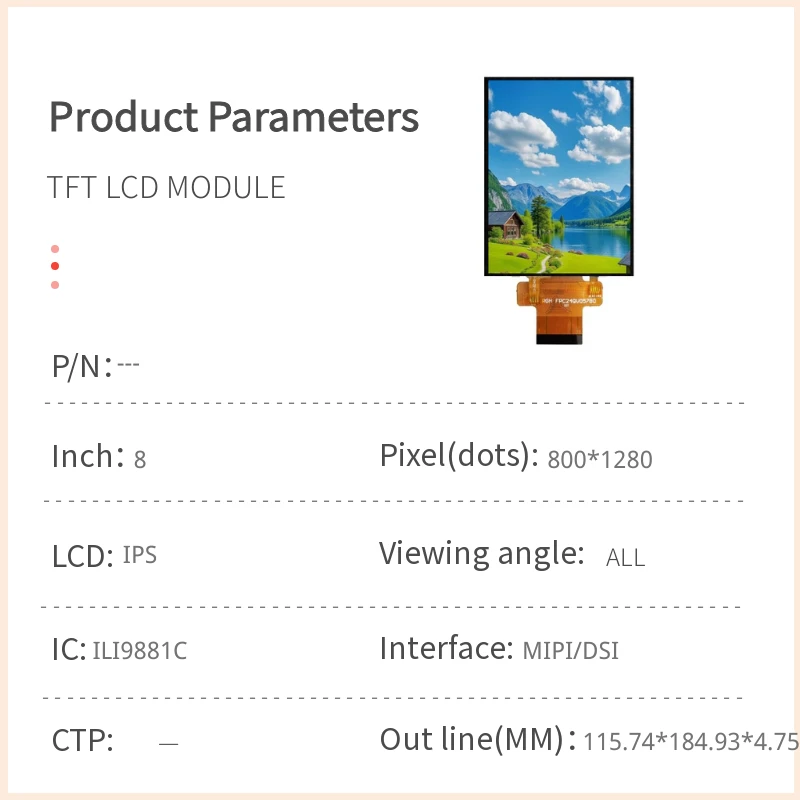

Technical Specifications

General Specifications

Display Size	8.0 inch (diagonal)
Resolution	800 × RGB × 1280 dots
LCD Type	TFT, Normally Black, Transmissive
Viewing Angle	85°/85°/85°/85° (IPS)
Aspect Ratio	10:16 (Portrait)
Driver IC	ILI9881C or equivalent
Interface	4‑Lane MIPI DSI
Backlight	LED, Normally White
Touch Panel	Without Touch Panel
Surface Treatment	Glare

Mechanical Dimensions

Module Dimension	115.74 (W) × 184.93 (H) × 4.75 (D) mm
Active Area	107.64 (W) × 172.22 (H) mm
Pixel Pitch	0.13455 × 0.13455 mm

Absolute Maximum Ratings

Parameter	Symbol	Min	Max	Unit
Operating Temperature	TOP	-20	+70	℃
Storage Temperature	TST	-30	+80	℃

Electrical Characteristics (Typical Operation Conditions)

Parameter	Symbol	Min	Typ	Max	Unit
Analog Supply Voltage	VCI	3.0	3.3	3.6	V
Logic Supply Voltage	IOVCC	1.65	1.8	3.6	V
Driver Current (VCI)	Ivoc	–	45	70	mA
Driver Current (IOVCC)	Iovcc	–	20	30	mA

LED Backlight Driving Conditions

Please refer to the complete specification document for backlight driving parameters.

Interface Pin Definition

The module uses a 4‑lane MIPI DSI interface with differential clock and four data pairs.

Pin	Symbol	Function
1‑9	NC	No connection
10‑11	VCI	Analog power supply (3.0 ~ 3.6V)
12‑13	NC	No connection
14	RESET	External reset input (active low)
15	TE	Tearing effect output pin
16	NC (LED PWM)	No connection (LED PWM input)
17‑18	GND	Power ground
19‑20	IOVCC	Logic power supply (1.65 ~ 3.6V)
21	GND	Power ground
22‑23	D3P / D3N	MIPI data lane 3 differential pair
24	GND	Power ground
25‑26	D2P / D2N	MIPI data lane 2 differential pair
27	GND	Power ground
28‑29	CLKP / CLKN	MIPI clock differential pair
30	GND	Power ground
31‑32	D1P / D1N	MIPI data lane 1 differential pair
33	GND	Power ground
34‑35	D0P / D0N	MIPI data lane 0 differential pair
36	GND	Power ground
37	VLED1+	LED1 backlight anode
38	VLED2+	LED2 backlight anode
39	VLED1-	LED1 backlight cathode
40	VLED2-	LED2 backlight cathode

Typical Applications

This high‑performance portrait display module is ideal for:

Tablets & portable devices – High‑resolution displays for media consumption and productivity
Smart home & IoT – Smart displays, home automation hubs, and video doorbells
Industrial HMIs – Vertical‑orientation control panels and operator interfaces
Automotive displays – Rear‑seat entertainment, navigation, and instrument clusters
Retail & signage – Digital signage, self‑service kiosks, and POS terminals
Medical equipment – Patient monitors, diagnostic instruments, and portable scanners

Note: The 10:16 portrait orientation is fixed. For landscape requirements, please consult our technical support team for alternative options.

Why Choose This Module?

HD portrait resolution – 800×1280 delivers crisp, detailed images ideal for tablet and vertical‑display applications.
4‑lane MIPI interface – High‑speed serial connection supports high refresh rates and smooth video playback with minimal pin usage.
Ultra‑wide IPS viewing angle – 85° in all directions ensures consistent colour and contrast from any perspective.
Dual backlight LEDs – Separate VLED1 and VLED2 channels enable balanced illumination across the large display area.
Ultra‑slim and compact – 4.75 mm thickness and narrow bezel design fits seamlessly into sleek portable products.
Normally Black – Deep blacks for enhanced contrast and professional appearance.
Proven ILI9881C controller – Reliable, well‑documented solution with strong ecosystem support.
Quality assured – Manufactured in ISO9001/ISO14001 certified facilities.
