Product Overview

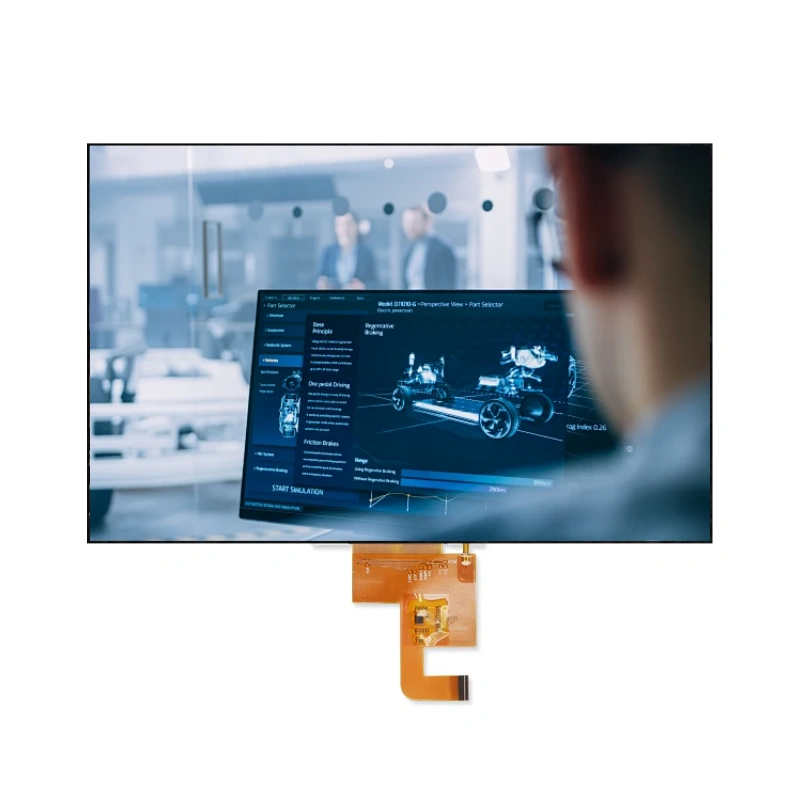

This 7.0-inch color active matrix TFT LCD module delivers exceptional visual performance and intuitive touch interaction for demanding industrial and commercial applications. Engineered with a projected capacitive multi-touch panel and an integrated LED backlight driving circuit, this display solution offers ultra-high brightness, wide viewing angles, vivid color reproduction, and responsive 10-point touch functionality for modern human-machine interface applications.
The module features WXGA resolution (800 x 480 pixels) with up to 16.7M colors (8-bit LVDS) or 262K colors (6-bit LVDS), providing crisp, detailed imagery. The 1-channel LVDS interface ensures stable, high-speed signal transmission. Compliant with PSWG (Panel Standardization Working Group) standards, this display offers mechanical and electrical compatibility for industry-wide adoption. The projected capacitive touch panel supports 10 simultaneous touch points with USB or I2C interface options.
Key Features
- Projected Capacitive Multi-Touch – 10-point touch support for intuitive gesture-based interaction
- Ultra-High Brightness – 1000 cd/m² typical luminance for excellent sunlight readability
- AAS Technology – Normally Black mode with ultra-wide viewing angles: 169° horizontal and 169° vertical (CR≥10)
- High Contrast Ratio – 800:1 typical contrast ratio for deep blacks and vivid colors
- Fast Response Time – 25 ms typical (Rising + Falling) for smooth motion performance
- Flexible Color Depth – Supports both 6-bit (262K) and 8-bit (16.7M) LVDS input
- 180° Rotation Display Option – Flexible mounting orientation
- PSWG Compliant – Industry-standard mechanical dimensions and electrical interface
- Durable Glass Surface – Strengthened glass with ≥6H hardness for scratch resistance
- Wide Operating Temperature – -10°C to +60°C for demanding environments
- RoHS Compliant – Environmentally friendly manufacturing

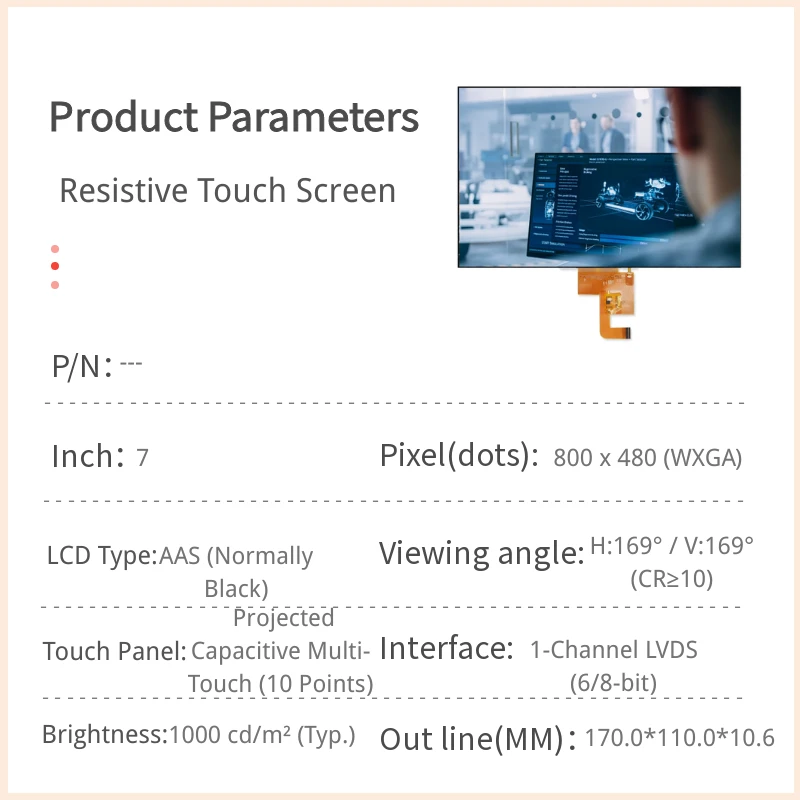

Technical Specifications
Display Characteristics
| Parameter | Specification |
|---|
| Screen Size | 7.0-inch diagonal |
| Display Area | 152.4 (H) x 91.44 (V) mm |
| Resolution | 800 x 480 pixels (WXGA) |
| Pixel Pitch | 0.1905 x 0.1905 mm |
| Display Colors | 16.7M (8-bit) / 262K (6-bit) |
| Display Mode | AAS, Normally Black (Transmissive) |
| Interface | 1-Channel LVDS (6/8-bit selectable) |
| Touch Technology | Projected Capacitive Multi-Touch |
| Touch Points | 10 Points |
| Touch Method | Finger or Exclusive Pen |
Optical Characteristics
| Parameter | Value |
|---|
| White Luminance | 1000 cd/m² (typical) |
| Contrast Ratio | 800:1 (typical) |
| Response Time (Rising+Falling) | 25 ms (typical) |
| Viewing Angle (CR≥10) | Horizontal: 169° (Typ.), Vertical: 169° (Typ.) |
| White Variation | ≥ 70% |
Mechanical & Touch Panel Specifications
| Parameter | Dimension / Value |
|---|
| Outline Dimension | 170.0 x 110.0 x 10.6 mm |
| Touch Viewing Area | 153.0 x 92.04 mm |
| Touch Active Area | 163.55 x 103.71 mm |
| Weight | 250g ± 10g |
| Surface Hardness | ≥ 6H |
| Light Transmission | ≥ 85% |
| Operation Force | ≤ 10g (Finger Input) |
| Touch FPC Length | 57.0 mm |
| Surface Treatment | Clear Type |
| Glass Type | Strengthening Glass |
Electrical & Backlight Specifications
| Parameter | Min. | Typ. | Max. | Unit |
|---|
| Logic Drive Voltage (VCC) | 3.0 | 3.3 | 3.6 | V |
| VCC Current (White Pattern) | – | 85 | 135 | mA |
| LED Input Voltage | 10.8 | 12.0 | 13.2 | V |
| LED Input Current | 0.20 | 0.30 | 0.40 | A |
| LED Power Consumption | – | 3.5 | 4.0 | W |
| PWM Control Frequency | 190 | 200 | 20K | Hz |
| PWM Duty Cycle | 5 | – | 100 | % |
| Touch Supply Voltage (USB) | – | 5.0 | – | V |
| Touch Supply Voltage (I2C) | – | 3.3 | – | V |
| LED Operating Life | – | 50,000 | – | Hrs |
Touch Controller Specifications (EXC80W32)
| Parameter | Specification |
|---|
| Touch Controller IC | EXC80W32 |
| Number of Touch Points | 10 Fingers |
| Interface | USB & I2C |
| Supported OS | Android, Linux, Win7, Win8, Win10, XP |
Applications
- Industrial Control Panels and HMIs
- Interactive Kiosks and Self-Service Terminals
- Medical Monitoring Equipment
- Outdoor Displays and Digital Signage
- Factory Automation Systems
- Transportation and Marine Displays
- Process Control Displays
- Smart Home and Building Automation
Reliability & Durability
The module has passed rigorous environmental tests including high/low temperature storage, thermal cycling, and humidity operation (up to 60°C / 90%RH), ensuring dependable performance in demanding industrial environments. The strengthened glass surface with ≥6H hardness provides excellent scratch resistance and durability.
Ordering Information
- Display Module – 7.0″ TFT LCD with Projected Capacitive Multi-Touch
- Backlight – LED with integrated driving circuit
- Touch Interface – USB and I2C supported
For volume pricing, customization, or mechanical drawings, please contact our sales team.
