6.86‑inch TFT LCD Module – 480×1280 Display

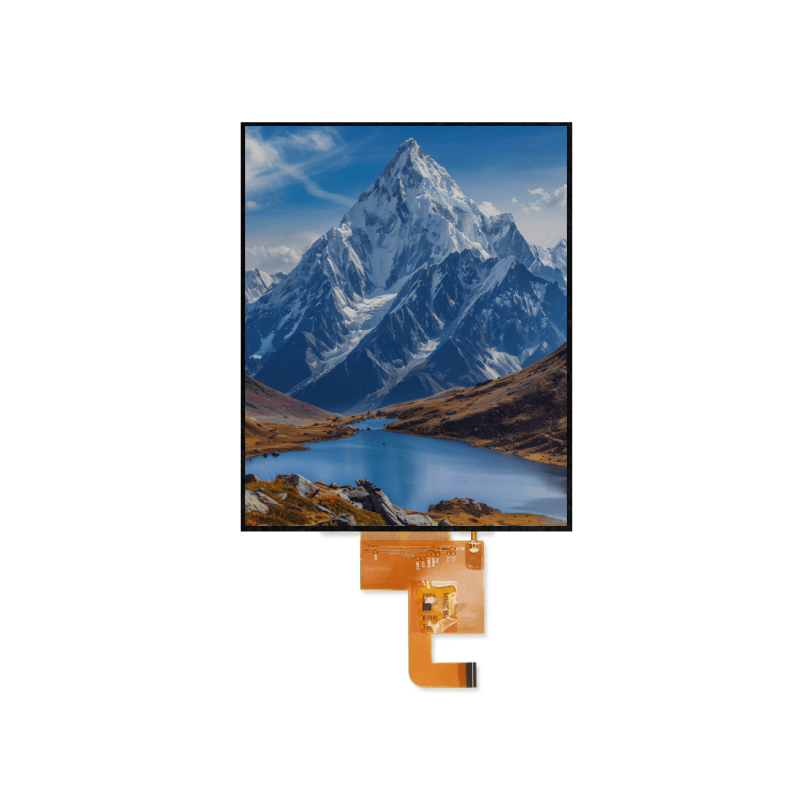

Product Details: JicTech 6.86‑Inch TFT LCD Module

Overview

The RS68616BWN‑1A is a high‑resolution, color‑rich TFT LCD module designed for applications that demand excellent image quality and reliable performance in a compact form factor. Utilizing an IPS (In‑Plane Switching) panel, it offers consistent color reproduction and wide viewing angles. The module integrates a powerful NV3051F driver IC, supports 24‑bit RGB data, and is equipped with an efficient LED backlight system. Its slim design and robust electrical characteristics make it suitable for space‑constrained and environmentally challenging applications.

Key Features

High Resolution: 480 (RGB) × 1280 pixels for sharp text, graphics, and video.
IPS Technology: Wide viewing angle (80° typical in all directions) with excellent color consistency.
True Color Support: 16.7 million colors (24‑bit RGB) for vibrant, realistic imagery.
High‑Speed Interface: MIPI DSI 4‑lane interface for efficient data transmission.
Ultra‑Slim Design: Module thickness of only 4.40 mm.
Wide Temperature Range: Operating from ‑20°C to +70°C, storage from ‑30°C to +80°C.
RoHS Compliant: Manufactured with environmentally friendly materials.

Applications

Portable medical displays & diagnostic equipment
Industrial human‑machine interfaces (HMIs)
Automotive central displays & instrument clusters
Handheld terminals & portable scanners
Consumer electronics & smart home devices

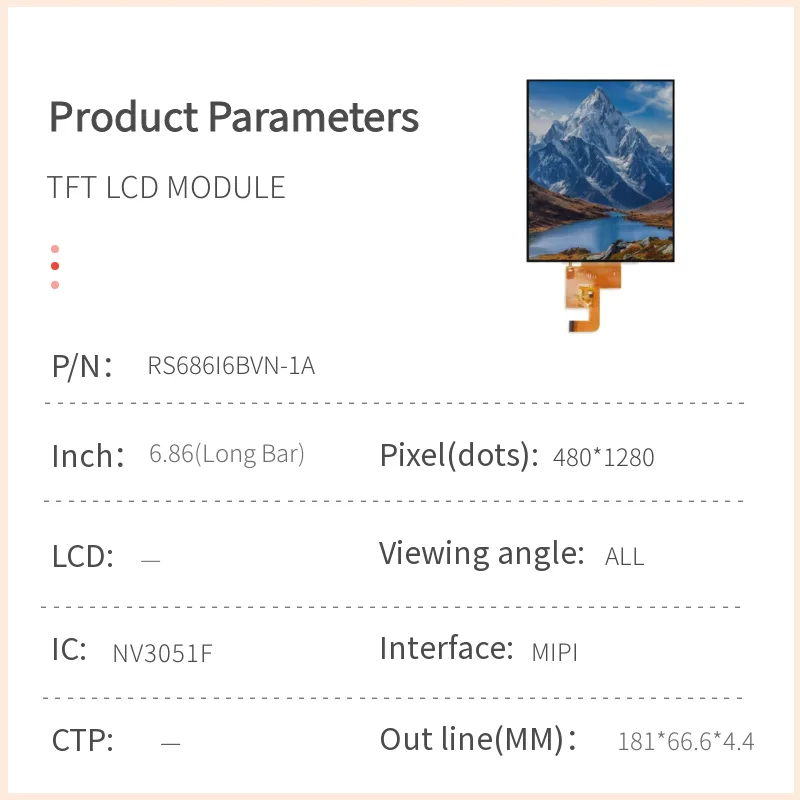

Technical Specifications

Category	Parameter	Specification	Unit	Conditions / Notes
General	Model Name	RS68616BWN‑1A	–	–
	Display Type	IPS TFT LCD	–	–
	Screen Size	6.86	Inch	–
	Resolution	480 (RGB) × 1280	Dots	–
	Active Area	60.192 × 160.512	mm	–
	Pixel Pitch	125.4 × 125.4	µm	–
	Outline Dimensions	66.60 (H) × 181.00 (V) × 4.40 (T)	mm	–
	View Direction	All (Full viewing angle)	–	–
	Display Colors	16.7M	–	24‑bit RGB
	Driver IC	NV3051F	–	–
Electrical	Logic Supply Voltage (IOVCC)	1.65 – 3.3 (Typ. 1.8/2.8)	V	Selectable
	Analog Supply Voltage (VCC/VCI)	2.5 – 3.3 (Typ. 2.8)	V	–
	Input High Level (VIH)	0.7 × IOVCC to IOVCC	V	–
	Input Low Level (VIL)	0 to 0.3 × IOVCC	V	–
	Output High Level (VOH)	0.8 × IOVCC to IOVCC	V	–
	Output Low Level (VOL)	0 to 0.2 × IOVCC	V	–
Backlight	Luminance	Min. 400	cd/m²	@ If=120mA, T=25°C
	Uniformity	Min. 80%	%	–
	Color Coordinate (CIE x, y)	x: 0.25–0.32, y: 0.25–0.32	–	–
	Forward Voltage (Vf)	8.8 – 10.5 (Typ. 9.0)	V	–
	Forward Current (If)	120 – 160	mA	–
Optical	Contrast Ratio	Min. 1000, Typ. 1500	–	@ normal angle (φ=0°)
	Viewing Angle (CR>10)	Typ. 80° (all directions)	Degree	φ = 0°, 90°, 180°, 270°
	Response Time (Tr+Tf)	Typ. 30, Max. 40	ms	–
Interface	Display Interface	MIPI DSI 4‑lane	–	–
	Connector	40‑pin FPC	–	–
Environmental	Operating Temperature	‑20 to +70	°C	–
	Storage Temperature	‑30 to +80	°C	–
	Operating Humidity	Up to 90% RH (max 60°C)	%RH	Non‑condensing

Pin Assignment (40‑pin FPC)

Pin	Symbol	Function	Pin	Symbol	Function
1	GND	Ground	21	NC	No Connection
2	D0P	MIPI Data0+	22	NC	No Connection
3	D0N	MIPI Data0‑	23	NC	No Connection
4	GND	Ground	24	RESET	Reset signal
5	D1P	MIPI Data1+	25	STBYB	Standby control (Normally High)
6	D1N	MIPI Data1‑	26	NC	No Connection
7	GND	Ground	27	GND	Ground
8	CLKP	MIPI Clock+	28	LEDK	LED Cathode
9	CLKN	MIPI Clock‑	29	LEDK	LED Cathode
10	GND	Ground	30	GND	Ground
11	D2P	MIPI Data2+	31	NC	No Connection
12	D2N	MIPI Data2‑	32	GND	Ground
13	GND	Ground	33	GND	Ground
14	D3P	MIPI Data3+	34	NC	No Connection
15	D3N	MIPI Data3‑	35	LEDA	LED Anode
16	GND	Ground	36	LEDA	LED Anode
17	GND	Ground	37	GND	Ground
18	IOVCC	I/O Power (1.8V/2.8V)	38	VCC	Analog Power (2.8V)
19	IOVCC	I/O Power (1.8V/2.8V)	39	VCC	Analog Power (2.8V)
20	NC	No Connection	40	NC	No Connection

Reliability Testing

High Temperature Operation: 70°C for 48 hours
Low Temperature Operation: ‑20°C for 48 hours
High Humidity Storage: 40°C, 90% RH for 48 hours
Temperature Cycling: ‑20°C ↔ 70°C (30 min each)
Criteria: No cosmetic or functional defects; current consumption within twice the initial value.

Quality & Inspection Standards

Sampling Plan: MIL‑STD‑105E, Level II
Acceptable Quality Level (AQL):
- Major Defects (MA): 0.65
- Minor Defects (MI): 1.0
Inspection Conditions: 30 cm viewing distance, ±45° viewing angle, 5‑10 seconds per unit.
Defect Classification: Includes display abnormalities, backlight issues, dot/line defects, cosmetic flaws, and assembly deviations.

Handling & Storage Precautions

Power Sequence: Apply power (3.0V ±0.5V) before input signals; reverse sequence may damage IC.
Soldering: Iron temperature 280±10°C, soldering time <3‑4 seconds. Do not solder more than 3 times.
Storage: Keep in anti‑static bag, ‑30°C to +80°C, dark place. Avoid pressure on display surface.
Cleaning: Use soft, dry cloth; avoid chemicals and abrasives.

Package Includes

6.86‑inch TFT LCD module (RS68616BWN‑1A)
40‑pin FPC cable attached
Basic mechanical and interface documentation

Ordering Information

Model: RS68616BWN‑1A
Revision: 1.0
Backlight: White LED, Vf=9.0V typical, If=120‑160mA
Compliance: RoHS
Customization: Available for volume orders (interface, backlight, mounting)

Note: Specifications are based on revision 1.0 of the product specification and are subject to change without notice. For custom requirements, reliability testing, or design‑in assistance, please contact JicTech technical support.

Download Technical Documents

Click here to download this document：SPEC-RS686I6BVN-1A

All specifications are based on the official product specification sheet (Ver: 01). For mechanical drawings, signal timing diagrams, and full inspection criteria, please refer to the original document.
