Overview

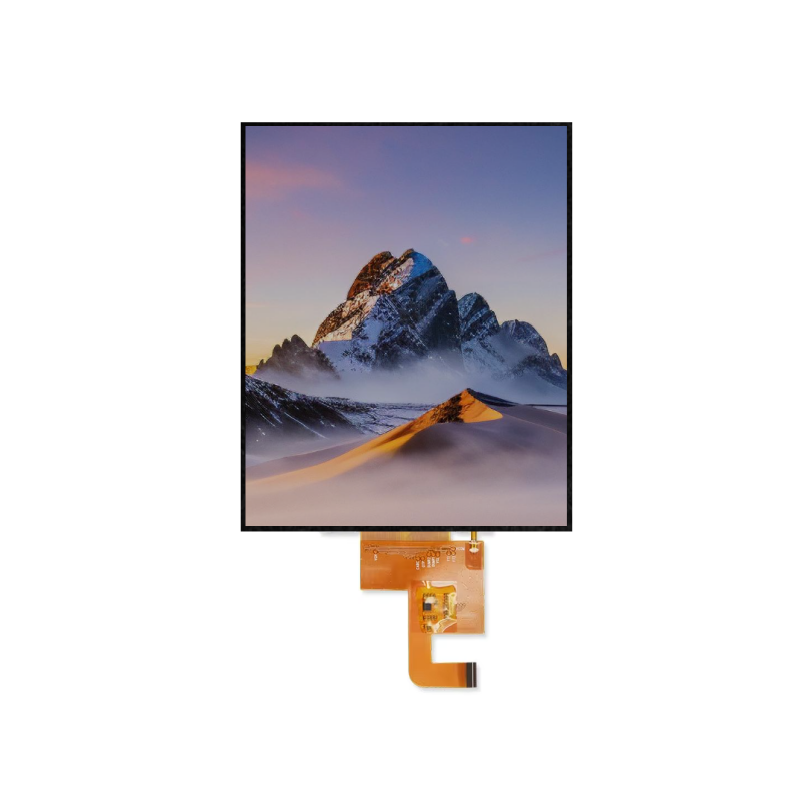

The JicTech RT050T10I-G7B is a high‑performance 5.0‑inch TFT LCD module designed for handheld, wearable, and industrial applications that demand a slim profile, wide viewing angles, and flexible interface options. Built on an ADS (IPS‑type) panel (normally black), it offers 480×RGB×854 pixel resolution (WVGA), 16.7M true colors, and 80° ultra‑wide viewing angles in all directions. The dual SPI+RGB 24‑bit parallel interface allows easy integration with a variety of MCUs and processors, while the 450 cd/m² backlight provides excellent indoor readability. With an ultra‑thin overall thickness of just 1.91mm, this module is ideal for smartphones, portable medical devices, automotive rear‑seat displays, and industrial control panels.
Key Features
- 5.0” diagonal ADS (IPS) panel – 80° viewing angles (left/right/up/down)
- 480×854 resolution – sharp WVGA, 16.7M colors
- Module size – 66.56 × 121.01 × 1.91 mm (W×H×T)
- Active area – 61.63 × 109.65 mm
- Flexible interface – SPI + RGB 24‑bit parallel (DB0-DB23), IOVCC 1.8~3.6V
- Brightness – 450 cd/m² typical – ideal for indoor and shaded outdoor
- High contrast ratio – 800:1 typical
- Wide color gamut – 69% NTSC typical
- Wide operating temperature – -20℃ to +70℃
- Backlight – 12 white LEDs (series), 40mA total current
- Driver IC – ILI9806E (well‑supported, mature)
- RoHS compliant
Applications
- Smartphones and feature phones
- Portable medical devices (patient monitors, diagnostic tools)
- Automotive rear‑seat entertainment & auxiliary displays
- Portable test & measurement equipment
- Handheld gaming devices
- Industrial HMIs with slim bezel requirements
Technical Specifications

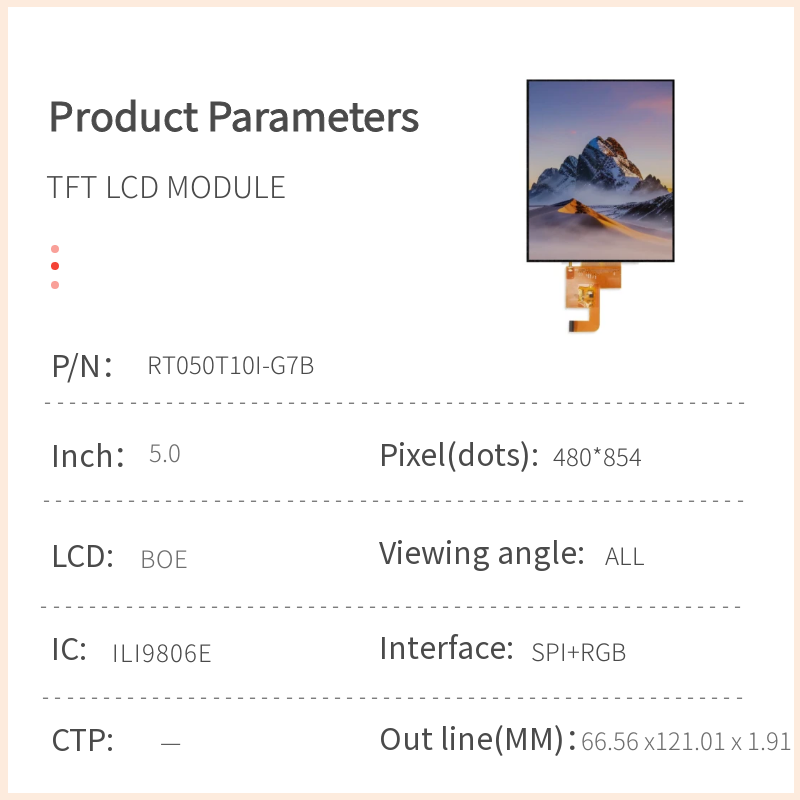

General Specifications
| Parameter | Value |
|---|
| LCD Size | 5.0 inch |
| Panel Type | a-Si TFT active matrix, ADS (IPS-type, Normally Black) |
| Resolution | 480 (RGB) × 854 pixels |
| Display Mode | Normally Black / Transmissive |
| Number of Colors | 16.7M (8‑bit per color) |
| Viewing Direction | All viewing angle (80° typical, CR≥10) |
| Contrast Ratio | 800 : 1 (typical) |
| Luminance (Brightness) | 450 cd/m² (typical), 350 cd/m² (min) |
| Module Size (W×H×T) | 66.56 × 121.01 × 1.91 mm |
| Active Area (W×H) | 61.63 × 109.65 mm |
| Pixel Pitch | 0.1284 × 0.1284 mm |
| Driver IC | ILI9806E |
| Interface | SPI + RGB (24‑bit parallel, DB0-DB23) |
| Backlight | 12 white LEDs (series connection) |
| Operating Temperature | -20 ~ +70 °C |
| Storage Temperature | -30 ~ +80 °C |
Absolute Maximum Ratings
| Parameter | Symbol | Min | Max | Unit |
|---|
| Operating temperature | Top | -20 | +70 | °C |
| Storage temperature | Tst | -30 | +80 | °C |
| Humidity | RH | – | 90 (at 60°C) | % |
DC Characteristics (Ta=25°C)
| Parameter | Symbol | Min | Typ | Max | Unit |
|---|
| Logic supply voltage | VCC/VCI | 2.5 | 2.8 | 3.6 | V |
| I/O power supply | IOVCC | 1.65 | 1.8 | 3.6 | V |
| Input current | Idd | – | 27 | 33 | mA |
| Input High Voltage | VIH | 0.7×IOVCC | – | IOVCC | V |
| Input Low Voltage | VIL | VSS | – | 0.3×IOVCC | V |
Backlight Characteristics (Ta=25°C, constant current)
| Parameter | Symbol | Min | Typ | Max | Unit | Condition |
|---|
| Forward voltage | Vf | 17.4 | 19.2 | 20.4 | V | If=40mA |
| LED current | If | – | 40 | – | mA | Constant current |
Optical Characteristics (Ta=25°C, If=20mA)
| Item | Symbol | Condition | Min | Typ | Max | Unit |
|---|
| Contrast Ratio | CR | Normal angle | – | 800 | – | – |
| Luminance (center) | Lv | Normal angle | 350 | 450 | 550 | cd/m² |
| Luminance Uniformity | δ WHITE | – | 80 | – | – | % |
| Response Time (Tr+Tf) | – | TC=25°C | – | 35 | – | ms |
| Viewing Angle (all directions) | θ | CR≥10 | – | 80 | – | deg |
| White CIE (x,y) | Wx, Wy | Normal angle | 0.29,0.32 | 0.32,0.35 | 0.35,0.38 | – |
| NTSC Ratio | S | – | – | 69% | – | % |
Interface Pin Connection (51‑pin FPC – SPI + RGB)
| Pin No. | Symbol | I/O | Description |
|---|
| 1,2,10,15,40,47,49,51 | GND | P | System ground |
| 4 | K | P | Backlight cathode |
| 5 | A | P | Backlight anode |
| 7 | VCC | P | Analog power supply (2.5~3.6V) |
| 8 | IOVCC | P | I/O power supply (1.65~3.6V) |
| 11 | VSYNC | I | Frame synchronizing signal |
| 12 | HSYNC | I | Line synchronizing signal |
| 13 | PCLK | I | Pixel clock |
| 14 | DE | I | Data enable |
| 16-39 | DB0-DB23 | I/O | 24‑bit parallel RGB data bus |
| 41 | RESET | I | External reset (active low) |
| 42 | CS | I | Chip select for SPI |
| 43 | SCL | I | SPI clock (rising edge effective if IM3=0) |
| 44 | SDI | I | SPI serial data input |
| 45 | SDO | O | SPI serial data output |
| 46 | TEO | O | Tearing effect output |
Full 51‑pin pinout including IM3 selection and NC pins available in the datasheet. Voltage levels for interface pins depend on IOVCC.
Reliability & Quality Assurance
Reliability Test Items (Pass Criteria)
- High temperature storage: 80℃, 24H
- Low temperature storage: -30℃, 24H
- High temperature operation: 70℃, 24H
- Low temperature operation: -20℃, 24H
- Temperature cycle (non‑operation): -20℃ ↔ 70℃, 30min each, 5 cycles
- Damp proof test: 60℃ / 90% RH, 12H
Failure judgment: No display defects, no glass crack, current Idd < 2x initial value, contrast ratio ≥50% of initial, and full electrical/optical functionality.
Quality Assurance (per GB2828 / MIL-STD-105E equivalent)
- Inspection level: General II, single sampling
- Major defect AQL: 0.065
- Minor defect AQL: 0.065
- Inspection conditions: distance 250mm, temperature 25±5°C, angle 45°
Handling & Storage Precautions
- Avoid mechanical shock or dropping – glass panel is fragile.
- If LCD fluid leaks, wash skin/clothes immediately with soap and water; do not ingest.
- Use grounded workstations and anti‑static bags for handling and storage.
- Storage: 0~35°C, 40~60% RH, in sealed polyethylene bag, no direct sunlight.
- Remove protective film slowly to avoid static discharge.
- Do not disassemble or modify the module – warranty void.
Packing Method
Modules are placed in anti‑static trays, stacked with foam protection, fixed with cardboard, and sealed in cartons. Detailed packing drawings available upon request.
Ordering & Support
The JicTech RT050T10I-G7B is available for engineering samples and mass production. For a complete datasheet, 2D drawing, or a quotation, please contact our B2B sales team.
Download product specification document: PULL-SPEC-RT050T10I-G7B_V01
