5.0 Inch TFT LCD Module 720×1280 MIPI with Capacitive Touch
Bring stunning HD visuals to your handheld devices with the JicTech 5.0″ IPS TFT LCD Module. Featuring 720×1280 resolution, 430 cd/m² brightness, 4‑lane MIPI interface, and integrated 5‑point capacitive touch (G+F+F, GT911), it delivers crisp, responsive interaction. Ultra‑narrow bezel, 900:1 contrast, 68% NTSC, and AF‑coated toughened glass. Contact JicTech for datasheets, samples, or volume pricing – ready for immediate design‑in.
Overview

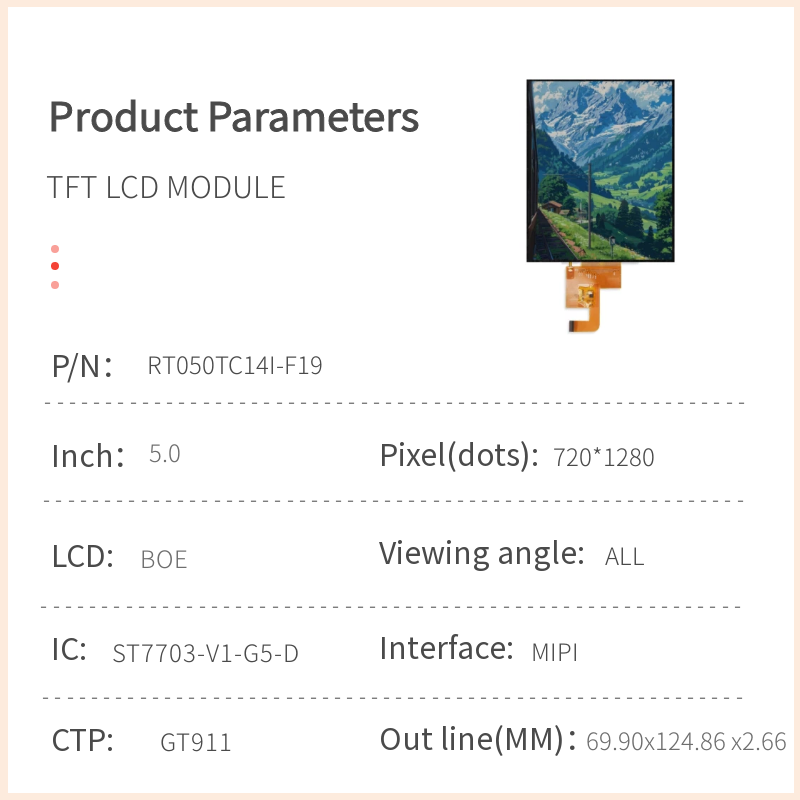

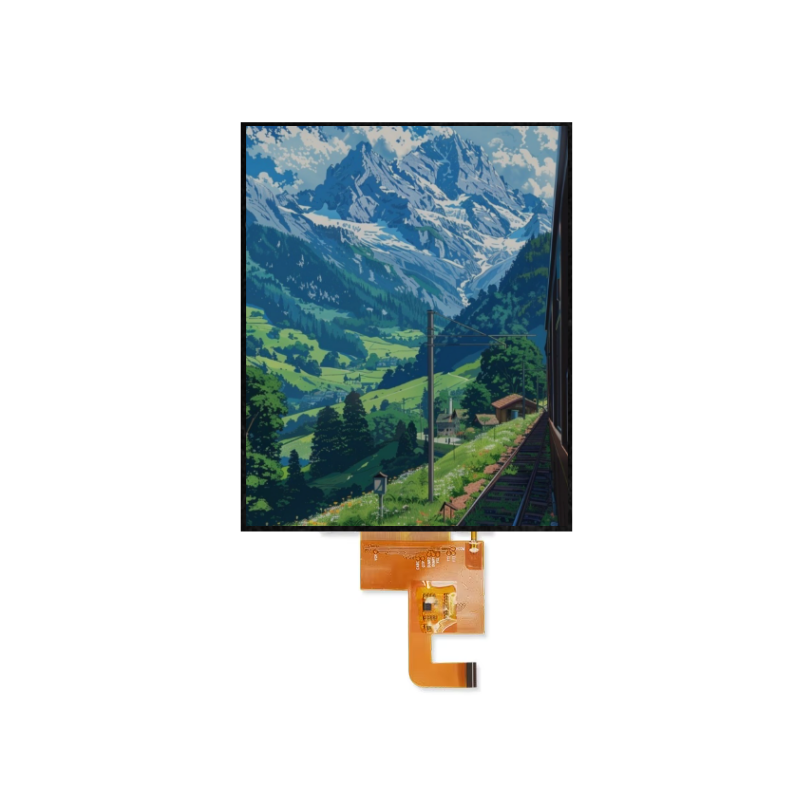

The JicTech RT050TC14I-F19 is a high‑performance 5.0‑inch TFT LCD module designed for modern handheld and industrial applications that demand HD resolution, slim mechanical integration, and reliable touch interaction. Built on an IPS panel (normally black), it offers 720×RGB×1280 pixel resolution (HD), 16.7M true colors, and 85° ultra‑wide viewing angles in all directions. The 4‑lane MIPI DSI interface ensures high‑speed video transmission with low EMI, while the 430 cd/m² backlight provides excellent indoor and shaded outdoor readability. An integrated capacitive touch panel (G+F+F construction, 5‑point multi‑touch, GT911 controller, I²C interface) delivers precise, glove‑friendly operation. The cover lens features toughened glass (GG3) with anti‑fingerprint nano coating, 7H hardness, and excellent transmittance (≥85%). With an ultra‑thin overall profile of just 2.66mm, this module is ideal for smartphones, tablets, portable medical devices, and automotive rear‑seat displays.
Key Features
- 5.0” diagonal IPS panel – 85° viewing angles (left/right/up/down)
- 720×1280 resolution – sharp HD, 16.7M colors
- Overall module size (with CTP) – 69.90 × 124.86 × 2.66 mm (W×H×T)
- LCM size (without CTP) – 64.90 × 119.36 × 1.66 mm
- Active area – 62.1 × 110.4 mm
- 4‑lane MIPI DSI interface – high‑speed, low EMI
- Brightness – 430 cd/m² typical – excellent for indoor and shaded outdoor
- High contrast ratio – 900:1 typical (600 min)
- Fast response time – 30ms typical (Tr+Tf)
- Capacitive touch panel – G+F+F construction, 5‑point multi‑touch, GT911 controller, I²C interface
- Cover lens – Toughened glass GG3, AF nano coating, 7H hardness, transmittance ≥85%
- Wide operating temperature – -20℃ to +70℃
- Backlight – 12 white LEDs (2S6P), 40mA total current
- LED lifetime – 20,000~50,000 hours (to 50% degradation)
- Driver IC – ST7703 (TFT) + GT911 (CTP)
- Color gamut – 68% NTSC typical
- RoHS compliant
Applications
- Smartphones and tablets
- Portable medical devices (patient monitors, diagnostic tools)
- Automotive rear‑seat entertainment & cluster displays
- Portable test & measurement equipment
- Handheld gaming devices
- Industrial HMIs with slim bezel requirements
Technical Specifications
General Specifications
| Parameter | Value |
|---|---|
| LCD Size | 5.0 inch |
| Panel Type | a-Si TFT active matrix, IPS (Normally Black) |
| Resolution | 720 (RGB) × 1280 pixels |
| Display Mode | IPS / Normally Black |
| Number of Colors | 16.7M (8‑bit per color) |
| Viewing Direction | All o’clock (85° typical, CR≥10) |
| Contrast Ratio | 900 : 1 (typical), 600 : 1 (min) |
| Luminance (Brightness) | 430 cd/m² (typical), 350 cd/m² (min) |
| Outline Size (with CTP) | 69.90 × 124.86 × 2.66 mm |
| LCM Size (without CTP) | 64.90 × 119.36 × 1.66 mm |
| Active Area (W×H) | 62.1 × 110.4 mm |
| Pixel Pitch | 0.08625 × 0.08625 mm |
| Display Interface | 4‑lane MIPI DSI |
| Touch Interface | I²C (3.3V, SCL/SDA) |
| Touch Panel Type | Capacitive, G+F+F, 5‑point multi‑touch |
| Cover Lens Material | Toughened glass GG3, AF nano coating, hardness ≥7H |
| Cover Lens Transmittance | ≥85% |
| TFT Driver IC | ST7703 |
| CTP Driver IC | GT911 |
| Backlight | 12 white LEDs (2 series × 6 parallel) |
| LCM VCC | 3.3V (typ) |
| IOVCC (I/O) | 1.8V (typ) |
| Touch VCC | 3.3V |
| Operating Temperature | -20 ~ +70 °C |
| Storage Temperature | -30 ~ +80 °C |
Absolute Maximum Ratings
| Parameter | Symbol | Min | Max | Unit |
|---|---|---|---|---|
| Operating temperature | Top | -20 | +70 | °C |
| Storage temperature | Tst | -30 | +80 | °C |
| Humidity | RH | – | 90 (at 60°C) | % |
DC Characteristics (Ta=25°C)
| Parameter | Symbol | Min | Typ | Max | Unit |
|---|---|---|---|---|---|
| LCM supply voltage | VCC | 2.5 | 3.3 | 3.6 | V |
| LCM I/O supply voltage | IOVCC | 1.65 | 1.8 | 2.0 | V |
| Input current | I | – | 55 | 85 | mA |
| Input High Voltage | VIH | 0.7×IOVCC | – | IOVCC | V |
| Input Low Voltage | VIL | VSS | – | 0.3×IOVCC | V |
Backlight Characteristics (Ta=25°C, constant current)
| Parameter | Symbol | Min | Typ | Max | Unit | Condition |
|---|---|---|---|---|---|---|
| Forward voltage | VF | 16.8 | 18.0 | 19.2 | V | IF=40mA |
| Forward current | IF | – | 40 | – | mA | Constant current |
| PWM Frequency | – | 25k | – | 200k | Hz | – |
| Duty Ratio | D | 25% | 60% | 100% | – | – |
| LED Lifetime | LT | 20,000 | – | 50,000 | Hrs | To 50% degradation |
Optical Characteristics (Ta=25°C)
| Item | Symbol | Condition | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|
| Contrast Ratio | CR | Normal angle | 600 | 900 | – | – |
| Luminance (center) | Lv | Normal angle | 350 | 430 | – | cd/m² |
| Luminance Uniformity | △L | – | 80% | 90% | – | % |
| Response Time (Tr+Tf) | – | TC=25°C | – | 30 | 35 | ms |
| Viewing Angle (all directions) | θ | CR≥10 | 75 | 85 | – | deg |
| White CIE (x) | Wx | Normal angle | 0.242 | 0.292 | 0.342 | – |
| White CIE (y) | Wy | Normal angle | 0.233 | 0.283 | 0.333 | – |
| NTSC Ratio | – | – | 64% | 68% | – | % |
Interface Pin Connection (LCM – 40‑pin FPC, MIPI DSI)
Full 40‑pin pinout including NC pins available in the datasheet.
Reliability & Quality Assurance
Reliability Test Items (Pass Criteria)
- High temperature storage: 80℃, 48H (IEC 60068-2-2)
- Low temperature storage: -30℃, 48H (IEC 60068-2-1)
- High temperature operation: 70℃, 48H
- Low temperature operation: -20℃, 48H
- Temperature cycle (non‑operation): -20℃ ↔ 70℃, 30min each, 5 cycles
- High temperature & humidity storage: 60℃ / 90% RH, 48H
- Mechanical vibration (non‑operation): 10Hz~55Hz~10Hz, 1.5mm, X/Y/Z, 6H (packed)
- Mechanical shock: 60G, 6ms, ±X/Y/Z, 3 times each
- Package drop: 80cm height, one time each side
- ESD (operation): Air ±8kV / Contact ±4kV, 330Ω/150pF, 5 times each
Failure judgment: No display defects, no glass crack, electrical/optical/mechanical conformance.
Quality Assurance (per GB2828 / MIL-STD-105E equivalent)
- Inspection level: General II, single sampling
- Major defect AQL: 0.4
- Minor defect AQL: 0.65
- Inspection conditions: distance 300mm, temperature 25±5°C, angle 45°
Handling & Storage Precautions
- Avoid mechanical shock or dropping – glass panel and cover lens are fragile.
- If LCD fluid leaks, wash skin/clothes immediately with soap and water; do not ingest.
- Use grounded workstations and anti‑static bags for handling and storage.
- Storage: 0~35°C, 40~60% RH, in sealed polyethylene bag, no direct sunlight.
- Remove protective film slowly to avoid static discharge.
- Do not disassemble or modify the module – warranty void.
Packing Method
Modules are placed in anti‑static trays, stacked with foam protection, fixed with cardboard, and sealed in cartons. Detailed packing drawings available upon request.
Ordering & Support
The JicTech RT050TC14I-F19 is available for engineering samples and mass production. For a complete datasheet, 2D drawing, or a quotation, please contact our B2B sales team.
Download product specification document: PULL-SPEC-RT050TC14I-F19
📩 Request a quote or sample – email us today or use the inquiry form below.
| Pin No. | Symbol | Description |
|---|---|---|
| 2,5,8,9,12,14,16,20,25,34,37,40 | GND | System ground |
| 3,4 | DATA2P, DATA2N | MIPI data lane 2 differential |
| 6,7 | DATA1P, DATA1N | MIPI data lane 1 differential |
| 10,11 | VCC | LCM power supply (3.3V) |
| 15 | LEDA | Backlight anode |
| 17 | GND | CTP analog ground |
| 18 | SDA | CTP I²C data (3.3V) |
| 19 | NCHG (INT) | CTP interrupt |
| 21 | VCC_CAPTOUCH | CTP power supply (3.3V) |
| 23 | NRESET | CTP reset (active low, 3.3V) |
| 24 | SCL | CTP I²C clock (3.3V) |
| 26,27 | LED_CA1, LED_CA2 | Backlight cathode |
| 28 | RESX | LCD reset (1.8V) |
| 30 | IOVCC | I/O power supply (1.8V) |
| 32,33 | DATA0N, DATA0P | MIPI data lane 0 differential |
| 35,36 | CLKN, CLKP | MIPI differential clock |
| 38,39 | DATA3N, DATA3P | MIPI data lane 3 differential |
