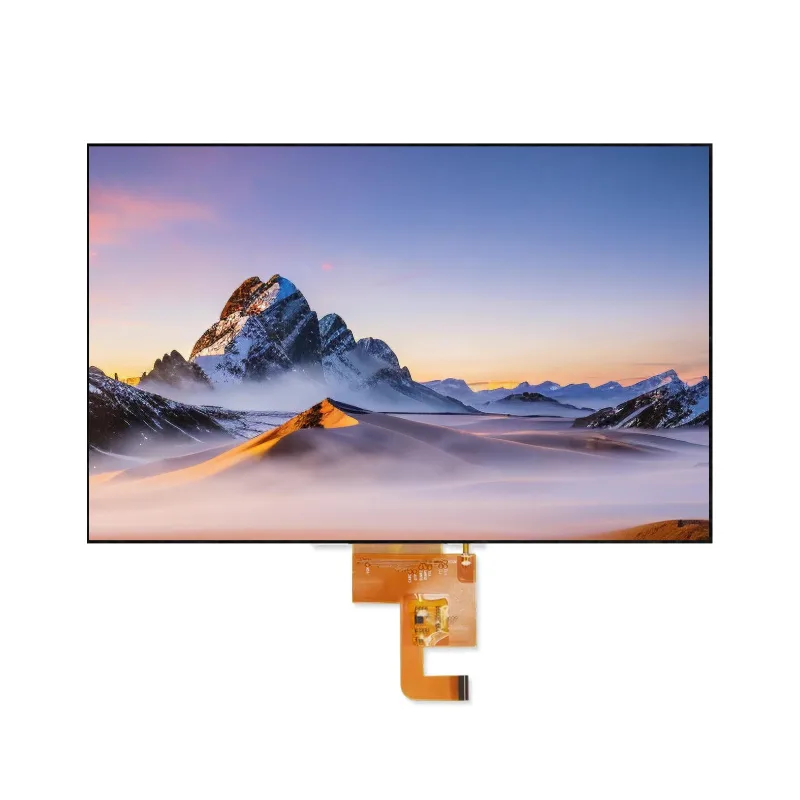

5.0 Inch TFT LCD Module 800×480 with Capacitive Touch
Upgrade your HMI with the JicTech 5.0″ IPS TFT LCD Module. Featuring 800×480 resolution, 400 cd/m² brightness, 4‑lane MIPI interface, and integrated 5‑point capacitive touch (G+G, GT911), it delivers crisp visuals and responsive touch. Ultra‑wide 85° viewing angles, 16.7M colors, and rugged toughened glass cover. Contact JicTech for datasheets, samples, or volume pricing – ready for immediate design‑in.
Overview
The JicTech DVT050A-JT-AS-53C-V6 is a high‑reliability 5.0‑inch TFT LCD module designed for industrial and automotive applications requiring a balanced combination of brightness, touch integration, and wide viewing angles. Built on an IPS panel (normally black), it offers 800×RGB×480 pixel resolution, 16.7M true colors, and 85° ultra‑wide viewing angles in all directions. The 4‑lane MIPI DSI interface ensures high‑speed video transmission with low EMI, while the 400 cd/m² backlight provides excellent indoor and shaded outdoor readability. An integrated capacitive touch panel (G+G, 5‑point multi‑touch, GT911 controller, I²C interface) delivers precise, intuitive operation. With a slim 4.86mm overall profile (including cover lens), this module is ideal for industrial HMIs, medical devices, automotive displays, and portable instruments.
Key Features
- 5.0” diagonal IPS panel – 85° viewing angles (left/right/up/down)
- 800×480 resolution – sharp WVGA, 16.7M colors
- Overall module size (with CTP) – 152.15 × 87.96 × 4.86 mm (W×H×T)
- LCM size (without CTP) – 120.65 × 76.38 × 2.83 mm
- Active area – 108.0 × 64.8 mm (based on 0.08625mm pixel pitch)
- 4‑lane MIPI DSI interface – high‑speed, low EMI
- Brightness – 400 cd/m² typical – suitable for indoor and shaded outdoor
- High contrast ratio – 900:1 typical (600 min)
- Response time – 30ms typical (Tr+Tf)
- Capacitive touch panel – G+G, 5‑point multi‑touch, GT911 controller, I²C interface
- Cover lens – Toughened glass, 3.3V touch power supply
- Wide operating temperature – -20℃ to +70℃
- Backlight – 20 white LEDs (5 series × 4 parallel), 80mA total current
- LED lifetime – 20,000~50,000 hours (to 50% degradation)
- Driver IC – ST7262 (TFT) + GT911 (CTP)
- RoHS compliant
Applications
- Industrial HMIs & control panels
- Medical diagnostic equipment & patient monitors
- Automotive infotainment & cluster displays
- Portable test & measurement devices
- Outdoor kiosks & POS terminals
- Marine and rugged electronics
Technical Specifications
General Specifications

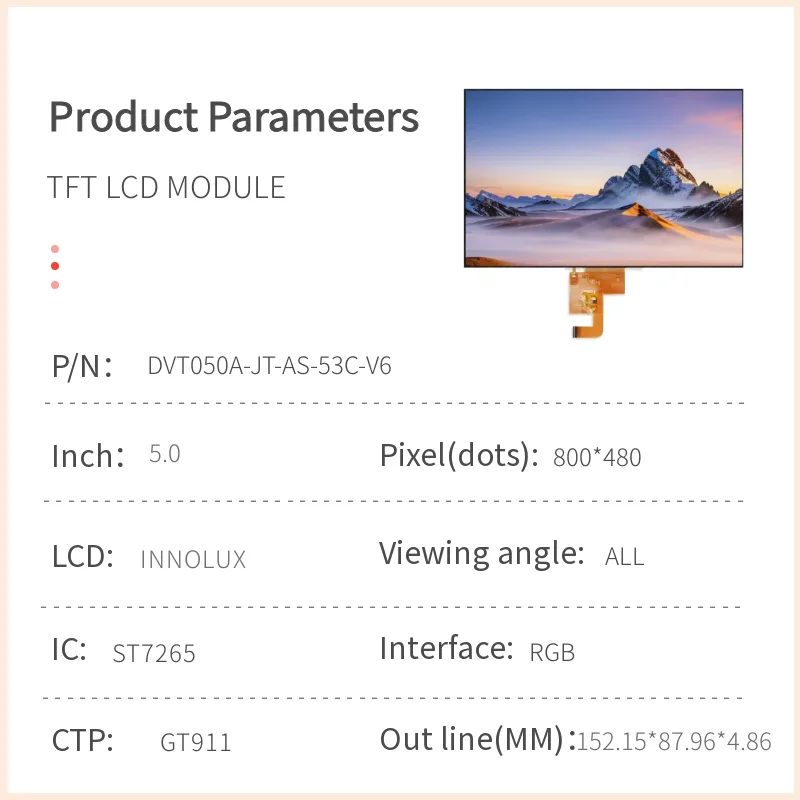

| Parameter | Value |
|---|---|
| LCD Size | 5.0 inch |
| Panel Type | a-Si TFT active matrix, IPS (Normally Black) |
| Resolution | 800 (RGB) × 480 pixels |
| Display Mode | IPS / Normally Black |
| Number of Colors | 16.7M (8‑bit per color) |
| Viewing Direction | All o’clock (85° typical, CR≥10) |
| Contrast Ratio | 900 : 1 (typical), 600 : 1 (min) |
| Luminance (Brightness) | 400 cd/m² (typical), 350 cd/m² (min) |
| Outline Size (with CTP) | 152.15 × 87.96 × 4.86 mm |
| LCM Size (without CTP) | 120.65 × 76.38 × 2.83 mm |
| Active Area (W×H) | 108.0 × 64.8 mm (approx.) |
| Pixel Pitch | 0.08625 × 0.08625 mm |
| Display Interface | 4‑lane MIPI DSI |
| Touch Interface | I²C (3.3V, SCL/SDA) |
| Touch Panel Type | Capacitive, G+G, 5‑point multi‑touch |
| Cover Lens Material | Toughened glass |
| TFT Driver IC | ST7262 |
| CTP Driver IC | GT911 |
| Backlight | 20 white LEDs (5 series × 4 parallel) |
| LCM VCC | 3.3V (typ) |
| IOVCC (I/O) | 1.8V (typ) |
| Touch VCC | 3.3V |
| Operating Temperature | -20 ~ +70 °C |
| Storage Temperature | -30 ~ +80 °C |
Absolute Maximum Ratings
| Parameter | Symbol | Min | Max | Unit |
|---|---|---|---|---|
| Operating temperature | Top | -20 | +70 | °C |
| Storage temperature | Tst | -30 | +80 | °C |
| Humidity | RH | – | 90 (at 60°C) | % |
DC Characteristics (Ta=25°C)
| Parameter | Symbol | Min | Typ | Max | Unit |
|---|---|---|---|---|---|
| LCM supply voltage | VCC | 2.5 | 3.3 | 3.6 | V |
| LCM I/O supply voltage | IOVCC | 1.65 | 1.8 | 2.0 | V |
| Input current | I | – | 55 | 85 | mA |
| Input High Voltage | VIH | 0.7×IOVCC | – | IOVCC | V |
| Input Low Voltage | VIL | VSS | – | 0.3×IOVCC | V |
Backlight Characteristics (Ta=25°C, constant current)
| Parameter | Symbol | Min | Typ | Max | Unit | Condition |
|---|---|---|---|---|---|---|
| Forward voltage | VF | 14.0 | 15.5 | 16.5 | V | IF=80mA |
| Forward current | IF | – | 80 | – | mA | Constant current |
| PWM Frequency | – | 25k | – | 200k | Hz | – |
| Duty Ratio | D | 25% | 60% | 100% | – | – |
| LED Lifetime | LT | 20,000 | – | 50,000 | Hrs | To 50% degradation |
Optical Characteristics (Ta=25°C)
| Item | Symbol | Condition | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|
| Contrast Ratio | CR | Normal angle | 600 | 900 | – | – |
| Luminance (center) | Lv | Normal angle | 350 | 400 | – | cd/m² |
| Luminance Uniformity | △L | – | 80% | 90% | – | % |
| Response Time (Tr+Tf) | – | TC=25°C | – | 30 | 35 | ms |
| Viewing Angle (all directions) | θ | CR≥10 | 75 | 85 | – | deg |
| White CIE (x) | Wx | Normal angle | 0.242 | 0.292 | 0.342 | – |
| White CIE (y) | Wy | Normal angle | 0.233 | 0.283 | 0.333 | – |
| NTSC Ratio | – | – | 64% | 68% | – | % |
Interface Pin Connection (LCM – 40‑pin FPC, partial)
| Pin No. | Symbol | Description |
|---|---|---|
| 1,2 | LED-K | Backlight cathode |
| 3,4 | LEDA | Backlight anode |
| 5 | GND | Ground |
| 6 | VDD | LCM power supply (3.3V) |
| 7-12 | R0-R5 | Red data (partial, 6‑bit) |
| 13-18 | G0-G5 | Green data (partial, 6‑bit) |
| 19-23 | B0-B4 | Blue data (partial, 5‑bit) |
| 24 | PCLK | Pixel clock |
| 26 | DISP | Display control (H: normal) |
| 27 | HSYNC | Horizontal sync |
| 28 | VSYNC | Vertical sync |
| 29 | DEN | Data enable |
| 30 | LCD-RST | LCD reset |
| 31 | CTP-VDD | Touch power supply (3.3V) |
| 33 | SHT40-SCL | I²C clock (optional sensor) |
| 34 | SHT40-SDA | I²C data (optional sensor) |
| 36 | CTP-RST | Touch reset |
| 37 | CTP-INT | Touch interrupt |
| 38 | CTP-SDA | Touch I²C data |
| 39 | CTP-SCL | Touch I²C clock |
| 40 | GND | Ground |
MIPI differential pairs (not listed in this simplified table) are available on dedicated pins. Full pinout available in the datasheet.
Reliability & Quality Assurance
Reliability Test Items (Pass Criteria)
- High temperature storage: 80℃, 48H (IEC 60068-2-2)
- Low temperature storage: -30℃, 48H (IEC 60068-2-1)
- High temperature operation: 70℃, 48H
- Low temperature operation: -20℃, 48H
- Temperature cycle (non‑operation): -20℃ ↔ 70℃, 30min each, 5 cycles
- High temperature & humidity storage: 60℃ / 90% RH, 48H
- Mechanical vibration (non‑operation): 10Hz~55Hz~10Hz, 1.5mm, X/Y/Z, 6H (packed)
- Mechanical shock: 60G, 6ms, ±X/Y/Z, 3 times each
- Package drop: 80cm height, one time each side
- ESD (operation): Air ±8kV / Contact ±4kV, 330Ω/150pF, 5 times each
Failure judgment: No display defects, no glass crack, electrical/optical/mechanical conformance.
Quality Assurance (per GB2828 / MIL-STD-105E equivalent)
- Inspection level: General II, single sampling
- Major defect AQL: 0.4
- Minor defect AQL: 0.65
- Inspection conditions: distance 300mm, temperature 25±5°C, angle 45°
Handling & Storage Precautions
- Avoid mechanical shock or dropping – glass panel and cover lens are fragile.
- If LCD fluid leaks, wash skin/clothes immediately with soap and water; do not ingest.
- Use grounded workstations and anti‑static bags for handling and storage.
- Storage: 0~35°C, 40~60% RH, in sealed polyethylene bag, no direct sunlight.
- Remove protective film slowly to avoid static discharge.
- Do not disassemble or modify the module – warranty void.
Packing Method
Modules are placed in anti‑static trays, stacked with foam protection, fixed with cardboard, and sealed in cartons. Detailed packing drawings available upon request.
Ordering & Support
The JicTech DVT050A-JT-AS-53C-V6 is available for engineering samples and mass production. For a complete datasheet, 2D drawing, or a quotation, please contact our B2B sales team.
Download product specification document: FULL SPEC-DVT050A-JT-AS-53C-V6
