5.0‑inch IPS TFT LCD Display Module – 800×480, IPS Full View, 5:3 Widescreen, 24‑bit RGB with PCAP Touch
Product Overview

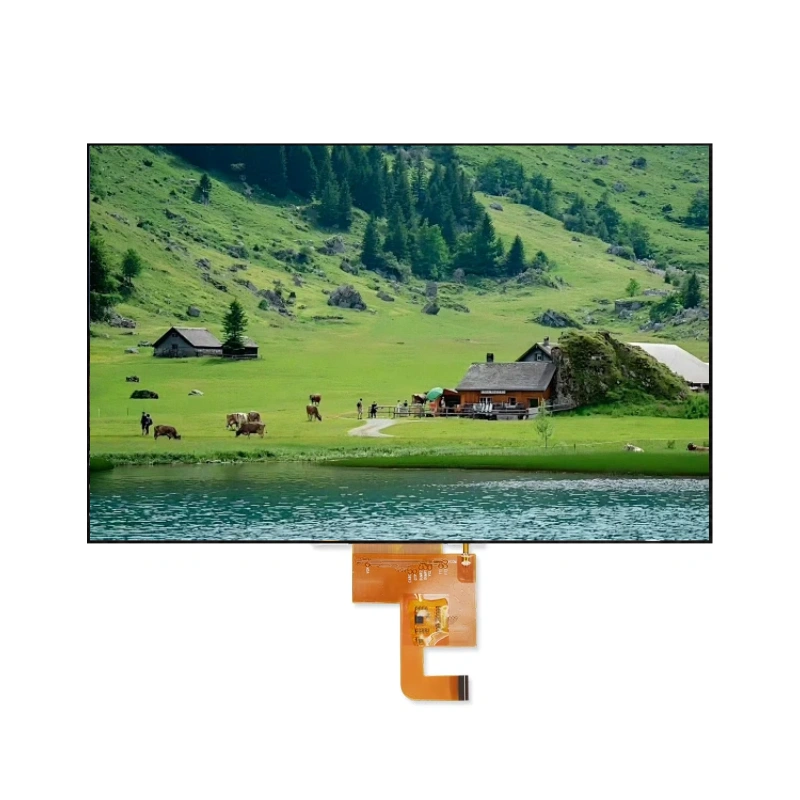

This 5.0‑inch TFT LCD module delivers high‑definition widescreen visuals at a resolution of 800 × RGB × 480 pixels with a 5:3 widescreen aspect ratio, featuring an integrated projected capacitive touch panel (PCAP) with I²C interface for seamless touch interaction. Powered by the ST7262 display driver IC (or equivalent) and the ILI2130 touch controller, it offers a complete display + touch solution in a compact form factor.
The panel utilizes a Normally Black, Transmissive LCD with IPS wide‑viewing technology (80°/80°/80°/80°), delivering consistent colour and contrast from any direction. The 24‑bit RGB parallel interface enables high‑speed data transfer for smooth video playback and dynamic graphical content. With an extended operating temperature range (-30°C to +80°C) and a robust 4.5 mm profile, this module is engineered for reliable performance in demanding automotive, industrial, and outdoor applications.
Key Features
- All‑in‑one solution – Integrated TFT display + projected capacitive touch panel (PCAP)
- HD‑grade widescreen – 800×480 resolution with 5:3 aspect ratio for crisp, detailed visuals
- IPS full viewing angle – 80° in all directions for consistent colour from any perspective
- 24‑bit RGB interface – High‑speed parallel connection for SoC / MCU / FPGA integration
- PCAP touch – Projected capacitive touch with I²C interface, ultra‑high touch resolution (16384×16384)
- Normally Black technology – Deeper blacks and superior contrast ratio
- Extended temperature range – Operating: ‑30℃ to +80℃ for demanding environments
- Large active area – 108 × 64.8 mm for comfortable viewing
- Long‑life LED backlight – 50,000 hours typical, normally white
- Glare surface – Enhanced colour saturation for vivid visuals

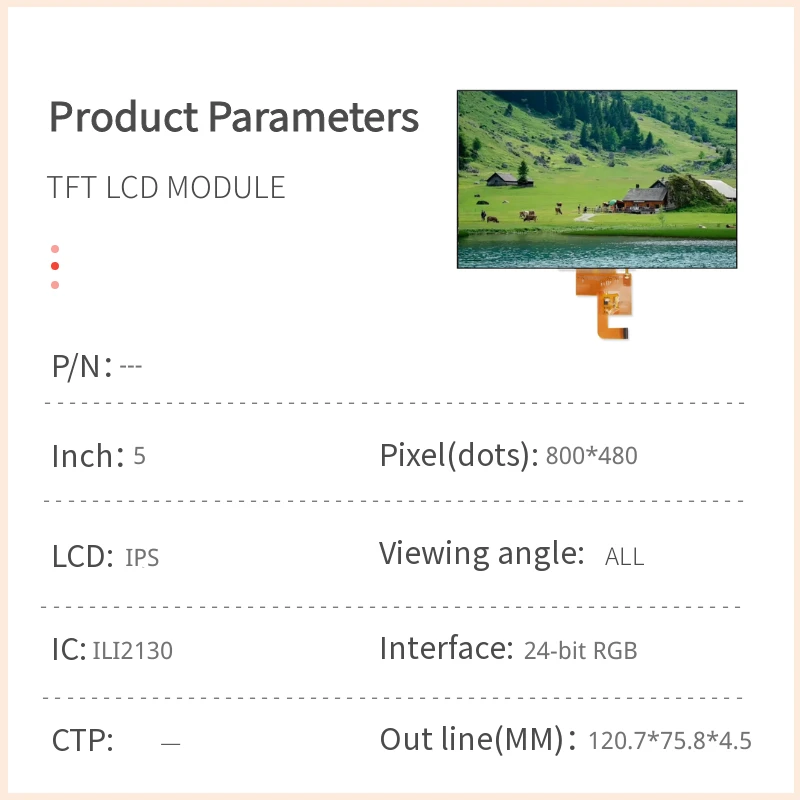

Technical Specifications
General Specifications
| Display Size | 5.0 inch (diagonal) |
| Resolution | 800 × RGB × 480 dots |
| LCD Type | TFT, Normally Black, Transmissive |
| View Direction | 80°/80°/80°/80° (IPS) |
| Aspect Ratio | 5:3 (Widescreen) |
| Driver IC | ST7262 or equivalent |
| Interface | 24‑bit RGB |
| Backlight | LED, Normally White |
| Touch Panel | Projected Capacitive (PCAP) |
| PCAP IC | ILI2130 or equivalent |
| PCAP Interface | I²C |
| PCAP Resolution | 16384 × 16384 |
| Surface Treatment | Glare |
Mechanical Dimensions
| Module Dimension | 120.7 (W) × 75.8 (H) × 4.5 (D) mm |
| Active Area | 108.0 (W) × 64.8 (H) mm |
| Pixel Pitch | 0.135 × 0.135 mm |
Absolute Maximum Ratings
| Parameter | Symbol | Min | Max | Unit |
|---|
| Operating Temperature | TOP | -30 | +80 | ℃ |
| Storage Temperature | TST | -30 | +80 | ℃ |
Electrical Characteristics (Typical Operation Conditions)
| Parameter | Symbol | Min | Typ | Max | Unit |
|---|
| Power Voltage | VDD | 3.1 | 3.3 | 3.6 | V |
| Driver Current (Black) | IDD | – | 65 | 97.5 | mA |
| Input High Voltage | VIH | 0.7×VDD | – | VDD | V |
| Input Low Voltage | VIL | 0 | – | 0.3×VDD | V |
| CTP Supply Voltage | VDDT | 3.1 | 3.3 | 3.5 | V |
| CTP Supply Current | ICTP | – | 51 | 77 | mA |
LED Backlight Driving Conditions
| Parameter | Symbol | Min | Typ | Max | Unit |
|---|
| LED Voltage | VL | 16.8 | 19.2 | 20.4 | V |
| LED Current | IL | – | 60 | – | mA |
| LED Lifetime | – | – | 50,000 | – | Hr |
Interface Pin Definition
LCD Interface (40‑pin)
The module uses a 24‑bit RGB parallel interface with standard sync signals.
| Pin | Symbol | Function |
|---|
| 1 | VLED- | LED backlight cathode |
| 2 | VLED+ | LED backlight anode |
| 3 | GND | Power ground |
| 4 | VDD | Power supply (3.1 ~ 3.6V) |
| 5‑12 | R0‑R7 | Red data (R0 = LSB, R7 = MSB) |
| 13‑20 | G0‑G7 | Green data (G0 = LSB, G7 = MSB) |
| 21‑28 | B0‑B7 | Blue data (B0 = LSB, B7 = MSB) |
| 29 | GND | Power ground |
| 30 | CLK | Sample clock (DCLK) |
| 31 | DISP | Display on/off control |
| 32‑33 | NC | No connection |
| 34 | DE | Data enable signal |
| 35 | NC | No connection |
| 36 | GND | Power ground |
| 37‑40 | NC | No connection |
Touch Panel Interface (10‑pin)
The PCAP touch panel uses a standard I²C interface with interrupt output.
| Pin | Symbol | Function |
|---|
| 1 | VSS | Ground for analog circuit |
| 2 | VDDT | Power supply: +3.3V |
| 3 | SCL | I²C clock input |
| 4 | NC | No connection |
| 5 | SDA | I²C data input/output |
| 6 | NC | No connection |
| 7 | /RST | External reset (active low) |
| 8 | NC | No connection |
| 9 | /INT | External interrupt to host |
| 10 | VSS | Ground for analog circuit |
Typical Applications
This integrated display + touch module is ideal for:
- Automotive displays – Infotainment systems, navigation, and climate control panels
- Industrial HMIs – Touch‑enabled operator panels, control terminals, and process monitors
- Medical equipment – Patient monitors, diagnostic instruments, and therapy devices
- Multimedia devices – Portable video players, digital signage, and kiosk terminals
- Test & measurement – Oscilloscopes, analyzers, and data acquisition systems
- Smart home & building automation – Access control panels, HVAC controllers, and security systems
Note: The 5:3 widescreen landscape orientation is fixed. For portrait requirements, please consult our technical support team for alternative options.
Why Choose This Module?
- Complete display + touch solution – Integrated PCAP touch eliminates separate procurement and assembly of touch components.
- HD widescreen format – 800×480 resolution with 5:3 aspect ratio delivers crisp, detailed visuals.
- 24‑bit RGB interface – Direct connection to most application processors, FPGAs, and SoCs.
- IPS full‑view technology – Wide viewing angles ensure excellent readability from any direction.
- Extended temperature range – -30°C to +80°C ensures reliable operation in automotive and industrial environments.
- Ultra‑high touch resolution – 16384×16384 PCAP resolution for precise touch detection.
- Proven ST7262 and ILI2130 controllers – Reliable, well‑documented solution with strong ecosystem support.
- Quality assured – Manufactured in ISO9001/ISO14001 certified facilities.
Ordering Information
| Order Code | Description |
|---|
| 5.0‑TFT‑RGB‑PCAP | 5.0‑inch TFT module, 800×480, IPS full view, 5:3 widescreen, 24‑bit RGB, integrated PCAP touch, I²C, glare, ST7262 + ILI2130 |
For volume pricing, sample requests, or technical drawings, please contact our sales team directly.
All specifications are subject to change without prior notice. Colour tone may vary slightly with temperature and driving voltage.
