4.3‑inch IPS TFT LCD Display Module – 480×272, IPS Full View, 16:9 Widescreen, 24‑bit RGB Interface

4.3‑inch IPS TFT LCD Display Module – 480×272, IPS Full View, 16:9 Widescreen, 24‑bit RGB Interface

Product Overview

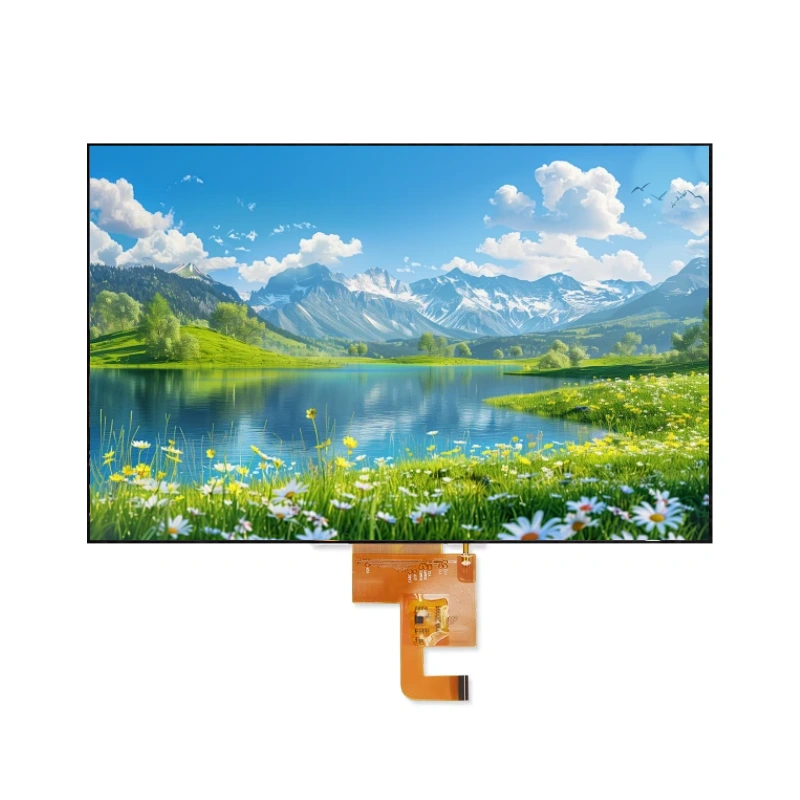

This 4.3‑inch TFT LCD module delivers sharp, high‑quality widescreen visuals at a resolution of 480 × RGB × 272 pixels with a 16:9 widescreen aspect ratio. Powered by the SC7283 driver IC (or equivalent), it features a 24‑bit RGB parallel interface, enabling high‑speed data transfer for smooth video playback and dynamic graphical content – ideal for multimedia‑centric embedded applications.

The panel utilizes a Normally Black, Transmissive LCD with IPS wide‑viewing technology (80°/80°/80°/80°), delivering consistent colour and contrast from any direction. With an ultra‑slim profile of 2.95 mm, a compact module size of 105.5 × 67.2 mm, and an extended operating temperature range (-30°C to +80°C), this module is engineered for reliable performance in demanding environments, including automotive, industrial, and outdoor applications.

Key Features

• Widescreen 16:9 format – Perfect for video playback and wide‑format UI designs
• High‑resolution display – 480×RGB×272 dots for crisp graphics and clear text
• IPS full viewing angle – 80° in all directions for consistent colour from any perspective
• 24‑bit RGB interface – High‑speed parallel connection for SoC / MCU / FPGA integration
• Normally Black technology – Deeper blacks and superior contrast ratio
• Ultra‑slim design – 2.95 mm thickness for space‑constrained applications
• Large active area – 95.04 × 53.86 mm for comfortable viewing
• Extended temperature range – Operating: ‑30℃ to +80℃ for demanding environments
• Long‑life LED backlight – 50,000 hours typical, normally white
• Efficient power consumption – Typical 25 mA supply current
• No touch panel – Focused on pure display performance
• Glare surface – Enhanced colour saturation for vivid visuals

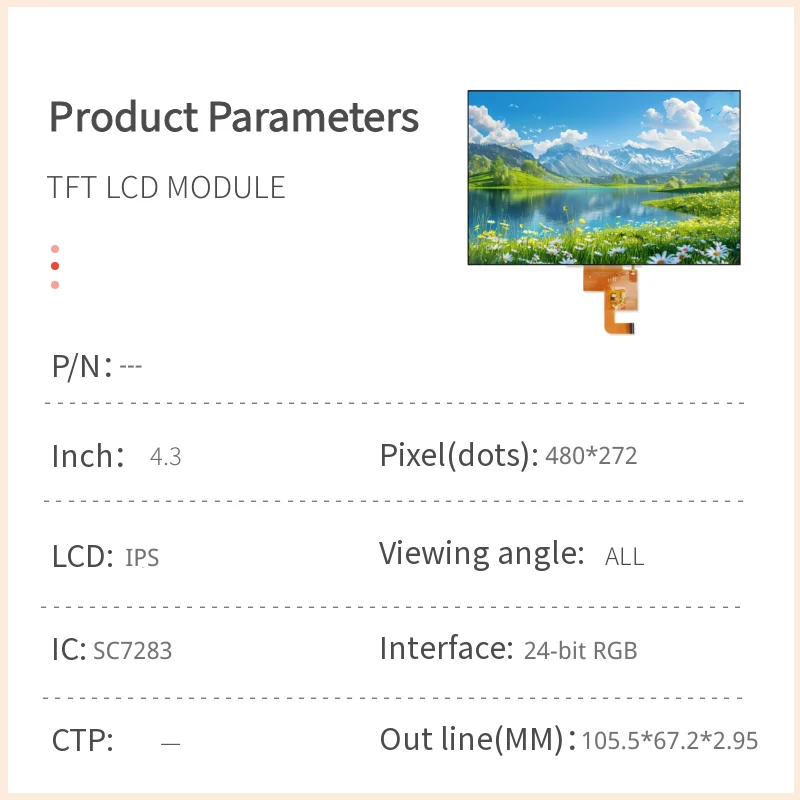

Technical Specifications

General Specifications

Mechanical Dimensions

Absolute Maximum Ratings

Electrical Characteristics (Operating Conditions)

LED Backlight Driving Conditions

Please refer to the complete specification document for backlight driving parameters.

Interface Pin Definition

The module uses a 24‑bit RGB parallel interface with standard sync signals.

Typical Applications

This widescreen display module is ideal for:

• Automotive displays – Infotainment systems, navigation, and rear‑seat entertainment
• Industrial HMIs – Control panels, operator interfaces, and process monitors
• Medical equipment – Patient monitors, diagnostic instruments, and therapy devices
• Multimedia devices – Portable video players, digital photo frames, and signage
• Test & measurement – Oscilloscopes, analyzers, and data acquisition systems
• Building automation – Access control panels, HVAC controllers, and security systems

Note: The 16:9 widescreen landscape orientation is fixed. For portrait requirements, please consult our technical support team for alternative options.

Why Choose This Module?

• Widescreen 16:9 format – Native widescreen aspect ratio ideal for video playback and modern UI designs.
• 24‑bit RGB interface – Direct connection to most application processors, FPGAs, and SoCs.
• IPS full‑view technology – Wide viewing angles ensure excellent readability from any direction.
• Extended temperature range – -30°C to +80°C ensures reliable operation in automotive and industrial environments.
• Ultra‑slim profile – 2.95 mm thickness enables sleek product designs.
• Proven SC7283 controller – Reliable, well‑documented solution with strong ecosystem support.
• Quality assured – Manufactured in ISO9001/ISO14001 certified facilities.

Ordering Information

For volume pricing, sample requests, or technical drawings, please contact our sales team directly.

All specifications are subject to change without prior notice. Colour tone may vary slightly with temperature and driving voltage.
