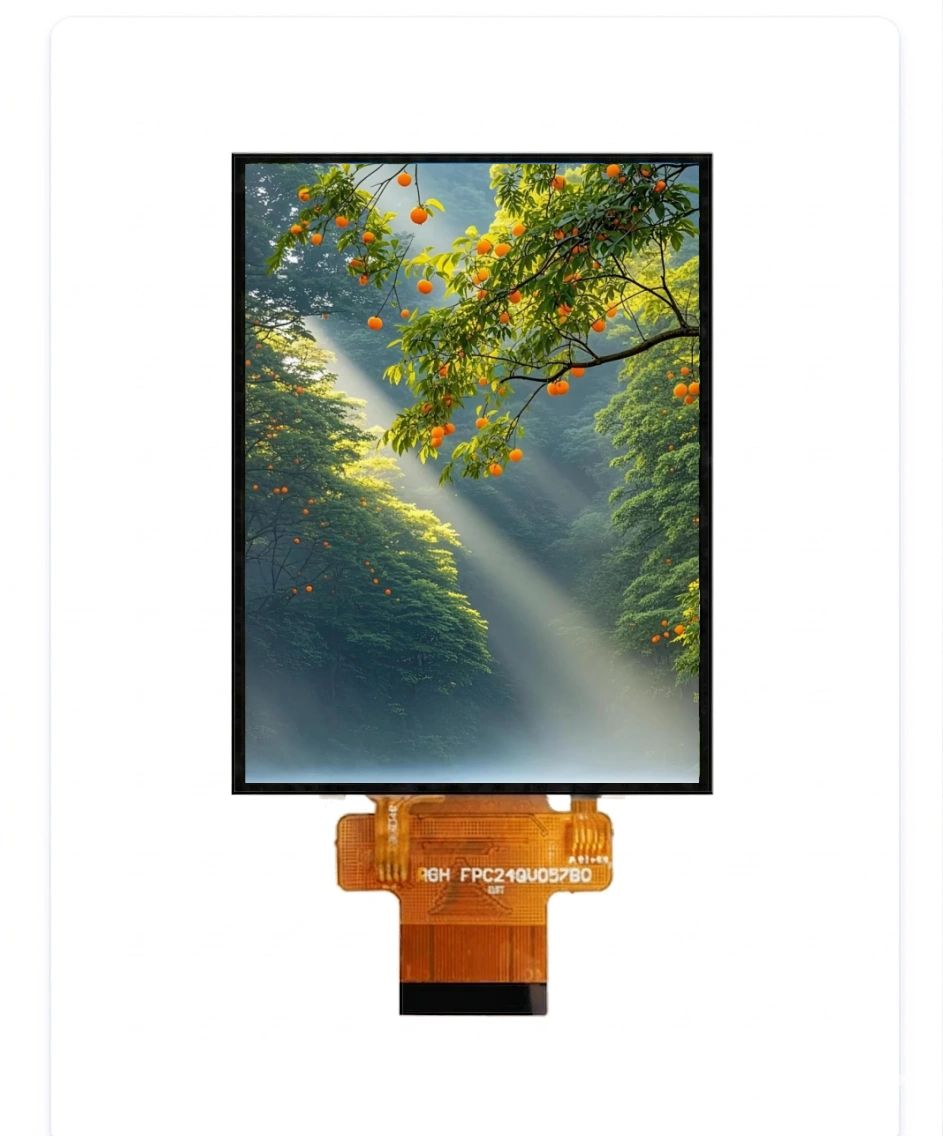

2.4‑inch IPS TFT LCD Display Module – 240×320, IPS Full View, MCU / SPI Dual Interface

Product Overview

This 2.4‑inch TFT LCD module delivers crisp, high‑quality visuals at a resolution of 240 × RGB × 320 pixels with a portrait aspect ratio. Powered by the ILI9341V driver IC (or equivalent), it features a dual‑mode interface – supporting MCU parallel (8/9/16/18‑bit) and SPI serial (3‑wire/4‑wire) – offering exceptional flexibility for system integration across a wide range of microcontrollers and application processors.

The panel utilizes a Normally Black, Transmissive LCD with IPS wide‑viewing technology (80°/80°/80°/80°), delivering consistent colour and contrast from any direction. With a compact module size of 42.72 × 60.26 × 2.8 mm, a large active area of 36.72 × 48.96 mm, and a wide operating temperature range (‑20°C to +70°C), this module is an excellent choice for portable, battery‑powered, and space‑constrained designs.

Key Features

High‑resolution display – 240×RGB×320 dots for sharp graphics and clear text
IPS full viewing angle – 80° in all directions for consistent colour from any perspective
Dual‑mode interface – Supports MCU parallel (8/9/16/18‑bit) and SPI serial (3‑wire/4‑wire)
Normally Black technology – Deeper blacks and superior contrast ratio
Compact module size – 42.72 × 60.26 mm, ideal for portable devices
Large active area – 36.72 × 48.96 mm for clear comfortable viewing
Long‑life LED backlight – 50,000 hours typical, normally white
Wide temperature range – Operating: ‑20℃ to +70℃; Storage: ‑30℃ to +80℃
Low power consumption – Typical 6.0 mA supply current
No touch panel – Focused on pure display performance
Glare surface – Enhanced colour saturation for vivid visuals

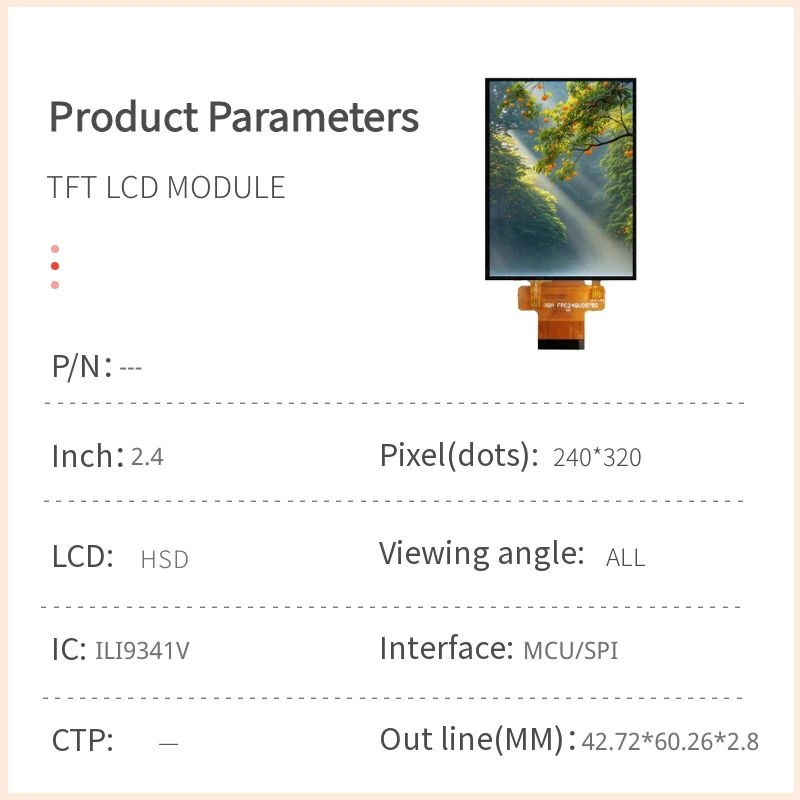

Technical Specifications

General Specifications

Display Size	2.4 inch (diagonal)
Resolution	240 × RGB × 320 dots
LCD Type	TFT, Normally Black, Transmissive
Viewing Angle	80°/80°/80°/80° (IPS)
Aspect Ratio	Portrait
Controller IC	ILI9341V or equivalent
Interface	MCU (8/9/16/18‑bit) / SPI (3‑wire/4‑wire)
Backlight	LED, Normally White
Touch Panel	Without Touch Panel
Surface Treatment	Glare

Mechanical Dimensions

Module Dimension	42.72 (W) × 60.26 (H) × 2.8 (D) mm
Active Area	36.72 (W) × 48.96 (H) mm
Dot Pitch	0.153 × 0.153 mm

Absolute Maximum Ratings

Parameter	Symbol	Min	Max	Unit
Operating Temperature	TOP	-20	+70	℃
Storage Temperature	TST	-30	+80	℃

Electrical Characteristics (Operating Conditions)

Parameter	Symbol	Min	Typ	Max	Unit
Analog Supply Voltage	VCI	2.5	–	3.3	V
Logic Supply Voltage	IOVCC	2.5	–	3.3	V
Supply Current (LCM)	ICC	–	6.0	9.0	mA

LED Backlight Driving Conditions

Parameter	Symbol	Min	Typ	Max	Unit
LED Current	–	–	80	–	mA
Power Consumption	–	–	280	–	mW
LED Voltage	VBL+	2.8	3.5	3.7	V
LED Lifetime	–	–	50,000	–	Hr

Interface Pin Definition

The module supports MCU parallel (8/9/16/18‑bit) and SPI serial (3‑wire/4‑wire) modes, selectable via IM2/IM1/IM0 pins.

Pin No.	Symbol	Function	I/O
1	GND	Ground	P
2‑6	NC	No connection	–
7	VCI	Analog power supply (2.5 ~ 3.3V)	P
8	IOVCC	Logic power supply (2.5 ~ 3.3V)	P
9	TE	Tearing effect output pin (sync MCU to frame writing)	O
10	CS	Chip select signal	I
11	D/CX (SCL)	Data/command select (parallel) / Serial clock (SPI)	I
12	WR (SPI_D/C)	Write enable (parallel) / Data/command select (SPI)	I
13	RD	Read enable (8080 parallel interface)	I
14‑29	DB0‑DB15	Data bus (8/16‑bit parallel)	I/O
30	RESET	System reset (active low)	I
31	IM0	Interface mode select	I
32	IM1	Interface mode select	I
33	IM2	Interface mode select	I
34‑35	DB16‑DB17	Data bus (18‑bit parallel)	I/O
36‑37	LEDK	LED backlight cathode	P
38	LEDA	LED backlight anode	P
39	SDA	SPI data I/O	I/O
40	NC	No connection	–

Interface Mode Selection (IM2, IM1, IM0)

IM2	IM1	IM0	Interface Mode	Data Pins
0	0	0	80‑8bit parallel	DB[7:0]
0	0	1	80‑16bit parallel	DB[15:0]
0	1	0	80‑9bit parallel	DB[8:0]
0	1	1	80‑18bit parallel	DB[17:0]
1	0	1	3‑wire 9‑bit serial	SDA
1	1	0	4‑wire 8‑bit serial	SDA

Typical Applications

This versatile display module is ideal for:

Portable consumer devices – Handheld gaming, MP3 players, and remote controls
Smart home & IoT – Smart thermostats, doorbells, lighting controls, and home hubs
Wearable devices – Smartwatches, fitness trackers, and health monitors
Industrial HMIs – Compact control panels and equipment status displays
Medical devices – Miniature diagnostic tools and portable monitors
Automotive – Dashboard indicators and climate control panels

Note: The portrait orientation is fixed. For landscape requirements, please consult our technical support team for alternative options.

Why Choose This Module?

Dual‑mode interface flexibility – Supports both MCU parallel and SPI, simplifying integration with virtually any host processor.
IPS full‑view technology – Wide viewing angles ensure consistent colour and contrast from any direction.
Compact and slim – 42.72×60.26 mm footprint with 2.8 mm thickness fits into tight design constraints.
Normally Black – Deep blacks for enhanced contrast and professional appearance.
Low power consumption – Typical 6.0 mA supply current extends battery life in portable products.
Proven ILI9341V controller – Reliable, well‑documented solution with extensive community support.
Quality assured – Manufactured in ISO9001/ISO14001 certified facilities.
