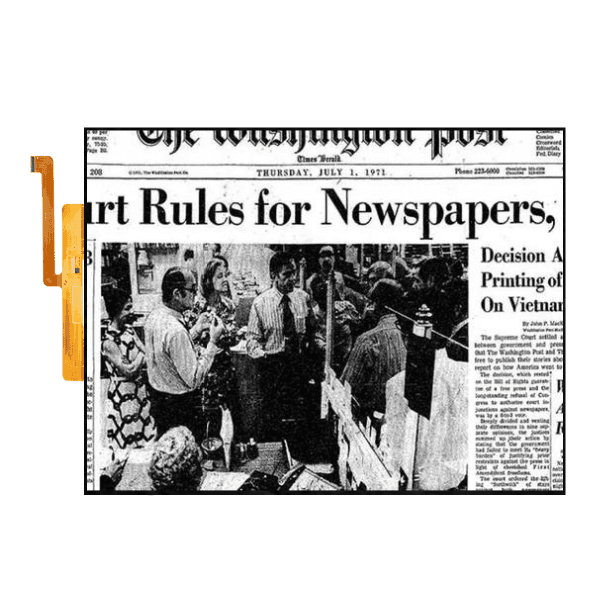

JicTech 2.13-inch Tri-Color E-Paper Display Module (Model: JS0213BN01-TNG-A0)
Overview
The JS0213BN01-TNG-A0 is a 2.13-inch electrophoretic display (EPD) module capable of showing three distinct colors: black, white, and red. With its ultra-low power consumption, high resolution, and wide viewing angle, it is engineered for applications where readability, energy efficiency, and compact form factor are critical. The module interfaces via SPI and is designed for easy integration into a variety of electronic systems.
Key Features
Tri-Color E-Paper Display: Black, white, and red outputs for enhanced visual communication
Ultra-Low Power Consumption: No power required to maintain a static image; deep sleep current as low as 3 µA
High Resolution: 250 × 122 pixels with 131 DPI for sharp text and graphics
Wide Viewing Angle: Near 180° visibility with anti-glare surface treatment
SPI Interface: Simple serial communication compatible with most microcontrollers
Compact & Lightweight: Outline dimensions of 29.2mm × 59.2mm × 1.0mm; weight approx. 3.29g
RoHS Compliant: Environmentally friendly construction
Wide Operating Range: 0°C to +40°C ambient temperature, 40–70% RH

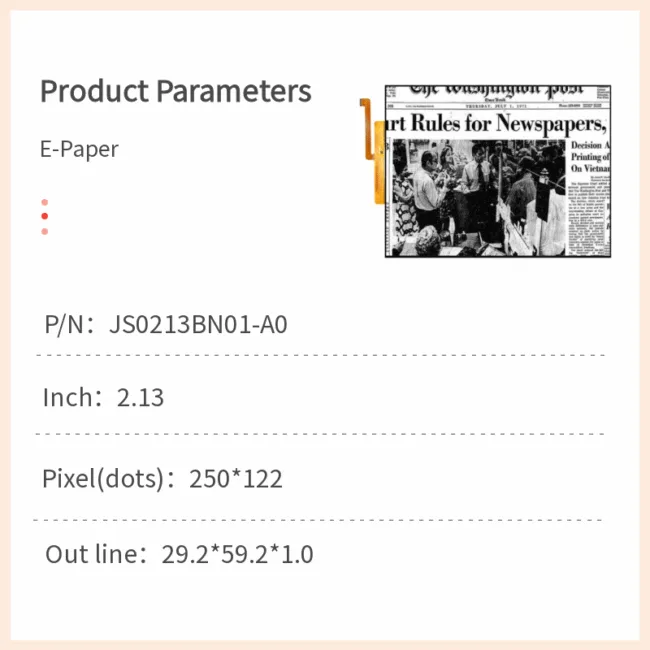

Technical Specifications
| Parameter | Specification |
|---|---|
| Active Area | 23.705mm (H) × 48.55mm (V) |
| Pixel Pitch | 0.1943mm × 0.1942mm |
| Display Colors | Black, White, Red |
| Refresh Time | 22 seconds typical (black/white/red update) |
| Supply Voltage (VCI) | 2.2V–3.7V (3.0V typical) |
| Interface | 4-wire or 3-wire SPI selectable via BS pin |
| FPC Connector | 24-pin, 0.5mm pitch (compatible with HRS FH34SRJ34S or equivalent) |
| Contrast Ratio | 20:1 typical (white/black) |
| Storage Temperature | -20°C to +60°C |
Reliability Validation & Environmental Tests
Certified for demanding applications through comprehensive testing:
| Test | Condition | Duration | Compliance |
|---|---|---|---|
| Temperature Cycling | -20°C ↔ +60°C | 100 cycles | IEC 60068-2-14 |
| High-Temp Operation | +40°C, 70% RH | 240 hrs | Industrial Standard |
| Humidity Stress | +50°C, 80% RH | 240 hrs | IEC 60068-2-30 |
| Mechanical Vibration | 1.15Grms, 1-200Hz | 3 axes | ISTA Procedure |
| Drop Resistance | 97cm height | 10 impacts | ISTA 3A |
| Ghosting Performance | ΔE00 < 2 (CIEDE2000) | Full transition | Optical Standard |
Mechanical Specifications
| Item | Min | Typ | Max | Unit |
|---|---|---|---|---|
| Glass Width | 59.0 | 59.2 | 59.4 | mm |
| Glass Height | 29.0 | 29.2 | 29.4 | mm |
| Thickness | 0.9 | 1.0 | 1.1 | mm |
| Weight | – | 3.29 | – | g |
Absolute Maximum Ratings
| Parameter | Symbol | Min | Max | Unit |
|---|---|---|---|---|
| Storage Temp | TST | –20 | +60 | °C |
| Storage Humidity | HST | 40 | 70 | %RH |
| Operating Temp | TOP | 0 | +40 | °C |
| Operating Humidity | HOP | 40 | 70 | %RH |
Electrical Characteristics
| Parameter | Symbol | Min | Typ | Max | Unit |
|---|---|---|---|---|---|
| Supply Voltage | VCI, VDDIO | 2.2 | 3.0 | 3.7 | V |
| Input High | VIH | 0.8×VCI | – | – | V |
| Input Low | VIL | – | – | 0.2×VCI | V |
| Deep Sleep Current | Idslp | – | 3 | – | μA |
| Sleep Mode Current | Islp | – | 20 | – | μA |
| Image Update Time | – | – | 22 | – | sec |
Optical Characteristics
| Parameter | Min | Typ | Max | Unit |
|---|---|---|---|---|
| Contrast Ratio | – | 20:1 | – | – |
| White L* (CIE1931) | 65 | – | – | – |
| Red a* | 37 | – | – | – |
| Reflectance (White) | – | 37 | – | % |
Applications
Electronic shelf labels (ESL) and retail signage
IoT sensor displays and smart badges
Portable medical devices and health monitors
Logistics and inventory tracking tags
Educational tools and low-power information displays
Customization & Support
JicTech offers flexible small-batch customization services, including:
Custom waveform development for optimized refresh performance
FPC length, connector type, and pinout adaptations
Packing and labeling according to your logistic requirements
Firmware support for SPI communication and power sequencing
Optical tuning for specific lighting conditions
Reliability & Testing
The module undergoes rigorous environmental tests, including high/low temperature operation, humidity resistance, thermal cycling, and mechanical vibration, ensuring consistent performance in real-world conditions.
Why Choose JicTech?
With deep expertise in display technologies and a strong focus on customer collaboration, JicTech provides reliable, energy-efficient E-Paper solutions tailored to your project needs. We support you from prototyping to production with technical guidance and adaptable design options to ensure seamless integration and optimal performance.
Download this product’s technical documentation and specifications.
Click here to download：PULL-SPEC-JS0213BN01-A0V0.4
