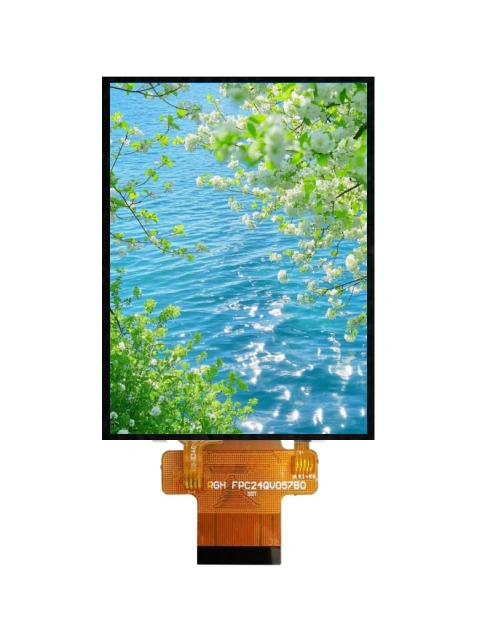

2.0‑inch IPS TFT LCD Display Module – 240×320, IPS Full View, MCU / SPI Dual Interface

Product Overview

This 2.0‑inch TFT LCD module delivers crisp, high‑quality visuals at a resolution of 240 × RGB × 320 pixels with a 3:4 portrait aspect ratio. Powered by the ST7789VI driver IC (or equivalent), it features a dual‑mode interface – supporting MCU parallel (8/9/16/18‑bit) and SPI serial – offering exceptional flexibility for system integration across a wide range of microcontrollers and application processors.

The panel utilizes a Normally Black, Transmissive LCD with IPS wide‑viewing technology (80°/80°/80°/80°), delivering consistent colour and contrast from any direction. With an ultra‑slim profile of 2.15 mm, a compact module size of 38.8 × 52.3 mm, and a wide operating temperature range (‑20°C to +70°C), this module is an excellent choice for portable, battery‑powered, and space‑constrained designs.

Key Features

High‑resolution display – 240×RGB×320 dots for sharp graphics and clear text
IPS full viewing angle – 80° in all directions for consistent colour from any perspective
Dual‑mode interface – Supports MCU parallel (8/9/16/18‑bit) and SPI serial
Normally Black technology – Deeper blacks and superior contrast ratio
Ultra‑slim design – 2.15 mm thickness for space‑constrained applications
Compact module size – 38.8 × 52.3 mm, ideal for portable devices
Long‑life LED backlight – 50,000 hours typical, normally white
Wide temperature range – Operating: ‑20℃ to +70℃; Storage: ‑30℃ to +80℃
Low power consumption – Typical 6.0 mA supply current
No touch panel – Focused on pure display performance
Glare surface – Enhanced colour saturation for vivid visuals

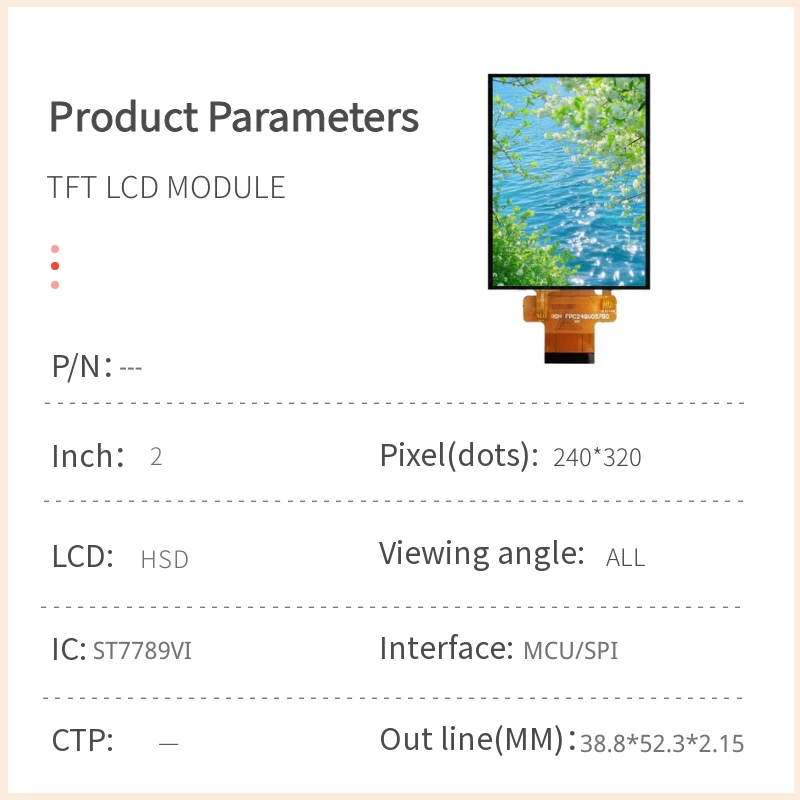

Technical Specifications

General Specifications

Display Size	2.0 inch (diagonal)
Resolution	240 × RGB × 320 dots
LCD Type	TFT, Normally Black, Transmissive
Viewing Angle	80°/80°/80°/80° (IPS)
Aspect Ratio	3:4 (Portrait)
Driver IC	ST7789VI or equivalent
Interface	MCU (8/9/16/18‑bit) / SPI
Backlight	LED, Normally White
Touch Panel	Without Touch Panel
Surface Treatment	Glare

Mechanical Dimensions

Module Dimension	38.8 (W) × 52.3 (H) × 2.15 (D) mm
Active Area	30.60 (W) × 40.80 (H) mm
Pixel Pitch	0.1275 × 0.1275 mm

Absolute Maximum Ratings

Parameter	Symbol	Min	Max	Unit
Operating Temperature	TOP	-20	+70	℃
Storage Temperature	TST	-30	+80	℃

Electrical Characteristics (Operating Conditions)

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Analog Supply Voltage	VDD	–	2.4	3.3	3.6	V
Interface Operation Voltage	VDDI	–	1.65	1.8	3.6	V
Supply Current (LCM)	IDD	VDD = VDDI = 3.0V	–	6.0	9.0	mA

Interface Pin Definition

The module supports MCU parallel (8/9/16/18‑bit) and SPI serial modes, selectable via IM2/IM1/IM0 pins.

Pin No.	Symbol	Function
1	GND	Ground
2‑6	NC	No connection
7	VDD	Analog power supply
8	VDDI	I/O system power supply
9	TE	Tearing effect signal (sync MCU to frame memory)
10	CSX	Chip selection (active low)
11	DCX/SCL	Data/command select (parallel) / Serial clock (SPI)
12	WRX/D/CX	Write enable (parallel) / Data/command select (SPI)
13	RDX	Read enable (8080 parallel interface)
14‑29	DB0‑DB15	Data bus (8/16‑bit parallel)
30	RESX	System reset (active low)
31	IM0	Interface mode select
32‑33	IM1‑IM2	Interface mode select
34‑35	DB16‑DB17	Data bus (9/18‑bit parallel)
36‑37	VLED-	LED backlight cathode
38	VLED+	LED backlight anode (also SDA in SPI mode)
39	NC/SDA	No connect / SPI data I/O
40	NC	No connection

Interface Mode Selection (IM2, IM1, IM0)

IM2	IM1	IM0	Interface Mode	Data Pins
0	0	0	80‑8bit parallel	DB[7:0]
0	0	1	80‑16bit parallel	DB[15:0]
0	1	0	80‑9bit parallel	DB[8:0]
0	1	1	80‑18bit parallel	DB[17:0]
1	0	1	3‑wire 9‑bit serial	SDA
1	1	0	4‑wire 8‑bit serial	SDA

Typical Applications

This versatile display module is ideal for:

Portable consumer devices – Handheld gaming, MP3 players, and remote controls
Smart home & IoT – Smart thermostats, doorbells, lighting controls, and home hubs
Wearable devices – Smartwatches, fitness trackers, and health monitors
Industrial HMIs – Compact control panels and equipment status displays
Medical devices – Miniature diagnostic tools and portable monitors
Automotive – Dashboard indicators and climate control panels

Note: The 3:4 portrait orientation is fixed. For landscape requirements, please consult our technical support team for alternative options.

Why Choose This Module?

Dual‑mode interface flexibility – Supports both MCU parallel and SPI, simplifying integration with virtually any host processor.
IPS full‑view technology – Wide viewing angles ensure consistent colour and contrast from any direction.
Ultra‑slim and compact – 2.15 mm thickness and 38.8×52.3 mm footprint fit into tight design constraints.
Normally Black – Deep blacks for enhanced contrast and professional appearance.
Low power consumption – Typical 6.0 mA supply current extends battery life in portable products.
Proven ST7789VI controller – Reliable, well‑documented solution with extensive community support.
Quality assured – Manufactured in ISO9001/ISO14001 certified facilities.
