Product Overview

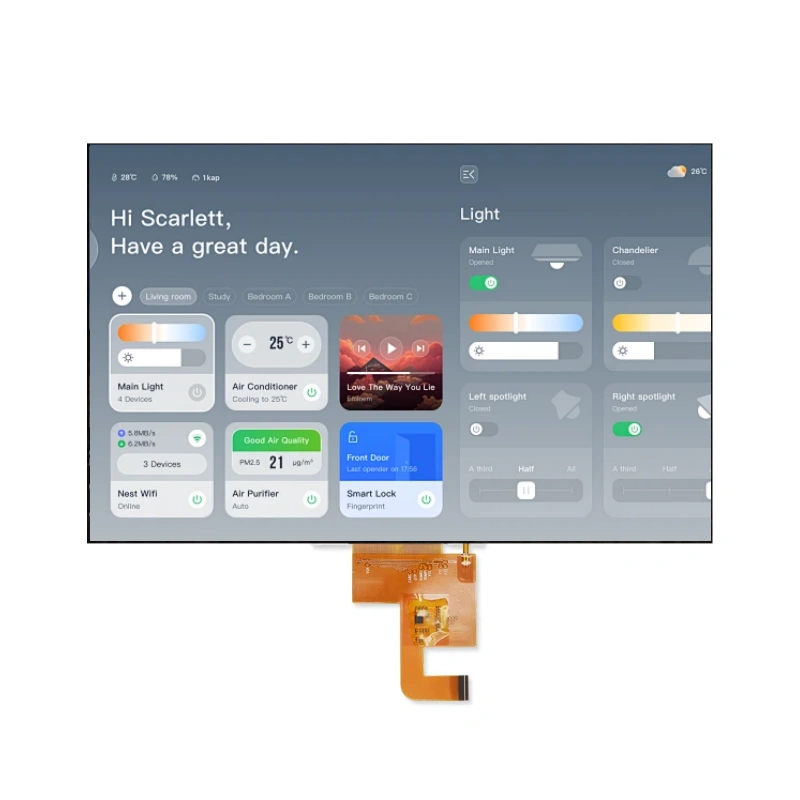

This 17.0-inch color active matrix TFT LCD module delivers exceptional visual performance for demanding industrial and professional applications. Engineered with a 5-wire analog resistive touch panel and an integrated LED backlight driving circuit, this display solution offers high-resolution imagery, wide viewing angles, and vivid color reproduction for human-machine interface applications.
The module features SXGA resolution (1280 x 1024 pixels) with 16.2M colors (6-bit+Hi-FRC), providing sharp, detailed imagery for content-rich displays. The 2-channel LVDS interface ensures stable, high-speed signal transmission with dual-pixel architecture for optimal image quality. The robust mechanical design and wide operating temperature range make it ideal for demanding industrial environments.
An optional USB touch driver board (ETP-MB-MER4050UEBG) is available, offering broad operating system support including Windows (XP through 11), Linux (Kernel 2.4.x to 5.x.x), Android (2.3.x and above), and macOS (9 through 12.x.x).
Key Features
- SXGA Resolution – 1280 x 1024 pixels for sharp, detailed imagery
- 2-Channel LVDS Interface – Dual-pixel architecture for stable, high-speed signal transmission
- Wide Color Gamut – 72% NTSC typical for rich, accurate color reproduction
- High Contrast Ratio – 1000:1 typical for deep blacks and vivid imagery
- Ultra-Wide Viewing Angle – 170° horizontal and vertical for consistent image quality
- Fast Response Time – 5 ms typical (Rising + Falling) for smooth motion performance
- Long-Life LED Backlight – 50,000 hours typical operating life
- Optional Touch Driver Board – USB interface with multi-OS support (Windows, Linux, Android, macOS)
- DE Mode Only – Simplified timing control with Data Enable only operation
- RoHS Compliant – Environmentally friendly manufacturing

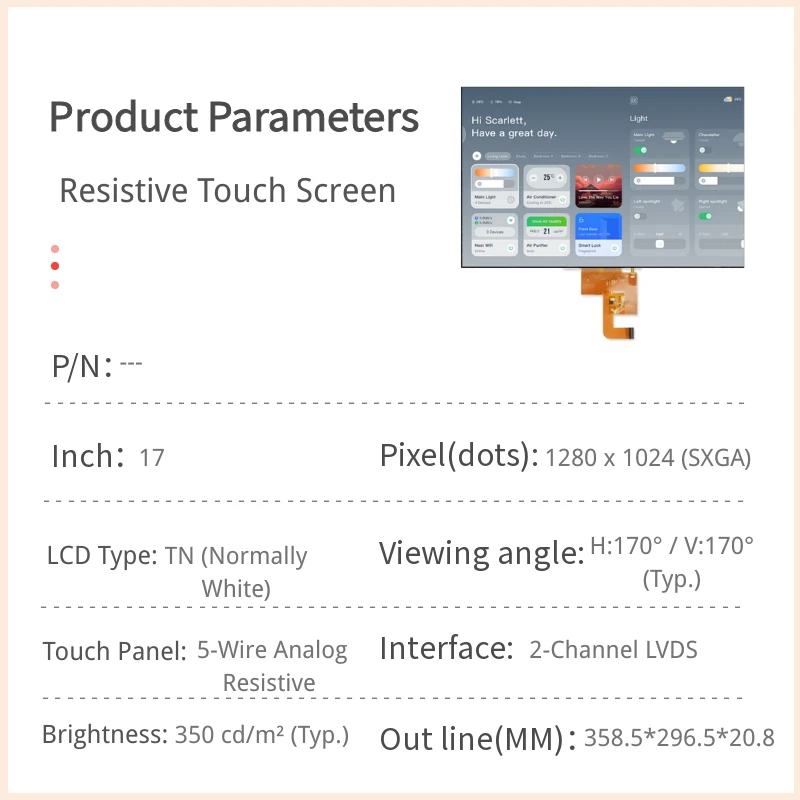

Technical Specifications
Display Characteristics
| Parameter | Specification |
|---|
| Screen Size | 17.0-inch diagonal |
| Display Area | 337.92 (H) x 270.336 (V) mm |
| Resolution | 1280 x 1024 pixels (SXGA) |
| Pixel Pitch | 0.264 x 0.264 mm |
| Display Colors | 16.2M (6-bit+Hi-FRC) |
| Display Mode | TN, Normally White |
| Color Gamut | 72% NTSC (typical) |
| Interface | 2-Channel LVDS |
| Touch Technology | 5-Wire Analog Resistive |
| Touch Method | Finger or Stylus |
Optical Characteristics
| Parameter | Value |
|---|
| White Luminance | 350 cd/m² (typical) |
| Contrast Ratio | 1000:1 (typical) |
| Response Time (Rising+Falling) | 5 ms (typical) |
| Viewing Angle (CR≥10) | Horizontal: 170° (Typ.), Vertical: 170° (Typ.) |
| Uniformity (9 Points) | ≥ 75% |
| Cross Talk | ≤ 1.5% |
Mechanical & Touch Panel Specifications
| Parameter | Dimension / Value |
|---|
| Outline Dimension | 358.5 x 296.5 x 20.8 mm |
| Touch Viewing Area | 343.0 x 275.5 mm |
| Touch Active Area | 337.0 x 269.5 mm |
| Weight | 1794g (typical) |
| Surface Hardness | ≥ 3H |
| Light Transmission | 80% ± 3% |
| Haze | 8% ± 3% |
| Operation Force | ≤ 80g |
| Touch FPC Length | 205.0 mm |
| Static Load (Touch) | 5kg / 10 cm² / 30 sec |
Electrical & Backlight Specifications
| Parameter | Min. | Typ. | Max. | Unit |
|---|
| Logic Drive Voltage (VCC) | 4.5 | 5.0 | 5.5 | V |
| VCC Current | – | 0.59 | 0.71 | A |
| VCC Power Consumption | – | 2.95 | 3.54 | W |
| LED Input Voltage | 10.8 | 12.0 | 12.6 | V |
| LED Input Current | – | 0.8 | – | A |
| LED Power Consumption | – | 9.6 | – | W |
| PWM Dimming Frequency | 200 | – | 20K | Hz |
| PWM Duty Cycle | 10 | – | 100 | % |
| LED Forward Current | – | 60 | – | mA |
| Touch Supply Voltage | – | 5 | – | V DC |
| LED Operating Life | – | 50,000 | – | Hrs |
Optional Touch Driver Board (ETP-MB-MER4050UEBG) Specifications
| Parameter | Specification |
|---|
| Board Dimension | 20mm x 75mm |
| Power Requirements | DC +5V (<100mA) |
| Operating Temperature | -25°C to +85°C |
| Interface | USB 1.1 Full Speed (USB 2.0 compliant) |
| Resolution | 2048 x 2048 |
| Response Time | <20ms |
| OS Support | Windows, Linux, Android, macOS |
| Regulatory Approvals | CE, FCC-B |
| Green Product | RoHS Compliant |
Applications
- Industrial Monitors and Control Panels
- Medical Display Systems
- Professional Workstations
- Test and Measurement Instruments
- Factory Automation Systems
- Process Control Displays
- Security and Surveillance Monitors
Reliability & Durability
The module has passed rigorous environmental tests including high/low temperature storage, thermal shock, and humidity bias testing, ensuring dependable performance in demanding industrial environments.
Ordering Information
- Display Module – 17.0″ SXGA TFT LCD with 5-Wire Resistive Touch
- Backlight – LED with integrated driver
- Touch Driver Board – Optional USB controller board (ETP-MB-MER4050UEBG)
For volume pricing, customization, or mechanical drawings, please contact our sales team.
