Product Overview
This 15.6-inch color active matrix TFT LCD module delivers stunning Full HD visual performance for demanding industrial and professional applications. Engineered with a 5-wire analog resistive touch panel and an integrated LED backlight driving circuit, this display solution offers exceptional image quality, wide viewing angles, and vivid color reproduction for human-machine interface applications.
The module features Full HD resolution (1920 x 1080 pixels) with 16.7M colors (8-bit), providing crisp, detailed imagery for content-rich displays. The 2-lane eDP (Embedded DisplayPort) interface ensures high-speed, low-latency signal transmission. The NB-style module design offers a slim profile and lightweight construction, making it ideal for space-constrained installations.
An optional USB touch driver board (ETP-MB-MER4050UEBG) is available, offering broad operating system support including Windows (XP through 11), Linux (Kernel 2.4.x to 5.x.x), Android (2.3.x and above), and macOS (9 through 12.x.x).
Key Features
- Full HD Resolution – 1920 x 1080 pixels for exceptional image clarity and detail
- eDP Interface – 2-lane Embedded DisplayPort for high-speed, low-latency signal transmission
- Wide Color Gamut – 72% NTSC typical for rich, accurate color reproduction
- High Contrast Ratio – 1000:1 typical for deep blacks and vivid imagery
- Ultra-Wide Viewing Angle – 178° horizontal and vertical for consistent image quality from any perspective
- Fast Response Time – 25 ms typical (Rising + Falling) for smooth motion performance
- Long-Life LED Backlight – 50,000 hours typical operating life
- Optional Touch Driver Board – USB interface with multi-OS support (Windows, Linux, Android, macOS)
- NB-Style Module – Slim profile design for space-constrained installations
- RoHS Compliant – Environmentally friendly manufacturing

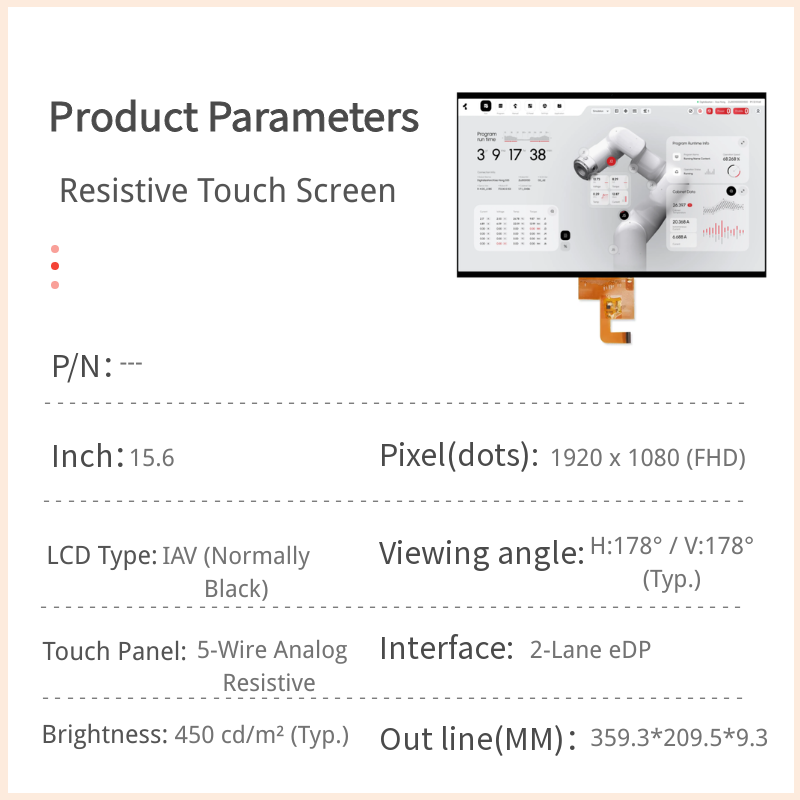

Technical Specifications
Display Characteristics
| Parameter | Specification |
|---|
| Screen Size | 15.6-inch diagonal |
| Display Area | 344.16 (H) x 193.59 (V) mm |
| Resolution | 1920 x 1080 pixels (FHD) |
| Pixel Pitch | 0.17925 x 0.17925 mm |
| Display Colors | 16.7M (8-bit) |
| Display Mode | IAV, Normally Black |
| Color Gamut | 72% NTSC (typical) |
| Interface | 2-Lane eDP |
| Touch Technology | 5-Wire Analog Resistive |
| Touch Method | Finger or Stylus |
Optical Characteristics
| Parameter | Value |
|---|
| White Luminance | 450 cd/m² (typical) |
| Contrast Ratio | 1000:1 (typical) |
| Response Time (Rising+Falling) | 25 ms (typical) |
| Viewing Angle (CR≥10) | Horizontal: 178° (Typ.), Vertical: 178° (Typ.) |
| White Variation | ≥ 70% |
Mechanical & Touch Panel Specifications
| Parameter | Dimension / Value |
|---|
| Outline Dimension | 359.3 x 209.5 x 9.3 mm |
| Touch Viewing Area | 347.93 x 196.94 mm |
| Touch Active Area | 344.23 x 193.54 mm |
| Weight | 924g (typical) |
| Surface Hardness | ≥ 3H |
| Light Transmission | 80% ± 3% |
| Haze | 8% ± 3% |
| Operation Force | ≤ 80g |
| Touch FPC Length | 205.0 mm |
| Static Load (Touch) | 5kg / 10 cm² / 30 sec |
Electrical & Backlight Specifications
| Parameter | Min. | Typ. | Max. | Unit |
|---|
| Logic Drive Voltage (VCCS) | 3.0 | 3.3 | 3.6 | V |
| VCCS Current (Mosaic) | – | 198 | 237 | mA |
| LED Input Voltage | 10.8 | 12.0 | 13.2 | V |
| LED Input Current | 0.6 | 0.8 | 1.0 | A |
| LED Power Consumption | – | 9.6 | – | W |
| PWM Input Frequency | 190 | 200 | 20K | Hz |
| PWM Duty Cycle | 10 | – | 100 | % |
| Touch Supply Voltage | – | 5 | – | V DC |
| LED Operating Life | – | 50,000 | – | Hrs |
Optional Touch Driver Board (ETP-MB-MER4050UEBG) Specifications
| Parameter | Specification |
|---|
| Board Dimension | 20mm x 75mm |
| Power Requirements | DC +5V (<100mA) |
| Operating Temperature | -25°C to +85°C |
| Interface | USB 1.1 Full Speed (USB 2.0 compliant) |
| Resolution | 2048 x 2048 |
| Response Time | <20ms |
| OS Support | Windows, Linux, Android, macOS |
| Regulatory Approvals | CE, FCC-B |
| Green Product | RoHS Compliant |
Applications
- Industrial Monitors and Control Panels
- Medical Display Systems
- Professional Video Monitoring
- Test and Measurement Instruments
- Factory Automation Systems
- Kiosks and Public Displays
- Digital Signage
Reliability & Durability
The module has passed rigorous environmental tests including high/low temperature storage, thermal cycling, and humidity bias testing, ensuring dependable performance in demanding industrial environments.
Ordering Information
- Display Module – 15.6″ FHD TFT LCD with 5-Wire Resistive Touch
- Backlight – LED with integrated converter
- Touch Driver Board – Optional USB controller board (ETP-MB-MER4050UEBG)
For volume pricing, customization, or mechanical drawings, please contact our sales team.
