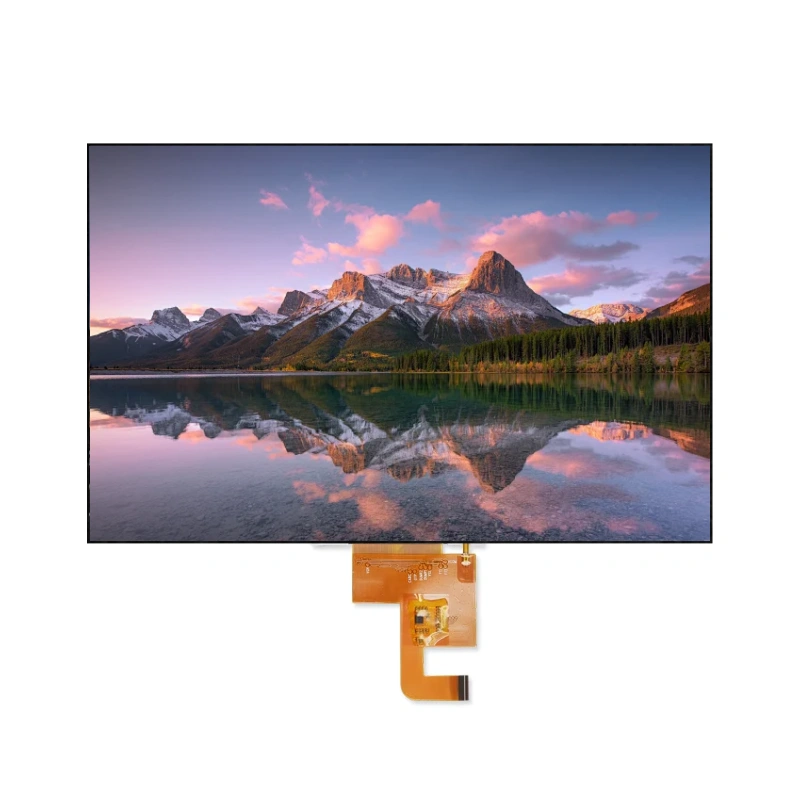

15.6‑inch Full HD IPS TFT LCD Display Module – 1920×1080, IPS Wide View, 16:9 Widescreen, eDP Interface

Product Overview

This 15.6‑inch TFT LCD module delivers stunning Full HD visuals at a resolution of 1920 × RGB × 1080 pixels with a 16:9 widescreen aspect ratio. Featuring a high‑speed eDP (Embedded DisplayPort) interface, it enables ultra‑high bandwidth data transmission with low EMI and reduced cabling complexity – ideal for premium display applications requiring exceptional image quality, high refresh rates, and seamless integration with modern application processors.

The panel utilizes a Normally Black, Transmissive LCD with IPS wide‑viewing technology (80°/80°/80°/80°), delivering exceptional colour fidelity and contrast from virtually any perspective. An anti‑glare surface reduces reflections for improved readability in bright environments. With a large active area of 344.16 × 193.59 mm, a slim 9.0 mm profile, low power consumption (typical 200 mA), and a wide operating temperature range (‑20°C to +70°C), this module is a premium choice for industrial displays, medical imaging, digital signage, and high‑performance portable devices.

Key Features

Full HD resolution – 1920×1080 for ultra‑sharp, detailed visuals and crisp text
IPS wide viewing angle – 80° in all directions for consistent colour from any perspective
eDP interface – High‑speed embedded DisplayPort with low EMI and reduced cabling
Normally Black technology – Deeper blacks and superior contrast ratio
Anti‑glare surface – Reduces reflections for improved outdoor and bright‑environment readability
Large active area – 344.16 × 193.59 mm for immersive viewing
Slim design – 9.0 mm profile for sleek product designs
Low power consumption – Typical 200 mA (0.66W) for energy‑efficient operation
Long‑life LED backlight – 50,000 hours typical, normally white
Wide temperature range – Operating: ‑20℃ to +70℃; Storage: ‑30℃ to +80℃
HPD (Hot Plug Detect) support – Enables proper eDP link management
No touch panel – Focused on pure display performance

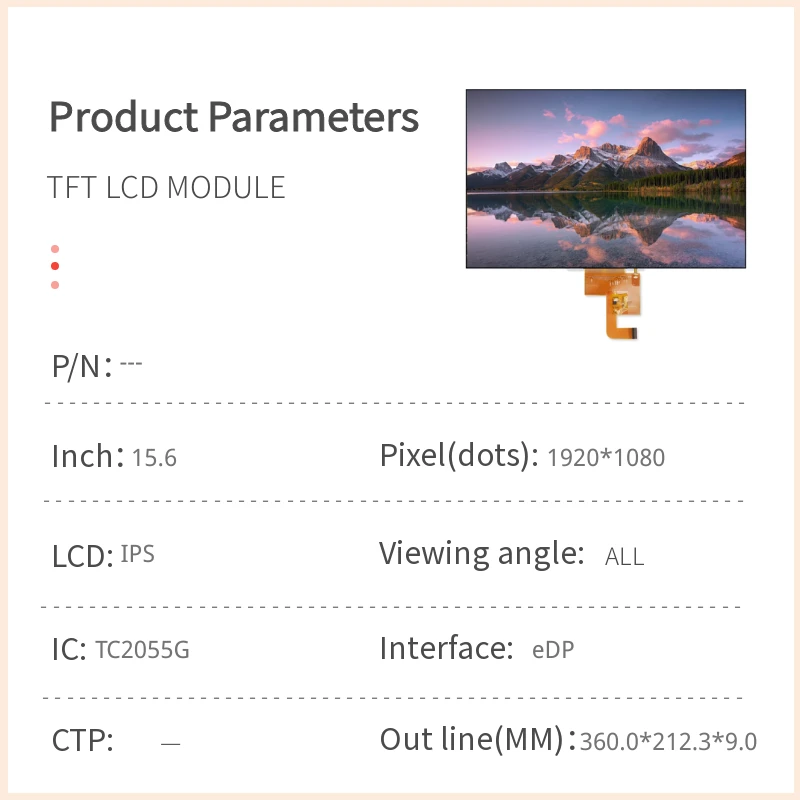

Technical Specifications

General Specifications

Display Size	15.6 inch (diagonal)
Resolution	1920 × RGB × 1080 dots (Full HD)
LCD Type	TFT, Normally Black, Transmissive
Viewing Angle	80°/80°/80°/80° (IPS)
Aspect Ratio	16:9 (Widescreen)
Driver IC	TC2055G or equivalent
Interface	eDP (Embedded DisplayPort)
Backlight	LED, Normally White
Touch Panel	Without Touch Panel
Surface Treatment	Anti‑Glare

Mechanical Dimensions

Module Dimension	360.0 (W) × 212.3 (H) × 9.0 (D) mm
Active Area	344.16 (W) × 193.59 (H) mm
Pixel Pitch	0.17925 × 0.17925 mm

Absolute Maximum Ratings

Parameter	Symbol	Min	Max	Unit
Operating Temperature	TOP	-20	+70	℃
Storage Temperature	TST	-30	+80	℃

Electrical Characteristics (TFT LCD Module)

Parameter	Symbol	Min	Typ	Max	Unit
Logic/LCD Drive Voltage	LCD_VDD	3.0	3.3	3.6	V
LCD_VDD Current	IDD	–	200	300	mA
LCD_VDD Current (Max)	IDDMAX	–	–	400	mA
LCD_VDD Power	PDD	–	0.66	1.32	W
Inrush Current	IRush	–	–	2.0	A
Allowable Ripple Voltage	LCD_VDDrp	–	–	100	mV

LED Backlight Driving Conditions

Please refer to the complete specification document for detailed backlight driving parameters.

Interface Pin Definition

The module uses an eDP (Embedded DisplayPort) interface with 2 main link lanes and auxiliary channel, plus HPD (Hot Plug Detect) support.

LCD Interface (30‑pin)

Pin No.	Signal Name	Description
1	NC	No connection
2	H_GND	Ground
3	Lane1_N	eDP Lane 1 negative (complement signal)
4	Lane1_P	eDP Lane 1 positive (true signal)
5	H_GND	Ground
6	Lane0_N	eDP Lane 0 negative (complement signal)
7	Lane0_P	eDP Lane 0 positive (true signal)
8	H_GND	Ground
9	AUX_CH_P	Auxiliary channel positive (true signal)
10	AUX_CH_N	Auxiliary channel negative (complement signal)
11	H_GND	Ground
12‑13	LCD_VDD	LCD logic and driver power (3.3V)
14	NC	No connection
15‑16	LCD_GND	Ground
17	HPD	Hot Plug Detect signal pin
18‑21	LCD_GND	Ground
22‑30	NC	No connection

Backlight Interface

Pin	Symbol	Description
1	VLED+	LED anode (Black wire)
2	VLED-	LED cathode (White wire)

Typical Applications

This high‑performance Full HD display module is ideal for:

Medical imaging – Diagnostic displays, surgical monitors, and PACS workstations
Industrial HMIs – High‑end operator panels, control terminals, and process monitors
Digital signage – Advertising displays, information kiosks, and public information systems
Professional AV – Broadcast monitors, video editing, and production equipment
Portable computing – Laptops, tablets, and portable all‑in‑one devices
Test & measurement – Oscilloscopes, analyzers, and data acquisition systems

Note: The 16:9 widescreen landscape orientation is fixed. For portrait requirements, please consult our technical support team for alternative options.

Why Choose This Module?

Full HD resolution – 1920×1080 delivers ultra‑sharp, detailed images for professional and medical applications requiring high information density.
eDP interface with HPD – High‑speed embedded DisplayPort with Hot Plug Detect support for robust link management.
IPS wide‑viewing technology – 80° in all directions ensures consistent colour and contrast from any perspective.
Anti‑glare surface – Reduces reflections for better visibility in bright environments.
Large active area – 344.16 × 193.59 mm provides an immersive viewing experience.
Energy‑efficient operation – Typical 200 mA (0.66W) power consumption reduces system thermal load.
Proven TC2055G driver – Reliable, well‑documented solution with strong ecosystem support.
Quality assured – Manufactured in ISO9001/ISO14001 certified facilities.
