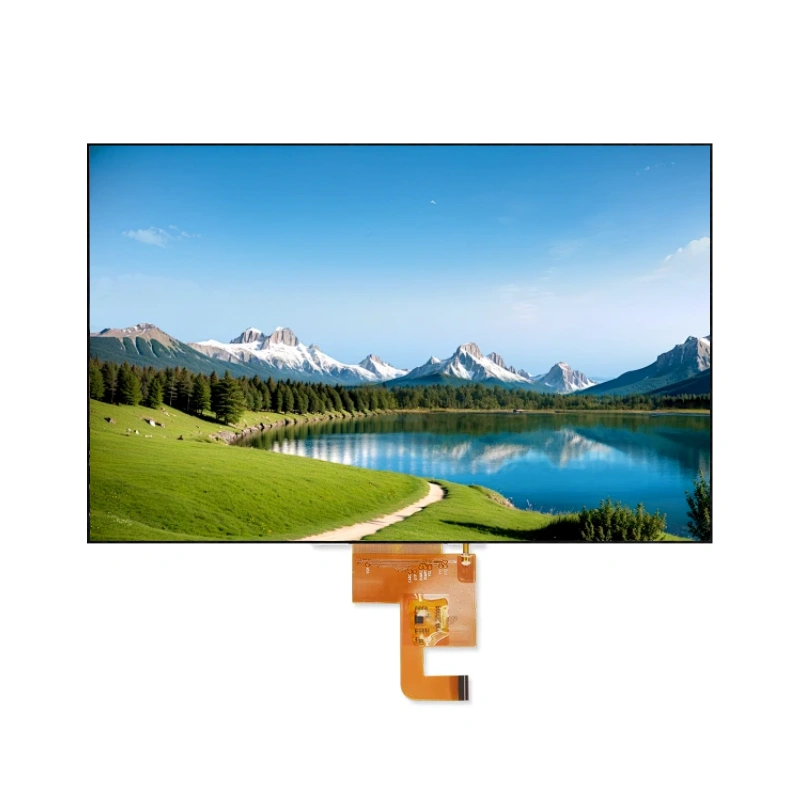

15.0‑inch XGA IPS TFT LCD Display Module – 1024×768, IPS Wide View (88°), 4:3 Aspect Ratio, LVDS Interface

15.0‑inch XGA IPS TFT LCD Display Module – 1024×768, IPS Wide View (88°), 4:3 Aspect Ratio, LVDS Interface

Product Overview

This 15.0‑inch TFT LCD module delivers high‑quality XGA‑grade visuals at a resolution of 1024 × RGB × 768 pixels with a classic 4:3 aspect ratio. Featuring a high‑speed LVDS interface with 4 data lanes, it enables low‑EMI, high‑bandwidth data transmission for demanding industrial, medical, and professional display applications.

The panel utilizes a Normally Black, Transmissive LCD with IPS wide‑viewing technology (88°/88°/88°/88°), delivering exceptional colour fidelity and contrast from virtually any perspective. An anti‑glare surface reduces reflections for improved readability in bright environments. With a large active area of 304.1 × 228.1 mm, a robust 9.1 mm profile, and a wide operating temperature range (‑20°C to +70°C), this module is a premium choice for industrial HMIs, medical workstations, and professional display systems.

Key Features

• XGA resolution – 1024×768 for crisp, detailed visuals and sharp text
• Classic 4:3 aspect ratio – Standard format for industrial and professional displays
• IPS wide viewing angle – 88° in all directions for consistent colour from any perspective
• LVDS interface – High‑speed differential signalling with low EMI and 4 data lanes
• Normally Black technology – Deeper blacks and superior contrast ratio
• Anti‑glare surface – Reduces reflections for improved outdoor and bright‑environment readability
• Large active area – 304.1 × 228.1 mm for immersive viewing
• 12V LED backlight converter – Integrated backlight interface with enable and PWM dimming control
• Long‑life LED backlight – 50,000 hours typical, normally white
• Wide temperature range – Operating: ‑20℃ to +70℃; Storage: ‑30℃ to +70℃
• 6‑bit / 8‑bit colour select – SEL68 pin for interface colour depth selection
• Reverse scan control – LR/UD pin for horizontal/vertical scan direction selection
• No touch panel – Focused on pure display performance

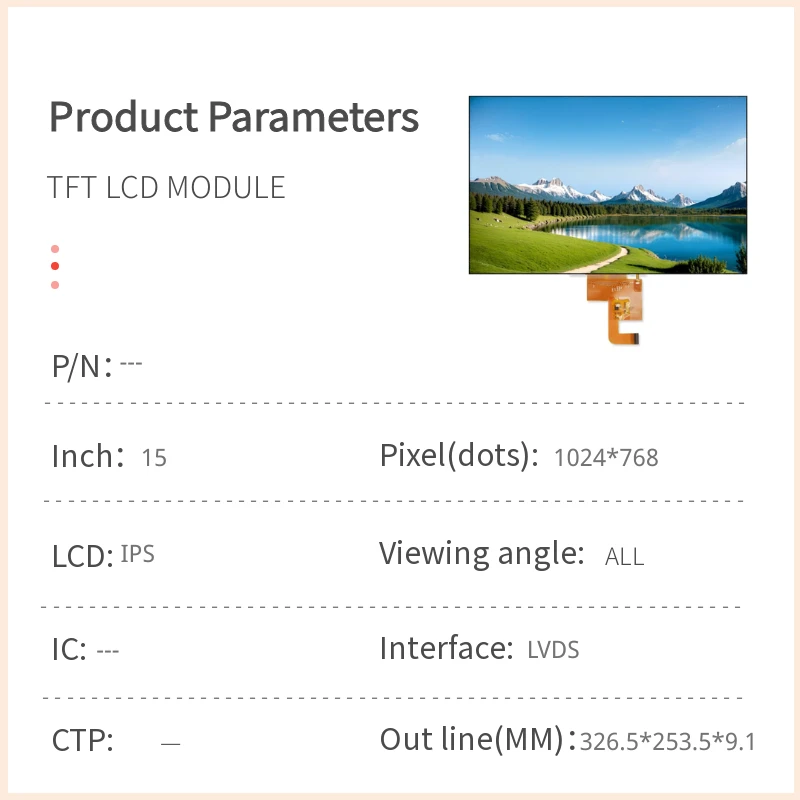

Technical Specifications

General Specifications

Mechanical Dimensions

Absolute Maximum Ratings

Electrical Characteristics (TFT LCD Module)

LED Backlight Driving Conditions

Please refer to the complete specification document for detailed backlight driving parameters.

Interface Pin Definition

LCD Interface (20‑pin)

The module uses an LVDS interface with 4 data lanes and differential clock.

Backlight Unit Converter Connector (5‑pin)

The backlight converter uses a separate 5‑pin connector with 12V input, enable, and PWM dimming control.

Typical Applications

This large‑format, high‑performance display module is ideal for:

• Industrial HMIs – Large operator panels, control terminals, and process monitoring systems
• Medical equipment – Diagnostic workstations, patient monitors, and medical imaging displays
• Digital signage – Advertising displays, information kiosks, and public information systems
• ATM & KIOSK – Self‑service terminals, banking machines, and ticketing systems
• Electronic whiteboards – Interactive displays and collaboration tools
• Test & measurement – Oscilloscopes, spectrum analyzers, and data acquisition systems

Note: The 4:3 landscape orientation is fixed. For portrait requirements, please consult our technical support team for alternative options.

Why Choose This Module?

• XGA‑grade resolution – 1024×768 delivers crisp, detailed images suitable for professional and industrial applications requiring high information density.
• Classic 4:3 format – The standard aspect ratio for many industrial, medical, and professional display systems.
• Ultra‑wide IPS viewing angle – 88° in all directions ensures consistent colour and contrast from any perspective.
• LVDS interface – High‑speed differential signalling with low EMI and excellent noise immunity.
• Anti‑glare surface – Reduces reflections for better visibility in bright environments.
• Integrated backlight converter interface – 12V input with enable and PWM dimming control simplifies system design.
• Flexible scan and colour control – LR/UD and SEL68 pins for scan direction and colour depth selection.
• Quality assured – Manufactured in ISO9001/ISO14001 certified facilities.

Ordering Information

For volume pricing, sample requests, or technical drawings, please contact our sales team directly.

All specifications are subject to change without prior notice. Colour tone may vary slightly with temperature and driving voltage.
