Product Overview

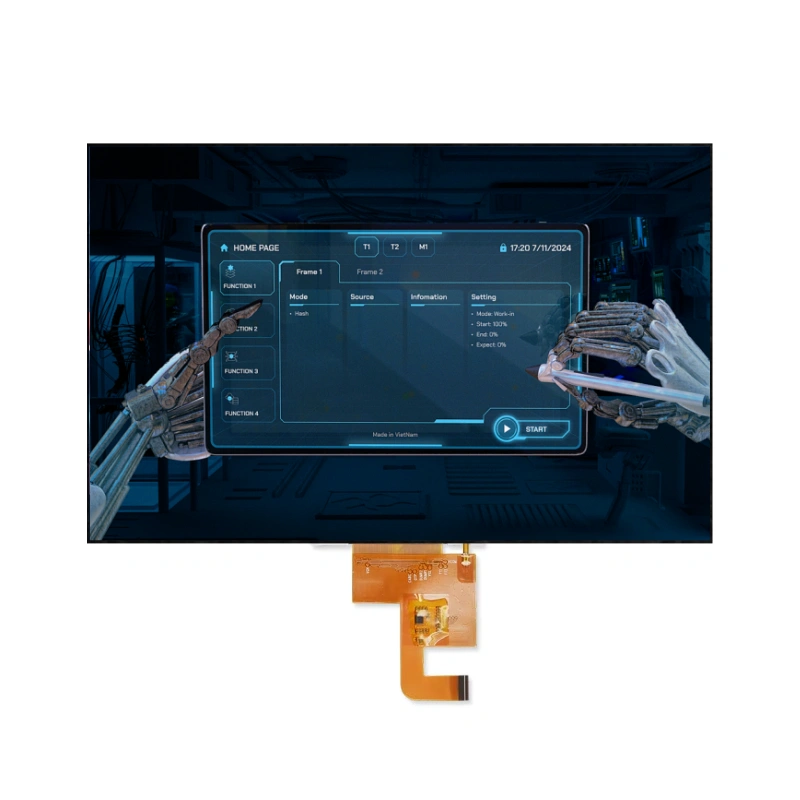

This 13.3-inch color active matrix TFT LCD module delivers stunning Full HD visual performance and intuitive touch interaction for demanding industrial and professional applications. Engineered with a projected capacitive multi-touch panel, an integrated LED backlight driving circuit, and a Chip-on-Flex (COF) touch design, this display solution offers responsive 10-point touch functionality, ultra-wide viewing angles, exceptional color accuracy, and vivid imagery for premium human-machine interface applications.
The module features FHD resolution (1920 x 1080 pixels) with 16.7M colors (8-bit), providing crisp, detailed imagery for content-rich displays. The 2-channel LVDS interface ensures stable, high-speed signal transmission. AHVA (Advanced Hyper-Viewing Angle) technology delivers 178° ultra-wide viewing angles and 90% NTSC color gamut for exceptional image quality and color accuracy. The projected capacitive touch panel supports 10 simultaneous touch points with USB or I2C interface options and is compatible with Windows, Linux, and Android operating systems.
Key Features
- Full HD Resolution – 1920 x 1080 pixels for exceptional image clarity and detail
- Projected Capacitive Multi-Touch – 10-point touch support for intuitive gesture-based interaction
- AHVA Technology – Ultra-wide viewing angles: 178° horizontal and vertical
- Wide Color Gamut – 90% NTSC typical for stunning, accurate color reproduction
- High Contrast Ratio – 800:1 typical for deep blacks and vivid imagery
- 2-Channel LVDS Interface – Stable, high-speed signal transmission for FHD content
- Durable Glass Surface – Strengthened glass with ≥6H hardness for scratch resistance
- Long-Life LED Backlight – 50,000 hours typical operating life
- COF Touch Design – Chip-on-Flex for improved reliability and slim profile
- Broad OS Support – Compatible with Windows, Linux, and Android
- RoHS Compliant – Environmentally friendly manufacturing

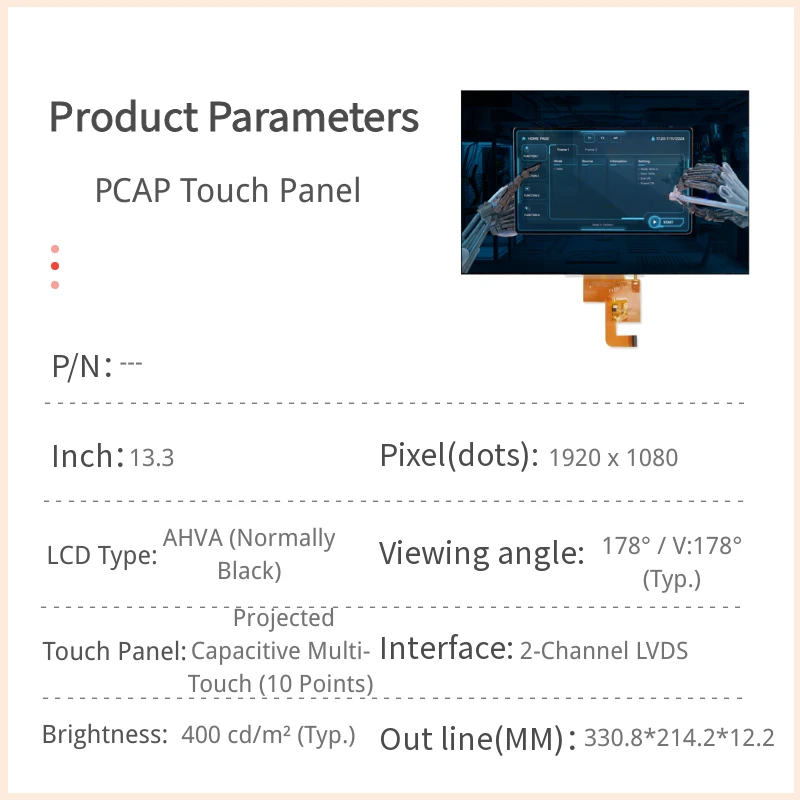

Technical Specifications
Display Characteristics
| Parameter | Specification |
|---|
| Screen Size | 13.3-inch diagonal |
| Display Area | 293.47 (H) x 165.08 (V) mm |
| Resolution | 1920 x 1080 pixels (FHD) |
| Pixel Pitch | 0.15285 x 0.15285 mm |
| Display Colors | 16.7M (8-bit) |
| Display Mode | AHVA, Normally Black |
| Color Gamut | 90% NTSC (typical) |
| Interface | 2-Channel LVDS |
| Touch Technology | Projected Capacitive Multi-Touch |
| Touch Points | 10 Points |
| Touch Method | Finger or Exclusive Pen |
Optical Characteristics
| Parameter | Value |
|---|
| White Luminance | 400 cd/m² (typical) |
| Contrast Ratio | 800:1 (typical) |
| Response Time (Rising+Falling) | 25 ms (typical) |
| Viewing Angle (CR≥10) | Horizontal: 178° (Typ.), Vertical: 178° (Typ.) |
| Uniformity (5 Points) | ≥ 75% |
Mechanical & Touch Panel Specifications
| Parameter | Dimension / Value |
|---|
| Outline Dimension | 330.76 x 214.24 x 12.24 mm |
| Touch Viewing Area | 294.76 x 166.24 mm |
| Touch Active Area | 307.75 x 183.00 mm |
| Weight | 816g (typical) |
| Surface Hardness | ≥ 6H |
| Light Transmission | ≥ 85% |
| Operation Force | ≤ 10g (Finger Input) |
| Touch FPC Length | 56.31 mm |
| Surface Treatment | Clear Type |
| Glass Type | Strengthening Glass |
| Touch FPC Type | COF (Chip-on-Flex) |
Electrical & Backlight Specifications
| Parameter | Min. | Typ. | Max. | Unit |
|---|
| Logic Drive Voltage (VDD) | 3.0 | 3.3 | 3.6 | V |
| VDD Current | – | 333.2 | 363.6 | mA |
| VDD Power Consumption | – | 1.1 | 1.2 | W |
| LED Input Voltage | 10.8 | 12.0 | 13.2 | V |
| LED Input Current | – | – | 1.25 | A |
| LED Power Consumption | – | – | 15.0 | W |
| PWM Control Frequency | 500 | – | 10K | Hz |
| PWM Duty Cycle | 5 | – | 100 | % |
| Touch Supply Voltage (I2C) | – | 3.3 | – | V |
| Touch Supply Voltage (USB) | – | 5.0 | – | V |
| LED Operating Life | – | 50,000 | – | Hrs |
Touch Controller Specifications (EXC80W46)
| Parameter | Specification |
|---|
| Touch Controller IC | EXC80W46 |
| Input Voltage (I2C) | 3.3V |
| Input Voltage (USB) | 5.0V |
| Interface | USB & I2C |
| Max Resolution | 4096 x 4096 |
| Touch Points | 1 ~ 10 Points |
| Report Rate | ≥ 120 Hz |
| Response Time | 15 ms |
| Power Consumption (Active) | ~50 mA |
| Supported OS | Windows, Linux, Android |
| Precision | ≤ 2.5 mm |
| FPC Type | COF (Chip-on-Flex) |
Applications
- Industrial Control Panels and HMIs
- Medical Imaging Displays
- Professional Video Monitoring
- Factory Automation Systems
- Process Control Displays
- Test and Measurement Instruments
- Digital Signage
- Transportation and Avionics Displays
Reliability & Durability
The module has passed rigorous environmental tests including high/low temperature storage, thermal cycling, and humidity bias testing, ensuring dependable performance in demanding industrial environments. The strengthened glass surface with ≥6H hardness provides excellent scratch resistance and durability. The COF (Chip-on-Flex) touch design offers improved reliability and a slim profile.
Ordering Information
- Display Module – 13.3″ FHD TFT LCD with Projected Capacitive Multi-Touch
- Touch Interface – USB and I2C supported (COF design)
- Backlight – LED with integrated converter
For volume pricing, customization, or mechanical drawings, please contact our sales team.
