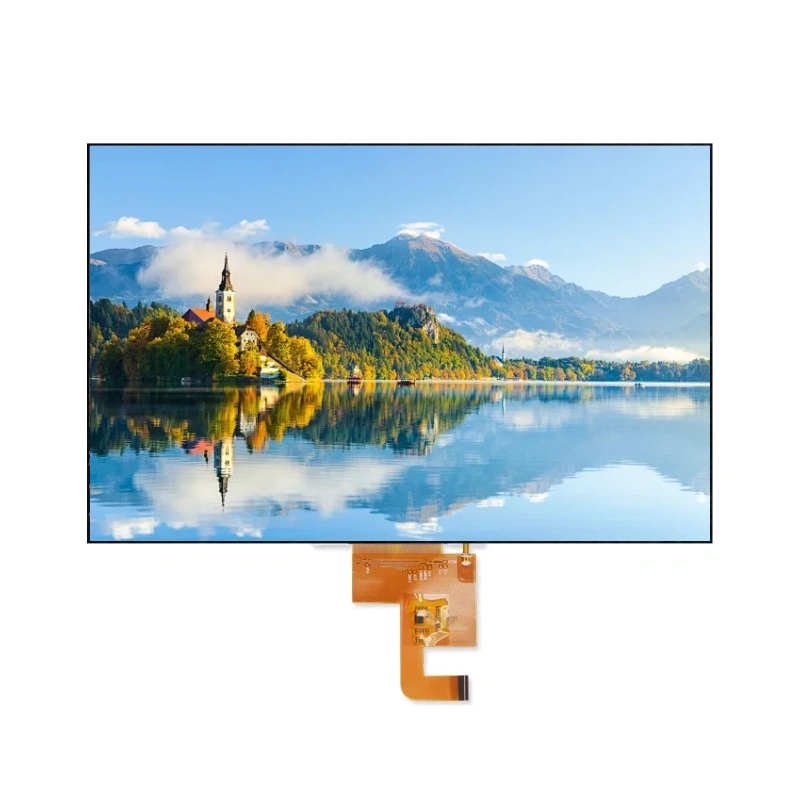

13.3‑inch Full HD IPS TFT LCD Display Module – 1920×1080, IPS Wide View (85°), 16:9 Widescreen, eDP Interface
Product Overview
This 13.3‑inch TFT LCD module delivers stunning Full HD visuals at a resolution of 1920 × RGB × 1080 pixels with a 16:9 widescreen aspect ratio. Featuring a high‑speed eDP (Embedded DisplayPort) interface, it enables ultra‑high bandwidth data transmission with low EMI and reduced cabling complexity – ideal for premium display applications requiring exceptional image quality, high refresh rates, and seamless integration with modern application processors.
The panel utilizes a Normally Black, Transmissive LCD with IPS wide‑viewing technology (85°/85°/85°/85°), delivering exceptional colour fidelity and contrast from virtually any perspective. An anti‑glare surface reduces reflections for improved readability in bright environments. With a large active area of 293.76 × 165.24 mm, a slim 11.7 mm profile, and a wide operating temperature range (‑20°C to +70°C), this module is a premium choice for medical imaging, industrial displays, digital signage, and high‑performance portable devices.
Key Features
- Full HD resolution – 1920×1080 for ultra‑sharp, detailed visuals and crisp text
- IPS wide viewing angle – 85° in all directions for consistent colour from any perspective
- eDP interface – High‑speed embedded DisplayPort with low EMI and reduced cabling
- Normally Black technology – Deeper blacks and superior contrast ratio
- Anti‑glare surface – Reduces reflections for improved outdoor and bright‑environment readability
- Large active area – 293.76 × 165.24 mm for immersive viewing
- Slim design – 11.7 mm profile for sleek product designs
- Long‑life LED backlight – 50,000 hours typical, normally white
- Wide temperature range – Operating: ‑20℃ to +70℃; Storage: ‑30℃ to +80℃
- Efficient power consumption – Typical 450 mA driver current
- No touch panel – Focused on pure display performance
Technical Specifications

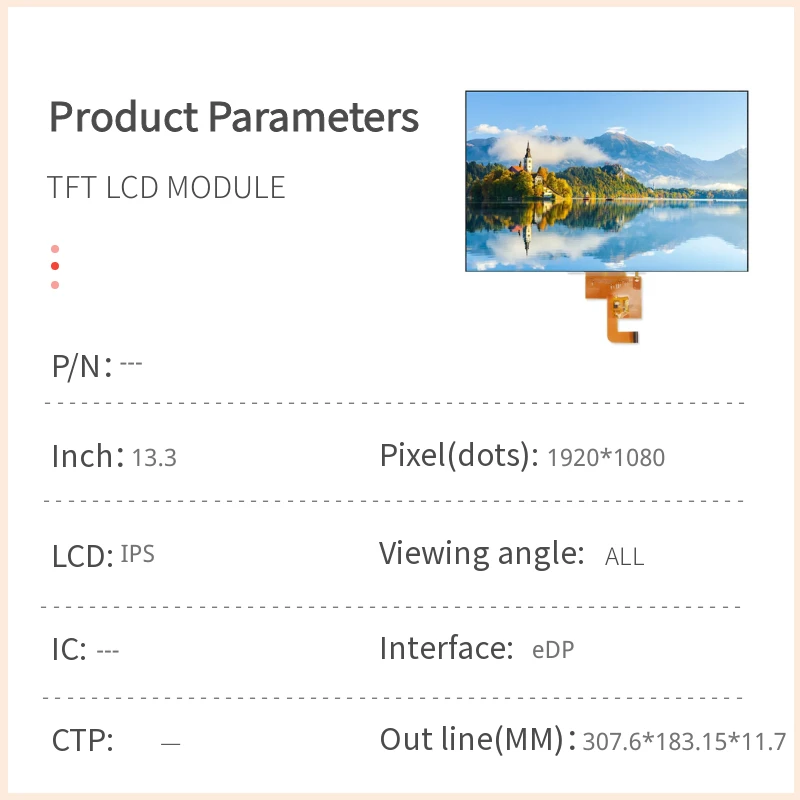

General Specifications
| Display Size | 13.3 inch (diagonal) |
| Resolution | 1920 × RGB × 1080 dots (Full HD) |
| LCD Type | TFT, Normally Black, Transmissive |
| View Angle | 85°/85°/85°/85° (IPS) |
| Aspect Ratio | 16:9 (Widescreen) |
| Interface | eDP (Embedded DisplayPort) |
| Backlight | LED, Normally White |
| Touch Panel | Without Touch Panel |
| Surface Treatment | Anti‑Glare |
Mechanical Dimensions
| Module Dimension | 307.6 (W) × 183.15 (H) × 11.7 (D) mm |
| Active Area | 293.76 (W) × 165.24 (H) mm |
| Pixel Pitch | 0.153 × 0.153 mm |
Absolute Maximum Ratings
| Parameter | Symbol | Min | Max | Unit |
|---|
| Operating Temperature | TOP | -20 | +70 | ℃ |
| Storage Temperature | TST | -30 | +80 | ℃ |
Electrical Characteristics (Operating Conditions)
| Parameter | Symbol | Min | Typ | Max | Unit |
|---|
| Power Supply Input Voltage | VDD | 3.0 | 3.3 | 3.6 | V |
| Power Supply Current | IDD | – | 450 | 675 | mA |
LED Backlight Driving Conditions
| Parameter | Symbol | Min | Typ | Max | Unit |
|---|
| LED Current | ILED | – | 450 | – | mA |
| LED Voltage | VLED+ | 16.2 | 18.0 | 19.8 | V |
| LED Lifetime | – | – | 50,000 | – | Hr |
Interface Pin Definition
The module uses an eDP (Embedded DisplayPort) interface with 2 main link lanes and auxiliary channel.
LCD Interface (13‑pin)
| Pin No. | Symbol | Function |
|---|
| 1 | NC | No connection |
| 2 | GND | Power ground |
| 3 | LANE1- | eDP Lane 1 negative (complement signal) |
| 4 | LANE1+ | eDP Lane 1 positive (true signal) |
| 5 | GND | Power ground |
| 6 | LANE0- | eDP Lane 0 negative (complement signal) |
| 7 | LANE0+ | eDP Lane 0 positive (true signal) |
| 8 | GND | Power ground |
| 9 | AUX+ | Auxiliary channel positive (true signal) |
| 10 | AUX- | Auxiliary channel negative (complement signal) |
| 11 | GND | Power ground |
| 12‑13 | VDD | LCD logic and driver power (3.3V) |
Backlight Interface
| Pin | Symbol | Description |
|---|
| 1 | VLED+ | LED anode (Red wire) |
| 2 | VLED- | LED cathode (Black wire) |
Typical Applications
This high‑performance Full HD display module is ideal for:
- Medical imaging – Diagnostic displays, surgical monitors, and PACS workstations
- Industrial HMIs – High‑end operator panels, control terminals, and process monitors
- Digital signage – Advertising displays, information kiosks, and public information systems
- Professional AV – Broadcast monitors, video editing, and production equipment
- Portable computing – Laptops, tablets, and portable all‑in‑one devices
- Test & measurement – Oscilloscopes, analyzers, and data acquisition systems
Note: The 16:9 widescreen landscape orientation is fixed. For portrait requirements, please consult our technical support team for alternative options.
Why Choose This Module?
- Full HD resolution – 1920×1080 delivers ultra‑sharp, detailed images for professional and medical applications requiring high information density.
- eDP interface – High‑speed embedded DisplayPort supports high refresh rates with low EMI and simplified cabling.
- IPS wide‑viewing technology – 85° in all directions ensures consistent colour and contrast from any perspective.
- Anti‑glare surface – Reduces reflections for better visibility in bright environments.
- Large active area – 293.76 × 165.24 mm provides an immersive viewing experience.
- High‑brightness backlight – 450 mA LED current for vivid, punchy visuals.
- Proven eDP solution – Industry‑standard interface with extensive ecosystem support.
- Quality assured – Manufactured in ISO9001/ISO14001 certified facilities.
Ordering Information
| Order Code | Description |
|---|
| 13.3‑TFT‑eDP‑FHD | 13.3‑inch TFT module, 1920×1080 Full HD, IPS wide view (85°), 16:9 widescreen, eDP interface, anti‑glare, no touch |
For volume pricing, sample requests, or technical drawings, please contact our sales team directly.
All specifications are subject to change without prior notice. Colour tone may vary slightly with temperature and driving voltage.
