12.1‑inch IPS TFT LCD Display Module – 1280×800 WXGA, IPS Ultra‑Wide View (89°), 16:9 Widescreen, LVDS Interface

12.1‑inch IPS TFT LCD Display Module – 1280×800 WXGA, IPS Ultra‑Wide View (89°), 16:9 Widescreen, LVDS Interface

Product Overview

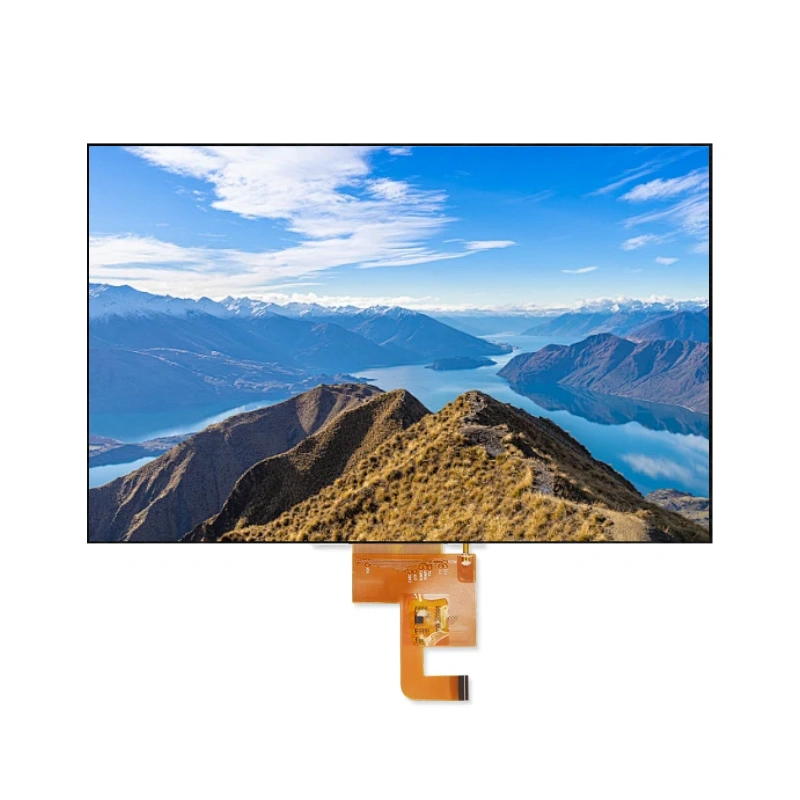

This 12.1‑inch TFT LCD module delivers stunning WXGA‑grade widescreen visuals at a resolution of 1280 × RGB × 800 pixels with a 16:9 widescreen aspect ratio. Powered by the EK77526AHI205A driver IC, it features a LVDS interface, enabling high‑speed data transmission with low EMI and robust signal integrity – ideal for large‑format, high‑quality display applications requiring exceptional image clarity and reliability.

The panel utilizes a Normally Black, Transmissive LCD with an ultra‑wide viewing angle of 89° in all directions, delivering exceptional colour fidelity and contrast from virtually any perspective. An anti‑glare surface with 3H hard coating provides excellent scratch resistance and reduces reflections for improved readability in bright environments. With a large active area of 261.12 × 163.2 mm, a robust 10.0 mm profile, and a wide operating temperature range (‑20°C to +70°C), this module is a premium choice for industrial, medical, automotive, and digital signage applications.

Key Features

• WXGA‑grade resolution – 1280×800 with 16:9 aspect ratio for crisp, detailed visuals
• Ultra‑wide IPS viewing angle – 89° in all directions for consistent colour from any perspective
• LVDS interface – High‑speed differential signalling with low EMI and excellent noise immunity
• Proven driver IC – EK77526AHI205A for reliable performance and long‑term availability
• Normally Black technology – Deeper blacks and superior contrast ratio
• Anti‑glare surface with 3H hard coating – Scratch‑resistant and reflection‑reducing for demanding environments
• Large active area – 261.12 × 163.2 mm for immersive viewing
• 12V LED backlight – High‑efficiency, normally white with enable and dimming control pins
• Long‑life LED backlight – 50,000 hours typical
• Wide temperature range – Operating: ‑20℃ to +70℃; Storage: ‑20℃ to +70℃
• Low power consumption – Efficient driver design for industrial applications
• 6‑bit / 8‑bit colour select – SEL6/8 pin for interface colour depth selection
• No touch panel – Focused on pure display performance

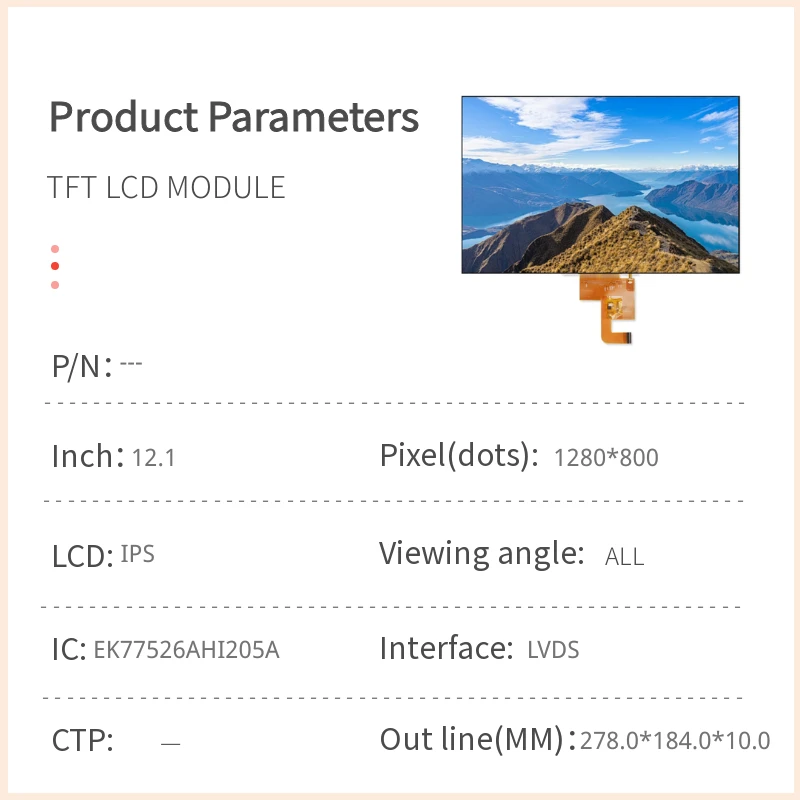

Technical Specifications

General Specifications

Mechanical Dimensions

Absolute Maximum Ratings

Electrical Characteristics (LCD Electronics)

LED Backlight Driving Conditions

Please refer to the complete specification document for detailed backlight driving parameters.

Interface Pin Definition

The module uses a LVDS interface with 4 data lanes and differential clock, plus dedicated backlight control pins.

Typical Applications

This large‑format, high‑performance display module is ideal for:

• Industrial HMIs – Large operator panels, control terminals, and process monitoring systems
• Medical equipment – Patient monitors, diagnostic workstations, and medical imaging displays
• Digital signage – Advertising displays, information kiosks, and public information systems
• Automotive displays – Infotainment systems, navigation, and rear‑seat entertainment
• Professional AV – Broadcast monitors, video processing equipment, and control consoles
• Test & measurement – Oscilloscopes, spectrum analyzers, and data acquisition systems

Note: The 16:9 widescreen landscape orientation is fixed. For portrait requirements, please consult our technical support team for alternative options.

Why Choose This Module?

• WXGA‑grade resolution – 1280×800 delivers crisp, detailed images suitable for professional and industrial applications requiring high information density.
• Ultra‑wide IPS viewing angle – 89° in all directions ensures consistent colour and contrast from any perspective.
• LVDS interface – High‑speed differential signalling with low EMI and excellent noise immunity, ideal for industrial and automotive environments.
• Durable anti‑glare surface – 3H hard coating provides scratch resistance and reduces reflections for improved readability.
• Integrated backlight control – ENLED and Dimming pins enable flexible backlight management.
• 12V LED backlight – Direct 12V power input simplifies system integration.
• 6‑bit/8‑bit colour select – SEL6/8 pin for interface colour depth selection.
• Proven EK77526AHI205A driver – Reliable, well‑documented solution with strong ecosystem support.
• Quality assured – Manufactured in ISO9001/ISO14001 certified facilities.

Ordering Information

For volume pricing, sample requests, or technical drawings, please contact our sales team directly.

All specifications are subject to change without prior notice. Colour tone may vary slightly with temperature and driving voltage.
