Product Overview

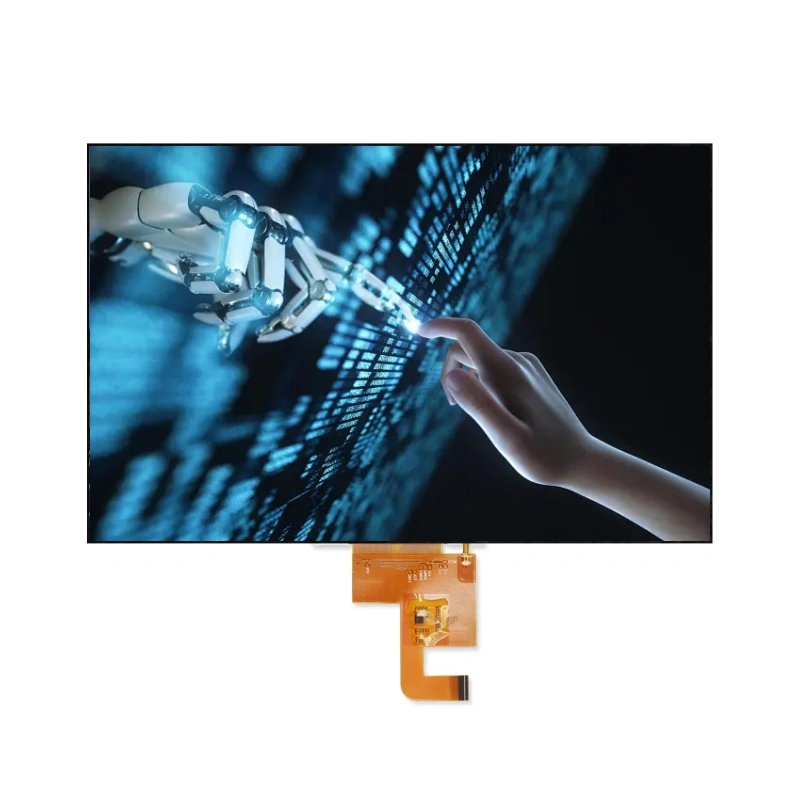

This 10.4-inch color active matrix TFT LCD module delivers exceptional visual performance and intuitive touch interaction for demanding industrial and commercial applications. Engineered with a projected capacitive multi-touch panel, an integrated LED backlight driving circuit, and a dedicated touch driver board, this display solution offers responsive 10-point touch functionality, wide viewing angles, and vivid color reproduction for modern human-machine interface applications.
The module features SVGA resolution (800 x 600 pixels) with up to 16.2M colors (8-bit LVDS) or 262K colors (6-bit LVDS), providing crisp, detailed imagery. The LVDS interface ensures stable, high-speed signal transmission. The projected capacitive touch panel supports 10 simultaneous touch points with USB or I2C interface options and is compatible with a wide range of operating systems including Windows, Linux, Android, and macOS.
Key Features
- Projected Capacitive Multi-Touch – 10-point touch support for intuitive gesture-based interaction
- High Brightness – 450 cd/m² typical luminance for excellent readability
- Wide Viewing Angle – 160° horizontal and 140° vertical for consistent image quality
- Flexible Color Depth – Supports both 6-bit (262K) and 8-bit (16.2M) LVDS input
- Durable Glass Surface – Strengthened glass with ≥6H hardness for scratch resistance
- Wide Operating Temperature – -10°C to +60°C for demanding environments
- Broad OS Support – Compatible with Windows, Linux, Android, MAC, and QNX
- Long-Life LED Backlight – 50,000 to 100,000 hours typical operating life
- USB & I2C Touch Interface – Flexible connectivity options
- RoHS Compliant – Environmentally friendly manufacturing

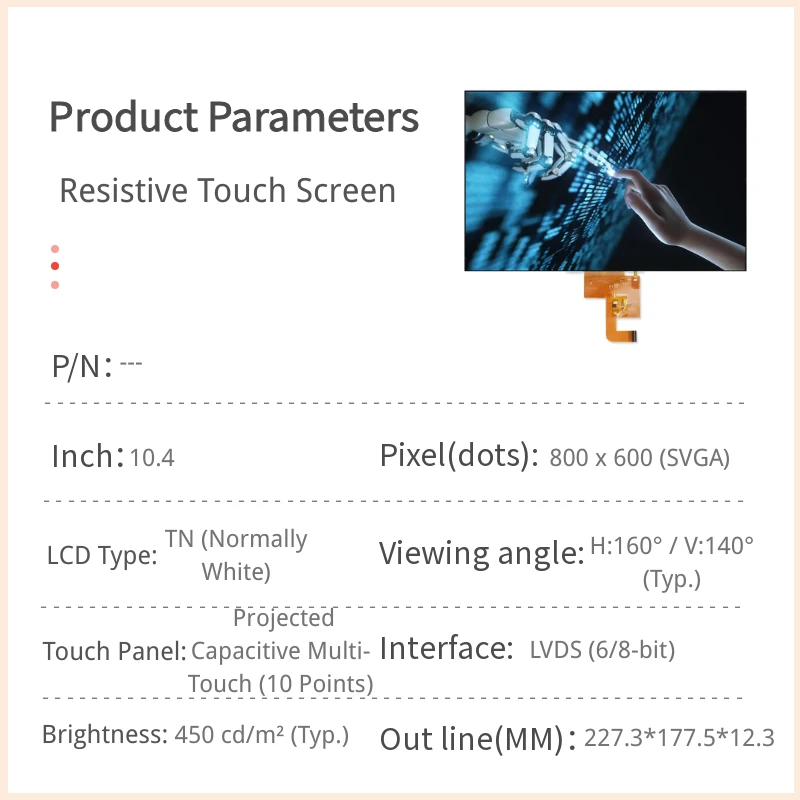

Technical Specifications
Display Characteristics
| Parameter | Specification |
|---|
| Screen Size | 10.4-inch diagonal |
| Display Area | 211.2 (H) x 158.4 (V) mm |
| Resolution | 800 x 600 pixels (SVGA) |
| Pixel Pitch | 0.264 x 0.264 mm |
| Display Colors | 16.2M (8-bit) / 262K (6-bit) |
| Display Mode | TN, Normally White |
| Color Gamut | 50% NTSC (typical) |
| Interface | LVDS (6/8-bit selectable) |
| Touch Technology | Projected Capacitive Multi-Touch |
| Touch Points | 10 Points |
| Touch Method | Finger or Exclusive Pen |
Optical Characteristics
| Parameter | Value |
|---|
| White Luminance | 450 cd/m² (typical) |
| Contrast Ratio | 700:1 (typical) |
| Response Time (Rising+Falling) | 15 ms (typical) |
| Viewing Angle (CR≥10) | Horizontal: 160° (Typ.), Vertical: 140° (Typ.) |
| Uniformity (5 Points) | ≥ 65% |
Mechanical & Touch Panel Specifications
| Parameter | Dimension / Value |
|---|
| Outline Dimension | 227.3 x 177.5 x 12.34 mm |
| Touch Viewing Area | 225.5 x 176.3 mm |
| Touch Active Area | 224.5 x 175.3 mm |
| Weight | 511g (typical) |
| Surface Hardness | ≥ 6H |
| Light Transmission | ≥ 85% |
| Operation Force | ≤ 10g (Finger Input) |
| Touch FPC Length | 65.3 mm |
| Surface Treatment | Clear Type |
| Glass Type | Strengthening Glass |
Electrical & Backlight Specifications
| Parameter | Min. | Typ. | Max. | Unit |
|---|
| Logic Drive Voltage (VDD) | 3.0 | 3.3 | 3.6 | V |
| VDD Current (Black Pattern) | – | – | 320 | mA |
| LED Input Voltage | 10.8 | 12.0 | 13.2 | V |
| LED Input Current | – | 0.2 | – | A |
| LED Power Consumption | – | 2.4 | – | W |
| PWM Control Frequency | 200 | – | 20K | Hz |
| PWM Duty Cycle | 5 | – | 100 | % |
| LED Forward Current (per channel) | – | 38.2 | – | mA |
| Touch Supply Voltage (USB) | 3.5 | 5.0 | 5.5 | V |
| LED Operating Life | 50,000 | – | 100,000 | Hrs |
Touch Driver Board (B000PDU-E03) Specifications
| Parameter | Specification |
|---|
| Touch Controller IC | EXC80W46 |
| Input Voltage | 3.5V ~ 5.5V |
| Interface | USB 1.1 Full Speed / I²C |
| Max Resolution | 4096 x 4096 |
| Touch Points | 1 ~ 10 Points |
| Report Rate | ≥ 120 Hz |
| Response Time | 15 ms |
| Power Consumption (Active) | ~50 mA |
| Supported OS | Windows, Linux, Android, MAC, QNX |
| Precision | ≤ 2.5 mm |
Applications
- Industrial Control Panels and HMIs
- Interactive Kiosks and Self-Service Terminals
- Medical Monitoring Equipment
- Factory Automation Systems
- Process Control Displays
- Test and Measurement Instruments
- Transportation Displays
Reliability & Durability
The module has passed rigorous environmental tests including high/low temperature storage, thermal cycling, and humidity operation (up to 60°C / 90%RH), ensuring dependable performance in demanding industrial environments. The strengthened glass surface with ≥6H hardness provides excellent scratch resistance and durability.
Ordering Information
- Display Module – 10.4″ TFT LCD with Projected Capacitive Multi-Touch
- Touch Driver Board – B000PDU-E03 (USB/I2C interface)
- Backlight – LED with integrated driving circuit
For volume pricing, customization, or mechanical drawings, please contact our sales team.
