Overview

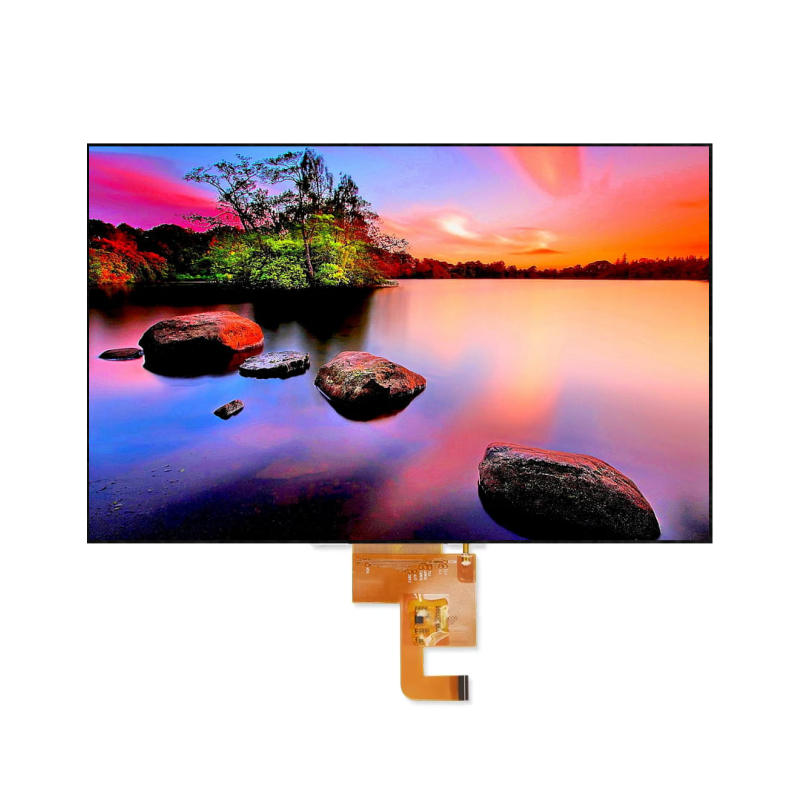

The JicTech RT101TC16T-E03-V03 is a high‑performance 10.1‑inch TFT LCD module designed for demanding industrial and consumer applications requiring both vivid display and reliable touch interaction. Built on a TN panel with EWV polarizer, it offers 1024×RGB×600 pixel resolution (WXGA), 16.7M colors, and wide viewing angles (60°/60°/50°/65°). The 24‑bit RGB (TTL) interface ensures fast, full‑color video, while the 300 cd/m² backlight provides excellent indoor readability. An integrated capacitive touch panel (ILI2511, I2C interface) enables intuitive, multi‑touch operation. With a slim 7.3mm profile and 70% NTSC color gamut, this module is ideal for industrial HMIs, medical equipment, automotive displays, and smart home panels.
Key Features
- 10.1” diagonal – large, readable WXGA display
- 1024×600 resolution – sharp, 16.7M colors
- Module size – 235.0 × 143.0 × 7.30 mm (W×H×T)
- Active area – 222.72 × 125.28 mm, ideal for widescreen HMIs
- 24‑bit RGB (TTL) interface – parallel video input, fast refresh
- Integrated capacitive touch panel – ILI2511 controller, I2C interface
- Brightness – 300 cd/m² typical (min 260 cd/m²)
- High contrast ratio – 800:1 typical
- Fast response time – 15ms typical (Tr+Tf)
- Wide viewing angles (TN+EWV) – 60° left/right, 50° bottom, 65° top (CR≥10)
- Wide operating temperature – -20℃ to +70℃
- Backlight – 42 white LEDs (6S7P), 140mA total current
- Driver IC – EK79007HJ3 + EK73215 (RGB to timing control)
- Color gamut – 70% NTSC typical
- MTBF – 30,000 hours
- RoHS compliant
Applications
- Industrial HMIs & control panels
- Medical diagnostic equipment & patient monitors
- Automotive infotainment & cluster displays
- Portable test & measurement devices
- Smart home gateways & security panels
- Digital signage & kiosks
- Point‑of‑sale (POS) terminals

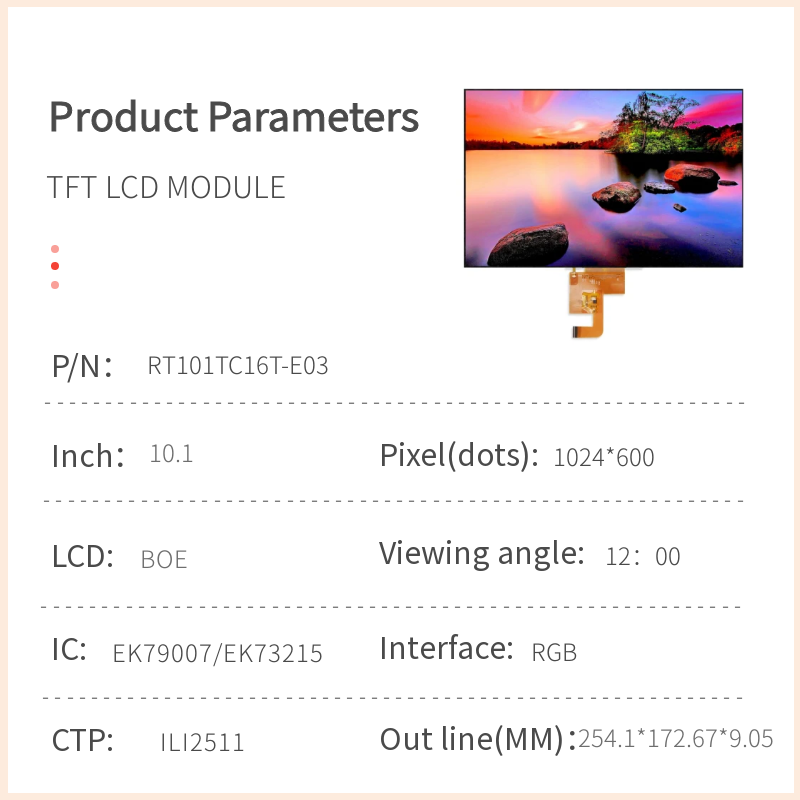

Technical Specifications
General Specifications
| Parameter | Value |
|---|
| LCD Size | 10.1 inch |
| Panel Type | a-Si TFT active matrix, TN + EWV polarizer |
| Resolution | 1024 (RGB) × 600 pixels |
| Display Mode | TN / Normally White |
| Number of Colors | 16.7M (8‑bit per color) |
| Viewing Direction | 12 o’clock (best view) |
| Contrast Ratio | 800 : 1 (typical) |
| Luminance (Brightness) | 300 cd/m² (typical), 260 cd/m² (min) |
| Module Size (W×H×T) | 235.0 × 143.0 × 7.30 mm |
| Active Area (W×H) | 222.72 × 125.28 mm |
| Pixel Pitch (H × V) | 0.2175 × 0.2088 mm |
| Driver IC (TFT) | EK79007HJ3 + EK73215 |
| Interface (TFT) | 24‑bit RGB (TTL) |
| Backlight | 42 white LEDs (6 series × 7 parallel) |
| Touch Panel | Capacitive touch (CTP), ILI2511, I2C |
| Operating Temperature | -20 ~ +70 °C |
| Storage Temperature | -30 ~ +80 °C |
Absolute Maximum Ratings
| Parameter | Symbol | Min | Max | Unit |
|---|
| Operating temperature | Top | -20 | +70 | °C |
| Storage temperature | Tst | -30 | +80 | °C |
| Humidity | RH | – | 90 (at 60°C) | % |
DC Characteristics (Panel Driving)
| Item | Symbol | Min | Typ | Max | Unit |
|---|
| Logic supply voltage | VDD | 3.0 | 3.3 | 3.6 | V |
| Input current | Idd | – | 13 | – | mA |
| Input High Voltage | VIH | 0.7×VDD | – | VDD | V |
| Input Low Voltage | VIL | VSS | – | 0.3×VDD | V |
Backlight Characteristics (42 LEDs: 6S7P, total If=140mA)
| Item | Symbol | Min | Typ | Max | Unit | Condition |
|---|
| Forward voltage | Vf | 17.4 | 19.2 | 20.4 | V | If=140mA |
| White CIE (x) | – | 0.25 | – | 0.35 | – | If=140mA |
| White CIE (y) | – | 0.25 | – | 0.35 | – | If=140mA |
Electro-Optical Characteristics (Ta=25°C, If=140mA)
| Item | Symbol | Condition | Min | Typ | Max | Unit |
|---|
| Contrast Ratio | CR | Normal angle | – | 800 | – | – |
| Surface Luminance | Lv | Normal angle | 260 | 300 | 360 | cd/m² |
| Luminance Uniformity | δ WHITE | θ=φ=0° | 80 | – | – | % |
| Response Time (Tr+Tf) | – | TC=25°C | – | 15 | 24 | ms |
| Viewing Angle (3:00) | θ | CR≥10 | – | 60 | – | deg |
| Viewing Angle (9:00) | θ | CR≥10 | – | 60 | – | deg |
| Viewing Angle (6:00) | θ | CR≥10 | – | 50 | – | deg |
| Viewing Angle (12:00) | θ | CR≥10 | – | 65 | – | deg |
| White CIE (x,y) | Wx, Wy | Normal angle | 0.245,0.245 | – | 0.345,0.345 | – |
| NTSC Ratio | S | – | – | 70% | – | % |
Interface Pin Description (LCM – 50‑pin FPC, partial)
| Pin No. | Symbol | I/O | Description |
|---|
| 5 | GND | – | Ground |
| 7 | VDD | P | Logic power supply (3.3V) |
| 8 | MODE | I | DE or HV mode control |
| 9 | DEN | I | Data enable (active high) |
| 10 | VSYNC | I | Vertical sync (negative polarity) |
| 11 | HSYNC | I | Horizontal sync (negative polarity) |
| 12-19 | B7-B0 | I/O | 8‑bit blue data |
| 20-27 | G7-G0 | I/O | 8‑bit green data |
| 28-35 | R7-R0 | I/O | 8‑bit red data |
| 37 | DOTCLK | I | Pixel clock (rising edge latch) |
Full 50‑pin pinout including L/R, U/D, VGH, VGL, AVDD, RESET, DITHB available in the datasheet. Capacitive touch panel I2C pins (SDA, SCL, RESET, INT, VDD, GND) are on a separate FPC.
Capacitive Touch Panel Interface (CTP – I2C)
| Pin No. | Symbol | Description |
|---|
| 1 | SDA | I2C data (bidirectional) |
| 2 | SCL | I2C clock input |
| 3 | RESET | External reset (active low) |
| 4 | INT | Interrupt request to host |
| 5 | GND | Ground |
| 6 | VDD 3.3V | Digital power supply (3.3V) |
Reliability & Quality Assurance
Reliability Test Items (Pass Criteria)
- High temperature storage: 80±2℃, 48H
- Low temperature storage: -30±2℃, 48H
- High temperature operation: 70±2℃, 48H
- Low temperature operation: -20±2℃, 48H
- Thermal shock: -20℃ (30min) ↔ +70℃ (30min), 10 cycles
MTBF: 30,000 hours @ room temperature (25±10℃, 40±20% RH).
Failure judgment: After test, contrast ratio ≥50% of initial value, no display defects, and full electrical/optical functionality.
Quality Assurance (per MIL-STD-105E)
- Inspection level: General II, single sampling
- Major defect AQL: 0.65
- Minor defect AQL: 1.5
- Test conditions: 25±5℃, 45±20% RH, 40W fluorescent lamp, 30cm viewing distance, 0°~45° left/right/up/down
Handling & Storage Precautions
- Avoid mechanical shock or dropping – glass panel is fragile.
- If LCD fluid leaks, wash skin/clothes immediately with soap and water; do not ingest.
- Use grounded workstations and anti‑static bags for handling and storage.
- Storage: 0~35℃, 40~60% RH, in sealed polyethylene bag, no direct sunlight.
- Hand soldering: 320℃~350℃, max 10 seconds per pad, avoid repeated heating.
- Do not disassemble or modify the module.
Packing Method (Reference)
Modules are placed in anti‑static trays, stacked with foam protection, fixed with cardboard, and sealed in cartons. Detailed packing drawings available upon request.
Ordering & Support
The JicTech RT101TC16T-E03-V03 is available for engineering samples and mass production. For a complete datasheet, 2D drawing, or a quotation, please contact our B2B sales team.
