Overview

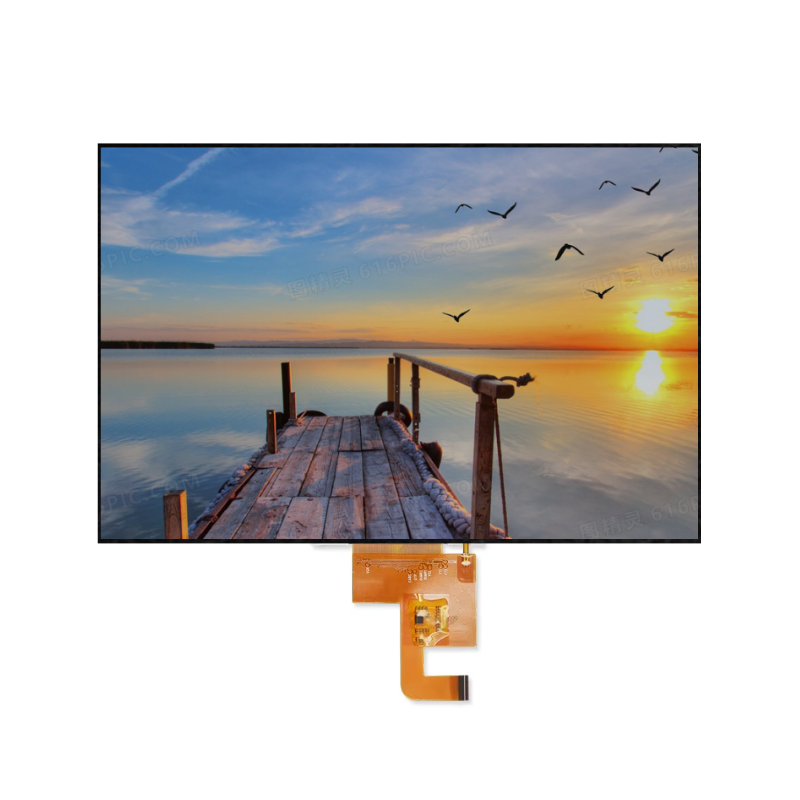

The JicTech RH101I9BEN-5A is a high‑brightness 10.1‑inch TFT LCD module designed for applications demanding excellent sunlight readability, slim mechanical integration, and reliable LVDS interface. Built on a normally black IPS panel, it offers 1280×800 resolution (WXGA), 16.7M colors, and 85° ultra‑wide viewing angles in all directions. The LVDS interface enables high‑speed, low‑EMI video transmission, while the 500 cd/m² backlight ensures crisp visibility in bright environments. With a 2.65mm ultra‑thin profile and 800:1 contrast ratio, this module is ideal for industrial HMIs, medical displays, automotive clusters, and portable instruments.
Key Features
- 10.1” diagonal IPS panel – 85° viewing angles (left/right/up/down)
- 1280×800 resolution – sharp WXGA, 16.7M colors
- Module size – 229.3 × 149.1 × 2.65 mm (W×H×T)
- Active area – 216.96 × 135.6 mm, ideal for widescreen HMIs
- LVDS interface – low‑voltage differential signaling, high noise immunity
- Ultra‑high brightness – 500 cd/m² typical (450 cd/m² min) – excellent for outdoor/sunlight
- High contrast ratio – 800:1 typical
- Response time – 30ms typical (Tr+Tf)
- Wide operating temperature – -10℃ to +50℃
- Backlight – 39 white LEDs, 260mA total current
- LED lifetime – 15,000 hours (at 260mA, 50% degradation)
- RoHS compliant & halogen‑free
Applications
- Industrial HMIs & control panels
- Medical diagnostic equipment & patient monitors
- Automotive infotainment & cluster displays
- Portable test & measurement devices
- Outdoor kiosks & POS terminals
- Marine and rugged electronics
Technical Specifications

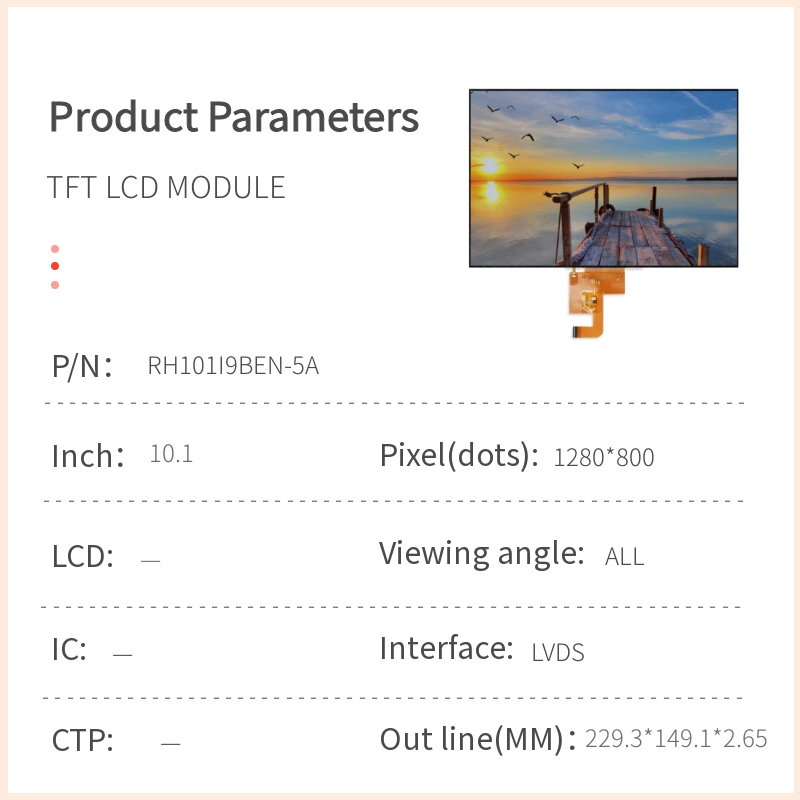

General Specifications
| Parameter | Value |
|---|
| LCD Size | 10.1 inch (10:16 diagonal) |
| Panel Type | a-Si TFT active matrix, Normally Black |
| Resolution | 1280 (RGB) × 800 pixels |
| Display Mode | Normally Black |
| Number of Colors | 16.7M (8‑bit per color) |
| Module Size (W×H×D) | 229.3 × 149.1 × 2.65 mm |
| Active Area (W×H) | 216.96 × 135.6 mm |
| Pixel Pitch (H×V) | 0.13455 × 0.13455 mm |
| Pixel Arrangement | RGB Vertical Stripe |
| Interface | LVDS (4‑lane, 1‑link) |
| Backlight | 39 white LEDs |
| Luminance (Brightness) | 500 cd/m² (typical), 450 cd/m² (min) |
| Contrast Ratio | 800 : 1 (typical) |
| Response Time (Tr+Tf) | 30 ms (typical), 45 ms (max) |
| Viewing Angle (CR≥10) | 85° (left/right/up/down typical) |
| Operating Temperature | -10 ~ +50 °C |
| Storage Temperature | -20 ~ +60 °C |
Absolute Maximum Ratings
Electrical Absolute Ratings (GND=0V)
| Item | Symbol | Min | Max | Unit |
|---|
| Power Supply Voltage | VDDIN | -0.3 | 3.6 | V |
| Analog Supply Voltage | AVDD | -0.3 | 6.0 | V |
| Negative Analog Supply | AVEE | 0 | -6.0 | V |
Environmental Absolute Ratings
| Item | Symbol | Min | Max | Unit |
|---|
| Operating Temperature | Top | -10 | +50 | °C |
| Storage Temperature | Tstg | -20 | +60 | °C |
Backlight Characteristics (Ta=25±2°C)
| Parameter | Symbol | Min | Typ | Max | Unit |
|---|
| LED Current | IF | – | 260 | – | mA |
| LED Forward Voltage | VF | 8.7 | 9.0 | 9.9 | V |
| LED Lifetime (50% degradation) | – | – | 15,000 | – | Hrs |
Optical Characteristics (Ta=25±2°C)
| Item | Symbol | Condition | Min | Typ | Max | Unit |
|---|
| Contrast Ratio | CR | Normal angle | – | 800 | – | – |
| Response Time (Tr+Tf) | – | – | – | 30 | 45 | ms |
| White CIE (x) | Wx | Normal angle | – | 0.302 | – | – |
| White CIE (y) | Wy | Normal angle | – | 0.321 | – | – |
| Viewing Angle (Horizontal) | θL/θR | CR≥10 | 75 | 85 | – | deg |
| Viewing Angle (Vertical) | θU/θD | CR≥10 | 75 | 85 | – | deg |
DC Characteristics (TFT LCD Module, VCI=3.3V)
| Item | Symbol | Min | Typ | Max | Unit |
|---|
| Logic Supply Voltage | VCI | 3.0 | 3.3 | 3.6 | V |
| Input High Voltage | VIH | 0.7×DVDD | – | DVDD | V |
| Input Low Voltage | VIL | 0 | – | 0.3×DVDD | V |
| Power Current (3.3V) | IVDD | – | 212 | 365 | mA |
LVDS Interface Timing Parameters
| Parameter | Symbol | Min | Typ | Max | Unit |
|---|
| DCLK Frequency | Fdclk | 66.3 | 72.4 | 78.9 | MHz |
| Horizontal Active Area | Thd | – | 1280 | – | pixel |
| HSYNC Period | Th | 1380 | 1440 | 1500 | pixel |
| Vertical Active Area | Tvd | – | 800 | – | H |
| Frame Rate | fV | 55 | 60 | 65 | Hz |
Interface Pin Connection (40‑pin FPC – LVDS)
| Pin No. | Symbol | Description |
|---|
| 2-4 | VDDIN | Power supply (3.3V typical) |
| 6,7,10,13,16,19,22,25,28 | GND | Ground |
| 8,9 | RIN0-, RIN0+ | LVDS data pair 0 |
| 11,12 | RIN1-, RIN1+ | LVDS data pair 1 |
| 14,15 | RIN2-, RIN2+ | LVDS data pair 2 |
| 17,18 | LVDS_CLK-, LVDS_CLK+ | LVDS differential clock |
| 20,21 | RIN3-, RIN3+ | LVDS data pair 3 |
| 31-33 | LED- | Backlight cathode |
| 38-40 | LED+ | Backlight anode |
Reliability Test Items (Module Level)
- High temperature storage: 85℃, 48H
- Low temperature storage: -35℃, 48H
- High temperature operation: 75℃, 48H
- Low temperature operation: -25℃, 48H
- High temperature & humidity (operation): 40℃ / 90% RH, 96H
- Thermal cycling (non‑operation): -20℃ ↔ 60℃, 30min each, 100 cycles
Failure judgment: No display function NG, cosmetic specifications judged before test.
Handling & Storage Precautions
- Avoid mechanical shock or dropping – glass panel is fragile.
- If LCD fluid leaks, wash skin/clothes immediately with soap and water; do not ingest.
- Use grounded workstations and anti‑static bags for handling and storage.
- Storage: 0~35°C, 40~60% RH, in sealed polyethylene bag, no direct sunlight.
- Remove protective film slowly to avoid static discharge.
- Do not disassemble or modify the module – warranty void.
- Not authorized for life‑support, aircraft, or military systems.
Packing Method
Modules are placed in anti‑static trays, stacked with foam protection, fixed with cardboard, and sealed in cartons. Detailed packing drawings available upon request.
Ordering & Support
The JicTech RH101I9BEN-5A is available for engineering samples and mass production. For a complete datasheet, 2D drawing, or a quotation, please contact our B2B sales team.
Download product documentation manual: FULL SPEC-RH101I9BEN-5A
