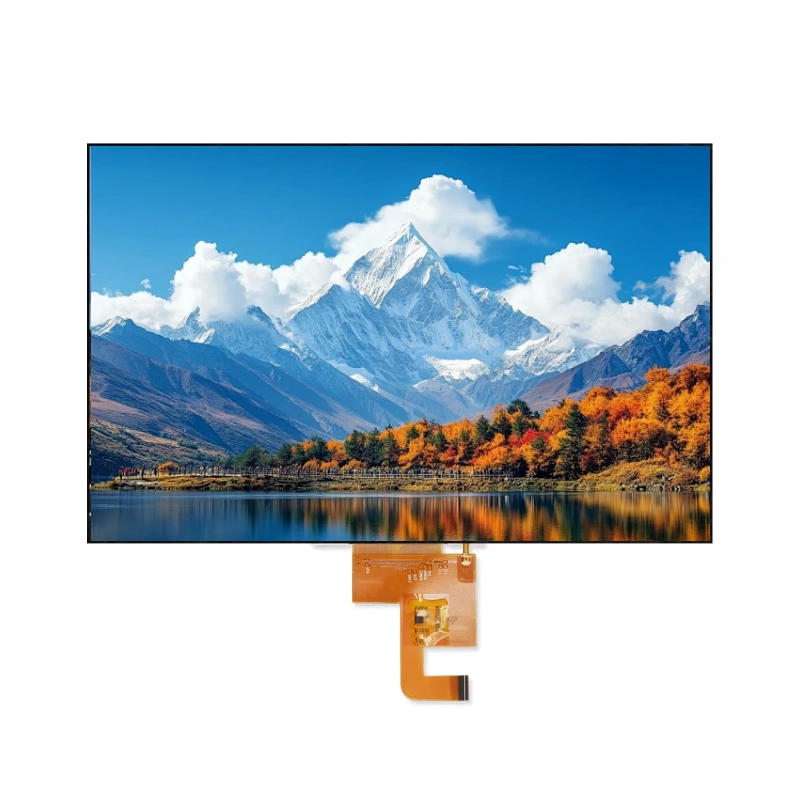

10.1‑inch WXGA IPS TFT LCD Display Module – 1280×800, IPS Full View, 16:10 Widescreen, LVDS Interface with PCAP Touch
Product Overview
This 10.1‑inch TFT LCD module delivers stunning WXGA‑grade widescreen visuals at a resolution of 1280 × RGB × 800 pixels with a 16:10 widescreen aspect ratio, featuring an integrated projected capacitive touch panel (PCAP) with I²C interface for seamless touch interaction. Featuring a high‑speed LVDS interface, it enables low‑EMI, high‑bandwidth data transmission with 4 data lanes.
The panel utilizes a Normally Black, Transmissive LCD with IPS wide‑viewing technology (80°/80°/80°/80°), delivering exceptional colour fidelity and contrast from virtually any perspective. The integrated PCAP touch supports multi‑touch and features interrupt output for efficient touch event handling. With a large active area of 216.96 × 135.6 mm, a wide operating temperature range (‑20°C to +70°C), and 12V power supply with independent PWM backlight control, this module is a premium choice for industrial HMIs, medical workstations, and interactive kiosk applications.
Key Features
- WXGA resolution – 1280×800 for crisp, detailed visuals and sharp text
- Integrated PCAP touch – Projected capacitive touch with I²C interface, multi‑touch ready
- IPS wide viewing angle – 80° in all directions for consistent colour from any perspective
- LVDS interface – High‑speed differential signalling with low EMI and 4 data lanes
- 16:10 widescreen aspect ratio – Perfect for multimedia and productivity applications
- Normally Black technology – Deeper blacks and superior contrast ratio
- Large active area – 216.96 × 135.6 mm for immersive viewing
- 12V power supply – Industrial‑grade 12V DC input for reliable system integration
- PWM backlight control – Independent PWM input for precise brightness adjustment
- Interrupt output – INT pin for efficient touch event handling
- Long‑life LED backlight – 50,000 hours typical, normally white
- Wide temperature range – Operating: ‑20℃ to +70℃; Storage: ‑30℃ to +80℃
- Glare surface – Enhanced colour saturation for vivid visuals

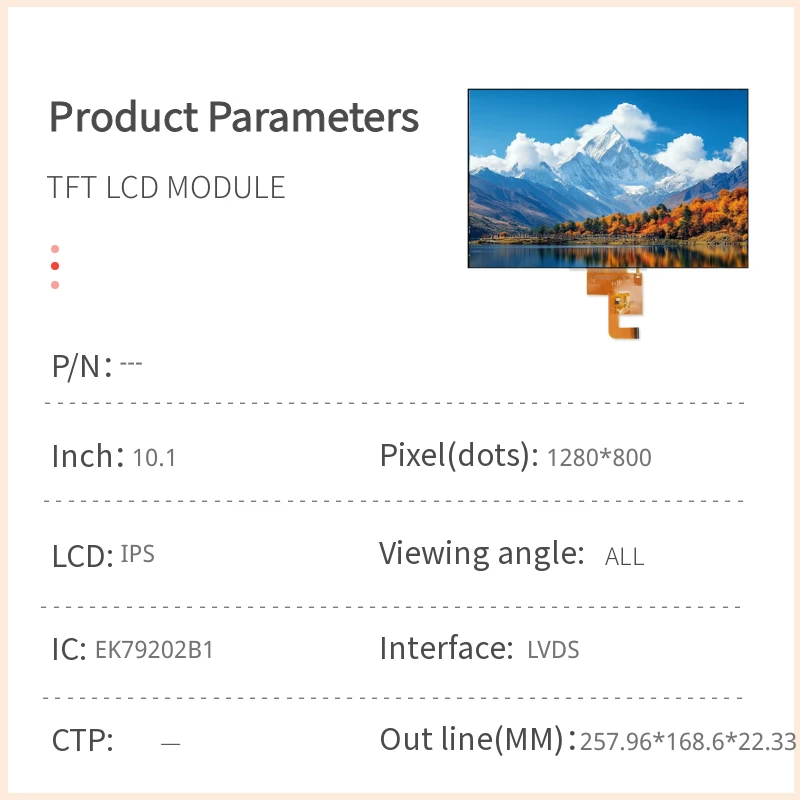

Technical Specifications
General Specifications
| Screen Diagonal | 10.1 inch |
| Resolution | 1280 × RGB × 800 dots (WXGA) |
| Display Mode | Normally Black, Transmissive |
| Viewing Angle | 80°/80°/80°/80° (IPS) |
| Pixel Arrangement | R.G.B. Vertical Stripe |
| Aspect Ratio | 16:10 (Widescreen) |
| TFT Driver IC | EK79202B1 or equivalent |
| TFT Interface | LVDS |
| Backlight | LED, Normally White |
| Touch Panel | Projected Capacitive (PCAP) |
| PCAP IC | GT928 or equivalent |
| PCAP Interface | I²C |
| PCAP Resolution | 1280 × 800 |
| PCAP FW Version | 80 |
| Surface Treatment | Glare |
Mechanical Dimensions
| Module Dimension | 257.96 (W) × 168.6 (H) × 22.33 (D) mm |
| Active Area | 216.96 (W) × 135.6 (H) mm |
| Pixel Pitch | 0.1695 × 0.1695 mm |
Absolute Maximum Ratings
| Parameter | Symbol | Min | Max | Unit |
|---|
| Operating Temperature | TOP | -20 | +70 | ℃ |
| Storage Temperature | TST | -30 | +80 | ℃ |
Electrical Characteristics
TFT LCD Module
| Parameter | Symbol | Typ | Max | Unit |
|---|
| Power Voltage | DC12V | 12.0 | – | V |
| Power Current | IDC12V | 260 | 390 | mA |
PCAP Touch
| Parameter | Symbol | Min | Typ | Max | Unit |
|---|
| PCAP Supply Voltage | VDDT | 2.8 | 3.3 | 3.3 | V |
| PCAP Supply Current | IVDDT | – | 14 | 21 | mA |
Backlight Characteristics
| Parameter | Symbol | Min | Typ | Max | Unit |
|---|
| PWM High Level | – | – | 3.3 | – | V |
| PWM Low Level | – | – | 0 | – | V |
| PWM Duty Ratio | – | 1 | – | 100 | % |
| PWM Frequency | – | – | – | 10 | KHz |
| LED Lifetime | – | – | 50,000 | – | Hr |
Interface Pin Definition
LCD Interface (50‑pin)
The module uses an LVDS interface with 4 data lanes and differential clock. Power supply is 12V DC.
| Pin No. | Symbol | Function | I/O |
|---|
| 1‑3 | DC12V | Power supply (12V) | P |
| 4 | NC | No connection | – |
| 5‑7 | GND | Ground | P |
| 8‑9 | Rxin0- / Rxin0+ | LVDS data lane 0 differential pair | I |
| 10 | GND | Ground | P |
| 11‑12 | Rxin1- / Rxin1+ | LVDS data lane 1 differential pair | I |
| 13 | GND | Ground | P |
| 14‑15 | Rxin2- / Rxin2+ | LVDS data lane 2 differential pair | I |
| 16 | GND | Ground | P |
| 17‑18 | RxCLK- / RxCLK+ | LVDS clock differential pair | I |
| 19 | GND | Ground | P |
| 20‑21 | Rxin3- / Rxin3+ | LVDS data lane 3 differential pair | I |
| 22 | GND | Ground | P |
| 23 | PWM | PWM control for LED backlight brightness | I |
| 24 | NC | No connection | – |
| 25 | DC3V | 3.3V power supply | P |
| 26 | NC | No connection | – |
| 27 | GND | Ground | P |
| 28 | SDA | I²C data input/output (touch) | I/O |
| 29 | SCL | I²C clock input (touch) | I |
| 30 | INT | External interrupt to host (touch) | O |
| 31 | RST | External reset (active low) | I |
| 32 | GND | Ground | P |
| 33‑43 | NC | No connection | – |
| 44‑46 | GND | Ground | P |
| 47 | NC | No connection | – |
| 48‑50 | DC12V | Power supply (12V) | P |
Typical Applications
This integrated display + touch module is ideal for:
- Industrial HMIs – Touch‑enabled operator panels, control terminals, and process monitors
- Medical equipment – Diagnostic workstations, patient monitors, and medical imaging displays
- Automotive displays – Infotainment systems, navigation, and rear‑seat entertainment
- Digital signage – Interactive advertising displays, information kiosks, and wayfinding systems
- ATM & KIOSK – Self‑service terminals, banking machines, and ticketing systems
- Point‑of‑Sale (POS) – Retail payment terminals and checkout systems
Note: The 16:10 widescreen landscape orientation is fixed. For portrait requirements, please consult our technical support team for alternative options.
Why Choose This Module?
- Complete display + touch solution – Integrated PCAP touch eliminates separate procurement and assembly of touch components.
- WXGA resolution – 1280×800 delivers crisp, detailed images for professional and industrial applications.
- 16:10 widescreen format – Optimal aspect ratio for productivity and multimedia applications.
- LVDS interface – High‑speed differential signalling with low EMI and excellent noise immunity.
- 12V power supply – Industrial‑grade 12V input simplifies system power design.
- PWM backlight control – Independent PWM input for precise brightness adjustment.
- Proven EK79202B1 + GT928 chipset – Reliable, well‑documented solution with strong ecosystem support.
- Quality assured – Manufactured in ISO9001/ISO14001 certified facilities.
Ordering Information
| Order Code | Description |
|---|
| 10.1‑TFT‑LVDS‑PCAP | 10.1‑inch TFT module, 1280×800 WXGA, IPS full view, 16:10 widescreen, LVDS interface, integrated PCAP touch, I²C, glare, EK79202B1 + GT928 |
For volume pricing, sample requests, or technical drawings, please contact our sales team directly.
All specifications are subject to change without prior notice. Colour tone may vary slightly with temperature and driving voltage.
