0.96‑inch IPS TFT LCD Display Module – 80×160, IPS Full View, SPI Interface, Ultra‑Compact

0.96‑inch IPS TFT LCD Display Module – 80×160, IPS Full View, SPI Interface, Ultra‑Compact

Product Overview

This 0.96‑inch TFT LCD module delivers crisp visuals at a resolution of 80 × RGB × 160 pixels with a 1:2 portrait aspect ratio. Powered by the ST7735S driver IC, it features a 3‑wire or 4‑wire SPI interface, enabling simple, low‑pin‑count connection to most microcontrollers – ideal for compact and cost‑sensitive embedded designs.

The panel utilizes a Normally Black, Transmissive LCD with IPS wide‑viewing technology (80°/80°/80°/80°), delivering consistent colour and contrast from any angle. With an ultra‑compact module size of 13.5 × 27.95 × 1.54 mm, an active area of 10.8 × 21.7 mm, and extremely low power consumption (typical 2 mA), this module is the perfect choice for portable, battery‑powered, and space‑constrained products.

Key Features

• Ultra‑compact size – 13.5 × 27.95 × 1.54 mm, ideal for miniaturised devices
• IPS full viewing angle – 80° in all directions for consistent colour from any perspective
• Flexible SPI interface – Supports 3‑wire and 4‑wire SPI, compatible with most MCUs
• Normally Black technology – Deep blacks and excellent contrast ratio
• Ultra‑low power consumption – Typical 2 mA supply current, perfect for battery‑powered applications
• Lightweight design – Minimal weight for portable and wearable devices
• Long‑life LED backlight – 50,000 hours typical, normally white
• Wide temperature range – Operating: ‑20℃ to +70℃; Storage: ‑30℃ to +80℃
• No touch panel – Focused on pure display performance
• Glare surface – Enhanced colour saturation for vivid visuals

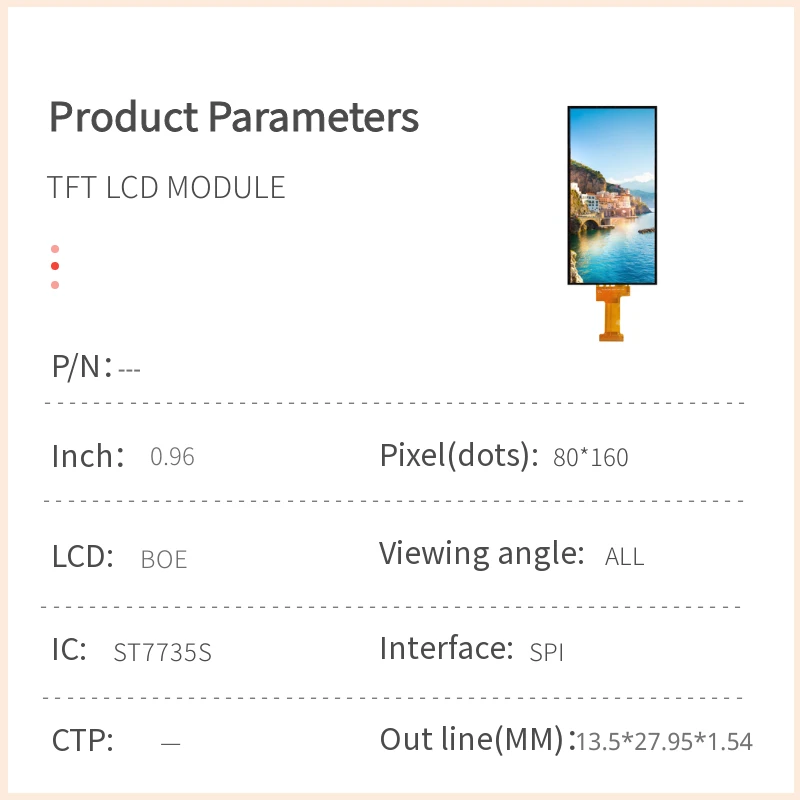

Technical Specifications

General Specifications

Mechanical Dimensions

Absolute Maximum Ratings

Electrical Characteristics (Operating Conditions)

LED Backlight Driving Conditions

Interface Pin Definition

The module uses a 3‑wire or 4‑wire SPI interface with flexible configuration.

Typical Applications

This ultra‑compact display module is ideal for:

• Wearable devices – Smartwatches, fitness bands, and health monitors
• IoT sensors – Environmental monitors, smart meters, and tracking devices
• Consumer electronics – Portable audio, remote controls, and key fobs
• Medical devices – Miniature diagnostic tools and portable monitors
• Industrial indicators – Equipment status displays and handheld testers
• Smart home – Thermostats, lighting controls, and smart locks

Note: The 1:2 portrait orientation is fixed. For landscape requirements, please consult our technical support team for alternative options.

Why Choose This Module?

• Smallest footprint – 13.5 × 27.95 mm module fits into the tightest design constraints.
• Ultra‑low power – 2 mA typical current consumption is ideal for battery‑operated devices.
• Simple SPI interface – 3‑wire/4‑wire SPI is supported by virtually all MCUs, minimising design effort.
• IPS full‑view technology – Wide viewing angles ensure excellent readability in any orientation.
• Normally Black – Deep blacks for enhanced contrast and professional appearance.
• Super‑thin profile – 1.54 mm thickness enables slim product designs.
• Proven ST7735S controller – Reliable and well‑supported with extensive community resources.
• Quality assured – Manufactured in ISO9001/ISO14001 certified facilities.

Ordering Information

For volume pricing, sample requests, or technical drawings, please contact our sales team directly.

All specifications are subject to change without prior notice. Colour tone may vary slightly with temperature and driving voltage.
