Product Overview

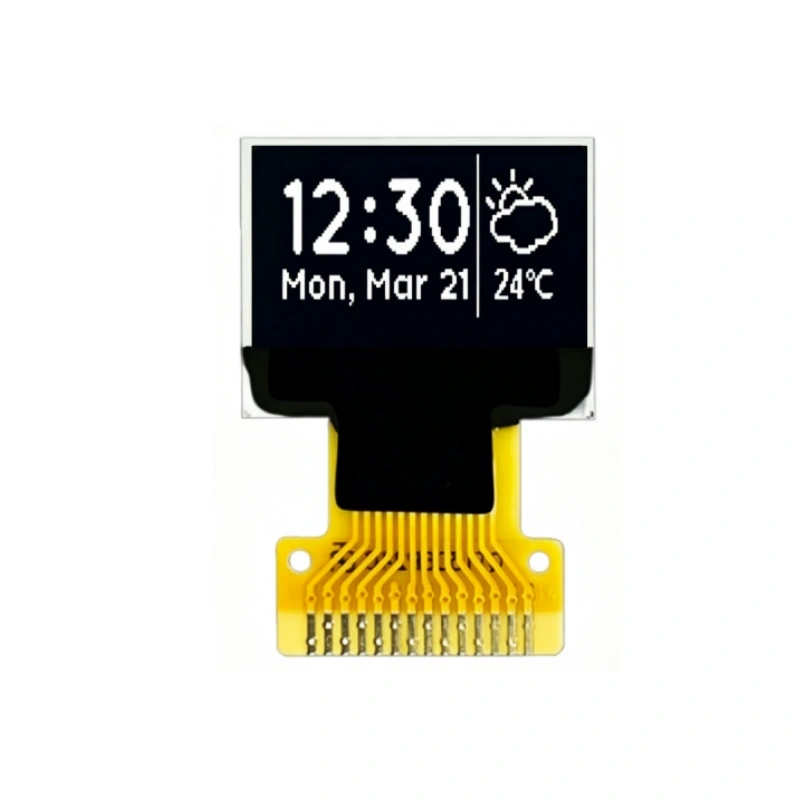

This compact 0.68-inch passive matrix OLED display module delivers crisp, high-contrast monochrome imagery in an ultra-slim form factor. Engineered with the advanced SSD1315 controller, a flexible ZIF FPC connector, and multiple interface options, this display solution offers excellent readability, wide viewing angles, and extremely low power consumption for space-constrained applications.
The module features a 96 x 32 dot matrix resolution with individual pixel control, providing clear and sharp graphics for small-form-factor devices. Supporting four different interface modes (6800 parallel, 8080 parallel, 4-wire SPI, and I2C), this display offers maximum design flexibility for integration into existing systems. With an ultra-thin profile of just 1.21mm and compact 19.80 x 12.32mm footprint, this display is ideal for wearable technology, portable instruments, industrial control interfaces, and miniature user interfaces.
Key Features
- Ultra-Slim Form Factor – 19.80 x 12.32 x 1.21 mm module size for space-constrained designs
- ZIF FPC Connector – Zero Insertion Force flexible printed circuit connector for easy integration
- Advanced SSD1315 Controller – Integrated driver with enhanced performance and features
- Multiple Interface Options – Supports 6800, 8080, 4-Wire SPI, and I2C for maximum flexibility
- High Contrast OLED Technology – Self-emissive pixels for excellent visibility in all lighting conditions
- 96 x 32 Dot Matrix Resolution – Sharp, clear graphics for small display applications
- Wide Operating Temperature – -40°C to +80°C for demanding environments
- Extremely Low Power Consumption – Maximum 7.5mA operating current, ideal for battery-powered devices
- Monochrome Display – High-contrast single-color output for clear readability
- 1/32 Duty Drive – Efficient multiplexing for consistent brightness

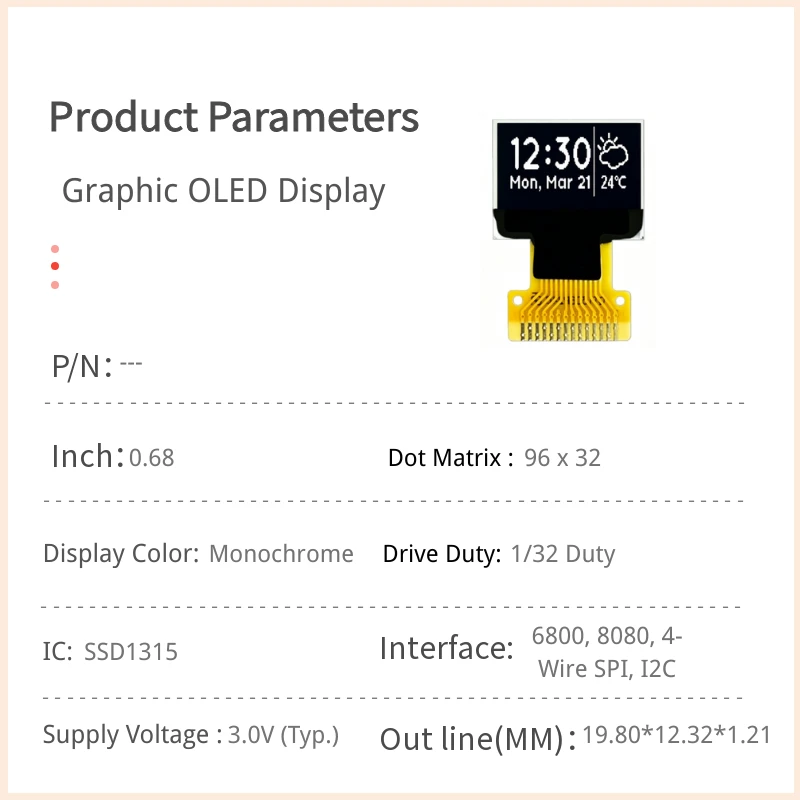

Technical Specifications
Display Characteristics
| Parameter | Specification |
|---|
| Screen Size | 0.68-inch diagonal |
| Dot Matrix | 96 x 32 Dots |
| Active Area | 16.298 (H) x 5.418 (V) mm |
| Pixel Size | 0.148 x 0.148 mm |
| Pixel Pitch | 0.17 x 0.17 mm |
| Display Mode | Passive Matrix |
| Display Color | Monochrome |
| Drive Duty | 1/32 Duty |
| Controller IC | SSD1315 |
| Interface Options | 6800, 8080, 4-Wire SPI, I2C |
| Connector Type | ZIF FPC |
Mechanical Specifications
| Parameter | Dimension |
|---|
| Module Dimension | 19.80 x 12.32 x 1.21 mm |
| Active Area | 16.298 x 5.418 mm |
| Pixel Size | 0.148 x 0.148 mm |
| Pixel Pitch | 0.17 x 0.17 mm |
Interface Selection
| Interface Mode | BS1 | BS2 |
|---|
| 4-Wire SPI | 0 | 0 |
| I2C | 0 | 1 |
| 8-Bit 8080 Parallel | 1 | 0 |
| 8-Bit 6800 Parallel | 1 | 1 |
Key Pin Functions
| Pin | Symbol | Function |
|---|
| 1 | VSS | Ground |
| 3 | VDD | Logic Power Supply |
| 9 | VDD | Logic Power Supply |
| 10~11 | BS1/BS2 | Interface Selection Inputs |
| 13 | CS# | Chip Select (Active Low) |
| 14 | RES# | Reset Input (Active Low) |
| 15 | D/C# | Data/Command Control (I2C: SA0) |
| 16 | WR# | Write (8080) / R/W# (6800) |
| 17 | E/RD# | Enable (6800) / Read (8080) |
| 18~25 | D0~D7 | 8-Bit Bi-directional Data Bus |
| 28 | VCC | Panel Drive Voltage Supply |
Electrical Characteristics (DC)
| Parameter | Min. | Typ. | Max. | Unit |
|---|
| Logic Supply Voltage (VDD) | 1.65 | 3.0 | 3.3 | V |
| Display Supply Voltage (VCC) | 7.5 | 12.0 | 12.5 | V |
| Input High Voltage (VIH) | 0.8×VDD | – | VDD | V |
| Input Low Voltage (VIL) | 0 | – | 0.2×VDD | V |
| Display 50% Pixel ON Current | – | 5.0 | 7.5 | mA |
Absolute Maximum Ratings
| Parameter | Min. | Max. | Unit |
|---|
| Logic Supply Voltage | -0.3 | 4.0 | V |
| Display Supply Voltage | 0 | 18.0 | V |
| Operating Temperature | -40 | +80 | °C |
| Storage Temperature | -40 | +85 | °C |
Applications
- Wearable Devices and Smart Watches
- Industrial Control Interfaces and HMIs
- Portable Medical Instruments
- Smart Home and IoT Displays
- Handheld Test and Measurement Equipment
- Consumer Electronics Accessories
- Miniature User Interface Panels
- Audio Equipment Displays
Key Advantages
- Maximum Design Flexibility – Choose from 4 different interface modes to match your system architecture
- Advanced SSD1315 Controller – Next-generation OLED driver with enhanced performance
- Extremely Compact – Fits into the tightest spaces with 1.21mm slim profile
- ZIF FPC Connector – Zero Insertion Force connector for easy, reliable cable assembly
- Versatile Compatibility – Supports both parallel and serial interfaces for MCU integration
- Ultra-Low Power – Typical 5mA current consumption, ideal for battery-powered designs
- Wide Temperature Range – Reliable operation from -40°C to +80°C for harsh environments
Ordering Information
- Display Module – 0.68″ OLED 96×32 Monochrome with SSD1315 Controller
- Connector – ZIF FPC
- Interface Options – 6800 Parallel / 8080 Parallel / 4-Wire SPI / I2C
For volume pricing, customization, or engineering support, please contact our sales team.
