製品概要

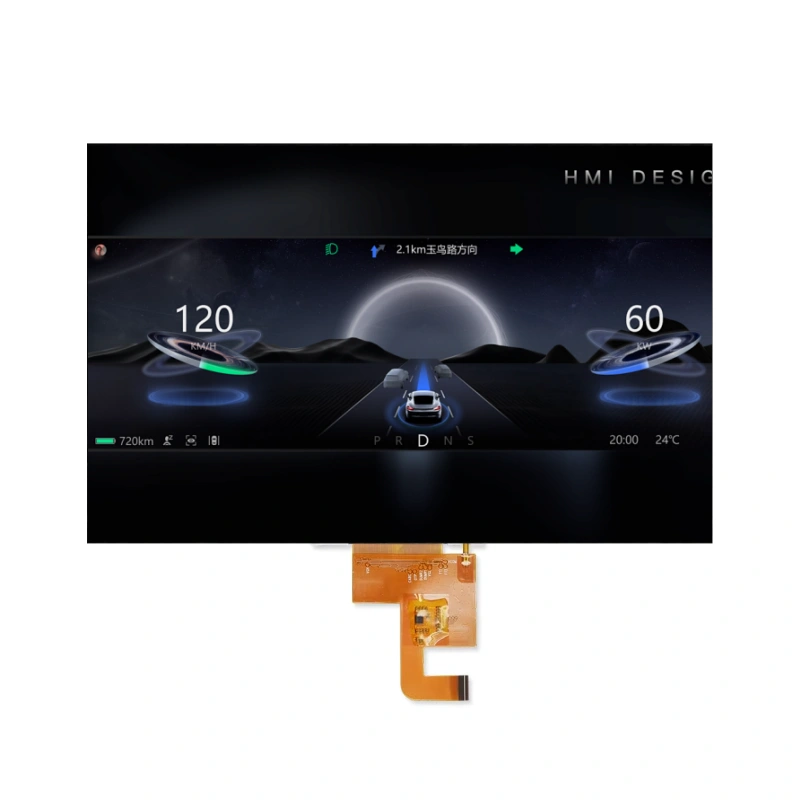

This 7.0-inch color active matrix TFT LCD module delivers exceptional visual performance for demanding industrial and commercial applications. Engineered with a 5-wire analog resistive touch panel and an integrated LED backlight driving circuit, this display solution offers ultra-high brightness, wide viewing angles, and vivid color reproduction for human-machine interface applications.
The module supports WVGA resolution (800 x 480 pixels) with up to 16.7M colors (8-bit LVDS) or 262K colors (6-bit LVDS), providing crisp, detailed imagery. The 1-channel LVDS interface ensures high-speed, low-noise signal transmission. Compliant with PSWG (Panel Standardization Working Group) standards, this display offers mechanical and electrical compatibility for industry-wide adoption.
主な特徴
- Ultra-High Brightness – 1000 cd/m² typical luminance for excellent sunlight readability
- AAS Technology – Normally Black mode with ultra-wide viewing angles: 169° horizontal and 169° vertical (CR≥10)
- 高コントラスト比 – 800:1 typical contrast ratio for deep blacks and vivid colors
- 迅速な対応 – 25 ms typical (Rising + Falling) for smooth motion performance
- 広い色域 – 70% NTSC typical for rich, accurate color reproduction
- Flexible Color Depth – Supports both 6-bit (262K) and 8-bit (16.7M) LVDS input
- 180° Rotation Display Option – Flexible mounting orientation
- PSWG Compliant – Industry-standard mechanical dimensions and electrical interface
- RoHS対応 – Environmentally friendly manufacturing

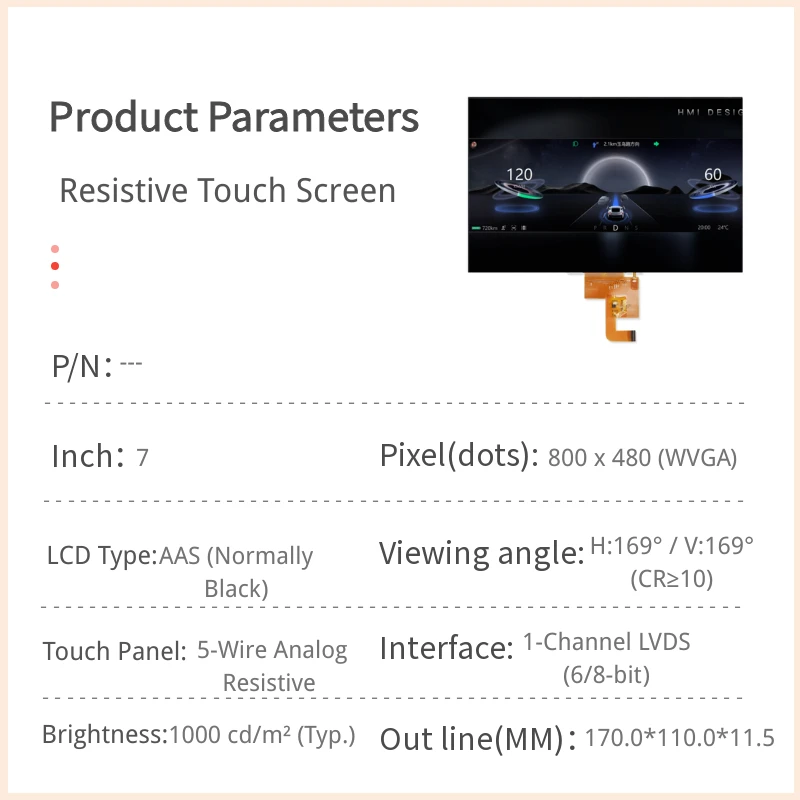

技術仕様
ディスプレイ特性
| パラメータ | 仕様 |
|---|
| 画面サイズ | 7.0-inch diagonal |
| Display Area | 152.40 (H) x 91.44 (V) mm |
| 決議 | 800 x 480 pixels (WVGA) |
| ピクセルピッチ | 0.1905 x 0.1905 mm |
| ディスプレイの色 | 16.7M (8-bit) / 262K (6-bit) |
| 表示モード | AAS, Normally Black |
| 色域 | 70% NTSC (typical) |
| インターフェース | 1-Channel LVDS (6/8-bit selectable) |
| Touch Technology | 5-Wire Analog Resistive |
| タッチ方式 | Finger or Stylus |
光学特性
| パラメータ | 価値 |
|---|
| White Luminance | 1000 cd/m² (typical) |
| コントラスト比 | 800:1 (typical) |
| Response Time (Rising+Falling) | 25 ms (typical) |
| 視野角（CR≧10） | Horizontal: 169° (Typ.), Vertical: 169° (Typ.) |
| White Variation | ≥ 70% |
Mechanical & Touch Panel Specifications
| パラメータ | Dimension / Value |
|---|
| Outline Dimension | 170.0 x 110.0 x 11.5 mm |
| Touch Viewing Area | 154.0 x 93.2 mm |
| Touch Active Area | 133.08 x 99.60 mm |
| 重量 | 267.8g (typical) |
| 表面硬度 | ≥ 3H |
| Light Transmission | 80% ± 3% |
| Operation Force | ≤ 80g |
| Touch FPC Length | 85.0 mm |
| Static Load (Touch) | 5kg / 10 cm² / 30 sec |
Electrical & Backlight Specifications
| パラメータ | 分。. | タイプ. | マックスだ。. | 単位 |
|---|
| Logic Drive Voltage (VCC) | 3.0 | 3.3 | 3.6 | V |
| VCC Current (White) | – | 135 | 200 | mA |
| LED Input Voltage | 10.8 | 12.0 | 13.2 | V |
| LED Input Current | 0.20 | 0.30 | 0.40 | A |
| LED Power Consumption | – | 3.5 | 4.0 | W |
| PWM Dimming Frequency | 190 | 200 | 300 | ヘルツ |
| PWM Duty Cycle | 5 | – | 100 | % |
| Touch Supply Voltage | – | 5 | – | V DC |
| LED Operating Life | – | 50,000 | – | 時間 |
アプリケーション
- 産業用制御盤およびHMI
- Outdoor Kiosks and Public Displays
- Medical Monitoring Equipment
- 試験・計測機器
- Factory Automation Systems
- 輸送と海洋展示
- Process Control Displays
Reliability & Durability
The module has passed rigorous environmental tests including high/low temperature storage, thermal cycling, and humidity operation, ensuring dependable performance in demanding industrial environments.
ご注文について
- Display Module – 7.0″ TFT LCD with 5-Wire Resistive Touch
- バックライト – LED with integrated driving circuit
- Touch Driver Board – Available as optional accessory (ETP‑MB‑MER4050UEGB)
For volume pricing, customization, or mechanical drawings, please contact our sales team.
