8.0‑inch TFT LCD Module – 800×600 Display

Product Details & Technical Specifications

Overview

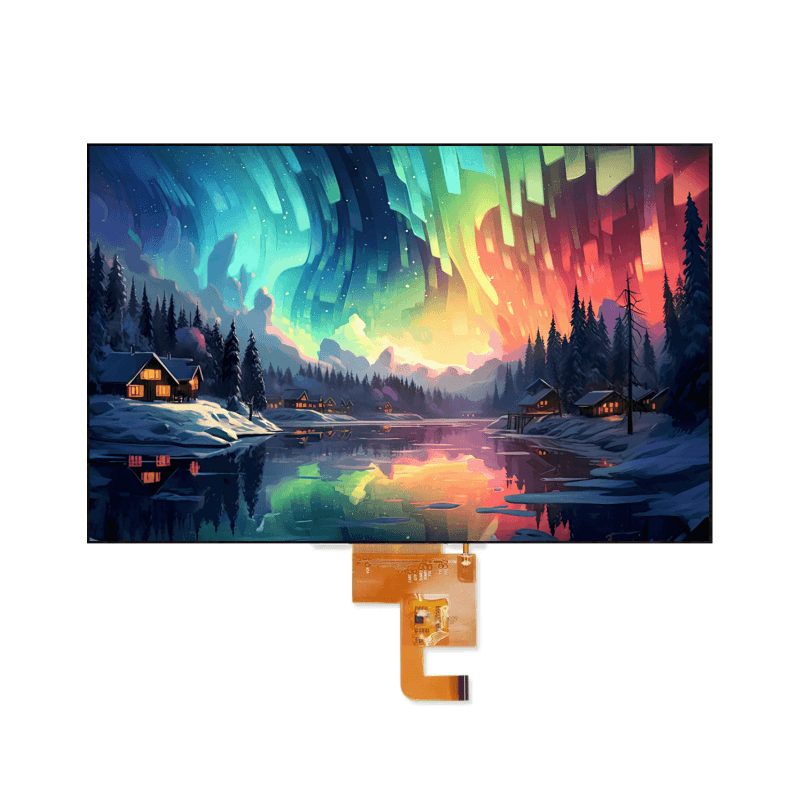

The RT080TR13T-A01 is an 8.0-inch TFT LCD module featuring a TN panel with EWV (Extra Wide Viewing) polarizer for excellent viewing angles. It offers 800×480 resolution, 16.7M color depth through 6-bit + FRC technology, and integrates a robust FOG (Film-on-Glass) structure with a high-efficiency LED backlight.

Key Features

Ultra-wide viewing angle with TN+EWV polarizer
High brightness: 350 cd/m² (typical)
6-bit + FRC interface supporting 16.7M colors
DE and HV sync mode selectable
Extended operating life: 30,000 hours
Slim module design with integrated touch panel support
Industrial temperature range: –20°C to +70°C

Applications

Industrial human-machine interfaces (HMI)
Portable digital terminals and kiosks
Medical monitoring equipment
Automotive dashboard displays
Test and measurement instruments
Commercial and information displays

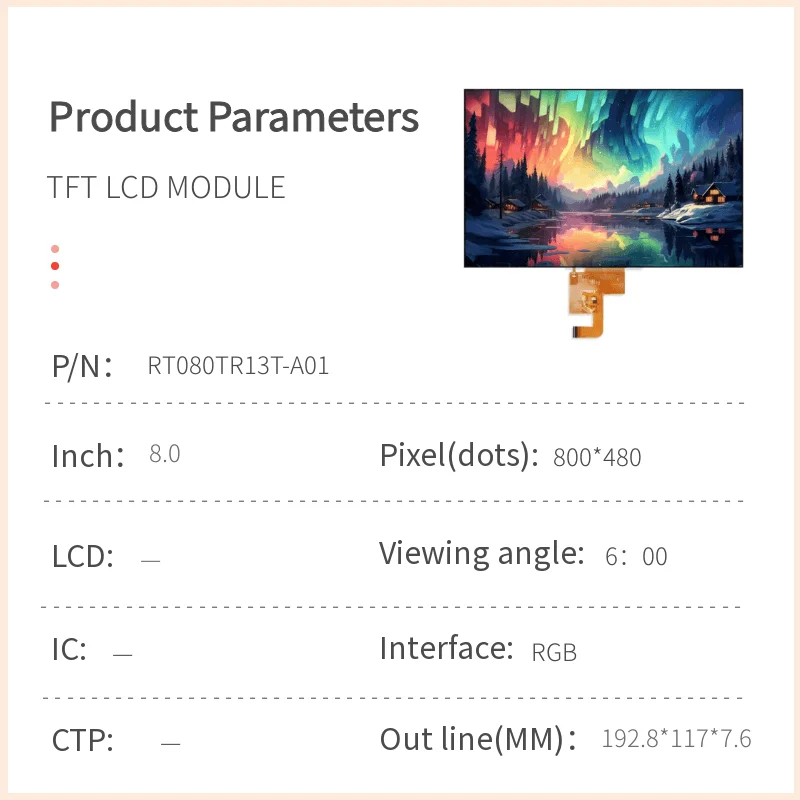

Technical Parameters

Parameter	Specification	Notes
Display
LCD Size	8.0 inches
Panel Type	a-Si TFT, TN with EWV polarizer	Normally White
Resolution	800 RGB × 480 pixels
Number of Colors	16.7M	6-bit + FRC
Viewing Direction	6 o’clock (Optimal)
Contrast Ratio	500 (Typical)
Luminance	250 cd/m² (Min), 350 cd/m² (Typ), 400 cd/m² (Max)
Response Time (Tr+Tf)	15 ms (Typ), 24 ms (Max)
Viewing Angle (L/R/U/D)	70°/70°/50°/60°	CR ≥ 10
NTSC Ratio	70% (Typical)
White Chromaticity (CIE)	x: 0.245–0.345, y: 0.245–0.345
Mechanical
Module Dimensions	192.8 mm (W) × 117.0 mm (H) × 7.6 mm (T)
Active Area	176.64 mm (W) × 99.36 mm (H)
Pixel Pitch	0.0736 mm (W) × 0.207 mm (H)
Electrical
Interface	6-bit + FRC (24-bit RGB parallel input)
Driver IC	Customized
Supply Voltage (VDD)	3.0V – 3.3V – 3.6V
Input Current (Idd)	To be defined
Backlight
Light Source	27 white LEDs (3 series + 9 parallel)
Forward Voltage (VF)	8.7V (Min), 9.6V (Typ), 10.2V (Max)	@ 180 mA
LED Driving Current	180 mA (constant current)	Single LED: 20 mA ±10%
Environmental
Operating Temperature	–20°C to +70°C
Storage Temperature	–30°C to +80°C
Humidity	≤90% RH (non-condensing, max 60°C)
Reliability
High Temp Storage	80°C, 48 hours
Low Temp Storage	–30°C, 48 hours
High Temp Operation	70°C, 48 hours
Low Temp Operation	–20°C, 48 hours
Thermal Shock	–20°C ↔ +70°C, 10 cycles
Operating Lifetime	30,000 hours	@ 25°C, 40–60% RH, no direct sunlight
Inspection
Defect Classification	Major (MAJ) & Minor (MIN)	MIL-STD-105E, Level II
AQL	MAJ: 0.65, MIN: 1.5

Additional Information

Interface Flexibility: Supports both DE (Data Enable) and HSD/VSD (Horizontal/Vertical Sync) modes via MODE3 pin control.
Scan & Source Control: Configurable scan direction (UPDN) and source shift direction (SHLR) for versatile display orientation.
Dithering Function: Optional 6-bit or 8-bit resolution dithering via DITH pin for enhanced grayscale performance.
Power Sequencing: Follows strict power-on/off timing (DVDD → AVDD/VGL → VGH → Signals → Backlight) to ensure stable operation.
Touch Panel Ready: Designed to accommodate a 4-wire resistive touch panel (separate interface).
Mounting: Use provided mechanical drawings for precise integration; avoid twisting or bending the FPC connector.
Cleaning: Use only isopropyl alcohol or ethyl alcohol with a soft cloth. Avoid water, ketones, and aromatic solvents.
ESD Protection: Handle in grounded, static-safe environments (50–60% RH recommended).
Storage: Store in anti-static packaging at 0–35°C, 40–60% RH, away from direct light.
Warranty & Support: JicTech provides technical support and reliability assurance under specified operating conditions.

This TFT LCD Module from JicTech offers an optimal balance of size, clarity, and robustness for applications requiring a larger display with wide viewing angles and industrial-grade reliability. Ready to integrate and built to perform.

Download Technical Documents

Click here to download this document：FULL SPEC-RT080TR13T-A01-V01

All specifications are based on the official product specification sheet (Ver: 01). For mechanical drawings, signal timing diagrams, and full inspection criteria, please refer to the original document.
