7.0‑inch TFT LCD Module – 1024×600 Display

Product Details & Technical Specifications

Overview

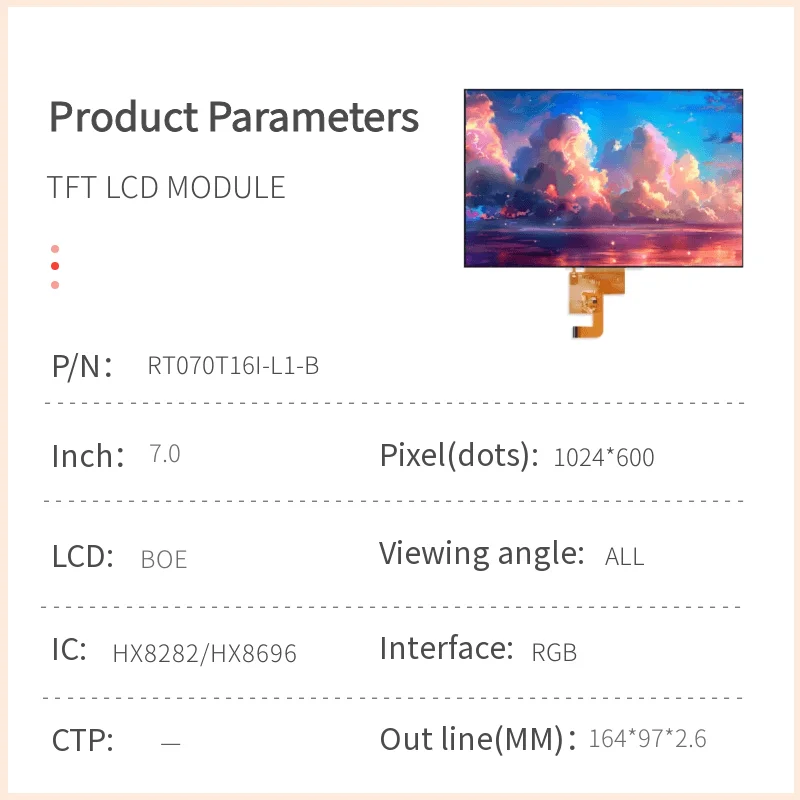

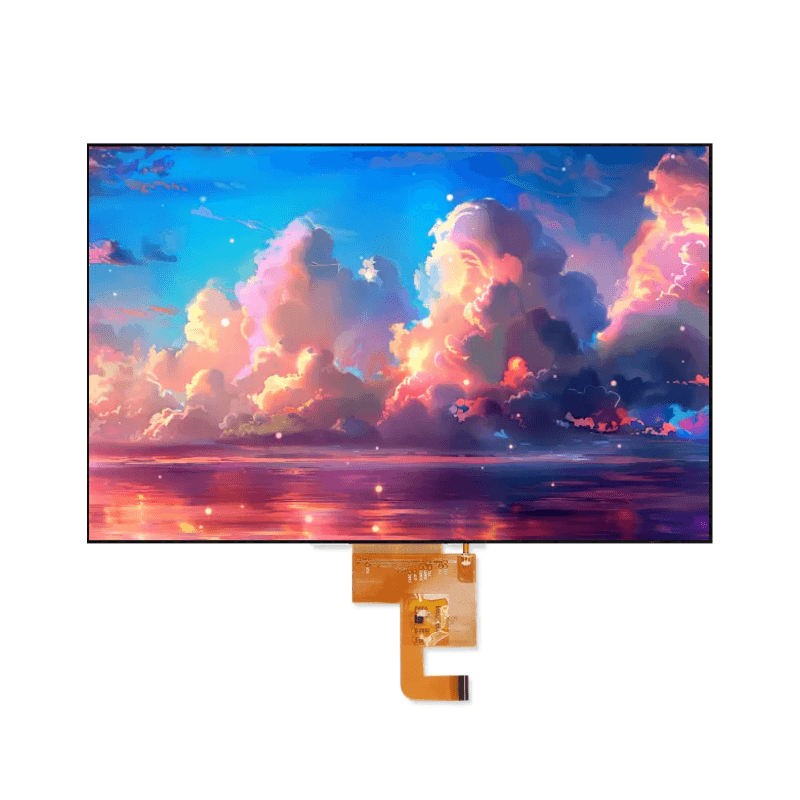

The RT070T16I-L1-B is a 7.0-inch color TFT LCD module with a 16:9 aspect ratio, offering WSVGA resolution and wide viewing angles. It utilizes a normally black transmissive panel with RGB vertical stripe arrangement, ensuring vivid color reproduction and consistent performance across varied environments.

Key Features

High resolution: 1024 × 600 pixels (WSVGA)
Wide viewing angle: 85° left/right/up/down
High contrast ratio: 800 (typical)
Brightness: 320 cd/m² (typical)
24-bit RGB interface with DE/SYNC mode selection
Slim design: 2.6 mm thickness
Industrial operating temperature: –20°C to +70°C

Applications

Industrial control panels and HMIs
Medical monitoring devices
Automotive infotainment systems
Portable multimedia players
Instrumentation and test equipment
Digital signage and kiosks

Technical Parameters

Parameter	Specification	Notes
Display
LCD Size	7.0 inches (diagonal)	16:9 aspect ratio
Panel Type	a-Si TFT, Normally Black	Transmissive
Resolution	1024 × 600 pixels (WSVGA)
Pixel Arrangement	RGB vertical stripe
Pixel Pitch	0.1506 mm (H) × 0.1432 mm (V)
Active Area	154.2144 mm × 85.92 mm
Number of Colors	16.7M	8-bit per color
Viewing Angle (L/R/U/D)	85°/85°/85°/85°	CR ≥ 10
Contrast Ratio	560 (Min), 800 (Typ)
Luminance	280 cd/m² (Min), 320 cd/m² (Typ)	@ 180 mA
Response Time (Rise + Fall)	30 ms (Typ), 40 ms (Max)
NTSC Color Gamut	45% (Min), 50% (Typ)
White Chromaticity (CIE1931)	Wx: 0.265, Wy: 0.243	±0.05 tolerance
Electrical
Supply Voltage (DVDD)	3.0V – 3.3V – 3.6V
Gate ON Voltage (VGH)	17.7V – 18V – 18.3V
Gate OFF Voltage (VGL)	–6.6V – –6.0V – –5.4V
Analog Supply (AVDD)	9.2V – 9.6V – 10.0V
Common Voltage (VCOM)	3.20V – 3.70V – 4.20V	Adjustable
Input Current (IDD)	16 mA (Typ), 28 mA (Max)
Interface	24-bit RGB parallel	DE or HV sync mode
Mechanical
Module Dimensions	164.0 mm × 97.0 mm × 2.6 mm
Connector	FPC, 50-pin (Hirose FH12A-50S-0.5SH)
Backlight
LED Configuration	White LEDs
Drive Current	180 mA (for luminance measurement)
Environmental
Operating Temperature	–20°C to +70°C
Storage Temperature	–30°C to +80°C
Operating Humidity	10% to 90% RH (non-condensing)	≤60°C
Reliability
High Temp Operation	70°C, 120 hrs
High Temp Storage	80°C, 120 hrs
High Humidity Operation	60°C, 90% RH, 120 hrs
Low Temp Operation	–20°C, 120 hrs
Low Temp Storage	–30°C, 120 hrs
Warranty	3 months from shipment	Under normal use

Additional Information

Interface Options: Supports both DE (Data Enable) and HV (H/VSYNC) synchronization modes via MODE pin selection.
Scan Direction Control: Configurable via U/D and L/R pins for flexible display orientation.
Power Sequence: Follows specified power-on/off timing to ensure stable operation and longevity.
Dithering Function: Optional internal dithering controlled via DITHB pin for enhanced color gradation.
Mounting: Designed for secure integration with recommended mounting practices to avoid mechanical stress.
Compliance: Suitable for industrial and commercial applications; not intended for aerospace, submarine, nuclear, or life-support systems without prior consultation.

This TFT LCD Module from JicTech combines a large-format high-resolution display with reliable performance and flexible integration options, making it an ideal choice for advanced visual systems requiring clarity, durability, and ease of use.

Download Technical Documents

Click here to download this document：FULL SPEC-RT070T16I-L1-B

All specifications are based on the official product specification sheet (Ver: 01). For mechanical drawings, signal timing diagrams, and full inspection criteria, please refer to the original document.
