6-inch E-Paper Display Module – High Contrast E Ink Screen

JicTech 6-inch XGA E-Paper Display Module for E-Book Readers (Model: JS0600N06-MNG-A0)

Overview

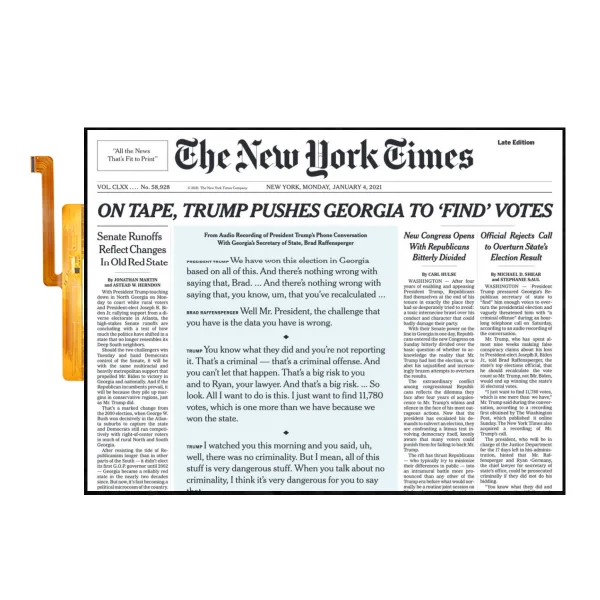

The JS0600N06-MNG-A0 is a 6-inch active matrix electrophoretic display (AMEPD) module designed specifically for high-resolution monochrome applications such as e-book readers. With an XGA resolution of 1024×758, a reflective bi-stable screen, and ultra-low power consumption, it provides a paper-like reading experience without the need for a backlight. The module is driven via a standard parallel interface and is optimized for reliability and ease of integration.

6 inch e-paper display module high contrast e ink screen

Key Features

High-Resolution XGA Display: 1024×758 pixels with a 4:3 aspect ratio for text and graphics.
Paper-Like Readability: High white reflectance (≥35%), wide viewing angle, and anti-glare surface.
Ultra-Low Power: Bi-stable (zero power to hold image), standby power as low as 0.4mW.
Fast Update Capability: Supports multiple update modes (GC16, DU) with refresh times as low as 300ms.
Robust Interface: 34-pin FPC parallel interface (0.5mm pitch) for easy connection to standard T-Con controllers (e.g., AVT6201A).
Commercial Readiness: Operating temperature of 0°C to +50°C, suitable for consumer and industrial applications.
Lightweight & Slim: Module thickness of only 1.34mm and weight of 43.5g.

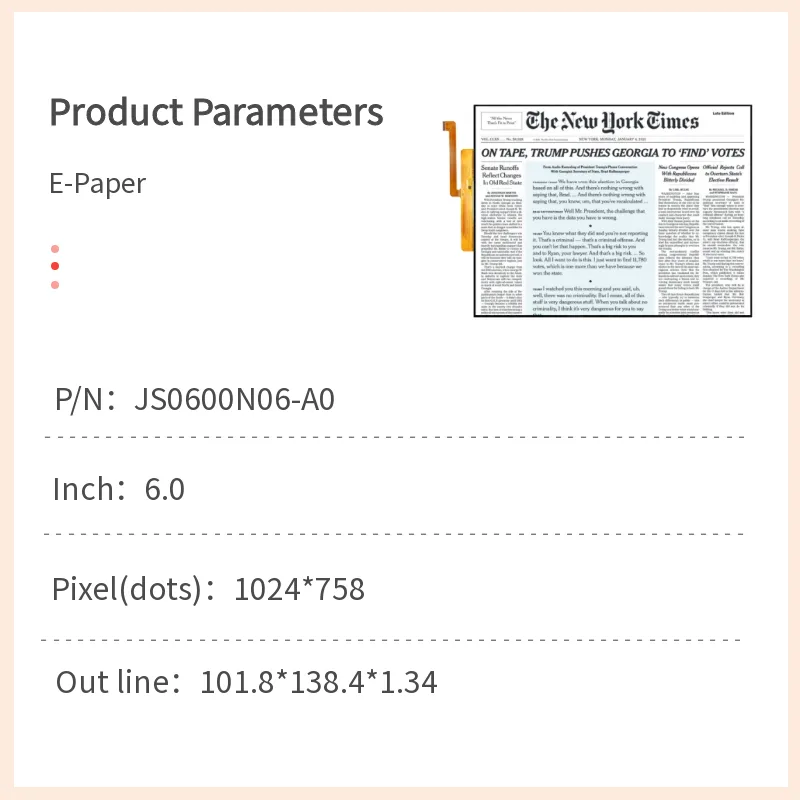

Technical Specifications

Parameter	Specification
Display Type	Active Matrix Electrophoretic Display (AMEPD), Monochrome (Black/White)
Screen Size	6.0 inches (diagonal)
Resolution	1024 (H) × 758 (V) pixels
Active Area	122.368mm (W) × 90.581mm (H)
Pixel Pitch	0.1195mm × 0.1195mm
Aspect Ratio	4:3
Optical Performance
White Reflectance	≥35% (Typical)
Contrast Ratio	≥8:1 (Typical)
Update Time (Typical @25°C)
Full Update (GC16)	960ms
Direct Update (DU)	300ms
Power Supply
Logic Voltage (VDD)	3.0V – 3.6V (3.3V Typ.)
Gate Voltages	VGH = +22V, VGL = -20V
Source Voltages	VPOS = +15V, VNEG = -15V
Common Voltage (VCOM)	Adjustable, -2.5V to -1.5V
Power Consumption
Standby Power	0.4mW (Typ.)
Typical Operating Power	600mW – 1200mW
Interface	34-pin FPC connector, parallel data (D0-D7), control signals (CLK, LE, OE, SPH, CPV, STV).

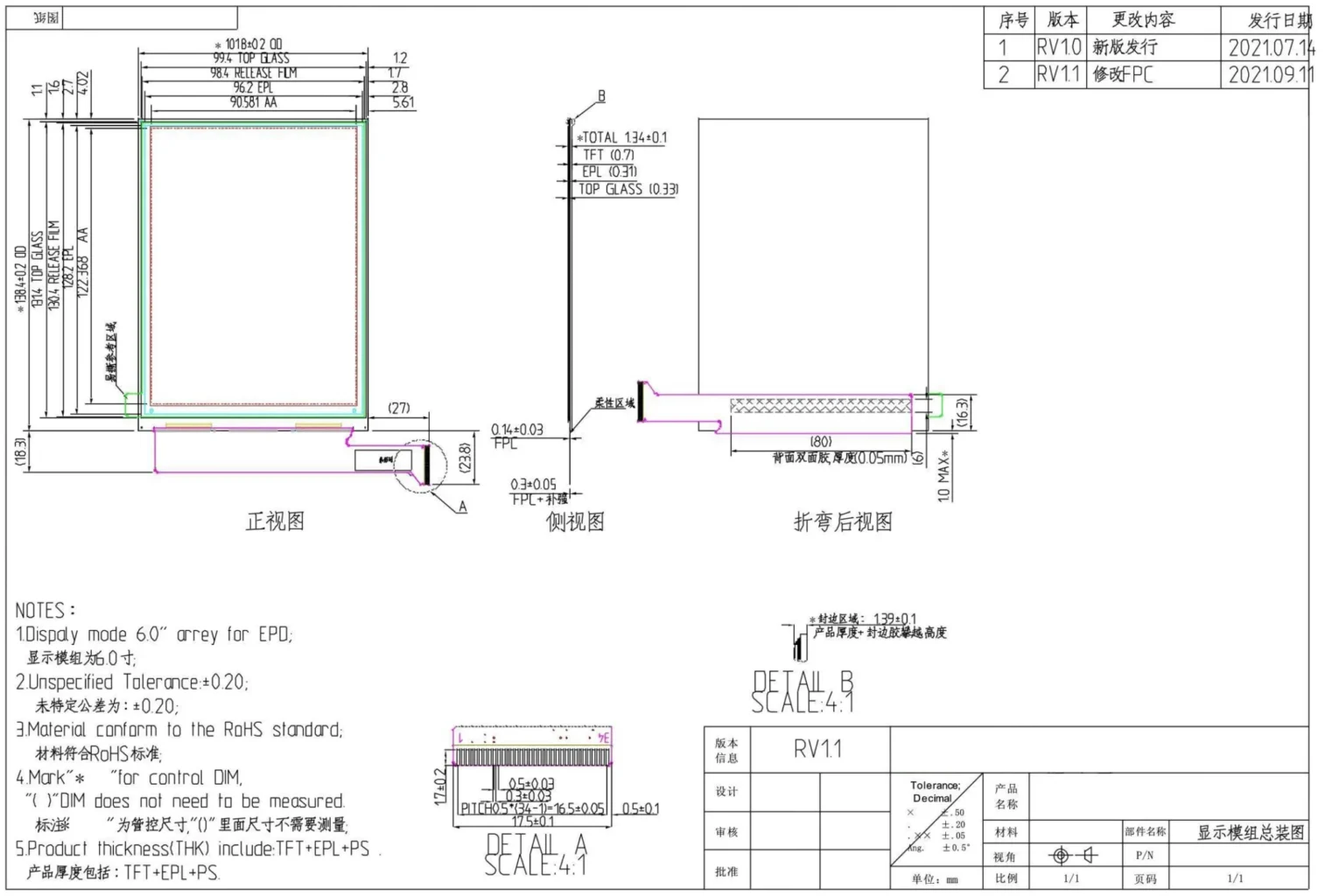

Mechanical Dimensions	138.4mm (W) × 101.8mm (H) × 1.34mm (D)
Weight	43.5 grams
Operating Conditions	0°C to +50°C, 0% to 70% RH
Storage Conditions	-20°C to +70°C, 30% to 60% RH

Industrial-Grade Reliability Validation

Certified through comprehensive environmental and mechanical testing:

Test	Condition	Duration	Standard
Thermal Shock	-25°C ↔ +70°C	50 cycles	IEC 60068-2-14
High-Humidity Operation	40°C, 90% RH	168 hrs	IEC 60068-2-30
Mechanical Vibration	1.04G, 10-500Hz	3 axes	ISTA Procedure
Drop Resistance	122cm height	10 impacts	ISTA 3A
Stylus Durability	200gf @ 30taps/min	13,500 cycles	Industrial Standard
ESD Protection	±250V (Machine Model)	Multiple	IEC 62179

Applications

E-Book Readers and E-Notebooks
Digital Document Viewers
Portable Information Displays
Industrial Instrumentation
Low-Power Status Boards and Signage

Customization & Support

JicTech offers comprehensive engineering support for small to medium batch integration:

Interface & Driver Support: Adaptation for specific timing controllers (T-Con) and host processors.
Waveform Optimization: Custom update waveforms for improved speed or image quality.
Mechanical Customization: FPC length, connector orientation, and reinforced mounting options.
Optical Tuning: Adjustment of VCOM and driving voltages for optimal contrast and reflectance.
Environmental Hardening: Options for extended temperature or humidity ranges based on application needs.

Reliability & Testing

Every module is validated to meet stringent reliability standards, including:

High/Low Temperature Operation & Storage
Thermal Shock (50 cycles, -25°C to +70°C)
High Humidity Storage & Operation
Package Vibration and Drop Impact
ESD Protection (Machine Model, ±250V)

Why Choose JicTech?

With deep expertise in electrophoretic display technology, JicTech provides reliable, high-performance E-Paper modules backed by responsive technical support. We partner with you from prototyping to production, offering flexible customization to ensure seamless integration into your e-reader or low-power display product, helping you bring a superior paper-like visual experience to market.
