5.0‑inch TFT LCD Module – 800×480 Display

Product Details & Technical Specifications

Overview

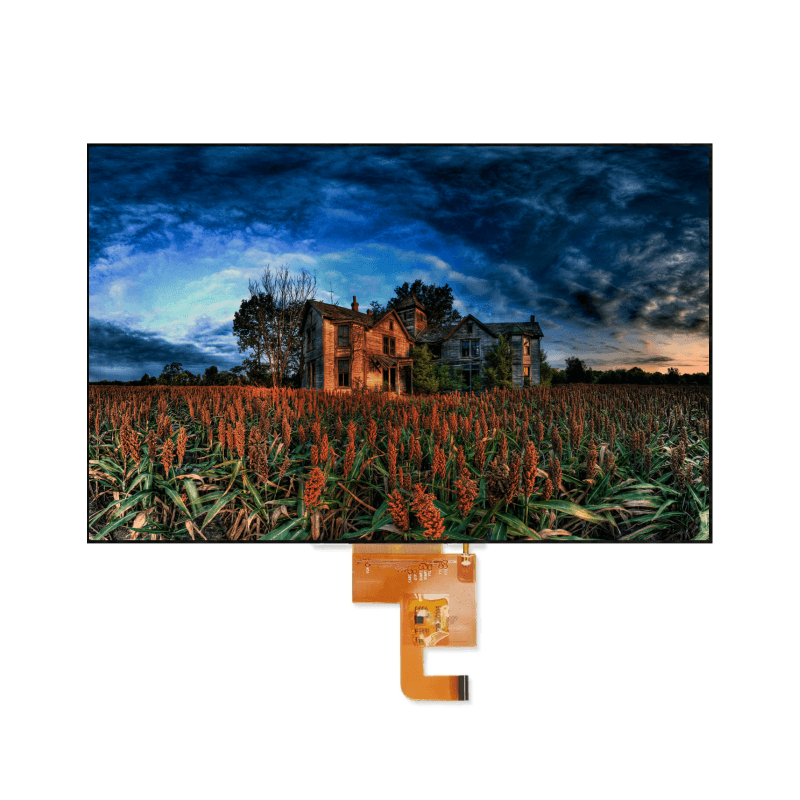

The RH5015XSR-H2 is a 5.0-inch TFT LCD module featuring an IPS panel for superior color and wide viewing angles. Integrated with a G+G capacitive touch panel and high-brightness LED backlight, it offers excellent readability and interactivity for professional and industrial applications.

Key Features

IPS panel with wide viewing angle: 85° (all directions)
High brightness: 800 cd/m² (typ), up to 1000 cd/m²
Capacitive touch panel (G+G structure, 5-point touch)
4-lane MIPI interface for high-speed, low-power data transfer
16.7M true color display
Robust construction with toughened glass cover lens
Operating temperature: –20°C to +70°C

Applications

Industrial human-machine interfaces (HMI)
Medical monitoring equipment
Automotive infotainment and dashboards
Portable devices and handheld terminals
Interactive kiosks and POS systems
Test and measurement instruments

Technical Parameters

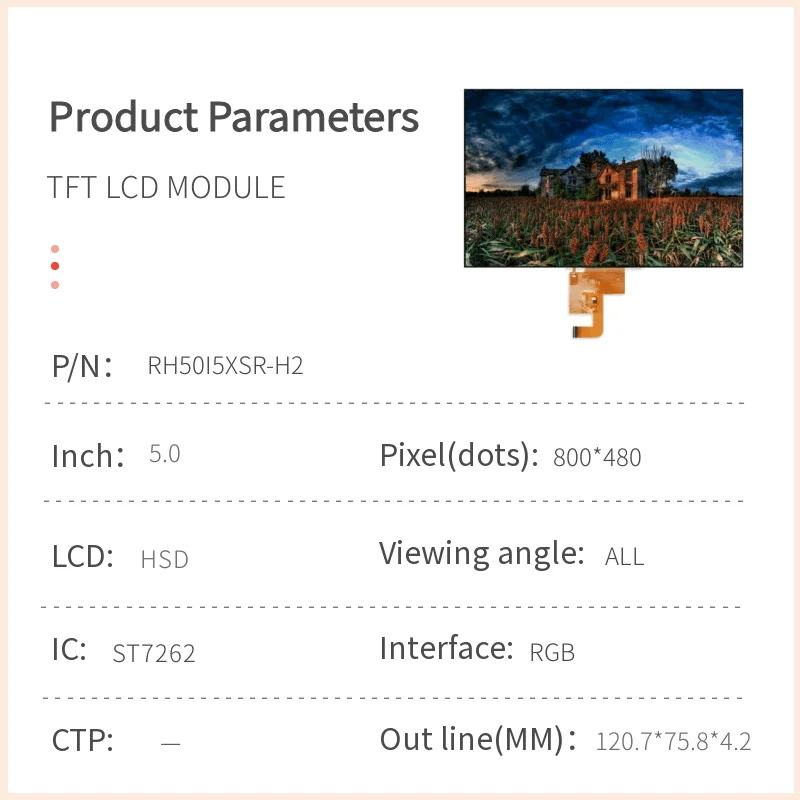

Parameter	Specification	Notes
Display
LCD Size	5.0 inches
Panel Type	a-Si TFT, IPS, Normally Black
Resolution	800 RGB × 480 pixels
Display Mode	Transmissive, Normally Black
Number of Colors	16.7M
Viewing Angle (L/R/U/D)	85°/85°/85°/85°	CR > 10
Contrast Ratio	600 (Min), 900 (Typ)
Luminance	800 cd/m² (Typ), 1000 cd/m² (Min)
Response Time (Tr+Tf)	30 ms (Typ), 35 ms (Max)
Color Gamut (NTSC)	64% (Min), 68% (Typ)
Touch Panel
Touch Structure	G+G (Glass + Glass)	Capacitive
Touch Points	5 points
Interface	I²C	3.3V level
Mechanical
Module Dimensions	120.7 mm × 75.8 mm × 4.2 mm
Active Area	108.0 mm (W) × 64.8 mm (H) (extracted from drawing)
Pixel Pitch	0.08625 mm × 0.08625 mm
Cover Lens Material	Toughened Glass
Electrical
Display Interface	4-lane MIPI
Driver IC	ST7262
LCM Supply Voltage (VCC)	2.5V – 3.3V (3.6V Max)
I/O Voltage (IOVCC)	1.65V – 1.8V (2.0V Max)
Input Current (Idd)	55 mA (Typ), 85 mA (Max)
Backlight
Light Source	4 × 7 LEDs (White)	28 LEDs total
Forward Voltage (VF)	12V (Typ), 11.2–13.2V Range	IF = 140mA
Forward Current (IF)	140 mA (Typ)	Constant current
PWM Frequency	25–200 kHz
Duty Cycle	25–100%
LED Lifetime	20,000–50,000 hours	Luminance to 50% initial
Environmental
Operating Temperature	–20°C to +70°C
Storage Temperature	–30°C to +80°C
Humidity	≤90% RH (Max 60°C)
Reliability & Inspection
ESD Protection	±8kV (Air), ±4kV (Contact)
Defect Classification	Major (MA) & Minor (MI)	Per GB2828
AQL Level	MA: 0.4, MI: 0.65
Warranty	1-year quality assurance

Additional Information

Interface Notes: The module supports 24-bit RGB parallel signaling via the pin header, with I/O levels referenced to IOVCC (1.8V).
Touch Integration: I²C interface for touch communication; includes INT and RESET pins for host control.
Mounting: Use mounting holes for secure installation. Avoid mechanical stress, bending of cables, or twisting of the module.
Cleaning: Use only isopropyl alcohol or ethyl alcohol with a soft cloth. Avoid water, ketones, and aromatic solvents.
ESD Precautions: Handle in grounded conditions. Use anti-static packaging and maintain 50–60% RH in working environment.
Storage: Store in sealed anti-static bags at 0–35°C, 40–60% RH, away from direct light or fluorescent exposure.
Regulatory Compliance: Reliability testing follows IEC and GB standards for thermal, mechanical, and ESD endurance.

This TFT LCD Module from JicTech combines high-performance visual output with responsive touch interaction in a compact, industrial-grade package. Ideal for developers and engineers seeking a reliable, ready-to-integrate display solution for advanced applications.

Download Technical Documents

Click here to download this document：FULL SPEC-RH50I5XSR-H2

All specifications are based on the official product specification sheet (Ver: 01). For mechanical drawings, signal timing diagrams, and full inspection criteria, please refer to the original document.
