32‑inch TFT LCD Module – Full HD 1920×1080 Display

JicTech 32-Inch TFT LCD Module

Overview

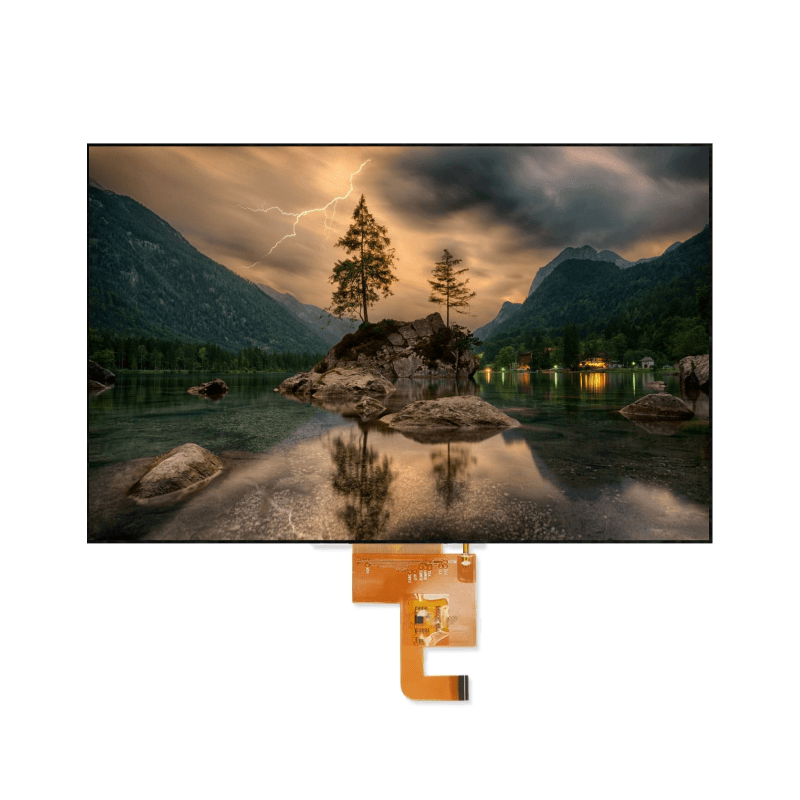

The JicTech JS320FHM-NN0 is a 31.5-inch diagonal TFT LCD open cell with Full HD resolution (1920×1080 pixels). Utilizing amorphous silicon TFT technology, it supports 16.7 million colors with high brightness, excellent contrast, and low reflection. The module is compatible with LVDS interface, supports DE-only mode, and is designed for both commercial and industrial display applications.

Key Features

31.5-inch active area with FHD (1920×1080) resolution
8-bit color depth, displaying 16.7M colors
High luminance (400 cd/m² typical) and contrast ratio (1200:1 typical)
Wide viewing angle: 89° horizontal and vertical (CR > 10)
LVDS interface with 2-pixel/clock, supports JEIDA/VESA format via SEL pin
DE-only mode for simplified timing control
ADSDS technology for improved display quality
RoHS compliant, low power consumption
Suitable for landscape and portrait orientation
Long-life LED backlight with 30,000-hour lifespan

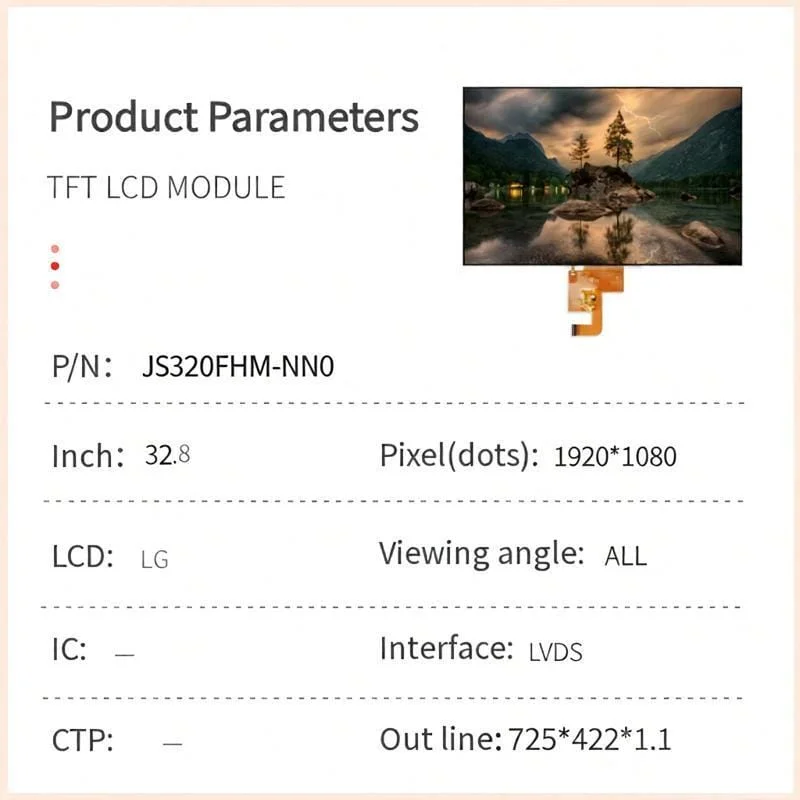

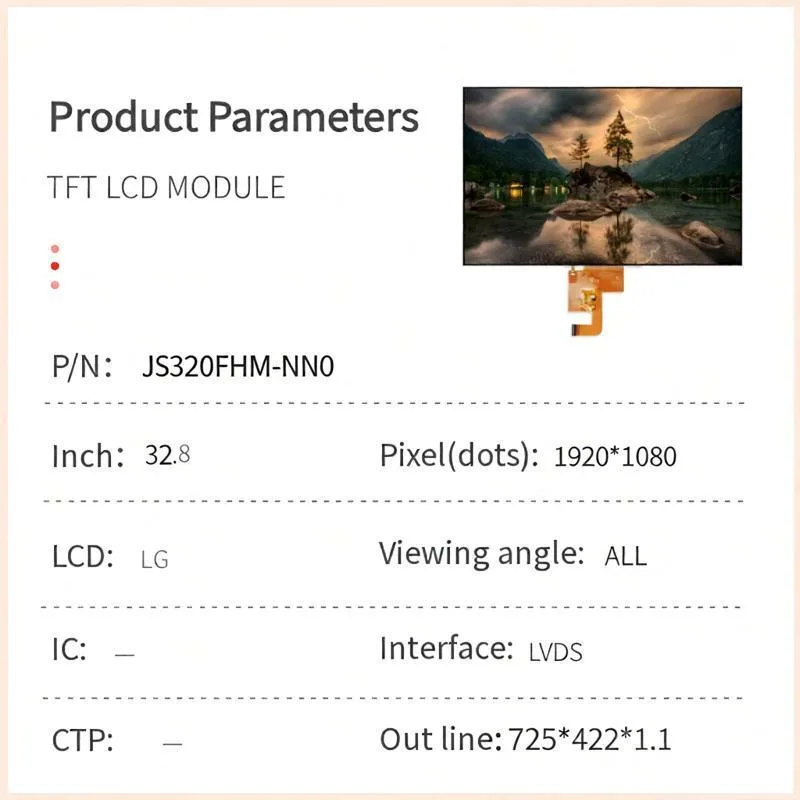

Technical Specifications

Category	Parameter	Specification
General	Model	JS320FHM-NN0
	Active Area	698.4 mm (H) × 392.85 mm (V)
	Pixel Pitch	121.25 µm (H) × 363.75 µm (V)
	Display Colors	16.7M
	Display Mode	Normally White
Electrical	Supply Voltage (VDD)	10.8V – 14V DC (Typ. 12V)
	Power Consumption	Typ. 4.0W (Max 7.6W)
	Interface	LVDS 2-port, 51-pin connector
	Input Logic Voltage	VIH: 2.7V–3.3V, VIL: 0V–0.6V
Optical	Luminance (White, Center)	350 cd/m² Min, 400 cd/m² Typ
	Contrast Ratio	900:1 Min, 1200:1 Typ
	Response Time (Gray-to-Gray)	8 ms Typ, 10 ms Max
	Color Gamut	72% NTSC Typ
	Viewing Angle (CR>10)	89° (H) / 89° (V)
Backlight	LED Type	120 LEDs (20×6)
	Current per Channel	540 mA Typ
	Lifetime (L50)	30,000 hours
Mechanical	Module Weight	850 grams
	Surface Treatment	Anti-glare, Hard Coating
Environmental	Operating Temperature	0°C to +50°C
	Storage Temperature	-20°C to +60°C
	Operating Humidity	10% to 80% RH
Reliability	Test Standards	High/Low Temp Storage & Operation, Thermal Shock, Vibration, ESD, On/Off Cycle

Applications

Commercial digital signage
Control system display terminals
Information kiosks
Portrait/landscape digital displays
Public transportation info screens
Industrial monitoring displays

Handling & Usage Guidelines

Use soft gloves or finger cots during installation to avoid scratches.
Follow the power sequence: VDD → Interface Signals → Backlight ON.
Avoid mechanical stress on PCB, driver IC, or COF areas.
Ensure proper grounding and ESD protection during handling.
Do not expose to direct sunlight or strong light for extended periods.
For long-term static content, use screen savers or periodic image refresh to prevent burn-in.
Store in a dark, dry environment (5°C–40°C, 40–75% RH) if not in use.

Packaging & Support

Standard packing: 6 modules per box
Box dimensions: 820 × 375 × 520 mm
Includes PE sheet, corner protectors, and pallet for safe transit
Serial number and barcode labeling for traceability
Dedicated technical support available for integration guidance

Why Choose This Module?

The JicTech JS320FHM-NN0 combines high performance with rugged reliability, making it a versatile choice for professional display solutions. With its wide operating temperature range, long-lasting backlight, and robust signal integrity, it is built to deliver consistent performance in diverse environments. Whether for indoor digital signage or control room monitors, this module offers the clarity, durability, and flexibility needed for modern display applications.

Ready to Integrate? Contact us for volume pricing, custom configurations, and technical datasheets.
