23.8-Inch FHD Open Cell TFT LCD Panel – 1920×1080, 1000:1 Contrast, 2 Ch LVDS
Product Overview

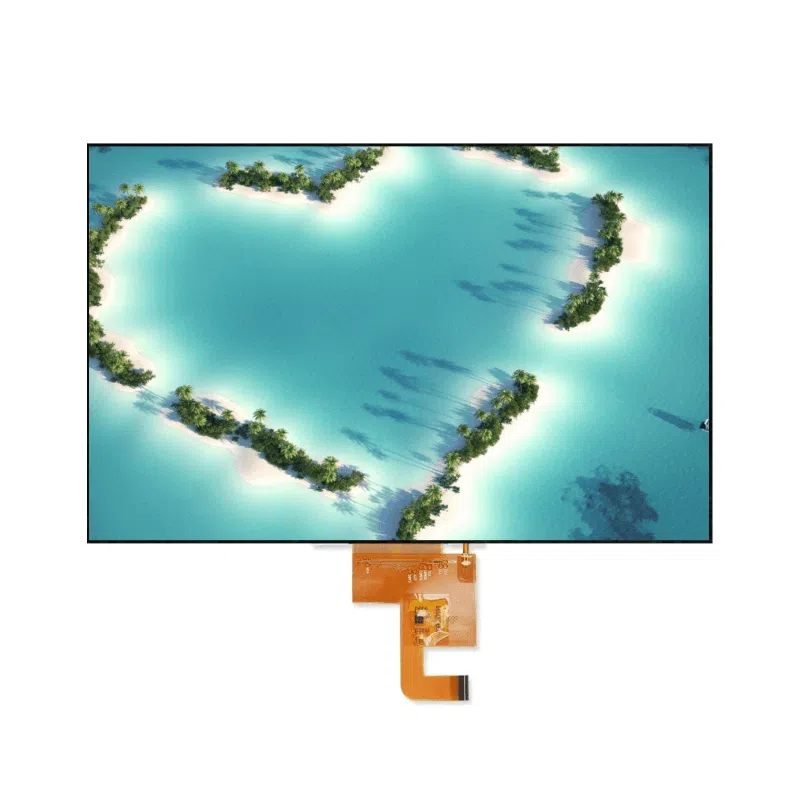

The SG2381B02-2 is a professional-grade 23.8-inch FHD Open Cell TFT LCD panel, designed as a core display component for integrators and manufacturers. Supplied by JicTech, this open cell delivers Full HD 1920×1080 resolution, excellent optical performance, and a reliable 2-channel LVDS interface in a slim, lightweight form factor. As an open cell, it provides the essential LCD glass and driver circuitry, offering OEMs maximum flexibility to pair it with their choice of backlight units, controller boards, and mechanical enclosures to create customized display solutions for a wide range of applications.
Key Features & Benefits
-
High-Definition Visuals: Experience sharp and detailed imagery with Full HD (1920 x 1080) resolution and support for 16.7 million colors (6-bit+FRC).
-
Superior Optical Performance: Boasts a high 1000:1 typical contrast ratio and an exceptionally wide viewing angle of 89°(H)/89°(V), ensuring consistent image quality from virtually any perspective.
-
Rich Color Reproduction: Covers approximately 72% of the NTSC color gamut, providing vibrant and accurate colors for multimedia and graphical content.
-
Enhanced Surface Durability: Features an anti-glare (Haze 25%) polarizer on the front surface with a hard coating (3H pencil hardness) to reduce reflections and resist scratches during handling and assembly.
-
Reliable & Standard Interface: Integrated 2-channel LVDS receiver simplifies connection to standard controller boards, ensuring stable signal transmission and easy system integration.
-
Design Flexibility: The open-cell format allows engineers to select optimal backlights (edge-lit or direct-lit) and design custom mechanical frames to meet specific brightness, thermal, and form-factor requirements.
Detailed Specifications
| Category | Parameter | Specification |
|---|---|---|
| General | Model | SG2381B02-2 |
| Type | Open Cell (TFT-LCD Panel, No Backlight) | |
| Display Mode | Transmissive, Normally Black | |
| Panel Technology | a-Si TFT Active Matrix | |
| Supplier | JicTech | |
| Display | Screen Size | 23.8 inches (diagonal) |
| Active Area (AA) | 527.04(W) × 296.46(H) mm | |
| Resolution | 1920 (H) × 1080 (V) pixels | |
| Pixel Pitch | 0.0915(H) × 0.2745(V) mm | |
| Number of Colors | 16.7M (6-bit + FRC) | |
| Pixel Arrangement | RGB Vertical Stripe | |
| Optical | Contrast Ratio (Typ.) | 1000 : 1 |
| Viewing Angle (CR>10, Typ.) | 89° (Left/Right, Up/Down) | |
| Color Gamut (Typ.) | 72% NTSC | |
| Luminance (Center, Typ.) | Dependent on customer backlight | |
| Response Time (Typ.) | 14 ms | |
| Surface Treatment | Anti-Glare, Haze 25%, Hard Coating (3H) | |
| Cell Transmittance (Typ.) | 4.8% | |
| Electrical & Interface | Interface | 2-Channel LVDS (DE Only Mode) |
| Input Connector | 30-pin (e.g., 187114-30091) | |
| Power Supply Voltage (Vcc) | 5.0V (Typ.) | |
| Supply Current (Typ.) | 0.43A (White/Black Pattern @60Hz) | |
| Typical Power Consumption | ~2.15W (White Pattern @60Hz, Panel Only) | |
| Mechanical | Cell Dimensions (W×H×D) | 534.04 × 307.76 × 1.3 mm |
| Weight | 0.505 kg (Typical) | |
| Glass Thickness | 0.5mm (Array) / 0.5mm (Color Filter) | |
| Environmental | Operating Temperature | 0°C to +50°C (Panel Surface Temp. ≤65°C) |
| Storage Temperature | -20°C to +60°C | |
| Reliability & Compliance | RoHS | Compliant |
Typical Applications
This versatile open cell is engineered as a core component for:
-
Desktop & Commercial Monitors: Cost-effective base panel for FHD office and entry-level professional monitors.
-
Industrial HMIs & Control Panels: Durable display core for machinery interfaces, control systems, and test equipment.
-
Interactive Kiosks & Digital Signage: Ideal for self-service terminals, information displays, and indoor advertising.
-
Gaming & Entertainment Displays: Suitable for arcade machines, slot machines, and other recreational electronics.
-
Medical Monitoring Devices (with appropriate backlight and certification): Can be integrated into patient monitoring equipment.
Customization & OEM/ODM Support
JicTech specializes in providing display solutions, not just components. We understand that integration is key.
-
Technical Support: Access comprehensive documentation, including detailed power sequencing and timing specifications, to ensure seamless integration with your backlight and driver board.
-
Custom Solutions: We can facilitate discussions around custom bonding, connector options, or sourcing compatible backlight units and driver boards tailored to your project’s brightness, power, and interface requirements.
-
Flexible Ordering: We cater to both small-batch prototyping and large-volume production runs, supporting you from initial concept through to mass manufacturing.
-
Quality Assurance: Supplied from certified manufacturers, ensuring high reliability and performance consistency.
