23.6-Inch High Brightness TFT LCD Module – 800 nits, FHD, TCO 6.0 Certified
Model: MV236FHB‑N10
Product Overview
The MV236FHB-N10 is a premium 23.6-inch TFT LCD module engineered for professional applications where reliability, visual clarity, and environmental compliance are paramount. Supplied by JicTech, this complete module integrates a high-performance FHD panel with a robust edge-lit LED backlight system, delivering a consistent 800 cd/m² brightness. Certified to stringent TCO 6.0 and ES 6.0 standards, it offers peace of mind for sustainable and ergonomic product design. Ready for integration, this module is the ideal choice for building monitors that demand superior quality, longevity, and user safety.
Key Features & Benefits
-
Certified Professional Quality: Compliant with TCO 6.0 and ES 6.0 standards, ensuring low environmental impact, energy efficiency, and user safety for sustainable procurement.
-
High Luminance for Demanding Environments: Features a powerful 800 cd/m² brightness, ensuring excellent readability in well-lit offices, control rooms, or under ambient lighting.
-
Full HD Clarity: Delivers sharp and detailed images with 1920 x 1080 resolution and 16.7 million colors (6-bit + Hi-FRC) for precise graphics and text.
-
Enhanced Optical Performance: Combines a high contrast ratio with wide viewing angles and a low-reflection panel surface (Haze 3%) for consistent image quality from various positions.
-
Advanced Interface & Control: Utilizes a standard 2-channel LVDS interface and includes I2C pins (SDA/SCL) for software-based VCOM (flicker) adjustment, allowing for fine-tuning of image stability.
-
Integrated & Ready-to-Use: Comes as a complete LCM (LCD Module) with a built-in LED backlight, simplifying system integration and reducing development time.
Detailed Specifications

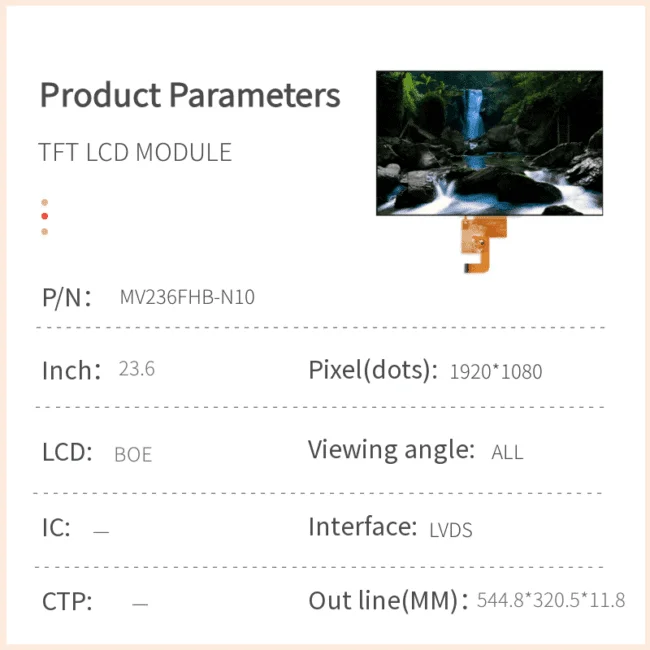

| Category | Parameter | Specification |
|---|---|---|
| General | Model | MV236FHB-N10 |
| Type | TFT-LCD Module (with Integrated Backlight) | |
| Display Mode | Transmissive, Normally Black | |
| Supplier | JicTech | |
| Display | Screen Size | 23.6 inches (diagonal) |
| Active Area (AA) | 527.04(W) × 296.46(H) mm (calculated from pixel data) | |
| Resolution | 1920 (H) × 1080 (V) pixels | |
| Pixel Pitch | 0.2715(H) × 0.2715(V) mm | |
| Number of Colors | 16.7M (6-bit + Hi-FRC) | |
| Pixel Arrangement | RGB Vertical Stripe | |
| Optical | Brightness (Typ.) | 800 cd/m² |
| Contrast Ratio (Typ.) | 1000:1 | |
| Surface Treatment | Anti-Glare (Haze 3%), Hard Coating (3H) | |
| Viewing Angle (Typ.) | Wide (Based on product features) | |
| Electrical & Interface | Interface | 2-Channel LVDS (DE Only Mode) |
| Input Connector | 30-pin (e.g., 300B30-0000RA-M4) | |
| Power Supply Voltage (Vcc) | 5.0V DC (Typ.) | |
| Supply Current (Typ.) | 0.96A (White Pattern) / 1.27A (Horizontal Stripe) @75Hz | |
| Control Interface | I2C (SDA/SCL) for VCOM adjustment | |
| Backlight Unit | Type | Edge-lit LED Light Bar |
| Lifetime (Typ.) | 30,000 hours (to 50% initial brightness) | |
| Power Consumption (Typ.) | ~17.85W (Backlight only) | |
| Mechanical | Module Dimensions (W×H×D) | 544.8 × 320.5 × 11.8 mm (Typical) |
| Environmental & Compliance | Operating Temperature | 0°C to +50°C |
| Storage Temperature | -20°C to +60°C | |
| Certifications | TCO 6.0, ES 6.0 Compliant, RoHS/Halogen Free |
Typical Applications
This high-brightness, certified module is perfectly suited for:
-
Professional Workstations & Monitors: High-end office displays, CAD/CAM stations, and financial trading desks requiring clarity and compliance.
-
Control Room & Industrial Monitoring: Mission-critical displays in surveillance centers, factory control rooms, and process visualization systems.
-
Medical Diagnostic Displays (Subject to final assembly and certification): Potential base module for diagnostic review stations where brightness and consistency are key.
-
Public Information & Digital Signage: Kiosks, transportation hubs, and retail signage where visibility under bright lights is essential.
-
Broadcast & Video Editing: Reliable preview monitors for color-critical environments.
Customization & Integration Support
JicTech provides comprehensive support to seamlessly integrate this module into your product.
-
Technical Documentation: Receive full specifications, power sequencing diagrams, and I2C communication protocols for VCOM adjustment.
-
Compliance Guidance: Leverage our experience with TCO/ES certifications to streamline your own end-product compliance process.
-
Custom Modifications: Discuss potential modifications such as custom firmware, specific connector types, or tailored mechanical brackets.
-
Sample Program: Request an evaluation sample to verify performance, quality, and fit within your design.
-
Flexible Order Quantities: We support projects from small-batch pilot runs to high-volume production orders.
Request More Information
Elevate your professional display solution with the certified MV236FHB-N10 module. Contact JicTech today to request the complete specification package, inquire about pricing and sample availability, or to consult with our engineers about your specific integration requirements.
Download this product’s technical documentation and specifications.
Click here to download：FULL SPEC-MV236FHB-N10
