2-inch IPS TFT LCD Module – 240×320 Wide Viewing Display

JicTech 2-Inch IPS TFT LCD Module

Overview

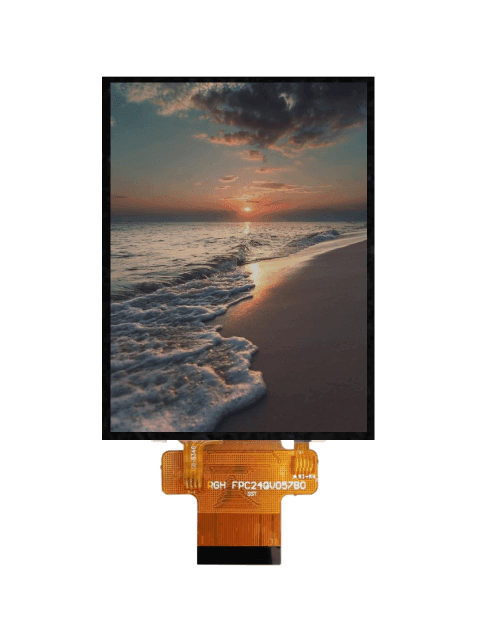

The JicTech RT020T51-E07 is a 2.0-inch color TFT LCD module with an IPS panel, offering wide viewing angles and high brightness in a compact design. It supports up to 262K colors and features a resolution of 240×320 pixels. With its SPI + 18-bit RGB dual interface and robust construction, this module is suited for a variety of embedded and industrial applications.

Key Features

2.0-inch IPS TFT LCD with wide viewing angle (80° all directions)
High brightness: 400 cd/m² typical
Resolution: 240×320 pixels, 262K colors
Dual interface: SPI + 18-bit RGB
Compact dimensions: 34.98 × 50.57 × 2.40 mm
Wide operating temperature: -20°C to +70°C
Low power consumption, ideal for portable devices
RoHS compliant, reliable and durable

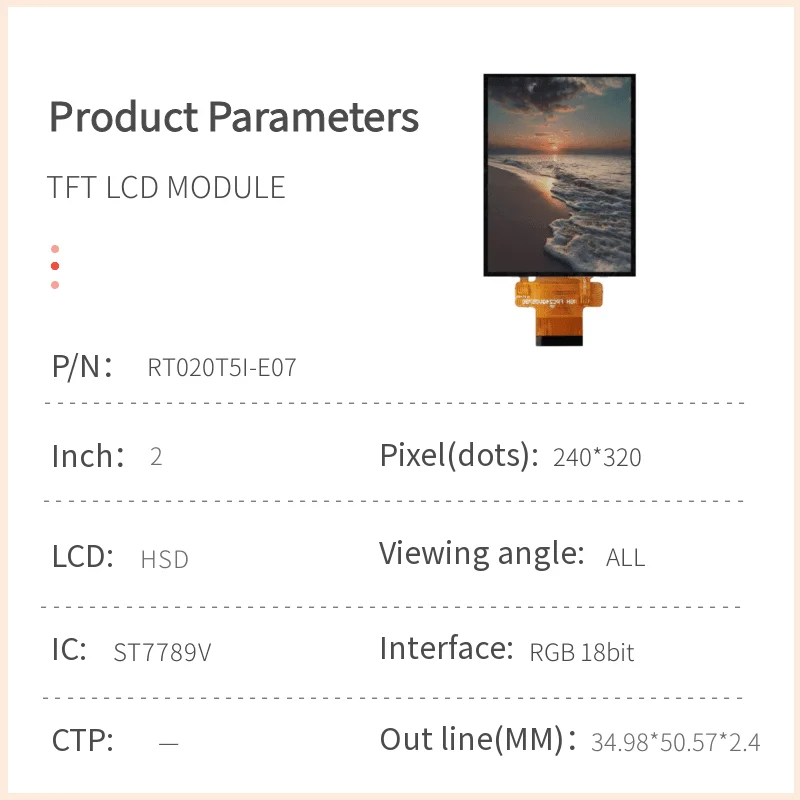

Technical Specifications

Category	Parameter	Specification
General	Model	RT020T51-E07
	Screen Size	2.0 inches
	Active Area	30.60 × 40.80 mm
	Resolution	240 × 320 pixels
	Display Colors	262K colors
	Display Mode	IPS / Normally Black
	Viewing Direction	All direction (6 o’clock)
Electrical	Supply Voltage (VCI)	2.8 V to 3.6 V (Typ. 3.3 V)
	I/O Voltage (IOVCC)	1.8 V to 3.3 V
	Current Consumption	25 mA typical
	Interface	SPI + 18-bit RGB
	Driver IC	ST7789V
Optical	Luminance (White)	400 cd/m² typical
	Contrast Ratio	800:1 typical
	Response Time (Tr+Tf)	30 ms typical, 40 ms max
	Viewing Angle (CR ≥ 10)	80° (all directions)
	Color Gamut (NTSC Ratio)	Approx. 72%
Backlight	Light Source	3 white LEDs
	LED Current	20 mA per LED (constant current)
	Forward Voltage	3.0 V to 3.2 V
Mechanical	Module Dimensions	34.98 ±0.2 × 50.57 ±0.2 × 2.40 ±0.2 mm
	Weight	Approx. TBD grams
Environmental	Operating Temperature	-20°C to +70°C
	Storage Temperature	-30°C to +80°C
	Operating Humidity	Up to 90% RH (non-condensing)
Reliability	Life Time	20,000 hours under normal conditions
	Test Compliance	High/low temp storage & operation, thermal shock, ESD

Applications

Industrial control panels
Portable medical devices
Handheld terminals & scanners
Consumer electronics displays
IoT device interfaces
Instrumentation and measurement tools

Interface & Pin Description

The module uses a 40-pin FPC connector supporting both SPI and RGB interfaces. Key pins include:

LED_A / LED_K1–K3: Backlight power
R0–R5, G0–G5, B0–B5: 18-bit RGB data lines
SDI, SDO, SCL, CS: SPI interface pins
VSYNC, HSYNC, DOTCLK, ENABLE: RGB timing signals
RESET: Hardware reset input

Handling & Usage Guidelines

Avoid mechanical stress on the FPC and connector during assembly.
Use ESD protection when handling the module.
Do not expose the polarizer to sharp objects or solvents other than isopropyl alcohol.
Follow recommended power-up sequence: VCI → IOVCC → Signals → Backlight.
Store in anti-static, dry environment (5°C–40°C, 40–75% RH) when not in use.

Reliability & Quality Assurance

All modules undergo rigorous testing including:
- High/low temperature operation & storage
- Thermal shock cycling
- ESD protection (±4kV contact, ±6kV air discharge)
- Visual and electrical inspection per MIL-STD-105E, Level II
Lifetime: 20,000 hours under normal operating conditions.

Packaging & Support

Standard packaging: anti-static bag + foam insert
Custom labeling and barcode support available
Technical documentation and driver examples provided
OEM/ODM support for volume orders

Why Choose This Module?

The JicTech RT020T51-E07 combines IPS clarity, wide-temperature operation, and a compact footprint—making it an ideal display solution for space-constrained and harsh-environment applications. With dual-interface flexibility and proven reliability, it’s ready to integrate into your next-generation device.

Ready to Integrate?
Contact us for samples, pricing, and custom configuration support. Let’s build something brilliant together.
