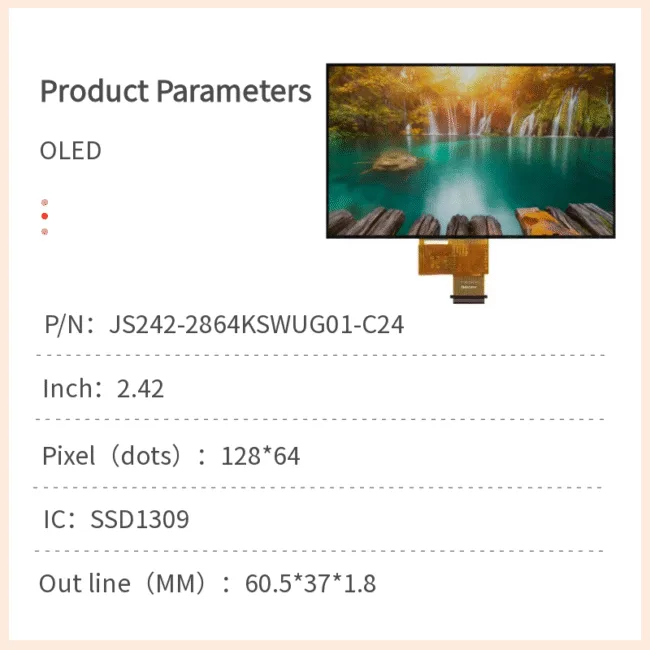

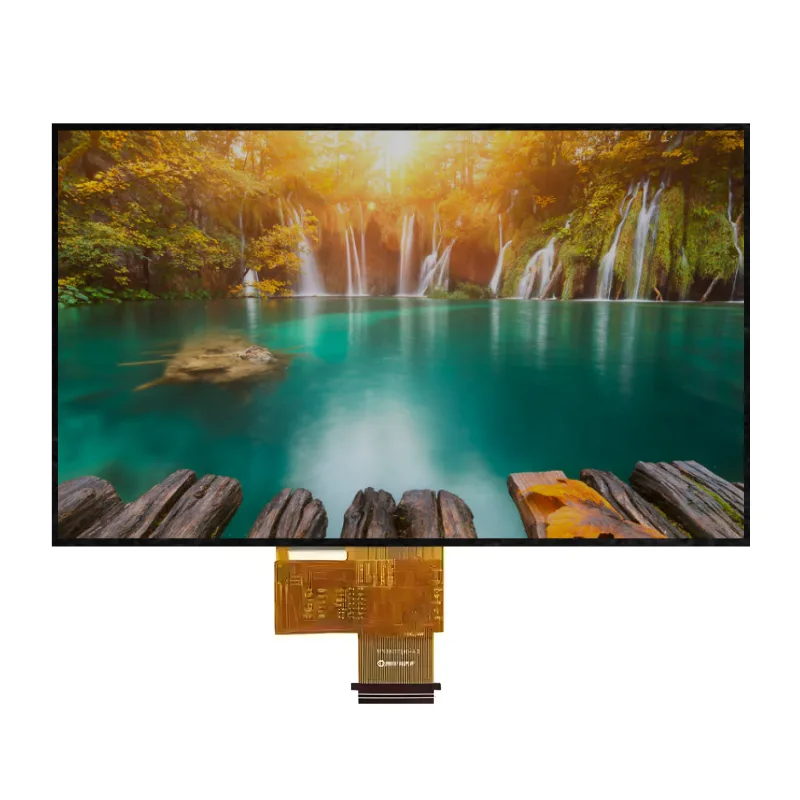

JicTech 2.42-inch Monochrome OLED Display Module (Model: JS242-2864KSWUG01-C24 VER A)

Overview

The JS242-2864KSWUG01-C24 is a high-performance 2.42-inch monochrome OLED display module designed for applications requiring clear readability, low power consumption, and reliable operation in varied environments. With a resolution of 128×64 pixels, multiple interface options, and a wide operating temperature range, it is an excellent choice for embedded systems, portable devices, and industrial interfaces.

Critical Technical Advantages

Feature	Specification	Engineering Benefit
Power Efficiency	10μA sleep current	Years of operation on coin cell batteries
Viewing Performance	2000:1 contrast ratio	Readable in direct sunlight
Interface Options	4-wire SPI + 8-bit parallel	Flexible MCU compatibility
Temperature Range	-40°C to +70°C	Operation in industrial/freezing environments
Lifespan	16,000 hours @ 180 cd/m²	10+ years for medical/wearable devices
Form Factor	60.5 × 37 × 1.8mm	Fits compact wearable designs

Detailed Technical Specifications

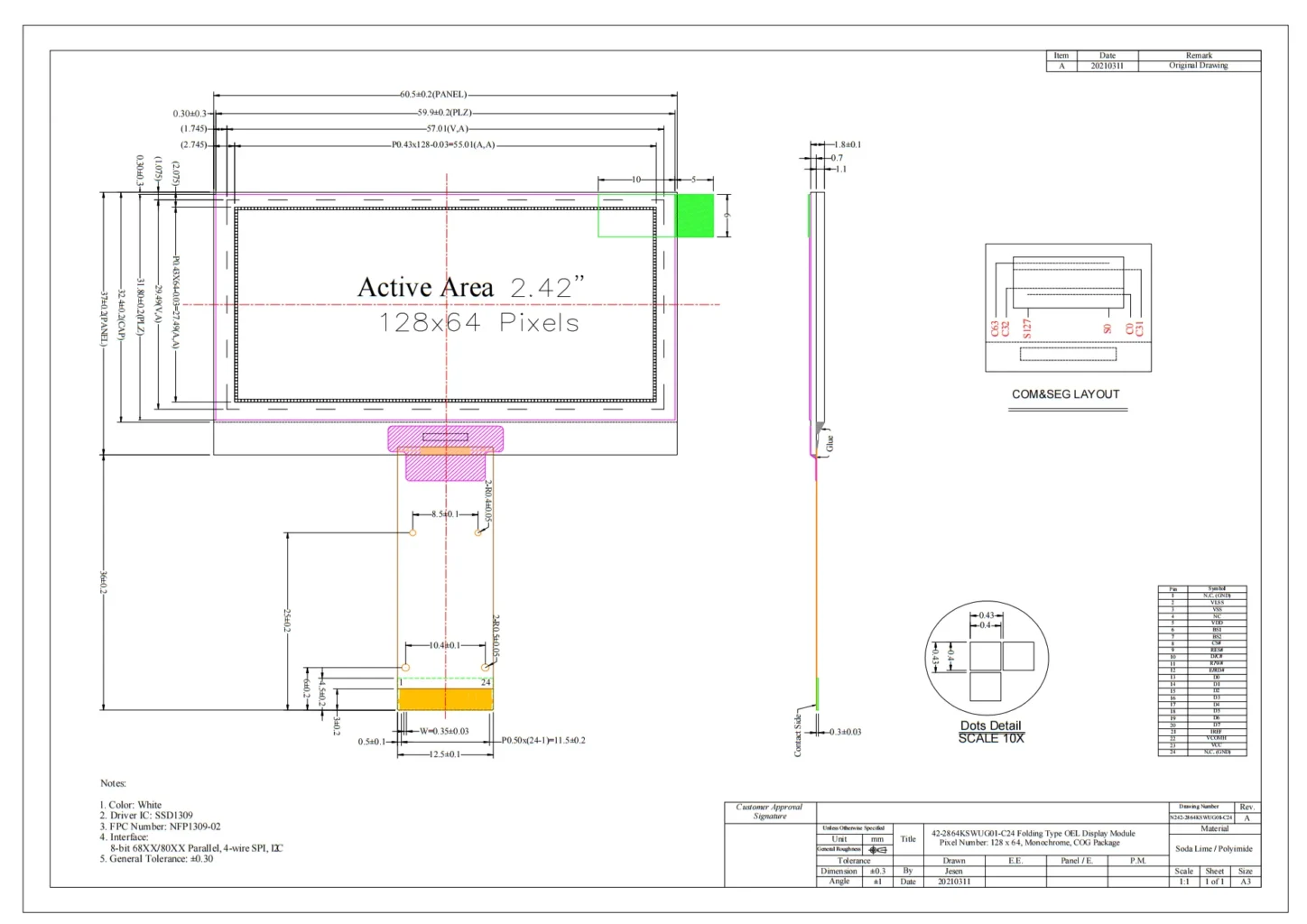

Mechanical Specifications

Parameter	Value	Unit
Active Area	55.01 × 27.49	mm
Outline Dimensions	60.5 × 37 × 1.8	mm
Pixel Pitch	0.43 × 0.43	mm
Pixel Size	0.40 × 0.40	mm
Resolution	128 × 64	pixels
Drive Duty	1/64	–

Electrical Characteristics

Parameter	Min	Typ	Max	Unit
Logic Voltage (VDD)	1.65	2.8	3.3	V
Display Voltage (VCC)	12.0	12.5	13.0	V
Sleep Mode Current	–	≤10	–	μA
Operating Current	–	43	52	mA
Standby Current	–	0.5	1.5	mA

Optical Performance

Parameter	Min	Typ	Max	Unit
Brightness	90	110	–	cd/m²
Contrast Ratio	2000:1	–	–	–
Viewing Angle	160	–	–	°
CIE Coordinates (x,y)	0.24,0.28	0.28,0.32	0.32,0.36	–

Interface Compatibility

Interface Type	Pin Requirements	Compatible MCUs
4-wire SPI	CS, DC, CLK, DIN	Arduino, Raspberry Pi, ESP32
8-bit Parallel	D0-D7, RD, WR	80XX MPU, PIC, ARM Cortex
Control Pins	RESET, VCC, VDD, GND	Universal

Rugged Reliability Testing

Test	Condition	Duration	Standard
Thermal Cycling	-40°C ↔ +85°C	100 cycles	IEC 60068-2-14
High Temp Operation	70°C	240 hours	IEC 60068-2-2
Low Temp Operation	-40°C	120 hours	IEC 60068-2-1
Humidity Resistance	65°C/90% RH	120 hours	IEC 60068-2-78
ESD Protection	±8kV air/±4kV contact	–	IEC 61000-4-2
Lifetime Validation	180-220 cd/m²	13,000-16,000 hours	MIL-STD-883

Target Applications

Industry	Implementation	JicTech Advantage
Wearable Technology	Smart Watches, Fitness Trackers	10μA sleep current extends battery life
Medical Devices	Portable Monitors, Insulin Pumps	Wide temperature range (-40°C to +70°C)
Industrial Automation	HMI Panels, Control Interfaces	2000:1 contrast for low-light environments
IoT & Embedded	Sensors, Control Gateways	Dual interface (SPI/Parallel) flexibility
Automotive	Secondary Displays, Control Panels	ESD protection (±8kV air/±4kV contact)
Consumer Electronics	Portable Instruments, Handhelds	1.8mm ultra-thin profile

Why Choose JicTech OLED?

Advantage	Benefit
OLED Expertise Since 2003	Proven display technology leadership
Full SSD1309 Command Support	Seamless integration with existing codebases
ISO9001/ISO14001 Certified	Consistent manufacturing quality
RoHS-Compliant Materials	Environmentally responsible production
Global Technical Support	12-month warranty + engineering assistance

Key Features

2.42-inch Monochrome OLED Display: 128×64 resolution with white emission
High Contrast Ratio: 2000:1 dark-room contrast for sharp visuals
Multi-Interface Support: 8-bit 68XX/80XX parallel, 4-wire SPI, and I²C
Wide Operating Temperature: -40°C to +70°C
Low Power Consumption: Sleep current ≤10μA, ideal for battery-powered devices
Compact & Thin Design: COG package, only 1.8mm thick
SSD1309 Driver IC: Integrated controller for easy command control
High Reliability: Passes industrial environmental tests (thermal shock, humidity, storage)
Flexible Mounting: FPC connector with 24 pins for secure connection

Technical Specifications

Display Mode: Passive Matrix
Display Color: Monochrome (White)
Active Area: 55.01mm × 27.49mm
Pixel Pitch: 0.43mm × 0.43mm
Brightness: 110 cd/m² typical
Viewing Angle: 160 degrees
Supply Voltage (Logic): 1.65V to 3.3V (VDD)
Supply Voltage (Panel): 12V to 13V (VCC)
Interface Options: 8-bit parallel (68XX/80XX), 4-wire SPI, I²C
Operating Temperature: -40°C to +70°C
Storage Temperature: -40°C to +85°C
Dimensions: 60.5mm × 37mm × 1.8mm
Weight: To be determined

Applications

Portable medical devices and health monitors
Industrial control panels and HMIs
Smart home displays and IoT interfaces
Automotive dashboard and cluster displays
Handheld terminals and instrumentation
Consumer electronics and wearable devices

Customization & Support
JicTech offers tailored solutions for small to medium batch projects, including:

Interface customization (SPI, I²C, parallel)
Firmware and command set adjustments
FPC customization (length, connector type)
Brightness and contrast calibration
Mechanical adaptation (mounting holes, bezel design)
Environmental hardening (conformal coating, extended temperature)

Reliability & Testing
Each module undergoes rigorous environmental and operational tests, including:

High/low temperature operation and storage
Thermal shock testing
High humidity operation
ESD protection validation
Outgoing quality inspection per MIL-STD-105E

Why Choose JicTech?
With deep expertise in display technology and a commitment to quality, JicTech provides reliable, high-performance OLED modules backed by responsive engineering support and flexible customization. We help you integrate display solutions that meet your technical, environmental, and budgetary requirements efficiently.
