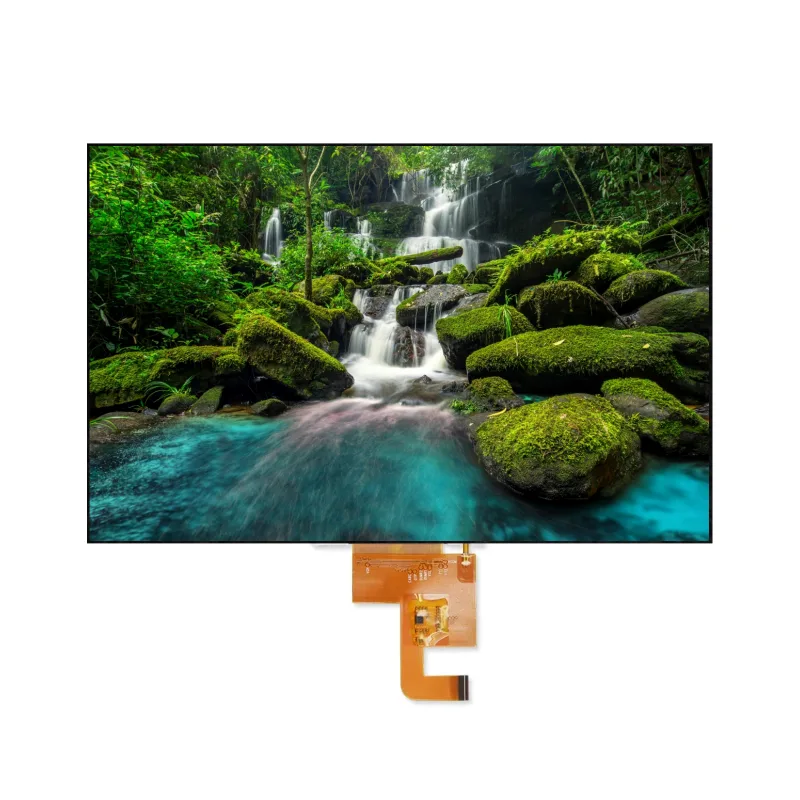

JicTech 15-inch XGA TFT LCD Display Module (Model: JT150Y1N-M10)
Overview
The JT150Y1N-M10 is a high-performance 15-inch TFT LCD module designed for commercial, industrial, and embedded display applications. Featuring XGA resolution (1024×768), 16.7 million colors, and a wide viewing angle, it delivers crisp, vibrant visuals with excellent readability. With its LVDS interface, robust construction, and flexible mounting options, this module is built to integrate seamlessly into a variety of systems and environments.
Key Advantages for Industrial Integration
| Feature | Technical Benefit |
|---|---|
| 1024×768 XGA Resolution | Legacy system compatibility with sharp text rendering |
| Dual-Channel LVDS | EMI-resistant signal transmission (30% noise reduction vs. single-channel) |
| 178°/178° Viewing Angle | Consistent visuals from extreme angles in panel-mount applications |
| Anti-Glare Surface | 25% haze reduction maintains readability under 10,000 lux lighting |
| -20°C to +70°C Operation | Cold-start capability for unheated industrial environments |
| 9.7mm Slim Profile | Fits enclosures with ≤15mm depth requirements |
Key Features
• 15-inch XGA Display: 1024×768 resolution with 16.7M colors (6-bit + FRC)
• High Contrast & Wide Viewing Angle: 1000:1 contrast ratio, up to 89° viewing angle
• LVDS Interface: 1-lane LVDS with DE-only mode for simplified control
• High Reliability: Operating temperature range of -20°C to +70°C, extended storage range
• Long-Life Backlight: LED light bar with 50,000-hour lifespan, PWM dimmable
• Anti-Glare Surface: 3H hardness coating reduces reflections and scratches
• Dual Orientation Support: Compatible with landscape and portrait display modes
• RoHS Compliant: Environmentally friendly design
Technical Specifications
| Parameter | Specification |
|---|---|
| Active Area | 304.13 × 228.10 mm |
| Resolution | 1024 × 768 (XGA) |
| Pixel Pitch | 0.297 × 0.297 mm |
| Panel Type | a-Si TFT, Normally Black |
| Color Depth | 16.7 million (6-bit + FRC) |
| Interface | Dual-channel LVDS |
| Brightness | 315 – 350 cd/m² (typical) |
| Contrast Ratio | 1000 : 1 (typical) |
| Viewing Angle | 178° H / 178° V (ALL) |
| Surface Treatment | Anti-glare (Haze 25%), Hardness 3H |
| Outline Dimensions | 326.5 × 253.5 × 9.7 mm (W × H × T) |
| Power Consumption | 1.5 W (typical) |
| Operating Temp. | –20 °C to +70 °C |
| Storage Temp. | –30 °C to +80 °C |
| RoHS Compliance | Yes |
Technical Specifications
-
Active Area: 304.128mm (H) × 228.096mm (V)
-
Pixel Pitch: 0.099mm (H) × 0.297mm (V)
-
Brightness: 350 nits (typical)
-
Power Consumption: 1.5W (typical), 8.72W (total with backlight)
-
Supply Voltage: 3.3V (logic), 12V (LED backlight)
-
Interface: 20-pin LVDS connector
-
Dimensions: 326.5mm (W) × 253.5mm (H) × 9.7mm (D)
-
Weight: 930g
Applications
-
Commercial digital signage and kiosks
-
Control system terminals and HMI panels
-
Medical and industrial monitoring devices
-
Retail POS systems and information displays
-
Embedded systems and portable equipment
Customization & Support
JicTech offers small-to-medium batch customization to match your project requirements, including:
-
Interface adaptation (LVDS signal matching)
-
Backlight brightness and color temperature tuning
-
Mechanical modifications (bezel, mounting holes, thickness)
-
Firmware and timing adjustments
-
Environmental hardening for extreme conditions
Reliability & Compliance
The module undergoes rigorous reliability testing, including high/low temperature operation, thermal shock, and vibration resistance. It is designed to meet industrial standards and is RoHS compliant, ensuring durability and environmental responsibility.
Why Choose JicTech?
With years of experience in LCD module design and manufacturing, JicTech provides reliable display solutions backed by technical support and flexible customization. Whether you need a standard module or a tailored display component, we are committed to delivering quality, performance, and partnership.
Download Technical Documents
Click here to download this document：FULL SPEC-JT150Y1N-M10
