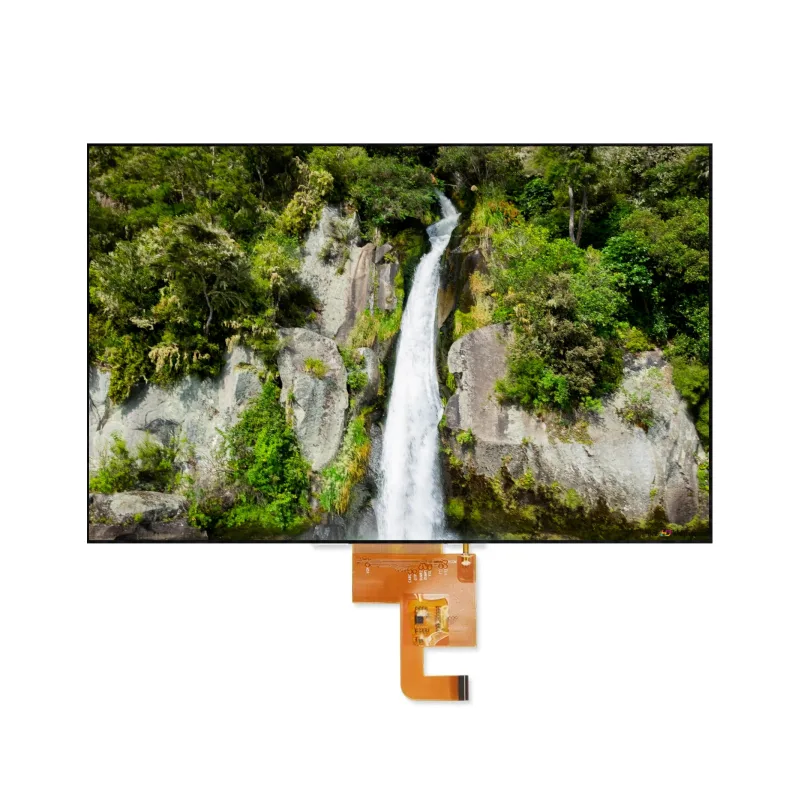

15.6-inch Full HD TFT LCD Display Module with eDP Interface

Overview

This 15.6-inch TFT LCD Display Module delivers a premium visual experience designed for high-performance and versatile integration. Engineered with a Full HD resolution of 1920×1080 pixels and capable of displaying 262,144 colors, it offers crisp, vibrant imagery suitable for a wide range of applications. The module utilizes an amorphous silicon TFT (Thin Film Transistor) active matrix with a normally black display mode and RGB vertical stripe arrangement. Its slim profile, lightweight construction, and embedded eDP interface make it an excellent choice for space-conscious designs requiring reliable, high-speed data transmission.

Key Features

High-Definition Visual Performance: 15.6-inch diagonal active area with FHD (1920 x 1080) resolution and 262K color depth for sharp and vivid image quality.
Advanced Interface: Integrated 2-lane eDP 1.2 interface with a link rate of 2.7 Gbps, ensuring robust and high-speed signal transmission.
Optimized Optical Characteristics: Features a high typical contrast ratio of 800:1, wide viewing angles (85°/85°/85°/85°), and a fast typical response time of 30ms.
Energy Efficient Design: Low power consumption, with typical usage as low as 1.0W (Mosaic Pattern), ideal for portable and battery-operated devices.
Integrated Design: Built-in LED driver and a single lower-down side LED lighting bar simplify backlight system design.
Reliable & Eco-Friendly: Constructed as a Green product compliant with RoHS and Halogen-free standards. Features an on-board EDID chip for plug-and-play compatibility.
Enhanced Durability: Surface features Anti-Glare (AG) treatment to minimize reflection and reduce scratching.

Detailed Specifications

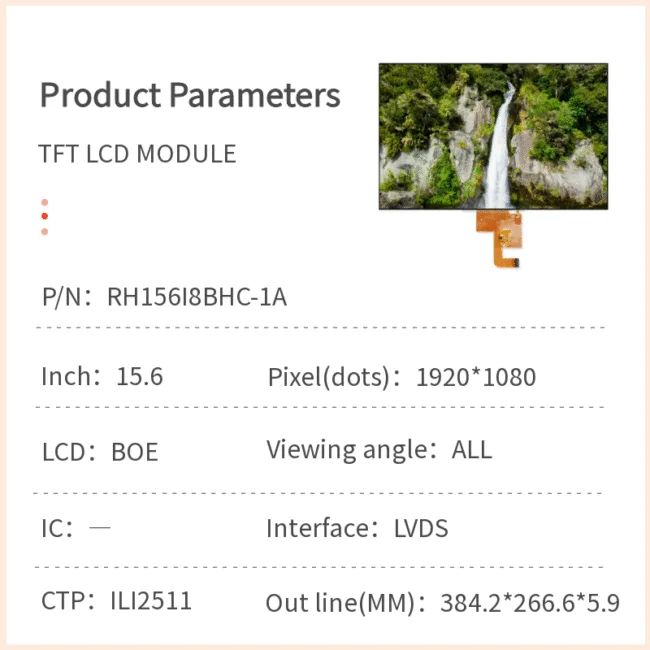

General Specifications

Parameter	Specification
Model Number	RH156I8BHC-1A
Active Area	344.16 (H) × 192.59 (V) mm
Number of Pixels	1920 (H) × 1080 (V) pixels
Pixel Pitch	0.17925 (H) × 0.17925 (V) mm
Display Colors	262,144 colors
Display Mode	Normally Black
Outline Dimensions (W/ PCB)	383.63 (H) × 240.63 (V) × 8.9 (Max) mm
Surface Treatment	Anti-Glare (AG)
Backlight Type	Lower Down Side, 1-LED Lighting Bar
Interface	2-lane eDP 1.2

Electrical Specifications (@ Ta=25±2°C)

Parameter	Min.	Typ.	Max.	Unit
Supply Voltage (VDD)	3.0	3.3	3.6	V
Supply Current (IDD)	–	303	–	mA
Power Consumption	–	1.0	1.8	W

Optical Specifications (@ Ta=25±2°C, VDD=3.3V)

Parameter	Condition	Typ.	Unit
Luminance Contrast Ratio	Θ = 0°	800	–
Viewing Angle (CR>10)	Horizontal (Θ₃, Θ₉)	85	deg
Viewing Angle (CR>10)	Vertical (Θ₁₂, Θ₆)	85	deg
Response Time (Rise+Fall)	–	30	ms
Cross Talk	–	2.0	%

Absolute Maximum Ratings

Parameter	Min.	Max.	Unit
Operating Temperature	0	+50	°C
Storage Temperature	-20	+60	°C

Reliability
The module undergoes stringent reliability testing, including high/low temperature storage & operation, thermal shock, vibration, shock, and ESD tests, ensuring long-term stability in demanding environments.

Application Fields

This versatile TFT LCD Module is perfectly suited for applications requiring a balance of performance, efficiency, and integration ease:

Notebook PCs & Portable Computing Devices
Industrial Human-Machine Interfaces (HMI)
Medical Display Equipment
POS Systems and Kiosks
Embedded Systems and Test & Measurement Equipment
Custom Display Solutions for various OEM/ODM projects

*Note: Specifications are based on the RH156I8BHC-1A product specification sheet (Ver. P1). JicTech reserves the right to make changes without prior notice. For critical applications, please contact our technical support team for the latest documentation and compatibility verification.*
