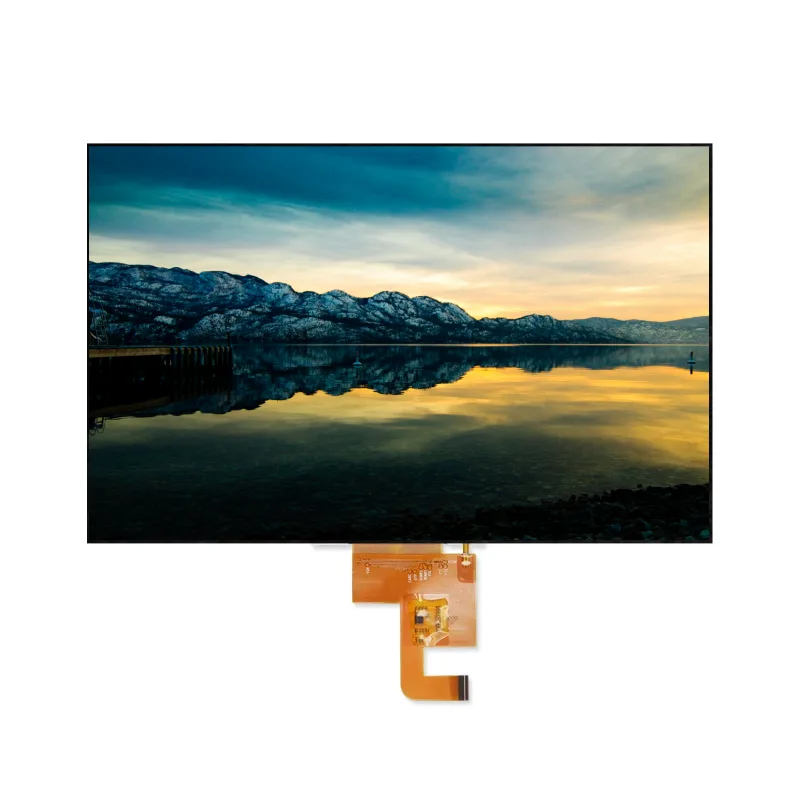

13.3-inch Full HD TFT LCD Display Module for Industrial Applications
Overview
Engineered for resilience and performance in demanding environments, this 13.3-inch TFT LCD Display Module combines high-definition visuals with robust industrial-grade construction. It features a Full HD (1920×1080) resolution with an impressive 16.7 million color depth and 72% NTSC color gamut, delivering vibrant and accurate imagery. The module utilizes a high-brightness LED backlight system and is built to operate reliably across a wide temperature range. Its ultra-slim profile, comprehensive reliability validation, and stable eDP interface make it an ideal, dependable display solution for industrial, medical, and commercial applications requiring long-term stability.
Key Features
-
Industrial-Grade Reliability: Designed and tested for stable operation in demanding conditions, backed by a full suite of environmental stress tests.
-
Premium Visual Performance: 13.3-inch Full HD (1920×1080) display with 16.7M colors and a wide 72% NTSC color gamut for rich, true-to-life images.
-
High Brightness & Durability: Offers high typical luminance of 650 cd/m² and features an anti-glare surface treatment with 3H hardness for protection against scratches and reflections.
-
Robust Interface & Design: Integrated 2-lane eDP 1.2 interface (2.7Gbps) ensures secure, high-speed data transmission. Features an ultra-slim form factor with a typical depth of only 2.7mm.
-
Wide Operating Temperature: Specifically built to perform consistently within a standard operating temperature range of 0°C to 50°C.
-
Extended Reliability Testing: Module undergoes rigorous testing including thermal shock, vibration, shock, and ESD to guarantee longevity and durability in field applications.
Detailed Specifications

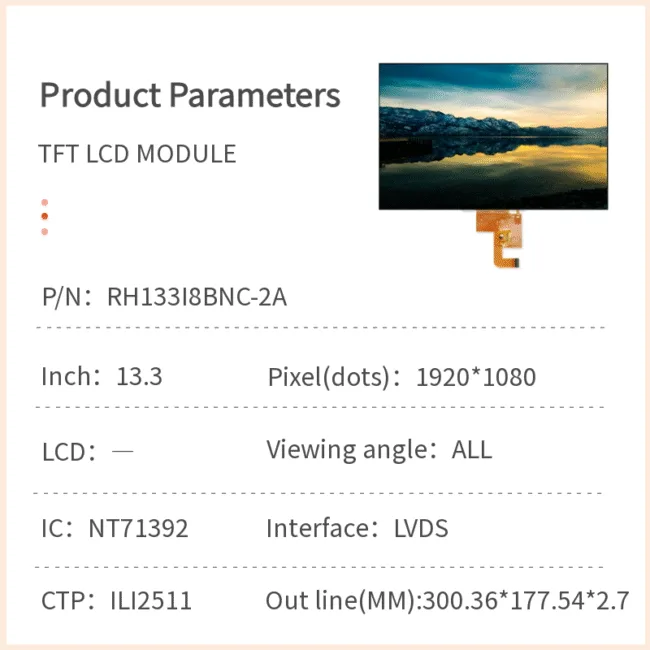

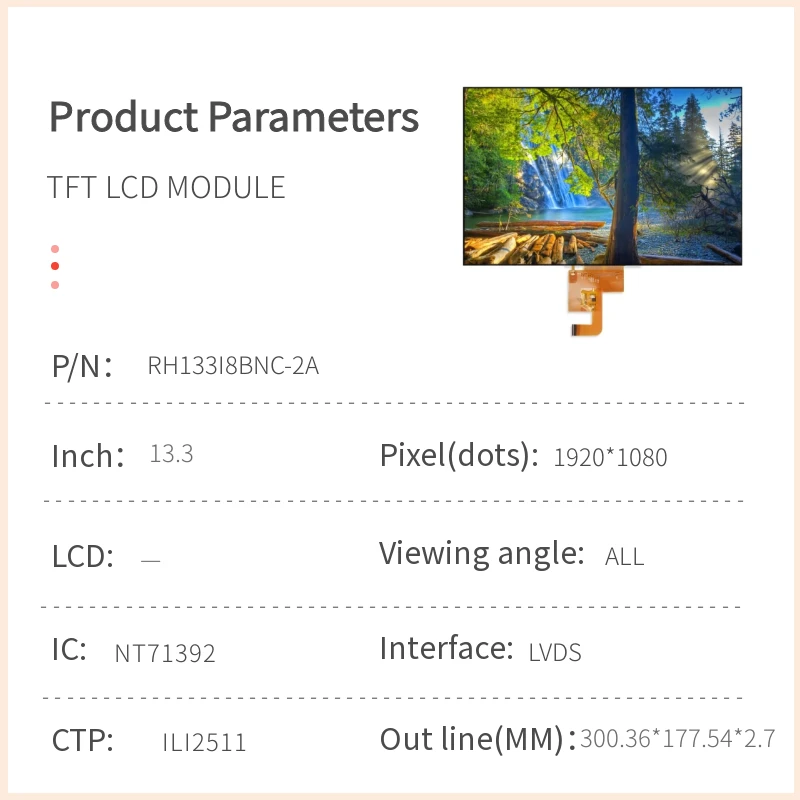

General Specifications
| Parameter | Specification |
|---|---|
| Model Number | RH133I8BNC-2A |
| Active Area | 293.76 (H) × 165.24 (V) mm |
| Number of Pixels | 1920 (H) × 1080 (V) pixels |
| Pixel Pitch | 0.153 (H) × 0.153 (V) mm |
| Display Colors | 16.7 Million colors |
| Color Gamut (NTSC) | 72% (Typical) |
| Display Mode | Normally Black |
| Outline Dimensions (Typ.) | 300.36 (W) × 177.54 (H) × 2.7 (D) mm |
| Surface Treatment | Anti-Glare, 3H Hardness |
Electrical Specifications (@ Ta=25±2°C)
| Parameter | Min. | Typ. | Max. | Unit |
|---|---|---|---|---|
| Logic Supply Voltage (VDD) | 3.0 | 3.3 | 3.6 | V |
| Logic Supply Current (IDD) | – | 189 | – | mA |
| Backlight Supply Voltage (VBL) | – | 24 | – | V |
| Backlight Current (ILED) | – | 260 | – | mA |
| Backlight Power (PLED) | – | 6.24 | – | W |
Optical Specifications (@ Ta=25±2°C, VDD=3.3V)
| Parameter | Condition | Min. | Typ. | Max. | Unit |
|---|---|---|---|---|---|
| Luminance (White) | Center | 560 | 650 | – | cd/m² |
| Contrast Ratio | Center, Θ=0° | 600 | 800 | – | – |
| Viewing Angle (CR>10) | Horizontal (L/R) | – | 85 | – | deg |
| Viewing Angle (CR>10) | Vertical (U/D) | – | 85 | – | deg |
| Response Time (Tr+Td) | – | – | 30 | 35 | ms |
Interface & Timing
| Parameter | Specification |
|---|---|
| Video Interface | 2-lane eDP 1.2, 2.7Gbps |
| Connector | 30-pin I-PEX (20455-030E-76 or compatible) |
| Typical Clock Frequency | 477 MHz |
| Refresh Rate | 60 Hz (Typical, supports 48-65 Hz) |
Environmental & Reliability
| Parameter | Specification |
|---|---|
| Operating Temperature | 0°C to +50°C |
| Storage Temperature | -20°C to +60°C |
| Operating Humidity | Up to 80% RH (Non-condensing) |
| Reliability Tests | High/Low Temp Storage & Operation, Thermal Shock, Vibration, Shock, ESD |
Application Fields
This robust TFT LCD Module is engineered for applications where reliability, clarity, and durability are paramount:
-
Industrial Control Panels (HMI) and Factory Automation
-
Medical Diagnostic Displays and Monitoring Equipment
-
Outdoor Kiosks and Self-Service Terminals
-
Test & Measurement Instruments
-
Transportation Systems and Marine Electronics
-
Custom OEM/ODM Projects requiring medium to high brightness and wide-temperature operation
Note: JicTech offers customization services for this platform, including extended temperature ranges, enhanced EMI shielding, specific connector options, and custom firmware. Specifications are based on the RH133I8BNC-2A product specification sheet (Ver. 01). For critical integration projects or tailored solutions, please consult with our technical engineering team.
Download this product’s technical documentation and specifications.
Click here to download：FULL SPEC-RH133I8BNC-2A
