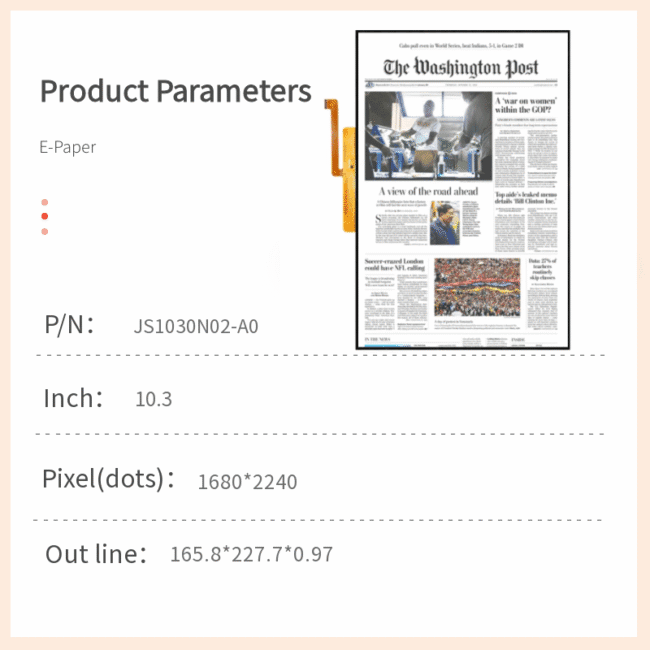

JicTech 10.3-inch High-Resolution E-Paper Display Module (Model: JS1030N02-MNG-A0)
Overview
The JS1030N02-MNG-A0 is a 10.3-inch active matrix electrophoretic display module designed for high-resolution, low-power visual applications. With 1680 × 2240 pixel resolution, support for 2–16 gray levels, and paper-like readability, it is an advanced display solution for e-readers, digital signage, and professional visualization tools.
Key Features
-
10.3-inch Large Format Display: 1680 × 2240 resolution, 209.7mm × 157.3mm active area
-
High Optical Performance: 45% typical white reflectivity, contrast ratio up to 15:1
-
Multi-Gray Level Support: 2 to 16 gray levels (1–4 bit) for detailed images
-
Bi-stable Operation: Zero power consumption to maintain a static image
-
Ultra-Thin Design: Module thickness of only 0.97mm
-
Wide Viewing Angle: Near 180° readability
-
Wide Operating Temperature: 0°C to 50°C
-
Standard Digital Interface: Parallel RGB interface with integrated gate/source drivers
-
Low Update Power: Energy efficient during screen refreshes
-
RoHS Compliant
Technical Specifications
| Specification |
Details |
| Display Type |
E‑Paper (Electrophoretic) |
| Size |
10.3 inch diagonal |
| Resolution |
1680 × 2240 pixels (212 PPI) |
| Color Depth |
Monochrome (2‑grayscale) |
| Interface |
TTL (4‑wire) |
| Active Area |
227.7 mm × 302.9 mm |
| Outline Dimensions |
165.8 mm × 227.7 mm × 0.97 mm |
| Refresh Time |
<1 s (partial), <3 s (full) |
| Viewing Angle |
170° (all directions) |
| Operating Temperature |
–20 °C to +55 °C |
| Storage Temperature |
–30 °C to +70 °C |
| Power Consumption |
Micro‑watt (bistable image retention) |
Technical Specifications
-
Active Area: 157.25mm (W) × 209.664mm (H)
-
Resolution: 1680 (H) × 2240 (V) pixels
-
Pixel Pitch: 0.0936mm × 0.0936mm
-
Gray Levels: 2–16 (1–4 bit)
-
White Reflectivity: 45% typical
-
Contrast Ratio: 15:1 typical
-
Supply Voltages:
-
VDD (Logic): 3.0V to 3.6V (3.3V typical)
-
VGH (Gate High): 27V to 29V
-
VGL (Gate Low): -21V to -19V
-
VPOS (Source High): 14.6V to 15.4V
-
VNEG (Source Low): -15.4V to -14.6V
-
Update Time: 520ms to 960ms at 25°C
-
Operating Temperature: 0°C to 50°C
-
Storage Temperature: -20°C to 70°C
-
Module Dimensions: 165.80mm (W) × 227.70mm (H) × 0.97mm (D)
Applications
-
E-book readers and digital note-taking devices
-
Educational tablets and classroom displays
-
Professional document viewers (technical manuals, legal, academic)
-
Digital signage and information kiosks
-
Industrial control panels and instrumentation
-
Medical report displays and patient information systems
Customization & Support
JicTech provides comprehensive engineering support for integration and customization, including:
-
Custom waveform development for optimized grayscale and update speed
-
Interface adaptation (LVDS, SPI, or custom controller integration)
-
Mechanical redesign (bezel, mounting, FPC routing)
-
Thermal and power management solutions
-
Pre-production testing and environmental validation
-
Driver board design and system-level prototyping support
Reliability & Testing
The module undergoes rigorous environmental and reliability testing to ensure consistent performance:
-
High/low temperature operation and storage tests
-
Thermal shock testing (-25°C to 70°C, 50 cycles)
-
High humidity operation (90% RH at 40°C)
-
Vibration and drop impact testing (packaged)
-
ESD protection per IEC standards
-
Long-term optical performance and endurance testing
Why Choose JicTech?
JicTech combines deep expertise in large-format reflective display technology with a customer-focused approach to customization. We deliver high-performance, energy-efficient E-Paper modules backed by end-to-end technical support, helping you bring innovative and sustainable display products to market with confidence.
Download this product’s technical documentation and specifications.
Click here to download：PULL-SPEC-JS1030N02-A0_V0.1
