1.5‑inch OLED Display Module – 128×128 High Contrast Screen

JicTech 1.5-inch Monochrome OLED Display Module (Model: RJ150-2828KSWKG01-H25 VER B)

Overview

The RJ150-2828KSWKG01-H25 VER B is a high-performance 1.5-inch square OLED module designed for applications demanding high resolution, ultra-high contrast, and reliable operation in a compact form factor. With its 128×128 pixel array, extremely low power consumption, and industrial-grade durability, it serves as an excellent display solution for advanced portable, medical, and industrial devices.

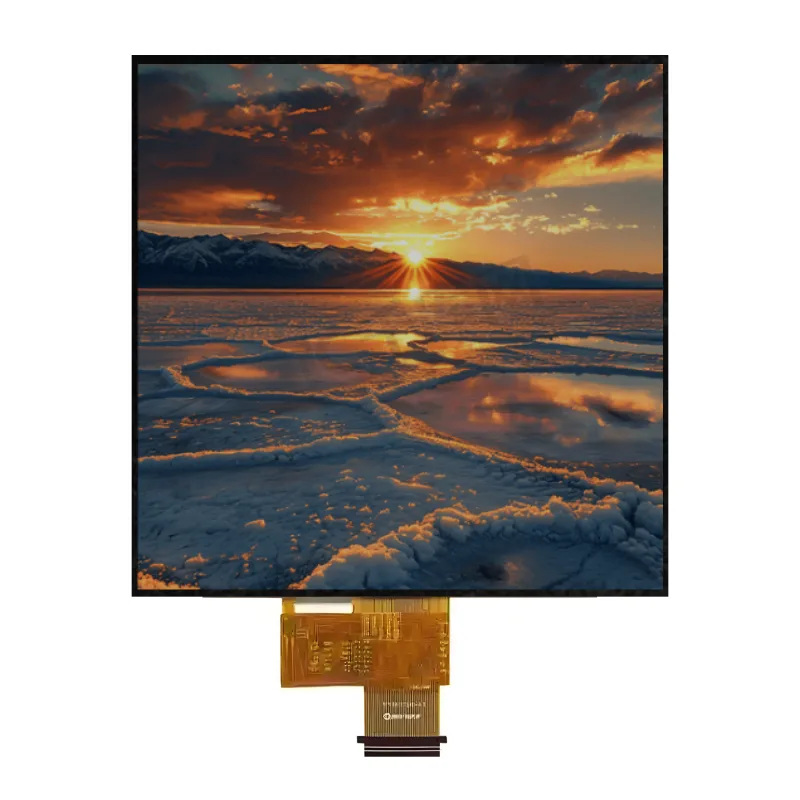

1.5 inch OLED display module 128x128 high contrast screen — 1.5 inch OLED display module 128×128 high contrast screen

Technical Specifications

Display Characteristics
Display Size	1.5 inch
Resolution	128 × 128 pixels
Display Type	Passive Matrix OLED
Display Color	Monochrome (White)
Active Area	26.855 × 26.855 mm
Panel Size	33.9 × 37.3 × 1.44 mm
Pixel Pitch	0.21 × 0.21 mm
Pixel Size	0.185 × 0.185 mm
Drive Duty	1/128

Electrical Characteristics
Logic Supply Voltage (V_DD)	1.65V – 3.5V (Typ. 2.8V)
Panel Supply Voltage (V_CC)	11.5V – 12.5V (Typ. 12.0V)
Operating Current (V_CC)	25mA (Typ.), 32mA (Max.)
Sleep Mode Current (V_CC)	0.5μA (Typ.), 5μA (Max.)
Operating Temperature	-40°C to +70°C
Storage Temperature	-40°C to +85°C

Reliability & Environmental Tests

Test Item	Condition
High Temperature Operation	+70 °C, 240 hrs
Low Temperature Operation	–40 °C, 240 hrs
High Temperature Storage	+85 °C, 240 hrs
Low Temperature Storage	–40 °C, 240 hrs
High Temp. & Humidity	60 °C, 90 % RH, 120 hrs
Thermal Shock	–40 °C ↔ +85 °C, 24 cycles
ESD (Operation)	Air ±8 kV, Contact ±4 kV

Interface Options

Interface Selection

BS1	BS2	Interface Mode
0	1	8-bit 68XX Parallel
1	1	8-bit 80XX Parallel
0	0	4-wire SPI
1	0	I2C

Critical Control Pins

Pin	Symbol	Function
7,8	BS1, BS2	Interface mode selection
11	CS#	Chip select
12	RES#	Reset signal
13	D/C	Data/Command control
10	IREF	Brightness adjustment

Key Features

1.5-inch Square OLED Display: 128×128 resolution with white emission
Ultra-High Contrast Ratio: >10,000:1 for exceptional image clarity
Wide Operating Temperature: -40°C to +70°C
Multi-Interface Support: 4-wire SPI, I²C, 8-bit 68XX/80XX parallel
Ultra-Low Power: Sleep current as low as 0.1µA (VDD), 0.5µA (VCC)
Ultra-Thin Design: Only 1.44mm thick, compact COG package
SH1107 Driver IC: Integrated controller with advanced command set
High Brightness: 100 cd/m² typical
Free Viewing Angle: Excellent visibility from all directions
Industrial Reliability: Qualified under thermal, humidity, and shock tests

Technical Specifications

Display Mode: Passive Matrix
Display Color: Monochrome (White)
Active Area: 26.855mm × 26.855mm
Pixel Pitch: 0.21mm × 0.21mm
Brightness: 100 cd/m² typical
Viewing Angle: Free (wide viewing)
Supply Voltage (Logic): 1.65V to 3.5V (VDD)
Supply Voltage (Panel): 11.5V to 12.5V (VCC)
Interface Options: 8-bit parallel (68XX/80XX), 4-wire SPI, I²C
Operating Temperature: -40°C to +70°C
Storage Temperature: -40°C to +85°C
Dimensions: 33.9mm × 37.3mm × 1.44mm
Module Lifetime: 10,000 hours at 100 cd/m²
FPC Connector: 25 pins

Applications

Wearable devices and smart watches
Portable medical diagnostic equipment
Industrial handheld terminals and scanners
Automotive cluster and secondary displays
High-resolution IoT interfaces and sensors
Consumer electronics and gaming accessories

Customization & Support
JicTech offers tailored solutions for small to medium batch projects, including:

Interface customization (SPI, I²C, parallel)
Firmware development and initialization programming
FPC customization (length, connector type, flexibility)
Brightness and contrast calibration
Mechanical modifications (mounting, bezel, thickness optimization)
Environmental protection (conformal coating, extended temperature testing)

Reliability & Testing
Each module undergoes rigorous environmental and operational tests, including:

High/low temperature operation and storage
Thermal shock testing (-40°C ↔ 85°C)
High temperature/humidity operation (60°C, 90% RH)
Outgoing quality inspection per MIL-STD-105E
Electrical timing and signal integrity validation
