DISPLAYS BUILT FOR DEMANDING INDUSTRIAL ENVIRONMENTS
High-brightness, ruggedized display solutions engineered for harsh conditions
Challenges & Solutions
OVERCOMING INDUSTRIAL DISPLAY CHALLENGES
Industrial Environment Challenges
- Extreme temperature fluctuations
- High humidity and liquid exposure
- Dust and contaminants
- Strong vibrations and shocks
- Direct sunlight and glare
- 24/7 continuous operation requirements
JicTech Solutions
- Wide-temperature operation (-30℃ to 85℃)
- IP65/IP67 protection rating options
- Sealed design and dust-proof treatment
- Vibration and shock-resistant structure
- High brightness (1000-2500 nits) and anti-glare treatment
- Long-life backlight and component selection
Core Technical Advantages
Engineered for Industrial Excellence
Superior Optical Performance
- High brightness display (clearly visible in sunlight)
- Wide viewing angle technology (IPS/FFS)
- High contrast and color reproduction
- Anti-glare and anti-reflective coatings
Mechanical & Environmental Robustness
- Robust metal frame and strengthened glass
- Wide temperature operation and storage capability
- Moisture and corrosion resistance treatment
- EMC/EMI interference resistance design
Long-term Reliability & Lifespan
- Industrial-grade component selection
- Long-life LED backlight (70,000 hours)
- 7×24 continuous operation capability
- Low power consumption design

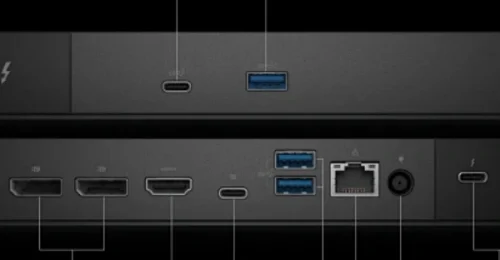

Connectivity & Interface Compatibility
- Industrial standard interfaces (LVDS, eDP, MIPI)
- Interference-resistant connector design
- Multiple touchscreen options (resistive, capacitive, infrared)
- Customized interface and wiring solutions
Industry Application Cases

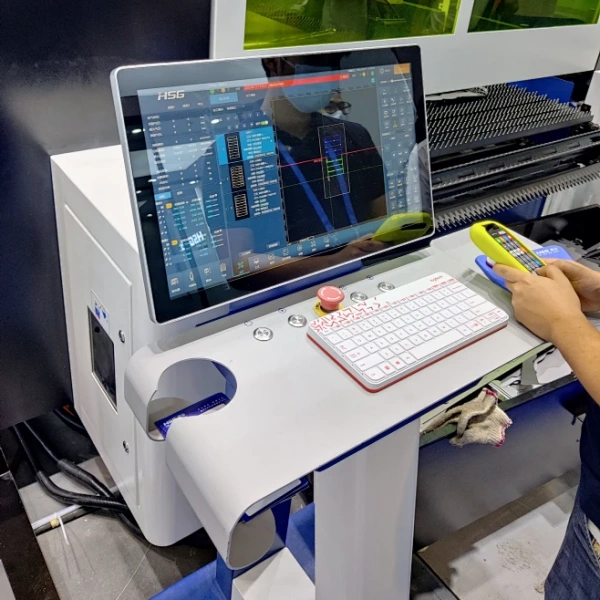

Smart Manufacturing Production Line Control Console
Challenge Requirements:
- 24/7 continuous operation
- Dust pollution in factory environment
- Glove-wearing operator interaction
- Multiple data interface display
JicTech Solution:
- 15.6-inch high-brightness TFT LCD
- Projected capacitive touchscreen (glove touch support)
- IP65 front protection panel
- Wide temperature working range (-20℃ to 70℃)
- Customized UI interface matching
Customer Benefits:
- Enhanced production line visualization
- Reduced downtime due to display failure
- Improved operational efficiency by 15%

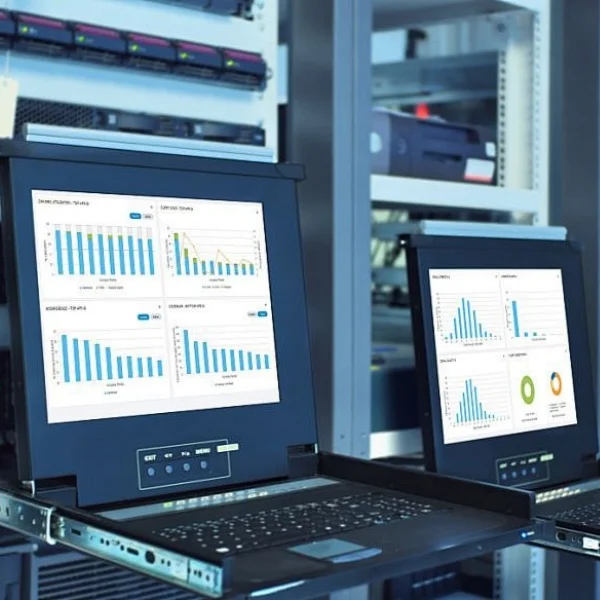

Substation Monitoring Terminal
Challenge Requirements:
- Extreme temperature difference environment (-30℃ to +60℃)
- Direct strong sunlight exposure
- Water and dust protection requirements
- Long lifespan with minimal maintenance
JicTech Solution:
- 10.1-inch high brightness (1500 nits) sunlight-readable display
- Full lamination technology to reduce glare
- IP67 protection rating
- Wide-temperature LCD and backlight version
- Strengthened glass surface (9H hardness)
Customer Benefits:
- Achieved reliable outdoor all-weather display
- Reduced maintenance frequency and costs
- Significantly improved data readability

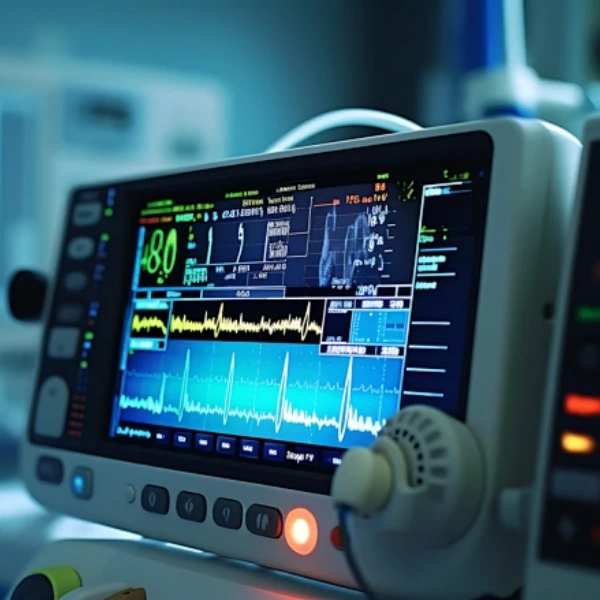

Mobile Medical Diagnostic Equipment
Challenge Requirements:
- Frequent disinfection and cleaning
- High color accuracy requirements
- Medical safety certification
- Compact space design
JicTech Solution:
- 8-inch medical-grade TFT LCD
- Fully flat design for easy cleaning
- High color gamut (72% NTSC) for accurate display
- Medical EMC/EMI standard compliance
- Custom ultra-thin bezel design
Customer Benefits:
- Meets strict medical equipment standards
- Improves diagnostic image display quality
- Optimizes overall equipment design

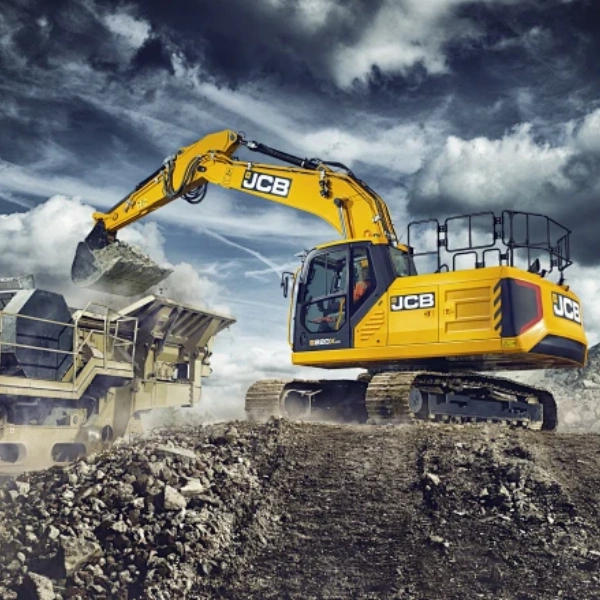

Excavator Intelligent Control Screen
Challenge Requirements:
- Strong vibration environment
- Large temperature variations
- Water and oil resistance
- Clear visibility in sunlight
JicTech Solution:
- 12.1-inch ruggedized TFT display module
- Anti-vibration structural design
- Optical bonding technology
- Oil-resistant surface treatment
- 1000-nit high brightness backlight
Customer Benefits:
- Stable operation in harsh environments
- Improves operational safety and efficiency
- Reduces equipment failure rate

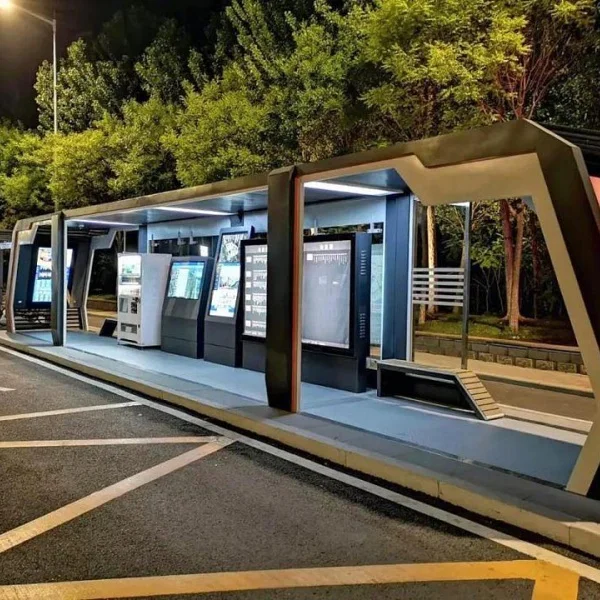

Urban Smart Bus Stop Display
Challenge Requirements:
- Outdoor all-weather operation
- Wide viewing angle visibility
- Low power consumption requirements
- Vandal-proof design
JicTech Solution:
- 21.5-inch high brightness outdoor TFT
- IPS wide viewing angle technology (178°)
- Low power backlight and driver design
- Tempered glass surface (scratch-resistant)
- Wide temperature working range (-20℃ to +70℃)
Customer Benefits:
- Enhances urban informatization level
- Reduces operation and maintenance costs
- Improves public transportation service quality
- Reliable all-weather operation
Customization Capabilities
Tailored to Your Specific Requirements
Size & Form Factor Customization
- Size range: 1.8-inch to 21.5-inch
- Aspect ratios: 4:3, 5:4, 16:9, 16:10, etc.
- Custom cutting and special shapes
Optical Performance Customization
- Brightness levels: 300-2500 nits
- Temperature range: Standard/Wide/Ultra-wide
- Viewing angle types: TN/IPS/FFS
- Color gamut range: 45%-100% NTSC
Touch & Interaction Customization
- Touch technologies: Resistive/Capacitive/Infrared
- Surface treatments: Anti-glare/Anti-fingerprint/Strengthened glass
- Glove touch/Multi-touch
Electrical & Interface Customization
- Power input: 5V/12V/24V, etc.
- Signal interfaces: LVDS, eDP, MIPI, RGB
- Controller board integration
Mechanical & Environmental Customization
- Protection rating: IP54/IP65/IP67
- Reinforced frame and mounting methods
- Special environment adaptation (UV resistant, chemical corrosion resistant, etc.)
Customization Process Visualization
- 01Requirements Analysis
- 02Solution Design
- 03Prototype Development
- 04Testing & Validation
- 05Small-batch Trial Production
- 06Mass Production
Quality Certification & Manufacturing Capability
Built with Certified Excellence
ISO 9001:2015
ISO 9001:2015 Quality Management System Certification
ISO 14001:2015
ISO 14001:2015 Environmental Management System Certification
IATF 16949:2016
IATF 16949:2016 Automotive Quality Management System Certification
Start customizing your industrial display modules
We support small-batch custom projects with flexible minimum order quantities to meet R&D trial production and small-to-medium batch requirements.
